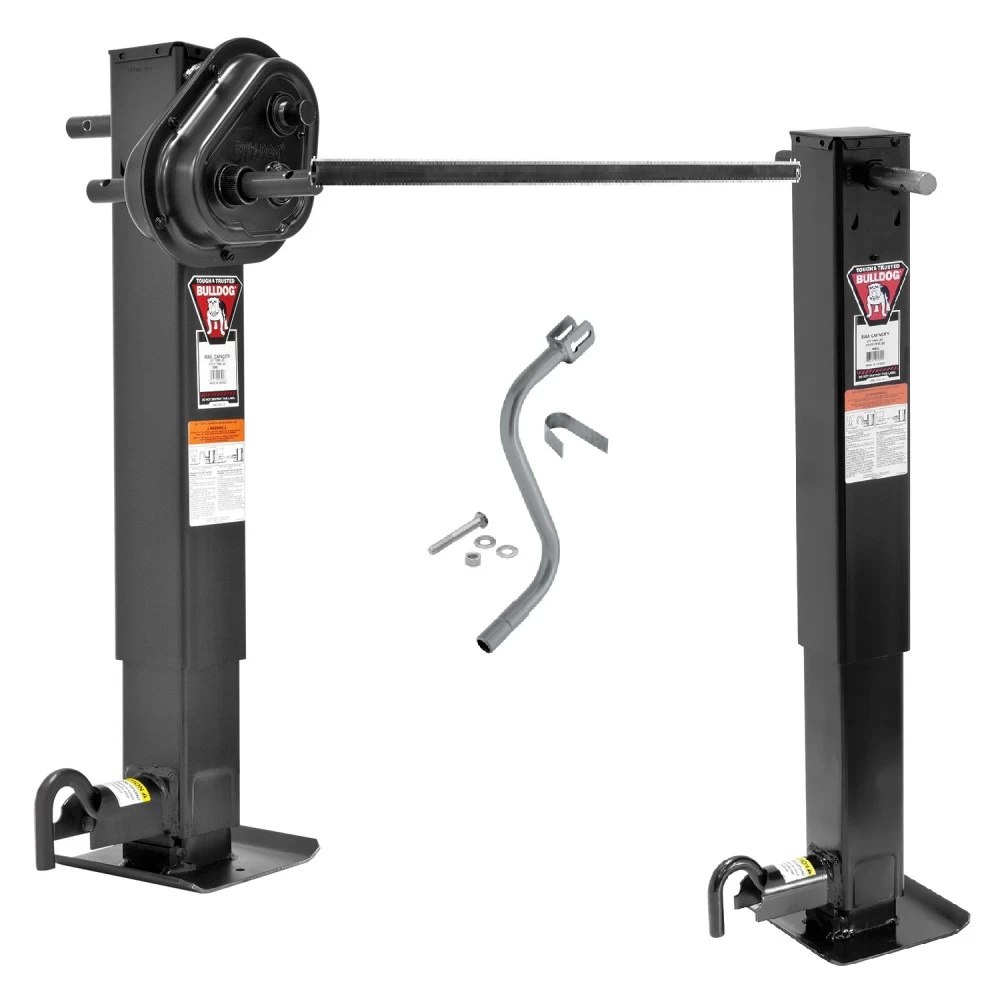

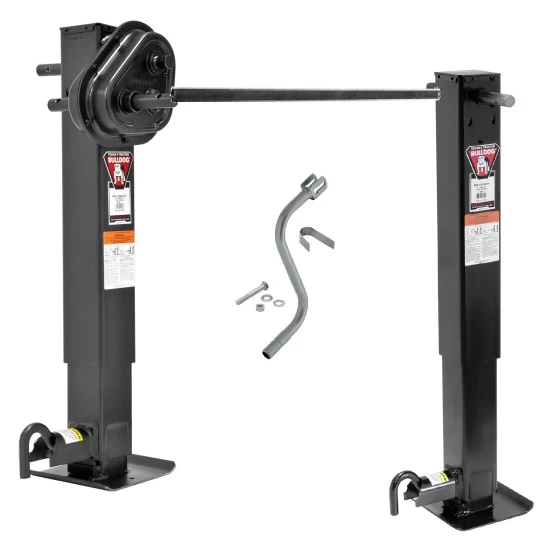

Bulldog Tandem 2‑Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift w/ Crank and Cross Shaft
Model: 183903 182815 CS730300 14009203832-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.
What's Included:Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift
Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Spring Return
Crank Handle
73" Cross Shaft (Can be cut torequired length)
BULLDOG’s 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting traditional gearbox 29 turns per 1" of travel. In high gear, the cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.
-
State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads
-
Designed for today’s standard agricultural, construction and industrial trailer applications.
-
User friendly design makes operation smooth and easy
-
Drop Leg increases overall extension
-
Engineered alloys for enhanced strength, stability and sideload capability
-
Painted outer tube, inner tube, and drop leg.
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Height: 29.5"
-
Extended Height: 55.6"
-
Travel/Lift: 12.5"
-
Spring Return Drop Leg allows 13.5” of additional adjustment
-
Standard disc foot included
-
Drop Leg Pull Pin is on the front
-
4" Tubing width
This Jack can be paired with the Bulldog 2-Speed Electric Powered Drive Motor Kit, please use part number 1824180100. This is a 2-Speed Motor Kit.
$699 99 $900.00 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$900.00 $699 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $174.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 183903 182815 CS730300 1400920383
- Includes: 24K 2-Speed Landing Gear Jacks
Get Expert Help
Bulldog Tandem 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift w/ Crank and Cross Shaft Install Notes
Installation Instructions for 12,000 lb. Square Tube Jack
General Installation Notes:
- Read and follow all instructions carefully before installation or use.
- Do not modify or alter the product in any way.
- Never place any part of the body under the jack or the load it supports.
- Fully retract and/or rotate the jack before towing.
- Ensure the drop leg pin is fully inserted before using the jack.
- Keep children away from the jack and the load it supports.
- Secure the load and block the wheels to prevent rolling during operation.
- The jack is designed for vertical loading only; avoid excessive side forces that may lead to jack failure.
- Replace any bent, broken, or worn parts before use.
- All welding must be performed by an AWS-certified welder.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- Welding must be performed by an AWS-certified welder.
- Place three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface. Space the welds as far apart as possible for maximum load strength.
- For tandem applications, align the jacks carefully to ensure they raise and lower together while equally sharing the load.
Weld-On Pivot Tube Mounting:
- Weld the non-beveled side of the pivot tube to the trailer tongue using a 1/4” fillet weld.
- Align the pivot mount holes vertically and secure the jack to the pivot tube with the supplied pin.
Drop Leg Operation:
Spring Return Drop Leg:
- Ensure the jack is not supporting any load.
- Place your foot on the footplate to control the return of the drop leg.
- Rotate the drop leg pin to disengage it, then carefully move the leg to the desired position.
- Re-engage the drop leg pin and ensure it is fully seated without clearance.
Non-Spring Return Drop Leg:
- Ensure the jack is not supporting any load.
- Grasp the handle of the footplate to control the drop leg's descent.
- Rotate the drop leg pin to disengage it, then move the leg to the desired position.
- Re-engage the drop leg pin and verify it is fully seated without clearance.
Maintenance:
- Lubricate the gears, bushings, and screw annually with automotive grease.
- For side-wind models, use a grease gun at the lubrication points near the input shaft.
- Apply lightweight oil to the input shaft bushings and drop leg pin assembly.
- Keep all components clean and free from debris.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Keep clear of pinch points during operation.
- Never adjust the drop leg while the jack is under load.
Limited Warranty:
- Coverage: 5 years against material defects in workmanship under normal use.
- Exclusions: Wear and tear, misuse, overloading, improper installation, and modifications.
- For complete warranty instructions, please download the full installation PDF.
Contact Information:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
