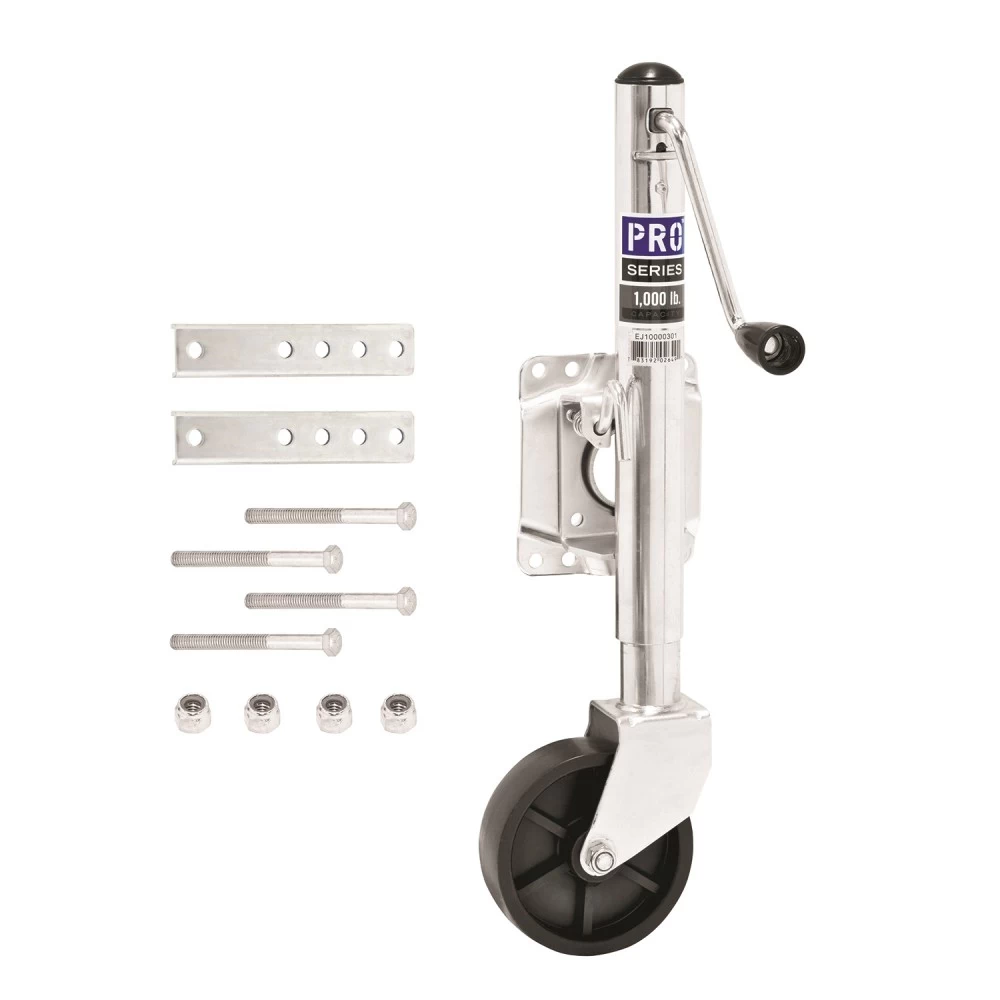

Pro Series Snap Ring Swivel Trailer Jack 1,000 lbs w/ 6" Caster Wheel 10" Lift Bolt-On
Model: EJ10000301Designed for use with marine and utility trailers, Pro Series brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Pro Series brand Snap Ring swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.
- Fits: 3"x3", 3"x4", and 3"x5" trailer frames
- Lift Capacity 1,000 lbs
- Retracted Bracket Height: 13" from bracket to bottom
- Travel/Lift: 10"
- Extended Bracket Height: 23"
- Clearance: 11" from bracket to top
- Wheel size: 6" diameter
- Spring loaded Pull pin diameter: 3/8"
- Finish: 100 Hr. Clear Zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others
$57 09 $70.63 19% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$70.63 $57 09
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: EJ10000301
- UPC: 783192026491
- Includes: Snap Ring Swivel Jack
| Default | |
| Brand | Pro Series |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Style | Bolt-On/Weld-On |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 1000 LB Static Capacity |
| Jack Lifting Load Capacity | 1000 LB Lift Capacity |
| Jack Foot Type | 6 Inch Wheel |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 13 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 23 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 11 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 13.0 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 23.0 Inch |
| Exact Bracket-to-Top Clearance | 11.0 Inch |
| Pull Pin Diameter | 3/8" |
| Inner Tubing Diameter | 2 Inch Inner Tube |
Ask a Question about Pro Series Snap Ring Swivel Trailer Jack 1,000 lbs w/ 6" Caster Wheel 10" Lift Bolt-On
Be the first to ask a question.
Description
Designed for use with marine and utility trailers, Pro Series brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Pro Series brand Snap Ring swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.
- Fits: 3"x3", 3"x4", and 3"x5" trailer frames
- Lift Capacity 1,000 lbs
- Retracted Bracket Height: 13" from bracket to bottom
- Travel/Lift: 10"
- Extended Bracket Height: 23"
- Clearance: 11" from bracket to top
- Wheel size: 6" diameter
- Spring loaded Pull pin diameter: 3/8"
- Finish: 100 Hr. Clear Zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others
