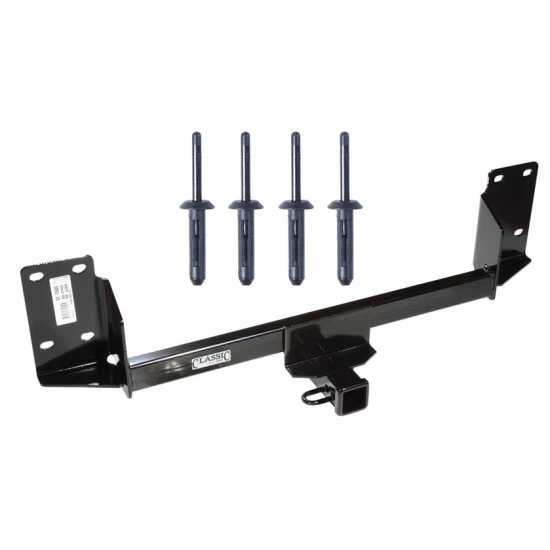

Installation Instructions for BMW X5
(Fascia trim required. Obtain owner’s approval before cutting.)

Part Numbers:

• 87455
• 75600
• 44590

Tools Required:

• Wrenches: 10mm, 18mm Deep Socket
• Utility Knife
• Small Center Punch
• 5/32” Rivet Tool

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Remove Rear Bumper Fascia:

   • Disconnect the back-up sensor wiring if present.
   • Remove the following:

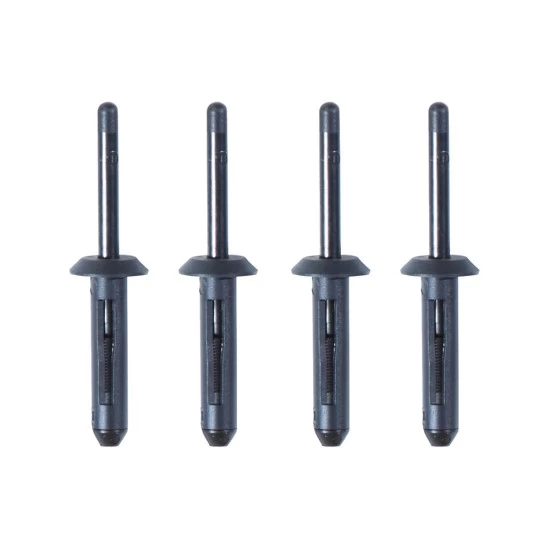

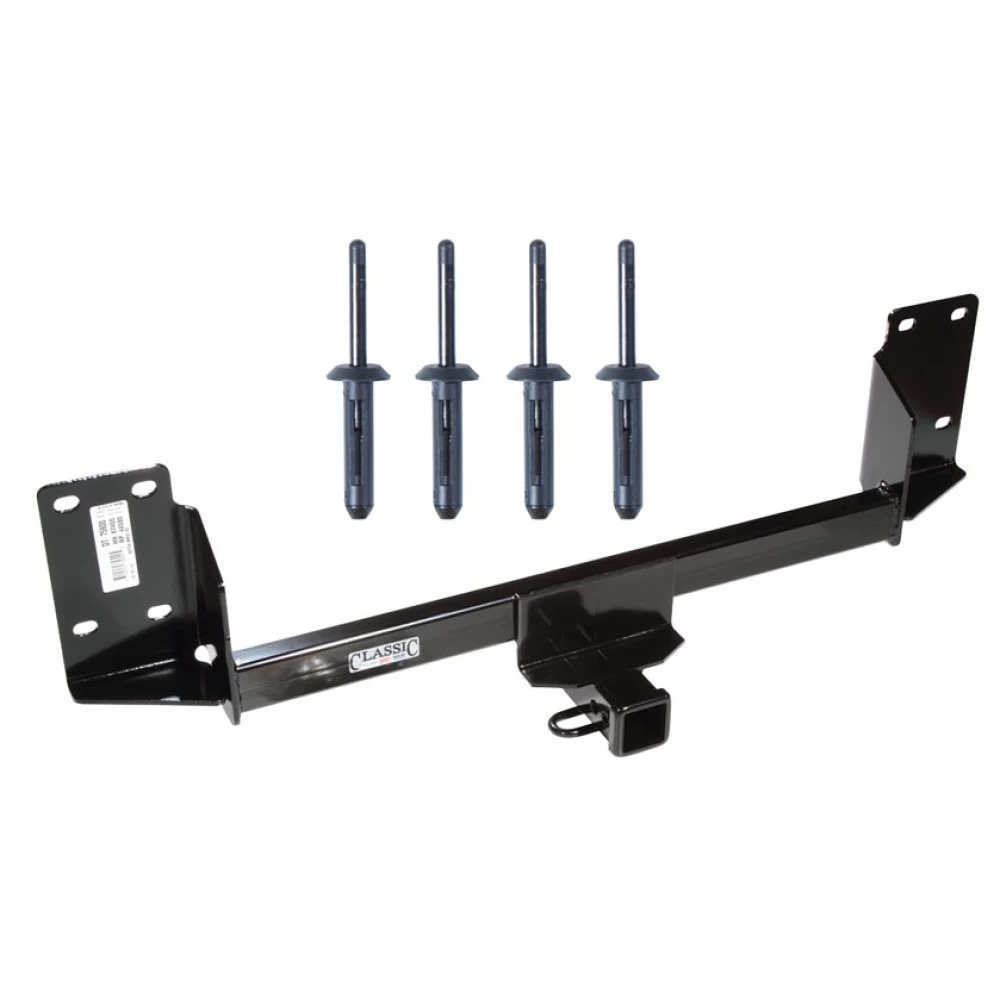

     • (2) Plastic pop rivets (each side) from the wheel well molding. Rivets cannot be reused; replacements are provided.
     • Screws behind reflectors (one per side).
     • (6) Screws from the bottom of the fascia.
   • Gently pull back the wheel well molding to access and remove the screws securing the fascia.
   • Detach the reflectors by releasing the clip holding them in place.
   • Remove the retaining tabs under the light if necessary.

2. Remove Impact Bar:

   • Use an 18mm deep socket to detach the impact bar.
   • Lower the tailgate to access the upper mounting fasteners.

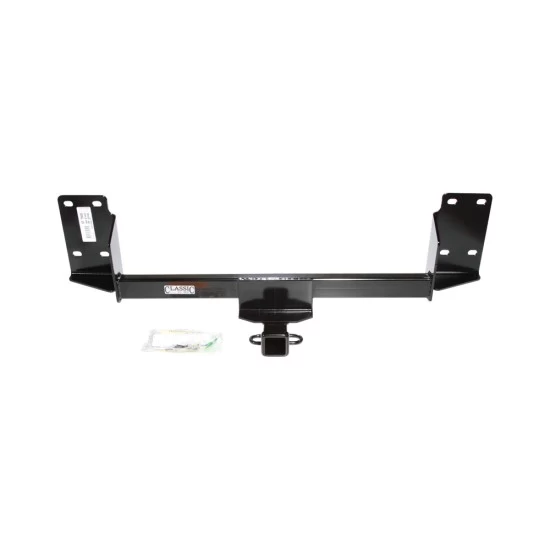

3. Position the Hitch:

   • Raise the hitch into position under the vehicle frame.
   • Reinstall the impact bar over the hitch brackets, securing with the existing flange nuts.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 65 lb-ft (88 N·m).

5. Trim Fascia:

   • Locate the bottom center of the fascia.
   • Mark and trim a rectangle measuring 8” wide x 2” high using a utility knife.
   • Obtain the vehicle owner’s approval before cutting.

6. Reattach Fascia:

   • Reinstall the bumper fascia.
   • Reconnect wiring.

Hardware List:

• (6) Replacement Plastic Rivets (provided)
• (8) Existing Flange Nuts (from the vehicle)

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicles (Generic)
(Fascia trim required. Obtain owner’s approval before cutting.)

Part Numbers:

• 87455
• 75600
• 44590

Tools Required:

• Wrenches: 10mm, 18mm Deep Socket
• Utility Knife
• Small Center Punch
• 5/32” Rivet Tool

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Remove Rear Bumper Fascia:

   • Disconnect the back-up sensor wiring if present.
   • Remove the following:
     • (2) Plastic pop rivets (each side) from the wheel well molding. Rivets cannot be reused; replacements are provided.
     • Screws behind reflectors (one per side).
     • (6) Screws from the bottom of the fascia.
   • Gently pull back the wheel well molding to access and remove the screws securing the fascia.
   • Detach the reflectors by releasing the clip holding them in place.
   • Remove the retaining tabs under the light if necessary.

2. Remove Impact Bar:

   • Use an 18mm deep socket to detach the impact bar.
   • Lower the tailgate to access the upper mounting fasteners.

3. Position the Hitch:

   • Raise the hitch into position under the vehicle frame.
   • Reinstall the impact bar over the hitch brackets, securing with the existing flange nuts.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 65 lb-ft (88 N·m).

5. Trim Fascia:

   • Locate the bottom center of the fascia.
   • Mark and trim a rectangle measuring 8” wide x 2” high using a utility knife.
   • Obtain the vehicle owner’s approval before cutting.

6. Reattach Fascia:

   • Reinstall the bumper fascia.
   • Reconnect wiring.

Hardware List:

• (6) Replacement Plastic Rivets (provided)
• (8) Existing Flange Nuts (from the vehicle)

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
