Installation Instructions for Ford Focus Sedan, Ford Focus 5 DR – ZX5 (Hatchback), and Ford Focus 3 DR – ZX3 (Hatchback)

Part Numbers:

• 77114
• 24692
• 60870

Wiring Access Location:

• Sedan: PC3, PC4
• Hatchback: PC1, PC2

Tools Required:

• Drill Bits: 1/2"
• Wrenches: 3/4", 7/8"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

General Instructions:

1. Raise Hitch Into Position:

   • Position the hitch so that the driver’s side bracket is inboard of the tie-down hook and the passenger’s side bracket is outboard of the tie-down hook.
   • The placement of the block with two holes varies by model (see Figure 1).

2. Install Carriage Bolts and Blocks:

   • Insert the bolts and blocks through the vehicle’s tie-down hooks. Loosely install flat washers and hex nuts.

Sedan Models:

3. Fishwire Carriage Bolt:

   • Use the fishwire to guide the carriage bolt and block through the end of the frame rail into the existing hole in the frame.

4. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

Hatchback Models:

3. Drill Holes:

   • Use the hitch as a template to drill a 1/2” hole at the forward-most end of the slot in the side bracket on the passenger side.

4. Fishwire Carriage Bolt:

   • Guide the carriage bolt and block through the access hole on the bottom of the frame rail.

5. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

6. Tighten Fasteners:

   • Use a torque wrench to tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).

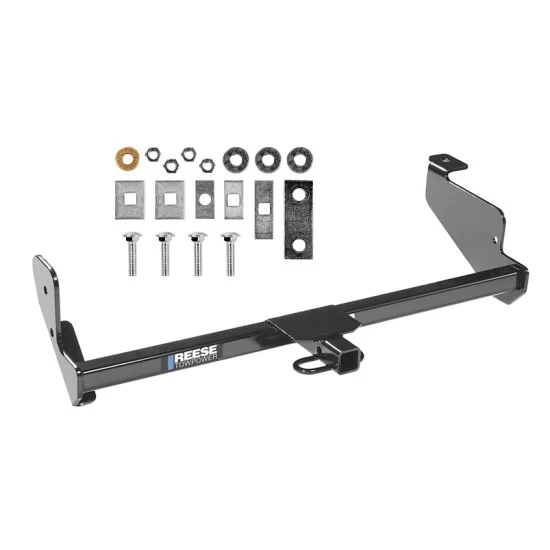

Hardware List:

• (4) 1/2”-13 x 2.00 GR5 Carriage Bolts
• (1) .188” x 1.00” x 2.00” Block
• (1) .25” x 1.50” x 4.00” Block
• (2) .25” x 1.50” x 2.00” Blocks
• (1) .25” x 1.00” x 3.00” Block
• (1) .25” x 1.00” x 2.00” Block
• (3) Flat Washers: 1/2"
• (1) Conical Washer: 1/2"
• (1) 1/2”-13 Hex Nut
• (3) 1/2”-13 Lock Nuts

Drawbar:

• Drawbar Kit: 3593
  • Must be used in the rise position only.

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Does not fit models with the Street Appearance Package.

Installation Instructions for Ford Focus Sedan, Ford Focus 5 DR – ZX5 (Hatchback), and Ford Focus 3 DR – ZX3 (Hatchback)

Part Numbers:

• 77114
• 24692
• 60870

Wiring Access Location:

• Sedan: PC3, PC4
• Hatchback: PC1, PC2

Tools Required:

• Drill Bits: 1/2"
• Wrenches: 3/4", 7/8"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

General Instructions:

1. Raise Hitch Into Position:

   • Position the hitch so that the driver’s side bracket is inboard of the tie-down hook and the passenger’s side bracket is outboard of the tie-down hook.
   • The placement of the block with two holes varies by model (see Figure 1).

2. Install Carriage Bolts and Blocks:

   • Insert the bolts and blocks through the vehicle’s tie-down hooks. Loosely install flat washers and hex nuts.

Sedan Models:

3. Fishwire Carriage Bolt:

   • Use the fishwire to guide the carriage bolt and block through the end of the frame rail into the existing hole in the frame.

4. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

Hatchback Models:

3. Drill Holes:

   • Use the hitch as a template to drill a 1/2” hole at the forward-most end of the slot in the side bracket on the passenger side.

4. Fishwire Carriage Bolt:

   • Guide the carriage bolt and block through the access hole on the bottom of the frame rail.

5. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

6. Tighten Fasteners:

   • Use a torque wrench to tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (4) 1/2”-13 x 2.00 GR5 Carriage Bolts
• (1) .188” x 1.00” x 2.00” Block
• (1) .25” x 1.50” x 4.00” Block
• (2) .25” x 1.50” x 2.00” Blocks
• (1) .25” x 1.00” x 3.00” Block
• (1) .25” x 1.00” x 2.00” Block
• (3) Flat Washers: 1/2"
• (1) Conical Washer: 1/2"
• (1) 1/2”-13 Hex Nut
• (3) 1/2”-13 Lock Nuts

Drawbar:

• Drawbar Kit: 3593
  • Must be used in the rise position only.

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Does not fit models with the Street Appearance Package.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24692 Rev. A 6/25/2014
