Reese Trailer Tow Hitch For 00‑16 Chevrolet Chevy Impala 1 1/4" Receiver w/ Draw Bar Kit

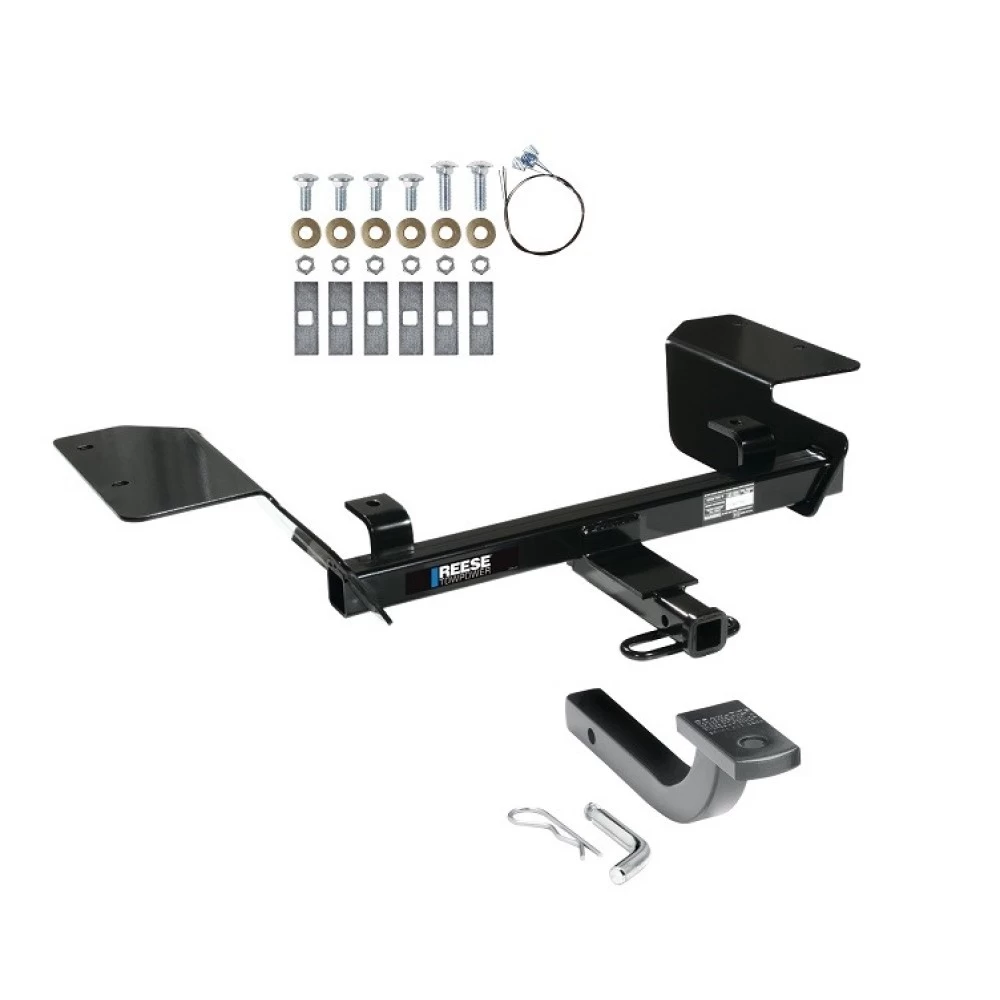

Model: 06389 36061Includes Everything Pictured:

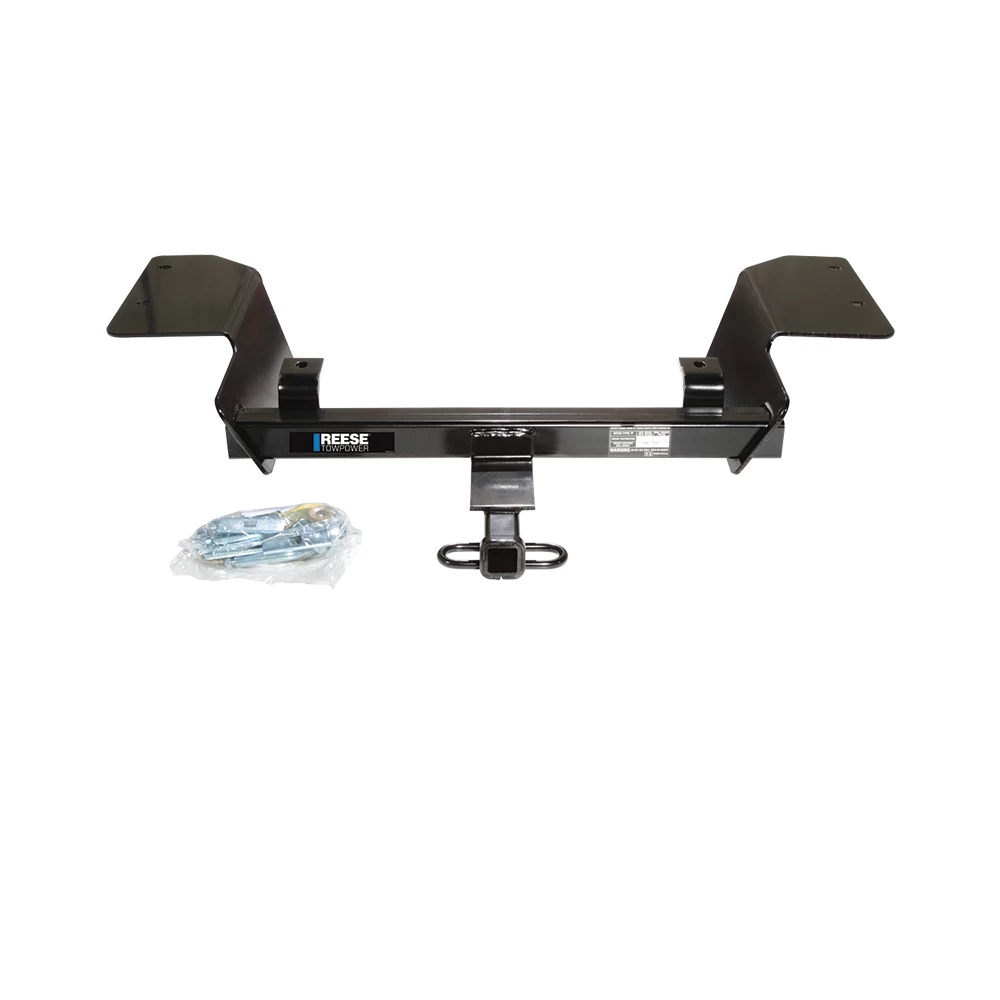

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2000 - 2013 Chevrolet, Impala, All Styles
2014 - 2016 Chevrolet Impala Limited
Trailer Hitch Specs:
| Part Number | 06389 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |

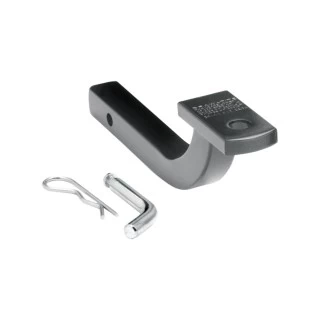

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Rise | 3-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
$293 48 $464.70 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$464.70 $293 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $73.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06389 36061
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
Reese Trailer Tow Hitch For 00-16 Chevrolet Chevy Impala 1 1/4" Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Chevrolet Impala
Part Numbers:
- 36407
- 06389
- 90137
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrench: 3/4"
- Drill Bits: None
- Pull Wire (provided)
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove rubber hangers from hanger brackets to lower the exhaust.
- If the vehicle has dual exhaust, lower both sides.
-
Insert Fasteners into Frame Rails:
- Fishwire 1/2"-13 x 1 1/4" carriage bolts and blocks through the access slots in the vehicle's frame rail and align them with the holes, on both sides.
-
Insert Fasteners into Cross Member:
- Fishwire 1/2"-13 x 1 3/4" carriage bolts and blocks through the access holes in the cross member and down through the corresponding holes in the cross member.
-
Install Hitch:
- Raise the hitch into position.
- Secure the hitch using conical toothed washers and hex nuts as shown in the diagrams.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 Grade 5 fasteners to 75 ft-lb (102 N*m).

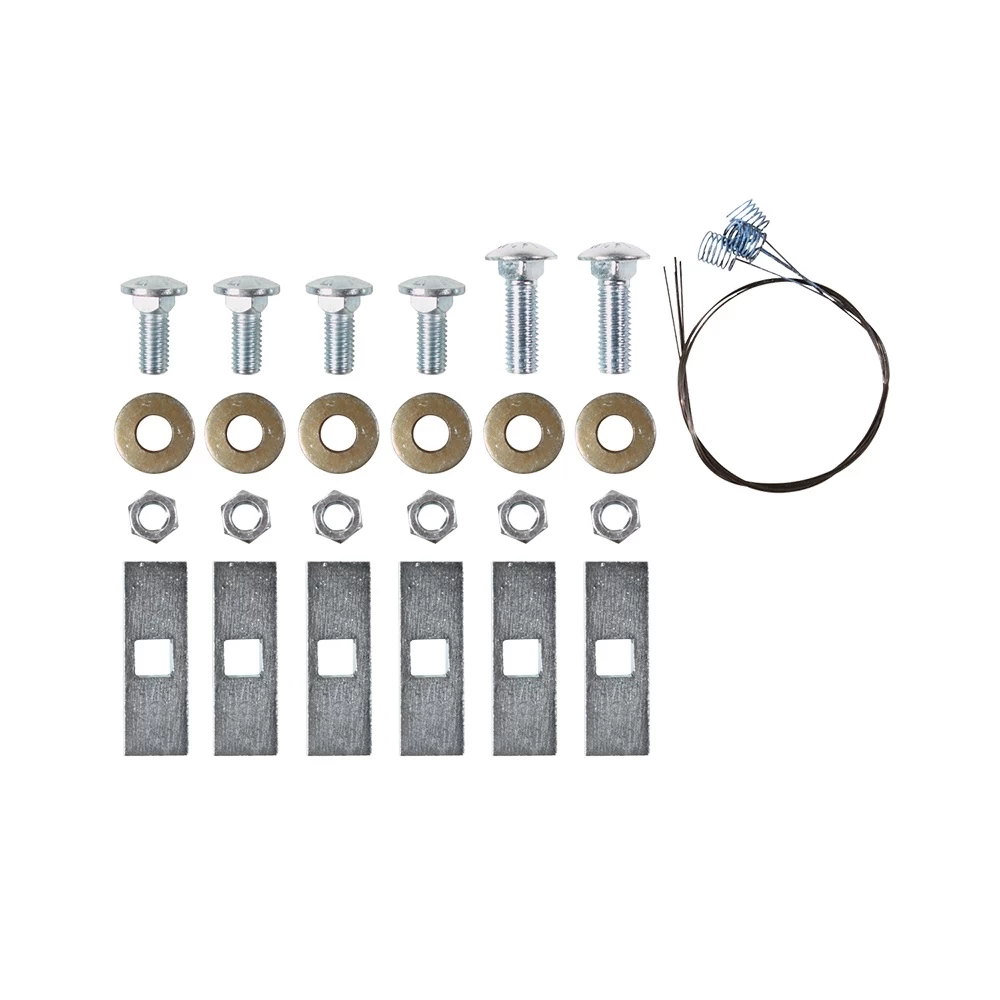

Hardware List:
- (4) Carriage Bolt, 1/2"-13 x 1 1/4"
- (2) Carriage Bolt, 1/2"-13 x 1 3/4"
- (6) Block, 1/4" x 1" x 3"
- (6) Conical Toothed Washer, 1/2"
- (6) Hex Nut, 1/2"-13
- (4) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36407F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Chevrolet Impala
Part Numbers:
- 36407
- 06389
- 90137
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrench: 3/4"
- Drill Bits: None
- Pull Wire (provided)
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove rubber hangers from hanger brackets to lower the exhaust.
- If the vehicle has dual exhaust, lower both sides.
-
Insert Fasteners into Frame Rails:
- Fishwire 1/2"-13 x 1 1/4" carriage bolts and blocks through the access slots in the vehicle's frame rail and align them with the holes, on both sides.
-
Insert Fasteners into Cross Member:
- Fishwire 1/2"-13 x 1 3/4" carriage bolts and blocks through the access holes in the cross member and down through the corresponding holes in the cross member.
-
Install Hitch:
- Raise the hitch into position.
- Secure the hitch using conical toothed washers and hex nuts as shown in the diagrams.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 Grade 5 fasteners to 75 ft-lb (102 N*m).
Hardware List:
- (4) Carriage Bolt, 1/2"-13 x 1 1/4"
- (2) Carriage Bolt, 1/2"-13 x 1 3/4"
- (6) Block, 1/4" x 1" x 3"
- (6) Conical Toothed Washer, 1/2"
- (6) Hex Nut, 1/2"-13
- (4) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36407F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
