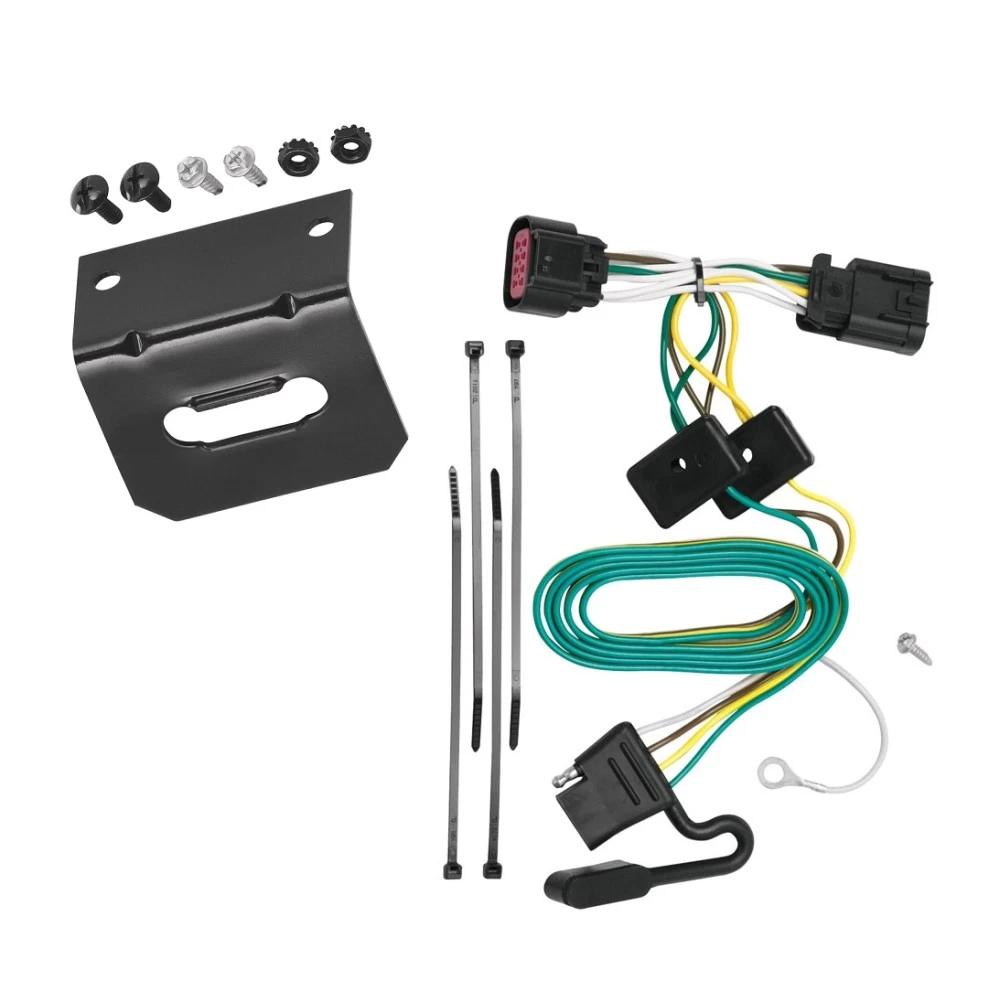

Trailer Wiring and Bracket For 06‑13 Chevrolet Impala Plug & Play 4‑Flat Harness
Model: 118417 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
Wiring Kit Specs:
Part Number | 118417 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
06 07 08 09 10 11 12 13 2006 2007 2008 2009 2010 2011 2012 2013
$46 65
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$46 65
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $11.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118417 118144
- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Circuit Protected | No |
Hardware Included | Yes |
Harness Type | 4-Way Flat (Vehicle Side) |
Terminal Quantity | 4 |
Universal Or Specific Fit | Specific Fit |
Wire Colors | Brown, Green, Yellow, White |
Wire Quantity | 4 Wires |
Be the first to ask a question.
Description

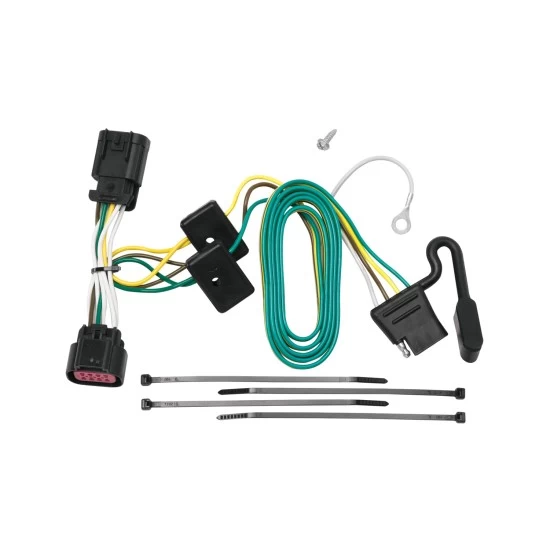

Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
Wiring Kit Specs:
Part Number | 118417 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Part Number | 118144 |
Fits | 4 Flat Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
06 07 08 09 10 11 12 13 2006 2007 2008 2009 2010 2011 2012 2013
Get Expert Help
Trailer Wiring and Bracket For 06-13 Chevrolet Impala Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118417
Tools Required:
- Trim Panel Remover
- Drill with 3/32” Drill Bit
- 1/4" Socket
Step-by-Step Instructions:
-
Access the Passenger-Side Taillight Assembly:
- Open the trunk and remove the passenger-side taillight assembly.
- Use a trim panel tool to carefully pry the threshold plate away from the vehicle, ensuring not to damage any clips.
- Pull back the carpet on the passenger side to expose the plastic wing nuts for the taillight.
- Remove the wing nuts and carefully pull the taillight away from the vehicle, ensuring not to damage the alignment pins.
-
Connect the T-Connector:
- Disconnect the wiring harness at the plugs located in the taillight pocket.
- Ensure the mating surfaces of the vehicle wiring connectors match the T-Connector ends. Clean all connector surfaces of dirt if necessary.
- Plug the T-Connector between the vehicle's connectors, ensuring the locking tabs are fully secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- If needed, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Route the T-Connector Harness:
- Route the T-Connector end with the 4-flat connector down through the taillight pocket between the bumper and body, toward the center of the bumper.
- Secure the wires with the provided cable ties, avoiding areas that could pinch, cut, or melt the wires.
-
Reinstall Components:
- Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
- Reattach the plastic wing nuts, carpet, threshold, and any other components removed during installation, ensuring no wires are pinched or cut.
-
Test the Installation:
- Verify the T-Connector functionality using a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions before beginning.
- Refer to the vehicle owner’s manual for additional information.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118417
Tools Required:
- Trim Panel Remover
- Drill with 3/32” Drill Bit
- 1/4" Socket
Step-by-Step Instructions:
-
Access the Passenger-Side Taillight Assembly:
- Open the trunk and remove the passenger-side taillight assembly.
- Use a trim panel tool to carefully pry the threshold plate away from the vehicle, ensuring not to damage any clips.
- Pull back the carpet on the passenger side to expose the plastic wing nuts for the taillight.
- Remove the wing nuts and carefully pull the taillight away from the vehicle, ensuring not to damage the alignment pins.
-
Connect the T-Connector:
- Disconnect the wiring harness at the plugs located in the taillight pocket.
- Ensure the mating surfaces of the vehicle wiring connectors match the T-Connector ends. Clean all connector surfaces of dirt if necessary.
- Plug the T-Connector between the vehicle's connectors, ensuring the locking tabs are fully secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- If needed, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Route the T-Connector Harness:
- Route the T-Connector end with the 4-flat connector down through the taillight pocket between the bumper and body, toward the center of the bumper.
- Secure the wires with the provided cable ties, avoiding areas that could pinch, cut, or melt the wires.
-
Reinstall Components:
- Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
- Reattach the plastic wing nuts, carpet, threshold, and any other components removed during installation, ensuring no wires are pinched or cut.
-
Test the Installation:
- Verify the T-Connector functionality using a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. Stop/Turn Light: 1 per side (7.5 amps)
- Max. Tail Lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
