Product Details
- Brand: Reese
- Model: 77183 118458 3593 63820 63810 580407 2211
- SKU: 77183 118458 3593 63820 63810 580407 2211

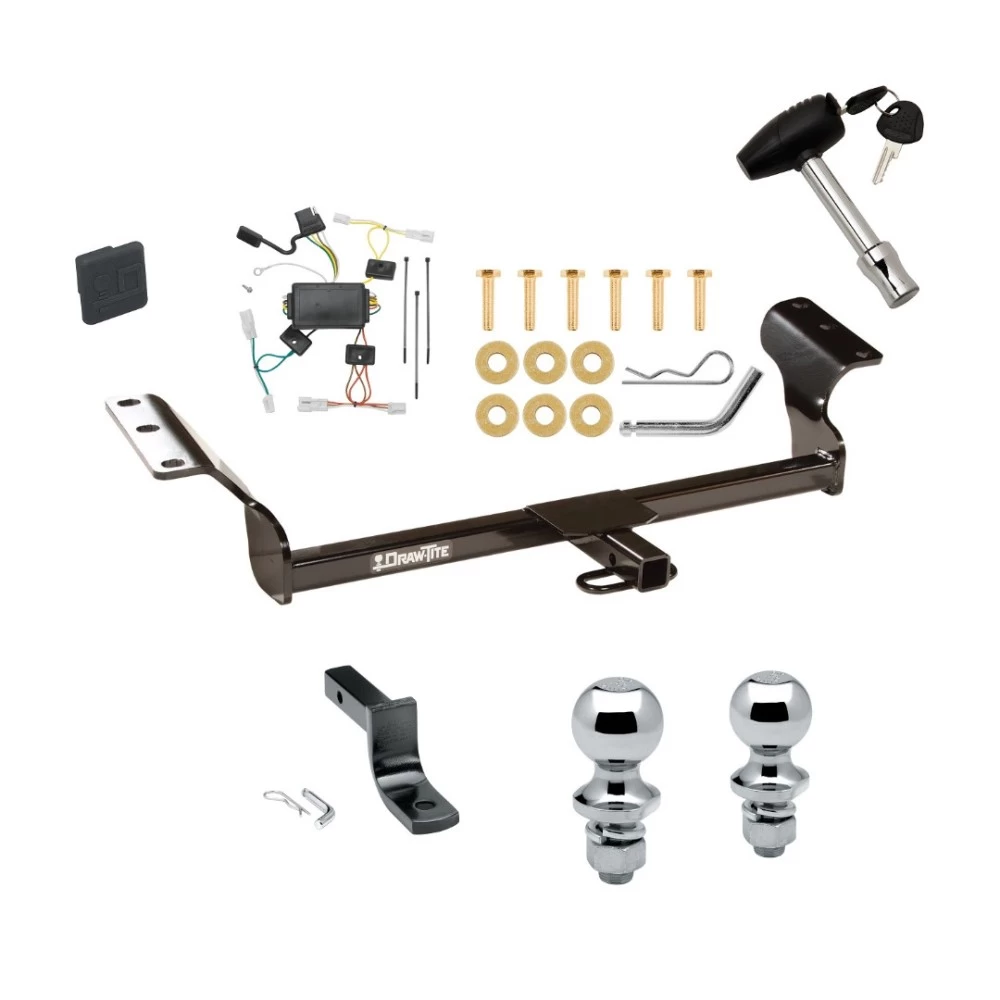

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 03-08 Pontiac Vibe Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes
Installation Instructions for Toyota Matrix and Pontiac Vibe
Part Numbers:
- 24812
- 60898
- 77183
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position on the vehicle.
-
Install Fasteners:
- Attach the hitch to the existing weldnuts in the frame rails using the provided bolts and washers.
-
Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M) using a torque wrench.
Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2” Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- For Toyota Matrix XRS and XR Sport models: The center fascia must be removed for hitch installation. (Fascia sold separately.)
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 24812
- 60898
- 77183
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position on the vehicle.
-
Install Fasteners:
- Attach the hitch to the existing weldnuts in the frame rails using the provided bolts and washers.
-
Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M) using a torque wrench.
Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2” Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- For Toyota Matrix XRS and XR Sport models: The center fascia must be removed for hitch installation. (Fascia sold separately.)
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Pontiac Vibe
Part Numbers:
- 118458
Wiring Access Location:
- Inside the rear cargo area, behind the access panels on both sides.
Tools Required:
- Drill with 3/32" drill bit.
- Philips head screwdriver.
Step-by-Step Instructions:
-
Access Vehicle Wiring:
- Open the rear tailgate and remove the cargo nets and cargo floor hatch to access the spare tire area.
- Unscrew the nut holding the spare tire cover in place and remove the cover. Set aside all removed items carefully to avoid damage.
- Remove the access panel doors on both sides to access the vehicle’s wiring connectors.
-
Locate the Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the vehicle’s taillight wiring harness.
- This harness will have a connection point matching the ends of the T-Connector.
- Carefully separate the connectors, ensuring no damage to the locking tabs. Clean the connector surfaces if necessary.
-
Driver’s Side Connection:
- Locate the access hole between the spare tire and the rear threshold.
- Route the T-Connector end with the yellow wire, as well as the end with the brown and red wires, up through the access hole to the driver’s side access panel.
- Attach both ends of the T-Connector to the driver’s side wiring harness, ensuring the connectors are fully inserted and secured with locking tabs.
-
Passenger’s Side Connection:
- Route the T-Connector end with the green wire to the passenger’s side.
- Repeat the steps for connecting the T-Connector to the passenger’s side wiring harness.
-
Ground Connection:
- Locate a suitable grounding point near the connectors.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Caution: Avoid drilling into any exposed surfaces and verify what is behind the surface before drilling.
-
Mount the Converter Box:
- Secure the T-Connector black box using the provided double-sided tape.
- Use cable ties to secure the remaining harness, ensuring it is not in areas where it could be pinched, cut, or melted.
-
Reassembly:
- Replace both access panels, the spare tire cover, cargo floor hatch, and cargo nets removed during installation.
-
Test Installation:
- Test the installation with a test light or trailer to verify all connections are functioning correctly.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5 amps).
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- All connections must be complete for the T-Connector to function properly.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter for Pontiac Vibe
Part Numbers:
- 118458
Wiring Access Location:
- Inside the rear cargo area, behind the access panels on both sides.
Tools Required:
- Drill with 3/32" drill bit.
- Philips head screwdriver.
Step-by-Step Instructions:
-
Access Vehicle Wiring:
- Open the rear tailgate and remove the cargo nets and cargo floor hatch to access the spare tire area.
- Unscrew the nut holding the spare tire cover in place and remove the cover. Set aside all removed items carefully to avoid damage.
- Remove the access panel doors on both sides to access the vehicle’s wiring connectors.
-
Locate the Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the vehicle’s taillight wiring harness.
- This harness will have a connection point matching the ends of the T-Connector.
- Carefully separate the connectors, ensuring no damage to the locking tabs. Clean the connector surfaces if necessary.
-
Driver’s Side Connection:
- Locate the access hole between the spare tire and the rear threshold.
- Route the T-Connector end with the yellow wire, as well as the end with the brown and red wires, up through the access hole to the driver’s side access panel.
- Attach both ends of the T-Connector to the driver’s side wiring harness, ensuring the connectors are fully inserted and secured with locking tabs.
-
Passenger’s Side Connection:
- Route the T-Connector end with the green wire to the passenger’s side.
- Repeat the steps for connecting the T-Connector to the passenger’s side wiring harness.
-
Ground Connection:
- Locate a suitable grounding point near the connectors.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Caution: Avoid drilling into any exposed surfaces and verify what is behind the surface before drilling.
-
Mount the Converter Box:
- Secure the T-Connector black box using the provided double-sided tape.
- Use cable ties to secure the remaining harness, ensuring it is not in areas where it could be pinched, cut, or melted.
-
Reassembly:
- Replace both access panels, the spare tire cover, cargo floor hatch, and cargo nets removed during installation.
-
Test Installation:
- Test the installation with a test light or trailer to verify all connections are functioning correctly.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5 amps).
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- All connections must be complete for the T-Connector to function properly.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Store these instructions for future reference.
Warranty Information:
- This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
