Reese Trailer Tow Hitch For 10‑15 Hyundai Tucson 11‑16 KIA Sportage 1‑1/4" Receiver
Model: 061322010 - 2015 Hyundai, Tucson, All Styles
2011 - 2016 KIA, Sportage, All Styles
Trailer Hitch Specs:
| Part Number | 06132 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
$174 57 $272.60 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$272.60 $174 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $43.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06132
- UPC: 042899124238
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2010 - 2015 Hyundai, Tucson, All Styles
2011 - 2016 KIA, Sportage, All Styles
Trailer Hitch Specs:
| Part Number | 06132 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Reese Trailer Tow Hitch For 10-15 Hyundai Tucson 11-16 KIA Sportage 1-1/4" Receiver Install Notes
Installation Instructions for Hyundai Tucson and Kia Sportage
Part Numbers:
- 36510
- 90211
- 06132
Wiring Access Location:
- Tucson: SUV1, SUV2
- Sportage: SUV1, SUV5
Tools Required:
- Wrench: 16mm
- Drill Bits: None
Step-by-Step Instructions:
-
Prepare Vehicle:
- Raise the vehicle using a hoist or ramps to access the underside.
-
Lower Exhaust:
- While supporting the exhaust, remove the rear hangers to lower the exhaust system.
- Ensure the exhaust is lowered sufficiently to position the hitch over the muffler tips.
-
Position the Hitch:
- Raise the hitch into position, aligning the slots in the hitch with the existing weld nuts in the bottom of the frame.
-
Install Fasteners:
- Loosely install four (4) M10 hex bolts with conical washers into the weld nuts, as shown in the instructions.
-
Tighten Fasteners:
- Tighten all M10 CL10.9 fasteners using a torque wrench to 42 ft-lb (57 N*m).
-
Reinstall Exhaust:
- Reattach the rear hangers to secure the exhaust system.

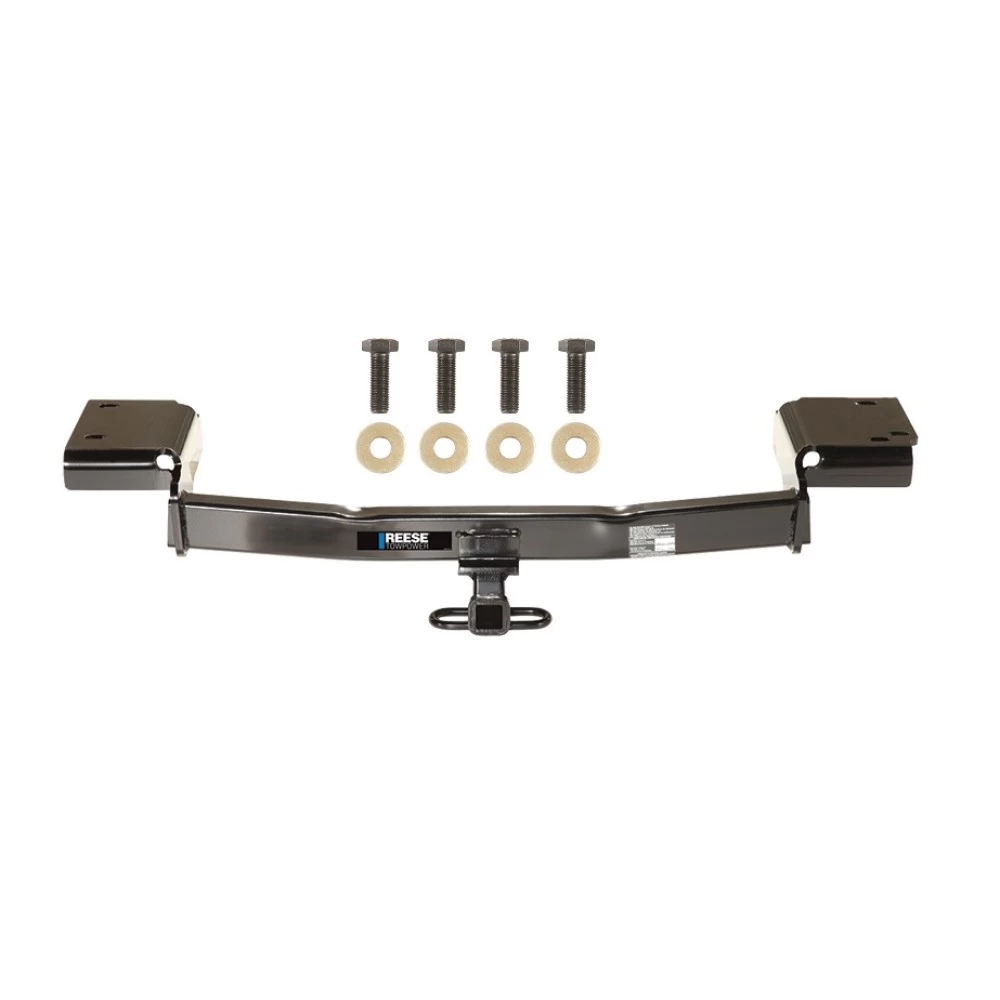

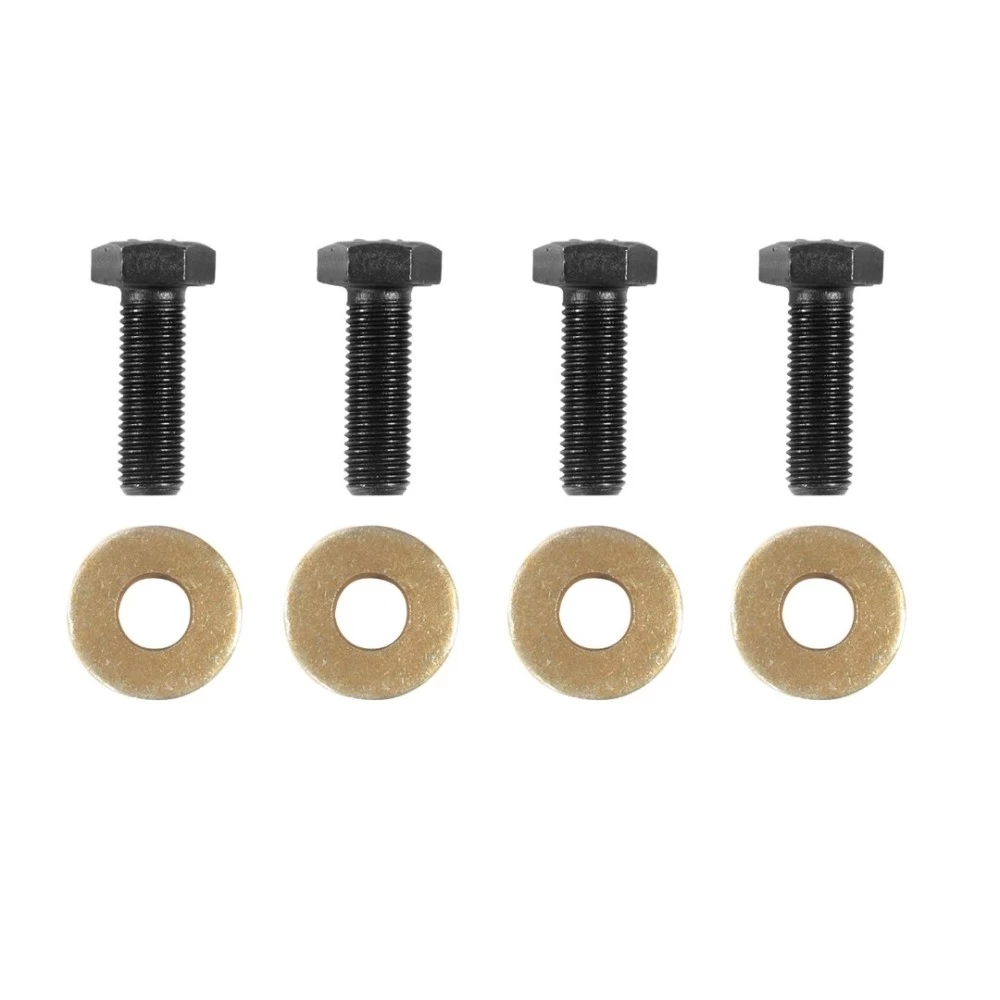

Hardware List:
- (4) Hex Bolt, M10 x 1.25 x 30mm CL10.9
- (4) Conical Washer, 3/8"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36001 (sold separately)
- Fastener Kit: 36510F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Hyundai Tucson and Kia Sportage
Part Numbers:
- 36510
- 90211
- 06132
Wiring Access Location:
- Tucson: SUV1, SUV2
- Sportage: SUV1, SUV5
Tools Required:
- Wrench: 16mm
- Drill Bits: None
Step-by-Step Instructions:
-
Prepare Vehicle:
- Raise the vehicle using a hoist or ramps to access the underside.
-
Lower Exhaust:
- While supporting the exhaust, remove the rear hangers to lower the exhaust system.
- Ensure the exhaust is lowered sufficiently to position the hitch over the muffler tips.
-
Position the Hitch:
- Raise the hitch into position, aligning the slots in the hitch with the existing weld nuts in the bottom of the frame.
-
Install Fasteners:
- Loosely install four (4) M10 hex bolts with conical washers into the weld nuts, as shown in the instructions.
-
Tighten Fasteners:
- Tighten all M10 CL10.9 fasteners using a torque wrench to 42 ft-lb (57 N*m).
-
Reinstall Exhaust:
- Reattach the rear hangers to secure the exhaust system.
Hardware List:
- (4) Hex Bolt, M10 x 1.25 x 30mm CL10.9
- (4) Conical Washer, 3/8"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36001 (sold separately)
- Fastener Kit: 36510F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
