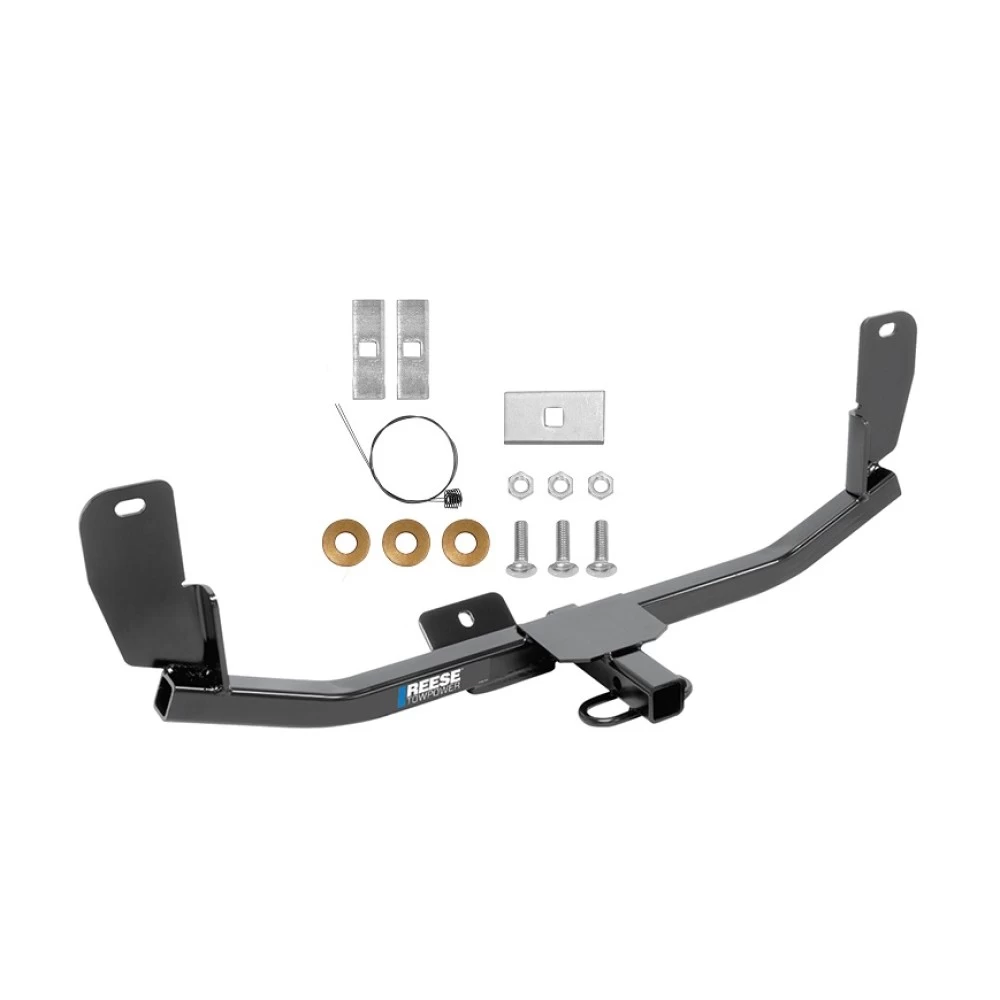

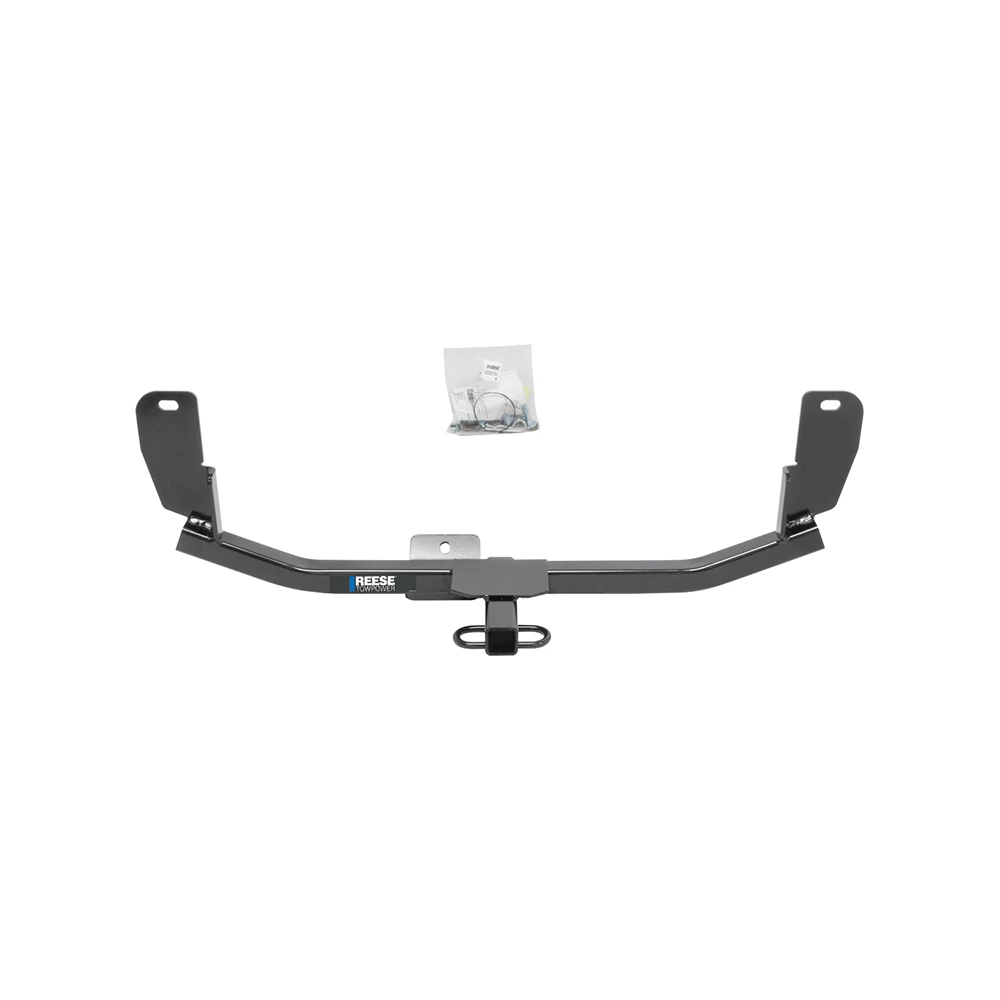

- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Get Expert Help

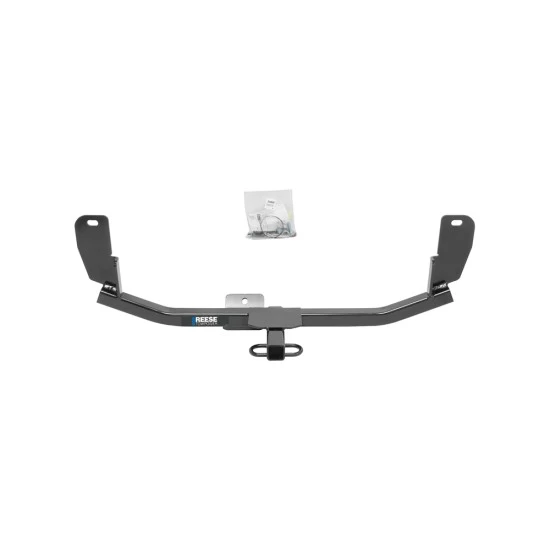

Reese Trailer Tow Hitch For 13-17 Hyundai Elantra GT 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Hyundai Elantra GT
Note: Does not fit Korean-manufactured vehicles (See door jamb build sticker or VIN code, second letter "M").
Part Numbers:
- 24905
- 60336
- 77292
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4”
- Crowfoot adaptor
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Install Carriage Bolt and Spacer:
- Place the carriage bolt and spacer onto the tow hook as shown in Figure 1.
-
Position Hitch:
- Raise the hitch into position behind the end panel.
- Fasten the hitch to the tow hook with the conical washer and hex nut. Hand-tighten.
-
Attach Hardware:
- Using the provided pull wire, install the carriage bolt and spacer through the end panel and hitch.
- Secure with the conical washer and hex nut. Hand-tighten.
-
Tighten All Fasteners:
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:

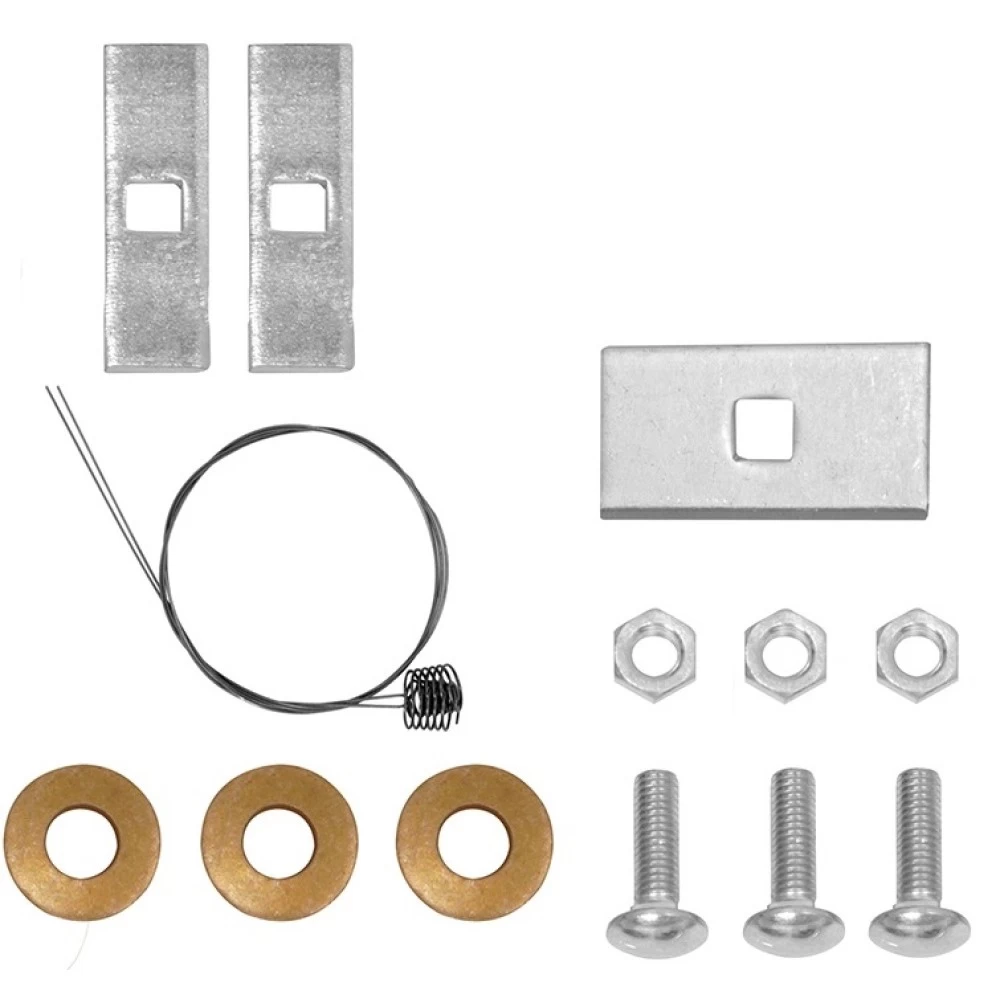

- (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
- (3) Conical Washers: 1/2”
- (3) Hex Nuts: 1/2”-13
- (2) Spacers
- (1) Pull Wire: 1/2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Vehicle (All Models)
Note: Does not fit certain vehicles (See door jamb build sticker or VIN code, second letter "M").
Part Numbers:
- 24905
- 60336
- 77292
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4”
- Crowfoot adaptor
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Install Carriage Bolt and Spacer:
- Place the carriage bolt and spacer onto the tow hook as shown in Figure 1.
-
Position Hitch:
- Raise the hitch into position behind the end panel.
- Fasten the hitch to the tow hook with the conical washer and hex nut. Hand-tighten.
-
Attach Hardware:
- Using the provided pull wire, install the carriage bolt and spacer through the end panel and hitch.
- Secure with the conical washer and hex nut. Hand-tighten.
-
Tighten All Fasteners:
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
- (3) Conical Washers: 1/2”
- (3) Hex Nuts: 1/2”-13
- (2) Spacers
- (1) Pull Wire: 1/2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
