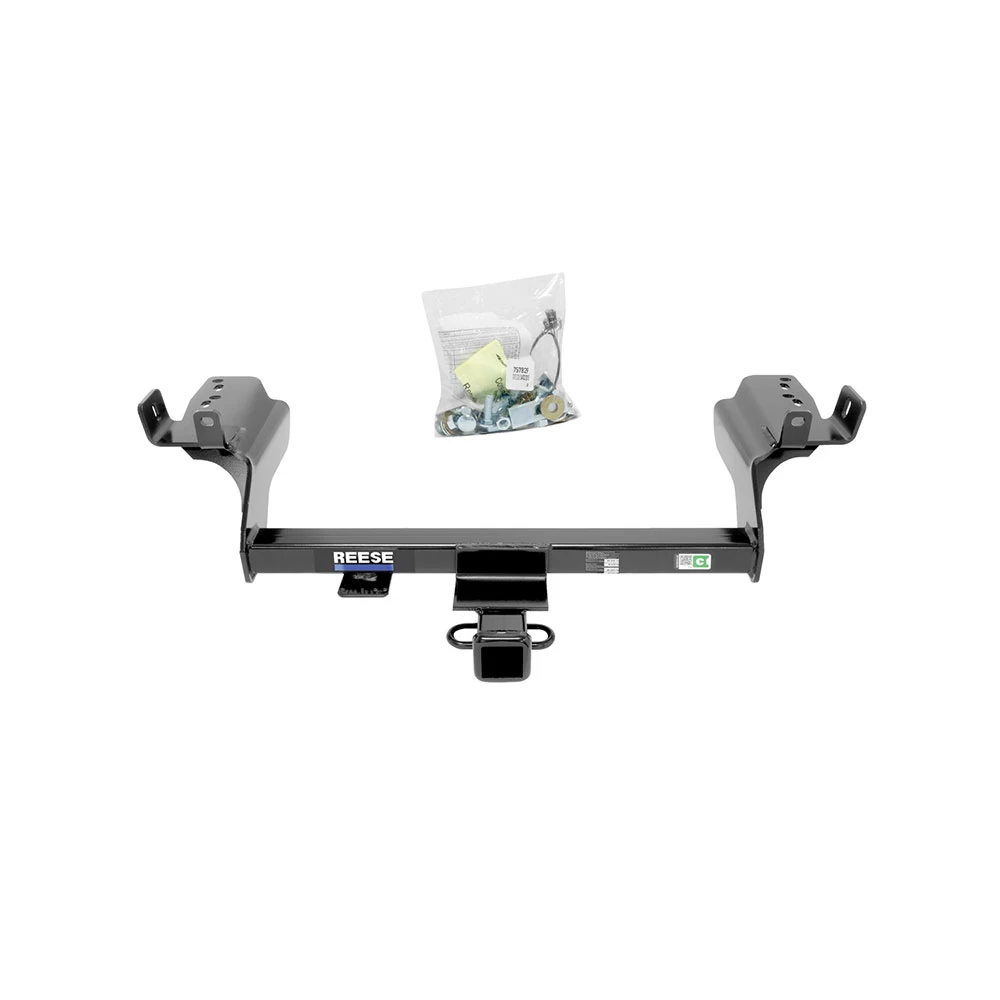

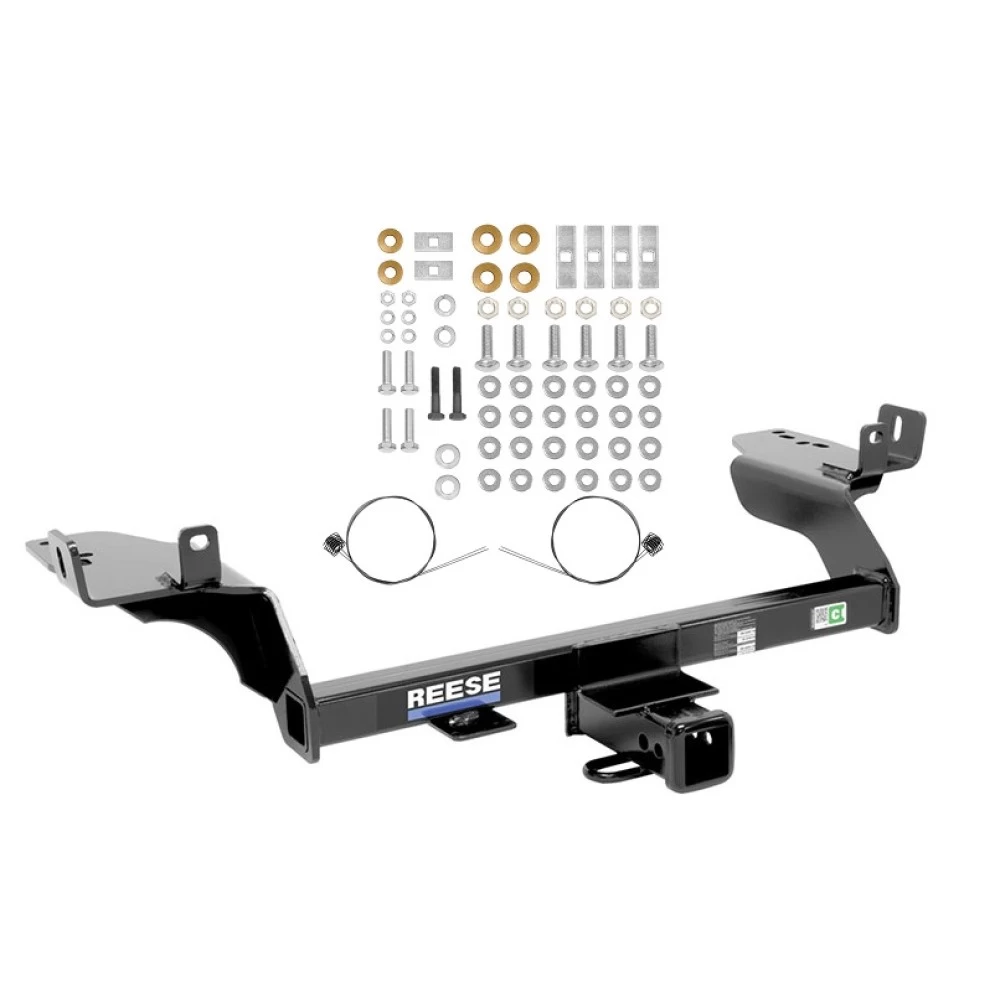

Reese Trailer Tow Hitch For 13‑19 Ford Escape All Styles Class 3 2" Towing Receiver
Model: 446942013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
| Part Number | 44694 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 525/525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
$261 15 $407.85 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$407.85 $261 15
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44694
- UPC: 016118123203
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2013 - 2019 Ford, Escape, All Styles
Trailer Hitch Specs:
| Part Number | 44694 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 525/525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Reese Trailer Tow Hitch For 13-19 Ford Escape All Styles Class 3 2" Towing Receiver Install Notes
Installation Instructions for Ford Escape
Part Numbers:
- 75782
- 87641
- 44694
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Pull wire (provided)
- Tin snips
- File or die grinder
- Soapy water or lubricant
- Wrenches: 10mm, 13mm, 11/16”
- Drill Bits: None
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the two fasteners from the exhaust hanger brackets on each side of the frame.
- Remove the forward rubber isolator hanger for additional space (see Figure 4).
- Apply lubricant or soapy water to the metal hanger rod and rubber isolator for easier removal.
-
Trim Heat Shields:
- Loosen and trim the heat shields as shown in Figures 2 and 3.
- On the driver’s side, remove the forward fastener and mark the area to be trimmed. Re-secure the heat shield using the removed fastener after trimming.
-
Enlarge Access Hole:
- Enlarge the frame’s access hole using a file or grinder to allow carriage bolt insertion.
-
Install Hardware into Frame Rails:
- Use the pull wire to feed the fasteners through the frame’s access hole. Attach fasteners and pull them into position, starting with the rear side of the frame rail (see Figures 5 and 6).
- Leave the pull wires attached.
-
Position Hitch:
- Slide the hitch into position, starting with the driver’s side, moving over the exhaust, and aligning it with the passenger side.
- Feed pull wires through the slots as needed.
-
Attach Fasteners:
- Secure the rear horizontal 7/16 fasteners using flat washers, lock washers, and hex nuts.
- Attach the M8-1.25 x 40mm bolts and 5/16” flat washers through the bracket tab at the rear of the hitch.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque values:
- M8 CL8 fasteners: 18 lb-ft (23 N*m)
- M8 CL10.9 fasteners: 27 lb-ft (37 N*m)
- 7/16 GR5 fasteners: 50 lb-ft (68 N*m)
- Tighten all fasteners to the specified torque values:
-
Reattach Exhaust:
- Reinstall the exhaust hanger brackets and the rubber isolator hanger.

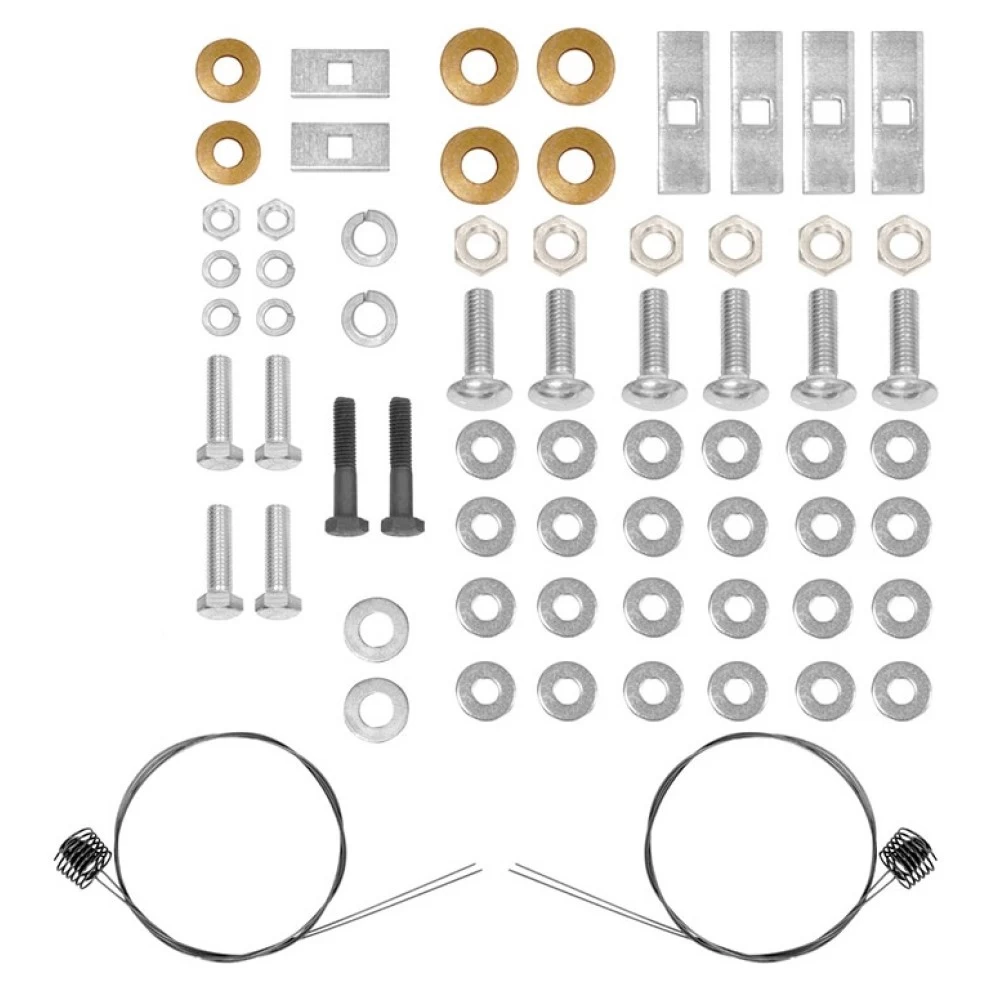

Hardware List:
- Qty (6): Carriage Bolt – 7/16-14 x 1.50 GR5
- Qty (4): Spacer – 1/4” x 7/8” x 3”
- Qty (2): Spacer – 3/16” x 1” x 2”
- Qty (4): Conical Washer – 7/16”
- Qty (6): Hex Nut – 7/16-14
- Qty (2): Flat Washer – 7/16”
- Qty (4): Hex Bolt – M8-1.25 x 30mm CL8.8
- Qty (2): Hex Bolt – M8-1.25 x 40mm CL10.9
- Qty (12): Flat Washer – 5/16”
- Qty (4): Lock Washer – 5/16”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 525 lbs (239 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (239 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
