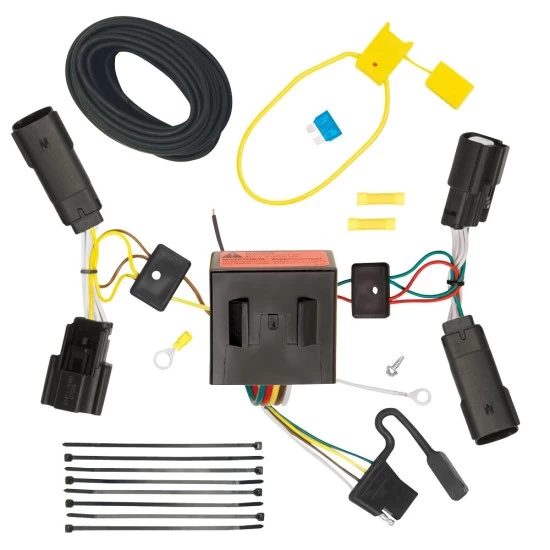

Installation Instructions for T-Connector Adapter for Ford Escape

Part Numbers:

• 118566

Tools Required:

• Trim Panel Remover
• 8mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and remove the vehicle’s taillight assemblies by unscrewing the four 8mm hex head bolts on each side.
   • Carefully pry the housings away from the vehicle, avoiding damage to the alignment tabs.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.

3. Install the Driver-Side T-Connector:

   • On the driver’s side, route the T-Connector end with the yellow wires up between the bumper and vehicle body into the taillight pocket.
   • Plug the T-Connector with the yellow wire in between the driver’s side taillight socket and the vehicle wiring harness.

4. Route and Connect the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire to the passenger side.
   • Route the 4-flat connector underneath the bumper to the passenger side, ensuring it avoids hot pipes, heat shields, or fuel tanks.
   • Route the T-Connector end with the green wire up through the passenger-side opening and connect it.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.

6. Prepare the Power Connection:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable using the provided connector.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

7. Route the Black Power Wire:

   • Starting at the front of the vehicle, route the black wire along the frame rail to the rear driver’s side.
   • Ensure the wire avoids hot pipes, heat shields, or other damage points.

8. Connect the Black Power Wire:

   • Route the black 12-gauge wire to the rear driver’s side.
   • Connect the wire to the black wire from the T-Connector black box using the supplied yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.

10. Mount the Black Box:

    • Locate a flat surface on the driver’s side and mount the T-Connector’s black box using the double-sided tape.
    • Ensure the epoxy side of the module is pointed toward the ground to prevent water buildup.

11. Secure the Wiring:

    • Secure the remainder of the T-Connector harness under the bumper using the provided cable ties, avoiding areas that could pinch or cut the wires.

12. Reinstall the Taillight Assemblies:

    • Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.

13. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle.

    Note:

    • A bracket is not included for mounting the 4-flat connector.

Specifications:

• Max. stop/turn light: 2.1 amps
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Read the vehicle owner’s manual for additional details.
• Store instructions for future reference.

Installation Instructions for T-Connector Adapter for Ford Escape

Part Numbers:

• 118566

Tools Required:

• Trim Panel Remover
• 8mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and remove the vehicle’s taillight assemblies by unscrewing the four 8mm hex head bolts on each side.
   • Carefully pry the housings away from the vehicle, avoiding damage to the alignment tabs.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.

3. Install the Driver-Side T-Connector:

   • On the driver’s side, route the T-Connector end with the yellow wires up between the bumper and vehicle body into the taillight pocket.
   • Plug the T-Connector with the yellow wire in between the driver’s side taillight socket and the vehicle wiring harness.

4. Route and Connect the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire to the passenger side.
   • Route the 4-flat connector underneath the bumper to the passenger side, ensuring it avoids hot pipes, heat shields, or fuel tanks.
   • Route the T-Connector end with the green wire up through the passenger-side opening and connect it.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.

6. Prepare the Power Connection:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable using the provided connector.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

7. Route the Black Power Wire:

   • Starting at the front of the vehicle, route the black wire along the frame rail to the rear driver’s side.
   • Ensure the wire avoids hot pipes, heat shields, or other damage points.

8. Connect the Black Power Wire:

   • Route the black 12-gauge wire to the rear driver’s side.
   • Connect the wire to the black wire from the T-Connector black box using the supplied yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.

10. Mount the Black Box:

    • Locate a flat surface on the driver’s side and mount the T-Connector’s black box using the double-sided tape.
    • Ensure the epoxy side of the module is pointed toward the ground to prevent water buildup.

11. Secure the Wiring:

    • Secure the remainder of the T-Connector harness under the bumper using the provided cable ties, avoiding areas that could pinch or cut the wires.

12. Reinstall the Taillight Assemblies:

    • Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.

13. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle.

    Note:

    • A bracket is not included for mounting the 4-flat connector.

Specifications:

• Max. stop/turn light: 2.1 amps
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Read the vehicle owner’s manual for additional details.
• Store instructions for future reference.

Important Notices:

• Installation Summary: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

• Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

• Warranty Information: For complete warranty instructions, please download the full installation PDF.
