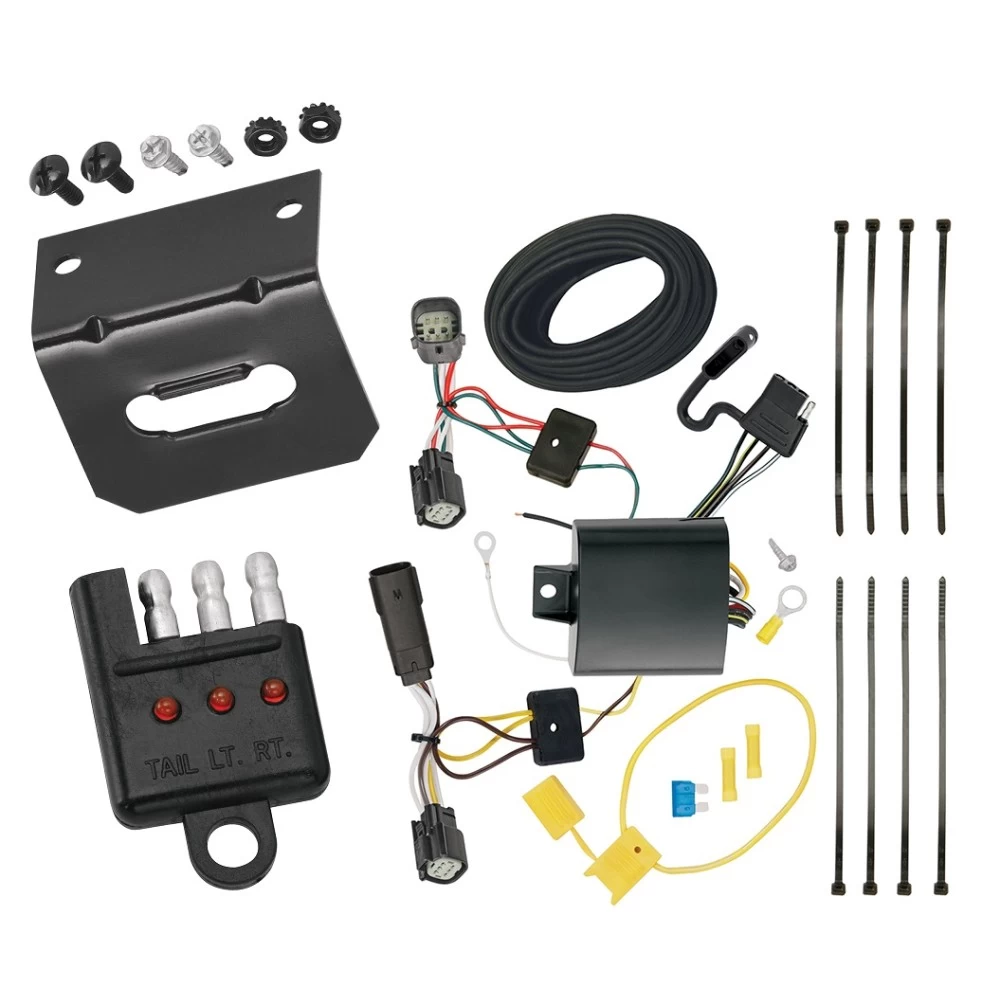

Trailer Wiring and Bracket w/ Light Tester For 17‑18 Ford Escape Plug & Play 4‑Flat Harness
Model: 118715 118144 20114Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2017 - 2018 Ford, Escape, All Styles
Direct Plug & Play Wiring Kit
Wiring Kit Specs:
| Part Number | 118715 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
17 18 2017 2018
$93 22 $129.80 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$129.80 $93 22
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $23.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118715 118144 20114
- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description

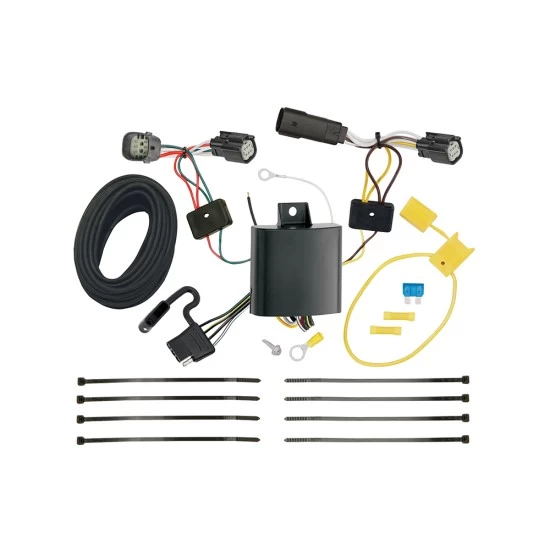

Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2017 - 2018 Ford, Escape, All Styles
Direct Plug & Play Wiring Kit
Wiring Kit Specs:
| Part Number | 118715 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
17 18 2017 2018
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 17-18 Ford Escape Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-One® T-Connector for Ford Escape
Part Numbers:
- 118715
Tools Required:
- Trim Panel Remover
- 8mm Socket & Ratchet or 8mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillights:
- Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
- Carefully pull the taillights away from the vehicle, avoiding damage to the alignment pins.
-
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Ensure all connectors are clean and free of dirt. Avoid damaging the locking tabs.
-
Remove Trim Panels:
- Carefully remove the floor trim panels and access panels on each side of the vehicle.
- Locate and remove the rubber grommet in the taillight pocket.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire out of the opening exposed in Step 3.
- Insert the T-Connector end with the yellow wire between the driver-side taillight socket and the vehicle’s wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire through the threshold plate and up through the passenger-side trim panel.
- Insert the T-Connector with the green wire between the passenger-side taillight socket and the vehicle’s wiring harness.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector through the driver-side trim panel into the spare tire compartment and store it there when not in use.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire using the yellow butt connector.
- Route the black wire through a grommet or along the existing wiring to the engine compartment, avoiding areas that may pinch, cut, or break the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder and test the installation using a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies and other components removed during installation, ensuring no wires are pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Ford Escape
Part Numbers:
- 118715
Tools Required:
- Trim Panel Remover
- 8mm Socket & Ratchet or 8mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillights:
- Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
- Carefully pull the taillights away from the vehicle, avoiding damage to the alignment pins.
-
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Ensure all connectors are clean and free of dirt. Avoid damaging the locking tabs.
-
Remove Trim Panels:
- Carefully remove the floor trim panels and access panels on each side of the vehicle.
- Locate and remove the rubber grommet in the taillight pocket.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire out of the opening exposed in Step 3.
- Insert the T-Connector end with the yellow wire between the driver-side taillight socket and the vehicle’s wiring harness.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire through the threshold plate and up through the passenger-side trim panel.
- Insert the T-Connector with the green wire between the passenger-side taillight socket and the vehicle’s wiring harness.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector through the driver-side trim panel into the spare tire compartment and store it there when not in use.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire using the yellow butt connector.
- Route the black wire through a grommet or along the existing wiring to the engine compartment, avoiding areas that may pinch, cut, or break the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder and test the installation using a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the taillight assemblies and other components removed during installation, ensuring no wires are pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in the spare tire compartment when not in use to prevent damage.
