Installation Instructions for Chrysler Pacifica (2017-Current)

Part Numbers:

• 36798
• 06181
• CQT36798

Wiring Access Location:

• PC3

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Exhaust Removal Pliers
• Tin Snips
• Flat Head Screwdriver
• Drill and 1/4" Drill Bit
• Plastic Rivet Gun
• Sockets: 7/8", 8mm, 10mm
• 6" Socket Extension

Installation Time:

• Estimated: 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Remove Underbody Panel:

   • Remove nine (9) M8 fasteners, five (5) M10 nuts, and two (2) plastic push-on fasteners.
   • Use a flat head screwdriver to unscrew the fasteners while pulling down on the panel.
   • Set the panel aside.

2. Lower Exhaust:

   • Using exhaust removal pliers, pry off the two (2) rearmost rubber exhaust hangers.
   • Spray the hangers with soapy water for easier removal.
   • Support the exhaust system to prevent damage.

3. Remove Heat Shield:

   • Remove two (2) M10 nuts, including one located above the muffler.
   • Set the heat shield aside.

4. Fishwire Rearward Bolts:

   • Use the fishwire method to install carriage bolts and 2-inch spacer blocks through the access hole and into the rearward attachment holes.
   • Ensure the blocks do not overlap and leave pull wires attached.

5. Fishwire Forward Bolts:

   • Use the reverse fishwire method to install carriage bolts and 3-inch spacer blocks into the forward attachment holes.
   • Leave pull wires attached.

6. Install Hitch:

   • Raise the hitch into position, starting with the passenger side over the muffler.
   • Guide the fishwire ends through the hitch attachment holes.
   • Remove the pull wires and install conical washers (teeth side toward the hitch) and 1/2" hex nuts onto the carriage bolts.
   • Ensure no wires or other components are pinched between the hitch and the vehicle frame.

7. Tighten Fasteners:

   • Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.

8. Trim Heat Shield:

   • Trim the heat shield as shown in the instructions (refer to Figure 2).
   • Reinstall the remaining portion of the heat shield.

9. Reinstall Exhaust Hangers:

   • Raise the exhaust back into position and reattach all hangers.

10. Trim Underbody Panel:

    • Trim the underbody panel as specified in Figure 3.
    • Reinstall the panel.

Torque Specifications:

• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

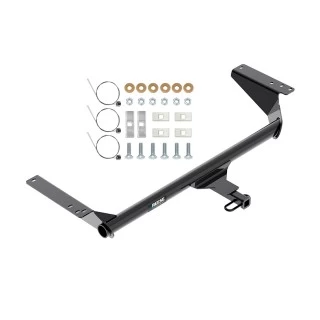

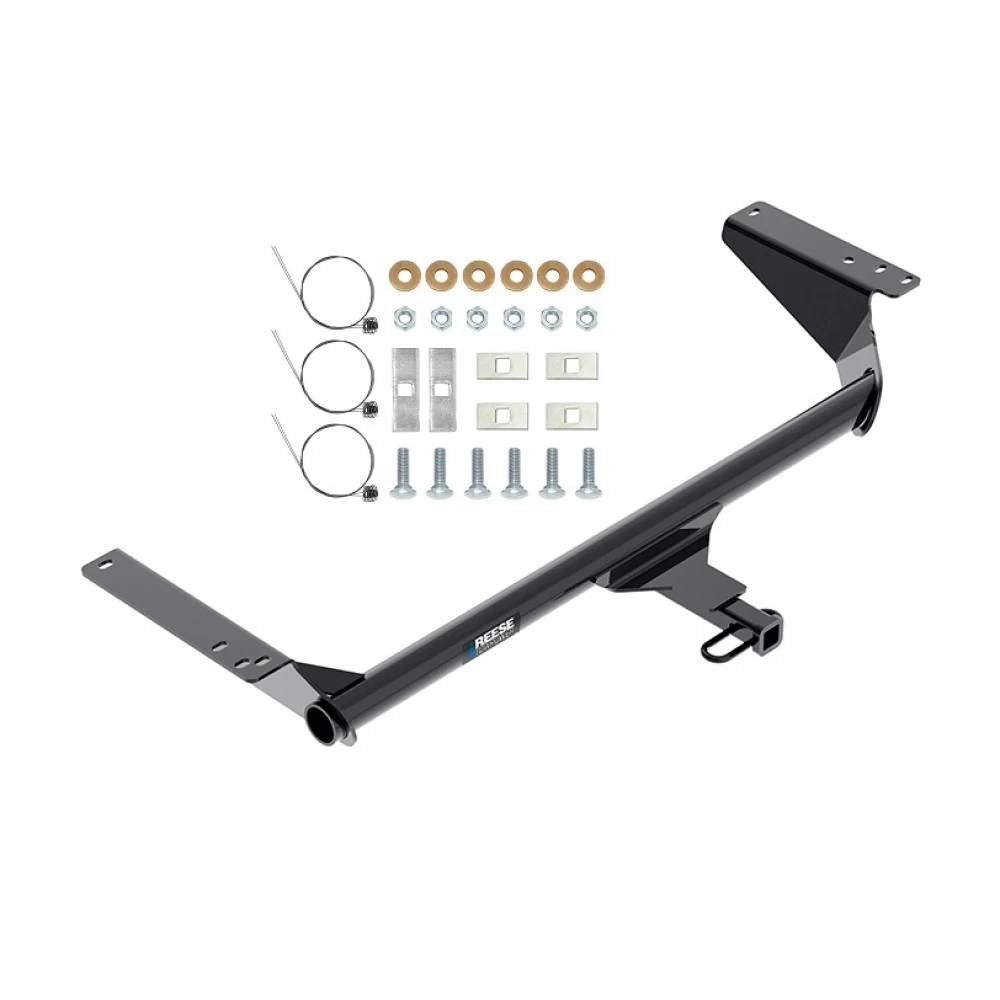

Hardware List:

• (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
• (6) Conical Washers, 1/2"
• (2) Spacer Blocks, 1/4" x 1" x 3"
• (4) Spacer Blocks, 1/4" x 1" x 2"
• (6) Hex Nuts, 1/2"-13 GR5
• (6) Pull Wires, 1/2"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
• Fastener Kit: 36798F.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36798
• 06181
• CQT36798

Wiring Access Location:

• PC3

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Exhaust Removal Pliers
• Tin Snips
• Flat Head Screwdriver
• Drill and 1/4" Drill Bit
• Plastic Rivet Gun
• Sockets: 7/8", 8mm, 10mm
• 6" Socket Extension

Installation Time:

• Estimated: 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Remove Underbody Panel:

   • Remove nine (9) M8 fasteners, five (5) M10 nuts, and two (2) plastic push-on fasteners.
   • Use a flat head screwdriver to unscrew the fasteners while pulling down on the panel.
   • Set the panel aside.

2. Lower Exhaust:

   • Using exhaust removal pliers, pry off the two (2) rearmost rubber exhaust hangers.
   • Spray the hangers with soapy water for easier removal.
   • Support the exhaust system to prevent damage.

3. Remove Heat Shield:

   • Remove two (2) M10 nuts, including one located above the muffler.
   • Set the heat shield aside.

4. Fishwire Rearward Bolts:

   • Use the fishwire method to install carriage bolts and 2-inch spacer blocks through the access hole and into the rearward attachment holes.
   • Ensure the blocks do not overlap and leave pull wires attached.

5. Fishwire Forward Bolts:

   • Use the reverse fishwire method to install carriage bolts and 3-inch spacer blocks into the forward attachment holes.
   • Leave pull wires attached.

6. Install Hitch:

   • Raise the hitch into position, starting with the passenger side over the muffler.
   • Guide the fishwire ends through the hitch attachment holes.
   • Remove the pull wires and install conical washers (teeth side toward the hitch) and 1/2" hex nuts onto the carriage bolts.
   • Ensure no wires or other components are pinched between the hitch and the vehicle frame.

7. Tighten Fasteners:

   • Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.

8. Trim Heat Shield:

   • Trim the heat shield as shown in the instructions (refer to Figure 2).
   • Reinstall the remaining portion of the heat shield.

9. Reinstall Exhaust Hangers:

   • Raise the exhaust back into position and reattach all hangers.

10. Trim Underbody Panel:

    • Trim the underbody panel as specified in Figure 3.
    • Reinstall the panel.

Torque Specifications:

• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

Hardware List:

• (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
• (6) Conical Washers, 1/2"
• (2) Spacer Blocks, 1/4" x 1" x 3"
• (4) Spacer Blocks, 1/4" x 1" x 2"
• (6) Hex Nuts, 1/2"-13 GR5
• (6) Pull Wires, 1/2"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
• Fastener Kit: 36798F.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
