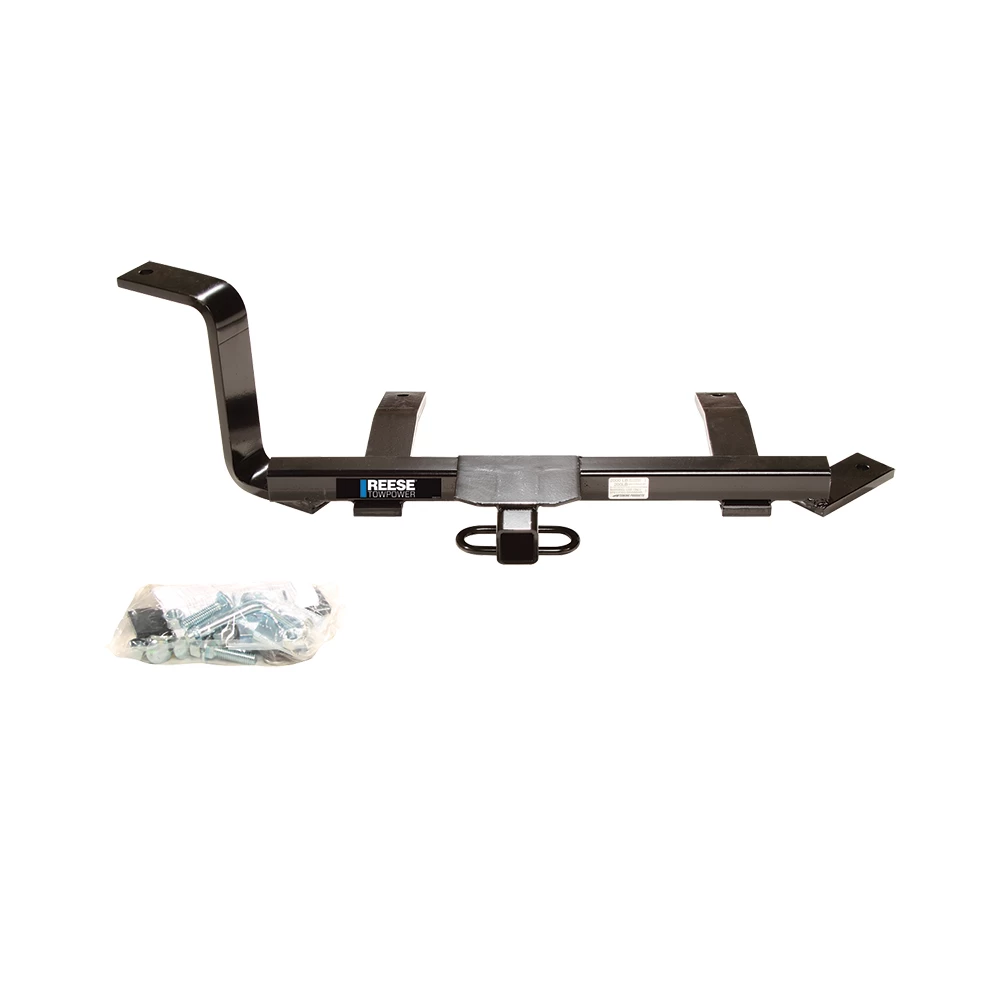

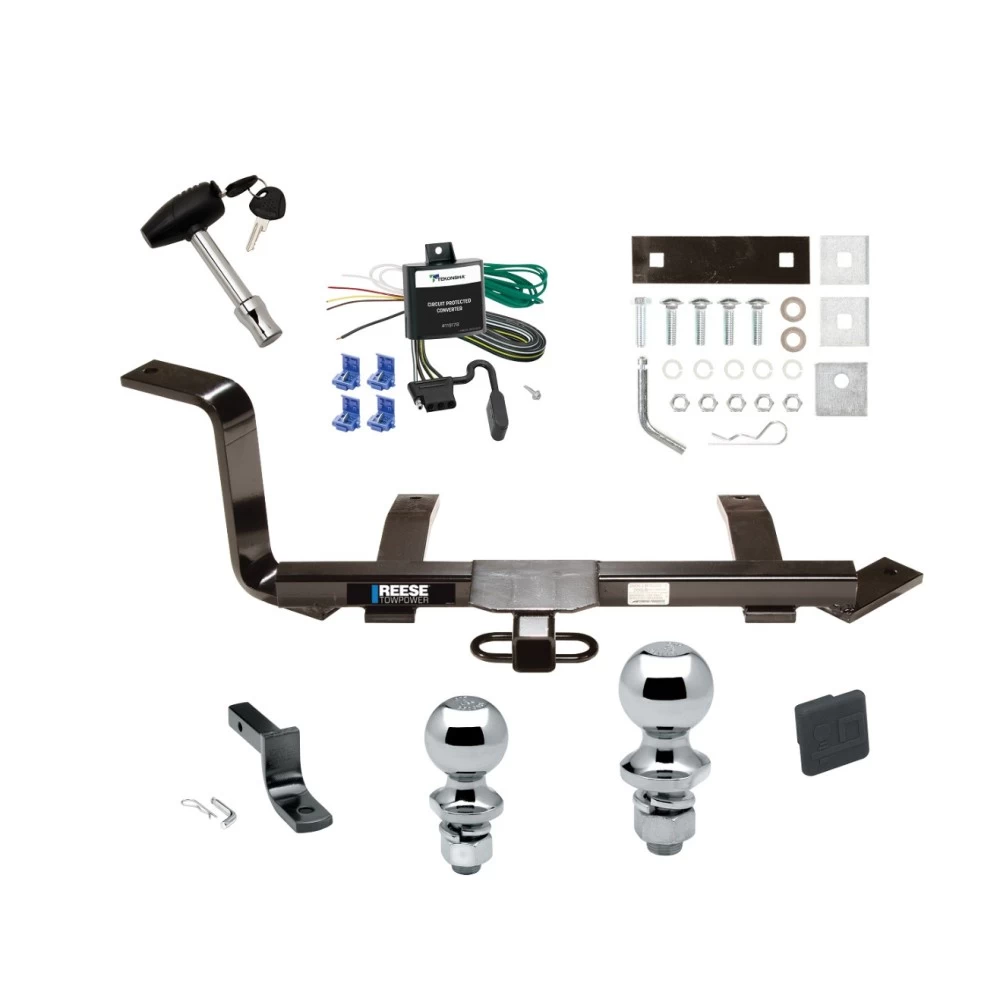

Installation Instructions for VW Jetta Sedan and VW City Jetta (Canada Only)
(Except Turbo and All Wagons)

Part Numbers:

• 77106
• 24748
• 24783

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 7/8"
• Drill Bits: 1/2"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Prepare Vehicle:

   • Remove the spare tire from the trunk before drilling.

2. Position Hitch:

   • Raise the hitch into position and install the 1/2”-13 hex bolt at the tow hook location.

3. Drill Holes:

   • Using the hitch as a template, drill three (3) 1/2" holes for hitch attachment.

4. Install Carriage Bolts:

   • Install three (3) 1/2”-13 carriage bolts into the drilled holes.

5. Install Long Spacer:

   • Position the long spacer (with 2 square holes) inside the trunk pan as shown in the diagram.
   • Use the spacer as a template to drill the remaining 1/2" hole.
   • Install the remaining fasteners.

6. Seal Holes:

   • Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.

7. Reinstall Spare Tire:

   • Replace the spare tire in the trunk.

8. Tighten Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

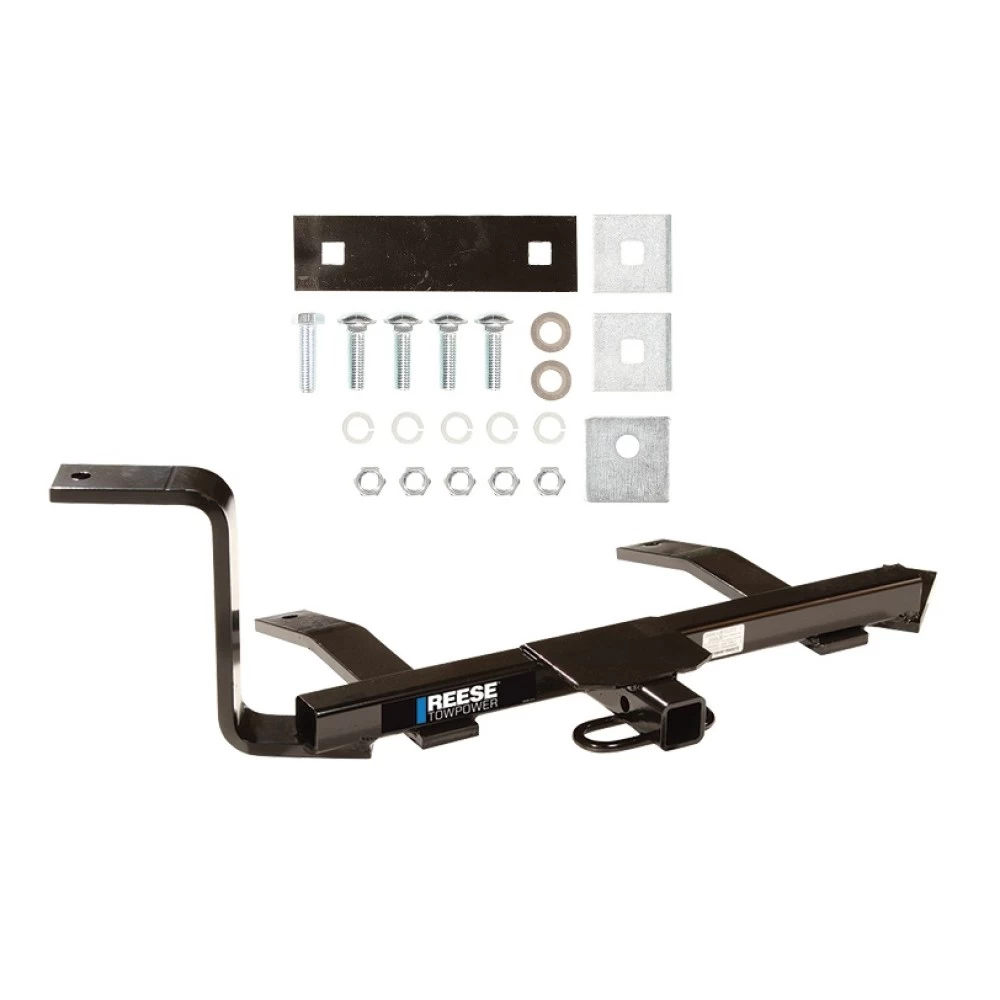

Hardware List:

• (1) 1/2”-13 x 1.75” Hex Bolt
• (5) 1/2”-13 Hex Nuts
• (2) Flat Washers
• (4) 1/2”-13 x 1.75” Carriage Bolts
• (1) Spacer
• (2) Spacers (Square Holes)
• (5) Lock Washers
• (1) Long Spacer Bar

Safety Notes:

• Regularly check all fasteners and the hitch ball to ensure proper tightening.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for VW Jetta Sedan and VW City Jetta (Canada Only)

(Except Turbo and All Wagons)

Part Numbers:

• 77106
• 24748
• 24783

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 7/8"
• Drill Bits: 1/2"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Prepare Vehicle:

   • Remove the spare tire from the trunk before drilling.

2. Position Hitch:

   • Raise the hitch into position and install the 1/2”-13 hex bolt at the tow hook location.

3. Drill Holes:

   • Using the hitch as a template, drill three (3) 1/2" holes for hitch attachment.

4. Install Carriage Bolts:

   • Install three (3) 1/2”-13 carriage bolts into the drilled holes.

5. Install Long Spacer:

   • Position the long spacer (with 2 square holes) inside the trunk pan as shown in the diagram.
   • Use the spacer as a template to drill the remaining 1/2" hole.
   • Install the remaining fasteners.

6. Seal Holes:

   • Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.

7. Reinstall Spare Tire:

   • Replace the spare tire in the trunk.

8. Tighten Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (1) 1/2”-13 x 1.75” Hex Bolt
• (5) 1/2”-13 Hex Nuts
• (2) Flat Washers
• (4) 1/2”-13 x 1.75” Carriage Bolts
• (1) Spacer
• (2) Spacers (Square Holes)
• (5) Lock Washers
• (1) Long Spacer Bar

Safety Notes:

• Regularly check all fasteners and the hitch ball to ensure proper tightening.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24748 Rev. A 6/25/2014

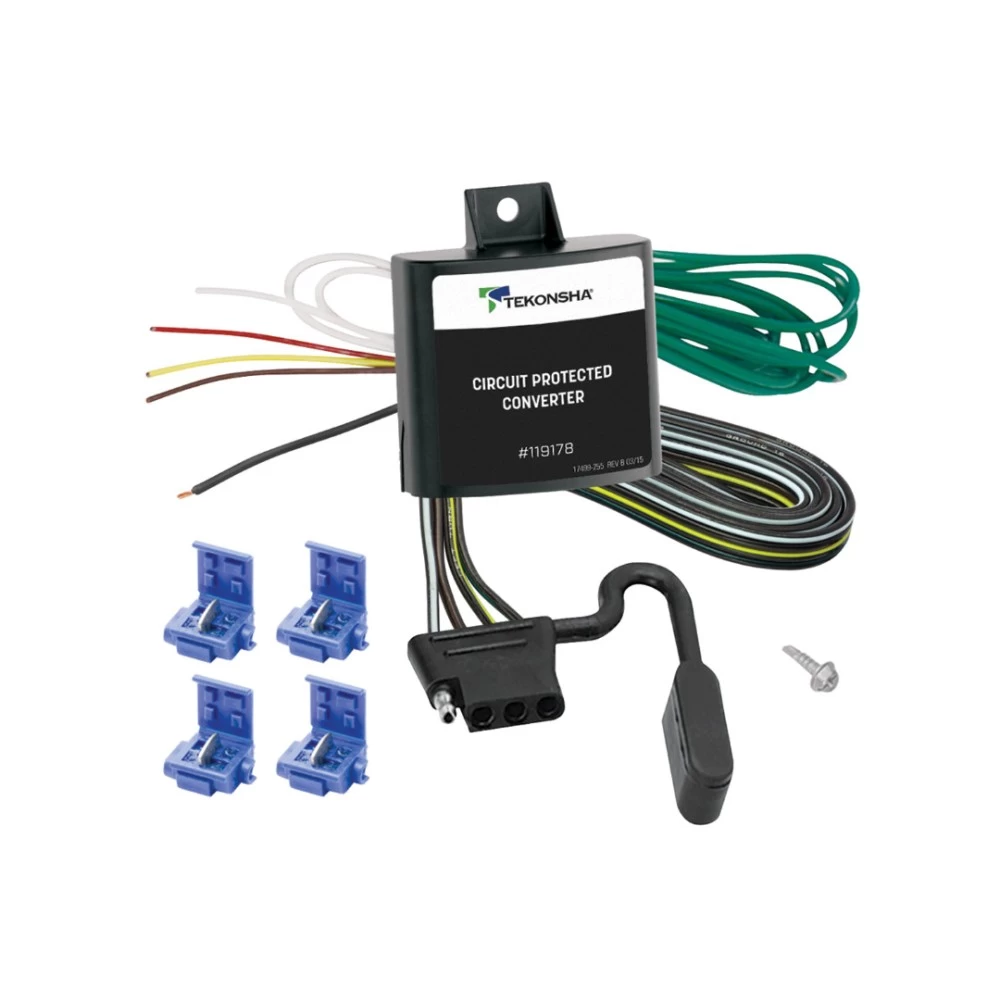

Installation Instructions for Circuit Protected Converter

Part Numbers:

• 119178

Wiring Access Location:

• Not specified in the document.

Tools Required:

• Drill (3/32” Drill Bit)
• Wire Crimpers
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.

   • Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.

2. Disconnect and isolate the vehicle's negative (-) battery terminal.

   • Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.

3. Attach the trailer wiring to the vehicle as shown in the illustration using splices.

4. Locate a suitable grounding point.

   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.

   • Mount with the wiring directed downward or sideways if downward is not possible.

6. Reconnect the vehicle's negative (-) battery terminal.

7. Testing Procedure:

   • Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
   • Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
   • Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.

8. Secure all loose wires with cable ties.

   • Warning: Do not overload circuits to prevent fires. Adhere to these limits:
     • Max stop/turn light: 1 per side (2.1 amps)
     • Max tail lights: (7.5 amps)

Hardware List:

• Not detailed in the document.

Safety Notes:

• Wear safety glasses and follow safety precautions.
• Disconnect the negative (-) cable before wiring.
• Securely ground to the vehicle chassis or an existing ground stud.
• Use on 12-volt negative ground systems only.

Specifications:

• Max stop/turn light: 1 per side (2.1 amps)
• Max tail lights: (7.5 amps)
• Secure wiring with cable ties after installation.

Manufacturer Notes:

• Read and follow all vehicle warnings and instructions.
• Refer to the vehicle's owner manual and manufacturer materials for additional guidance.

Installation Instructions for Circuit Protected Converter

Part Numbers:

• 119178

Wiring Access Location:

• Not specified in the document.

Tools Required:

• Drill (3/32” Drill Bit)
• Wire Crimpers
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.

   • Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.

2. Disconnect and isolate the vehicle's negative (-) battery terminal.

   • Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.

3. Attach the trailer wiring to the vehicle as shown in the illustration using splices.

4. Locate a suitable grounding point.

   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.

   • Mount with the wiring directed downward or sideways if downward is not possible.

6. Reconnect the vehicle's negative (-) battery terminal.

7. Testing Procedure:

   • Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
   • Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
   • Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.

8. Secure all loose wires with cable ties.

   • Warning: Do not overload circuits to prevent fires. Adhere to these limits:
     • Max stop/turn light: 1 per side (2.1 amps)
     • Max tail lights: (7.5 amps)

Hardware List:

• Not detailed in the document.

Safety Notes:

• Wear safety glasses and follow safety precautions.
• Disconnect the negative (-) cable before wiring.
• Securely ground to the vehicle chassis or an existing ground stud.
• Use on 12-volt negative ground systems only.

Specifications:

• Max stop/turn light: 1 per side (2.1 amps)
• Max tail lights: (7.5 amps)
• Secure wiring with cable ties after installation.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Manufacturer Notes:

• Read and follow all vehicle warnings and instructions.
• Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
