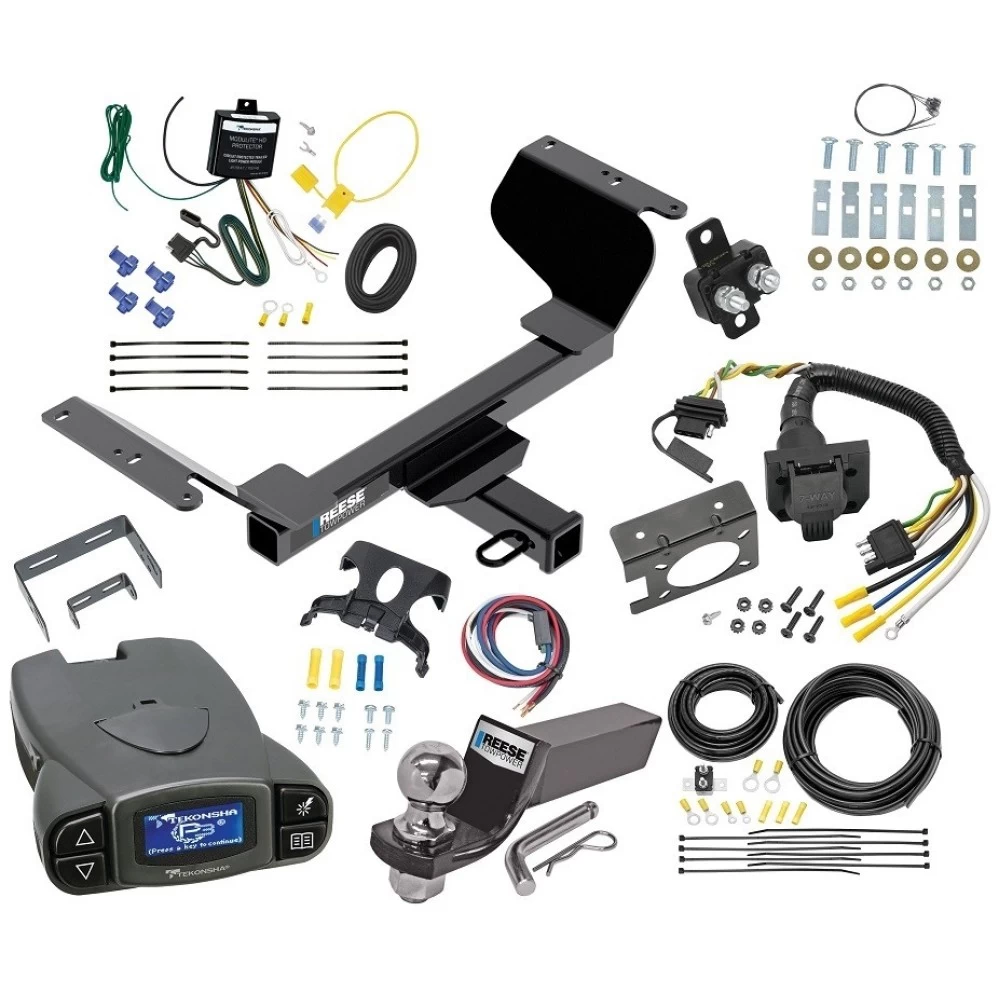

Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain

Part Numbers:

• 76419
• 84419
• CQT76419

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 15 mm, 11/16”
• T15 Torx Bit Socket
• 6-inch Socket Extension
• Exhaust Removal Pliers

Step-by-Step Instructions:

1. Lower Muffler:

   • Spray lubricant on the rubber hangers to ease removal.
   • Ensure the exhaust is supported before removing the rubber hangers.
   • Remove the following:
     • (2) screws from the bottom of the rear fascia using a T15 Torx bit.
     • (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
     • Rubber isolator from the hanger in front of the muffler.
   • Lower the exhaust one side at a time by gently pulling on the rear fascia.
   • If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.

2. Install Hardware:

   • Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
   • Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.

3. Install Hitch:

   • Carefully raise the hitch into position without pushing the hardware back into the frame.
   • Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.

4. Reinstall Muffler:

   • Reverse the steps from Step 1 to reinstall the muffler.

5. Torque Fasteners:

   • Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

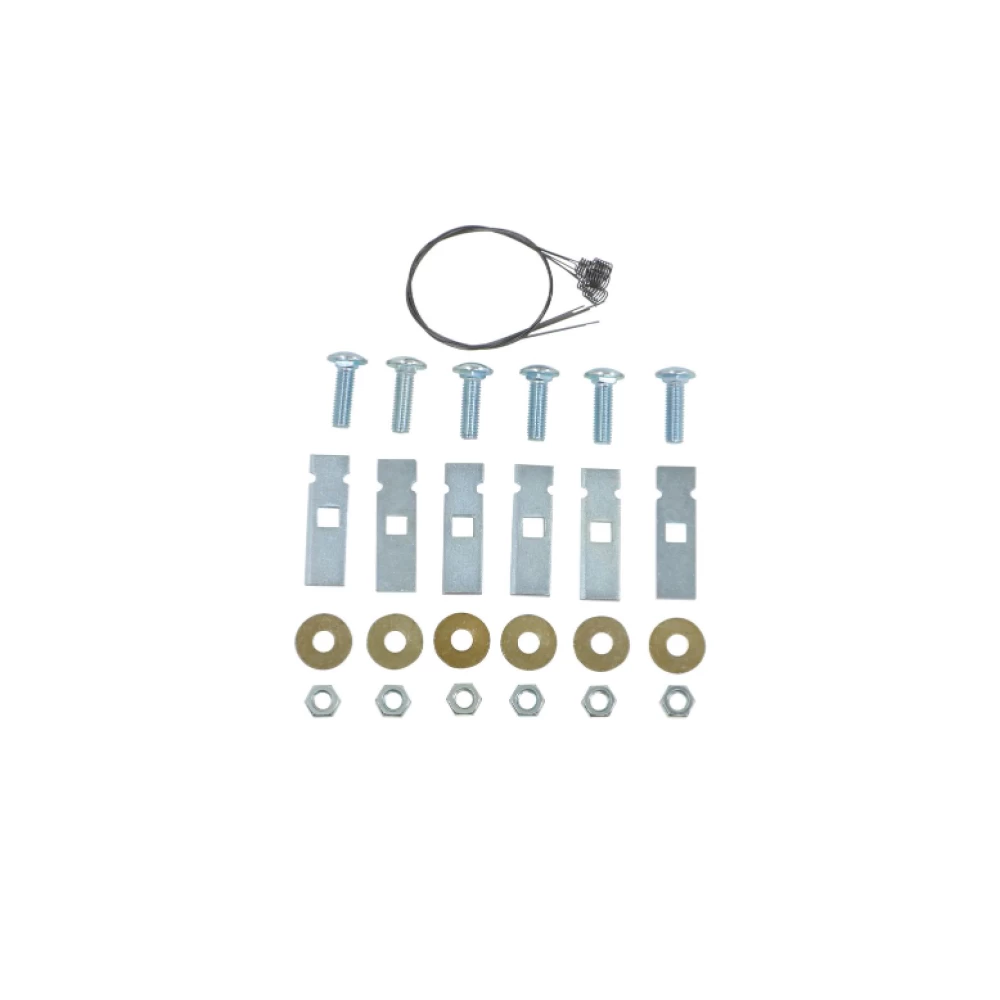

Hardware List:

• (6) Carriage Bolt 7/16”-14 x 1.5” GR5
• (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
• (6) Conical Washer 7/16” (PN: 01292007)
• (6) Hex Nut 7/16”-14
• (6) Pull Wire 7/16” (PN: 5481)

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Observe all safety precautions when working under the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 35 minutes.
• For step-by-step photo instructions, scan the QR code provided in the manual.

Installation Instructions for 2018-Current Chevrolet Equinox and GMC Terrain

Part Numbers:

• 76419
• 84419
• CQT76419

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 15 mm, 11/16”
• T15 Torx Bit Socket
• 6-inch Socket Extension
• Exhaust Removal Pliers

Step-by-Step Instructions:

1. Lower Muffler:

   • Spray lubricant on the rubber hangers to ease removal.
   • Ensure the exhaust is supported before removing the rubber hangers.
   • Remove the following:
     • (2) screws from the bottom of the rear fascia using a T15 Torx bit.
     • (2) bolts from each rear exhaust hanger bracket using a 15 mm socket.
     • Rubber isolator from the hanger in front of the muffler.
   • Lower the exhaust one side at a time by gently pulling on the rear fascia.
   • If needed, pull the wire harness off the passenger-side frame for additional clearance. Reinstall it after hitch installation.

2. Install Hardware:

   • Feed the coiled end of the pull wire through an attachment hole in the frame and out through the access hole.
   • Attach carriage bolts and spacers to the pull wire and pull them into position (3 per side). Leave the pull wire attached until the hitch is raised.

3. Install Hitch:

   • Carefully raise the hitch into position without pushing the hardware back into the frame.
   • Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the carriage bolts.

4. Reinstall Muffler:

   • Reverse the steps from Step 1 to reinstall the muffler.

5. Torque Fasteners:

   • Tighten all 7/16-14 GR5 fasteners to 50 ft-lbs (68 Nm) using a torque wrench.

Hardware List:

• (6) Carriage Bolt 7/16”-14 x 1.5” GR5
• (6) Spacer Block 1/4” x 7/8” x 3” (PN: HE-2370-000)
• (6) Conical Washer 7/16” (PN: 01292007)
• (6) Hex Nut 7/16”-14
• (6) Pull Wire 7/16” (PN: 5481)

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch periodically to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Observe all safety precautions when working under the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 4,500 lbs (2,043 kg) trailer weight, 675 lbs (306 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 35 minutes.
• For step-by-step photo instructions, scan the QR code provided in the manual.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For warranty information, please download the full installation PDF.
