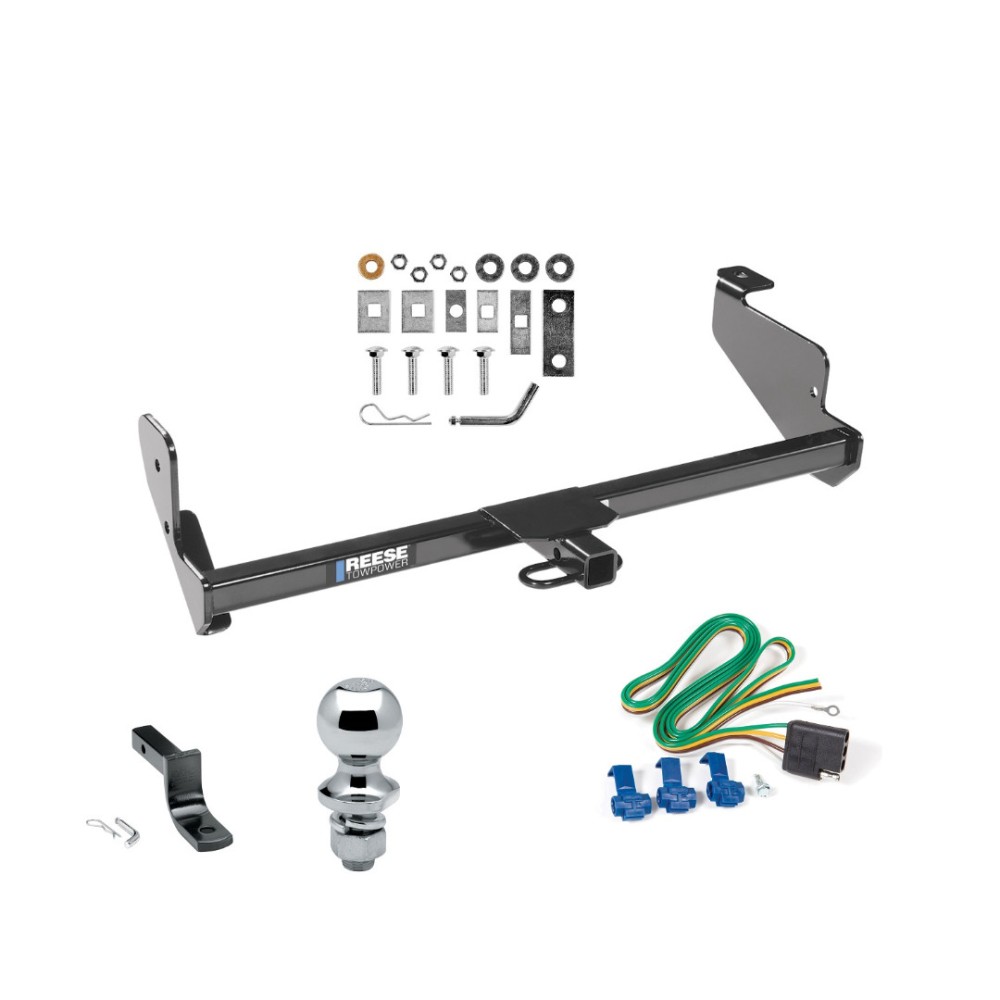

Installation Instructions for Ford Focus Sedan, Ford Focus 5 DR – ZX5 (Hatchback), and Ford Focus 3 DR – ZX3 (Hatchback)

Part Numbers:

• 77114
• 24692
• 60870

Wiring Access Location:

• Sedan: PC3, PC4
• Hatchback: PC1, PC2

Tools Required:

• Drill Bits: 1/2"
• Wrenches: 3/4", 7/8"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

General Instructions:

1. Raise Hitch Into Position:

   • Position the hitch so that the driver’s side bracket is inboard of the tie-down hook and the passenger’s side bracket is outboard of the tie-down hook.
   • The placement of the block with two holes varies by model (see Figure 1).

2. Install Carriage Bolts and Blocks:

   • Insert the bolts and blocks through the vehicle’s tie-down hooks. Loosely install flat washers and hex nuts.

Sedan Models:

3. Fishwire Carriage Bolt:

   • Use the fishwire to guide the carriage bolt and block through the end of the frame rail into the existing hole in the frame.

4. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

Hatchback Models:

3. Drill Holes:

   • Use the hitch as a template to drill a 1/2” hole at the forward-most end of the slot in the side bracket on the passenger side.

4. Fishwire Carriage Bolt:

   • Guide the carriage bolt and block through the access hole on the bottom of the frame rail.

5. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

6. Tighten Fasteners:

   • Use a torque wrench to tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).

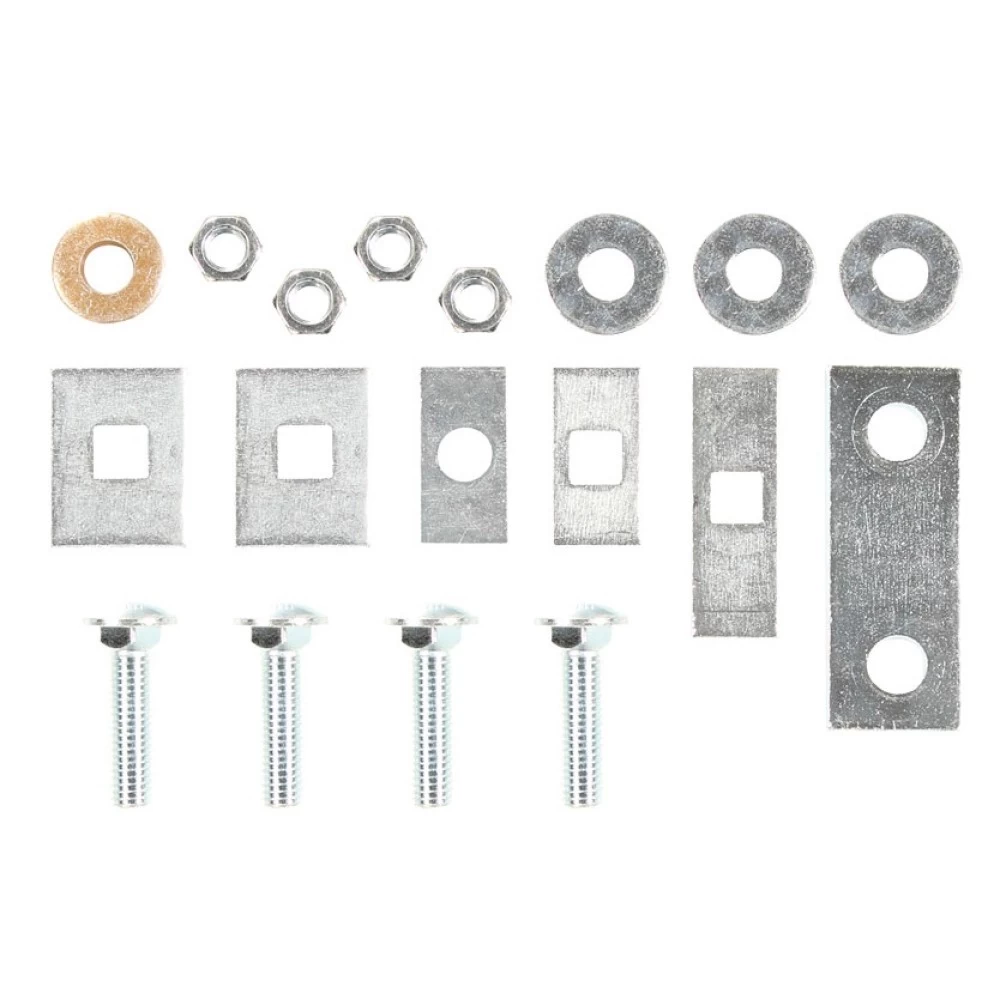

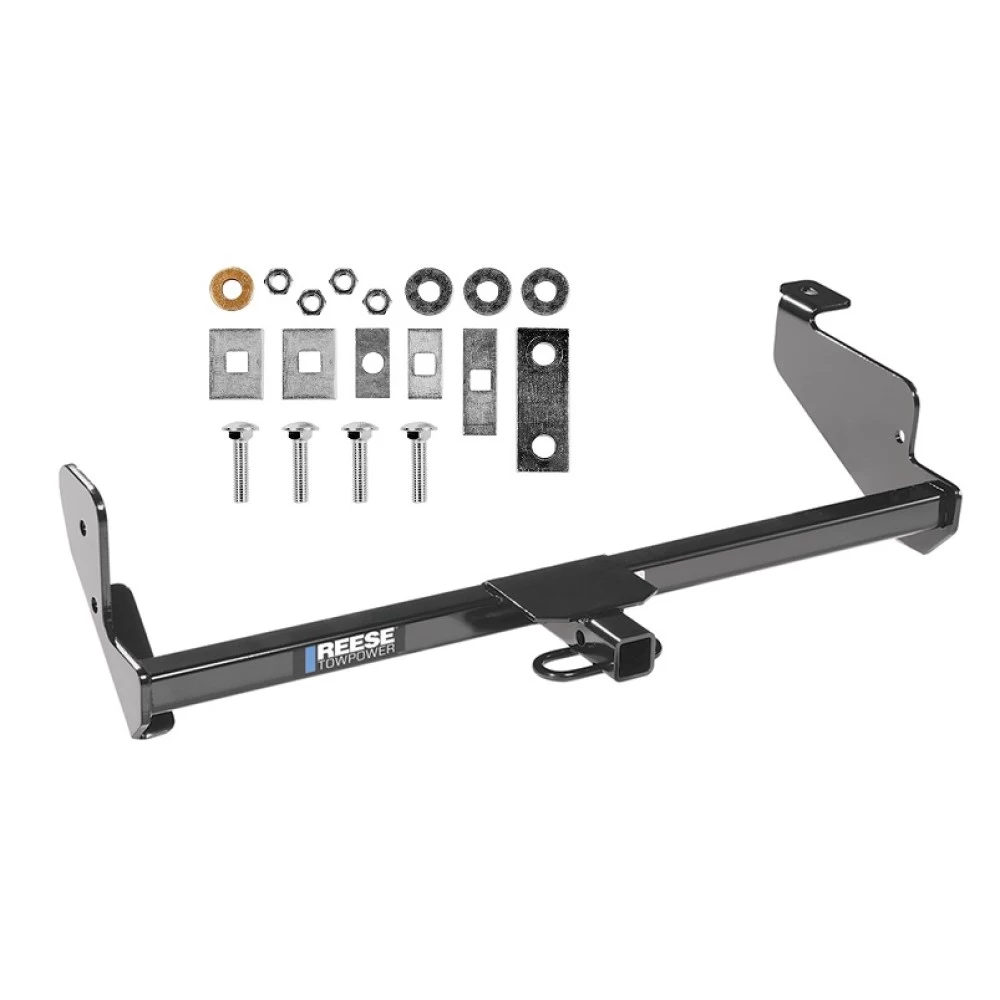

Hardware List:

• (4) 1/2”-13 x 2.00 GR5 Carriage Bolts
• (1) .188” x 1.00” x 2.00” Block
• (1) .25” x 1.50” x 4.00” Block
• (2) .25” x 1.50” x 2.00” Blocks
• (1) .25” x 1.00” x 3.00” Block
• (1) .25” x 1.00” x 2.00” Block
• (3) Flat Washers: 1/2"
• (1) Conical Washer: 1/2"
• (1) 1/2”-13 Hex Nut
• (3) 1/2”-13 Lock Nuts

Drawbar:

• Drawbar Kit: 3593
  • Must be used in the rise position only.

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Does not fit models with the Street Appearance Package.

Installation Instructions for Ford Focus Sedan, Ford Focus 5 DR – ZX5 (Hatchback), and Ford Focus 3 DR – ZX3 (Hatchback)

Part Numbers:

• 77114
• 24692
• 60870

Wiring Access Location:

• Sedan: PC3, PC4
• Hatchback: PC1, PC2

Tools Required:

• Drill Bits: 1/2"
• Wrenches: 3/4", 7/8"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

General Instructions:

1. Raise Hitch Into Position:

   • Position the hitch so that the driver’s side bracket is inboard of the tie-down hook and the passenger’s side bracket is outboard of the tie-down hook.
   • The placement of the block with two holes varies by model (see Figure 1).

2. Install Carriage Bolts and Blocks:

   • Insert the bolts and blocks through the vehicle’s tie-down hooks. Loosely install flat washers and hex nuts.

Sedan Models:

3. Fishwire Carriage Bolt:

   • Use the fishwire to guide the carriage bolt and block through the end of the frame rail into the existing hole in the frame.

4. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

Hatchback Models:

3. Drill Holes:

   • Use the hitch as a template to drill a 1/2” hole at the forward-most end of the slot in the side bracket on the passenger side.

4. Fishwire Carriage Bolt:

   • Guide the carriage bolt and block through the access hole on the bottom of the frame rail.

5. Install Remaining Fasteners:

   • Secure the remaining fasteners as shown in the diagram.

6. Tighten Fasteners:

   • Use a torque wrench to tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (4) 1/2”-13 x 2.00 GR5 Carriage Bolts
• (1) .188” x 1.00” x 2.00” Block
• (1) .25” x 1.50” x 4.00” Block
• (2) .25” x 1.50” x 2.00” Blocks
• (1) .25” x 1.00” x 3.00” Block
• (1) .25” x 1.00” x 2.00” Block
• (3) Flat Washers: 1/2"
• (1) Conical Washer: 1/2"
• (1) 1/2”-13 Hex Nut
• (3) 1/2”-13 Lock Nuts

Drawbar:

• Drawbar Kit: 3593
  • Must be used in the rise position only.

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Does not fit models with the Street Appearance Package.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24692 Rev. A 6/25/2014

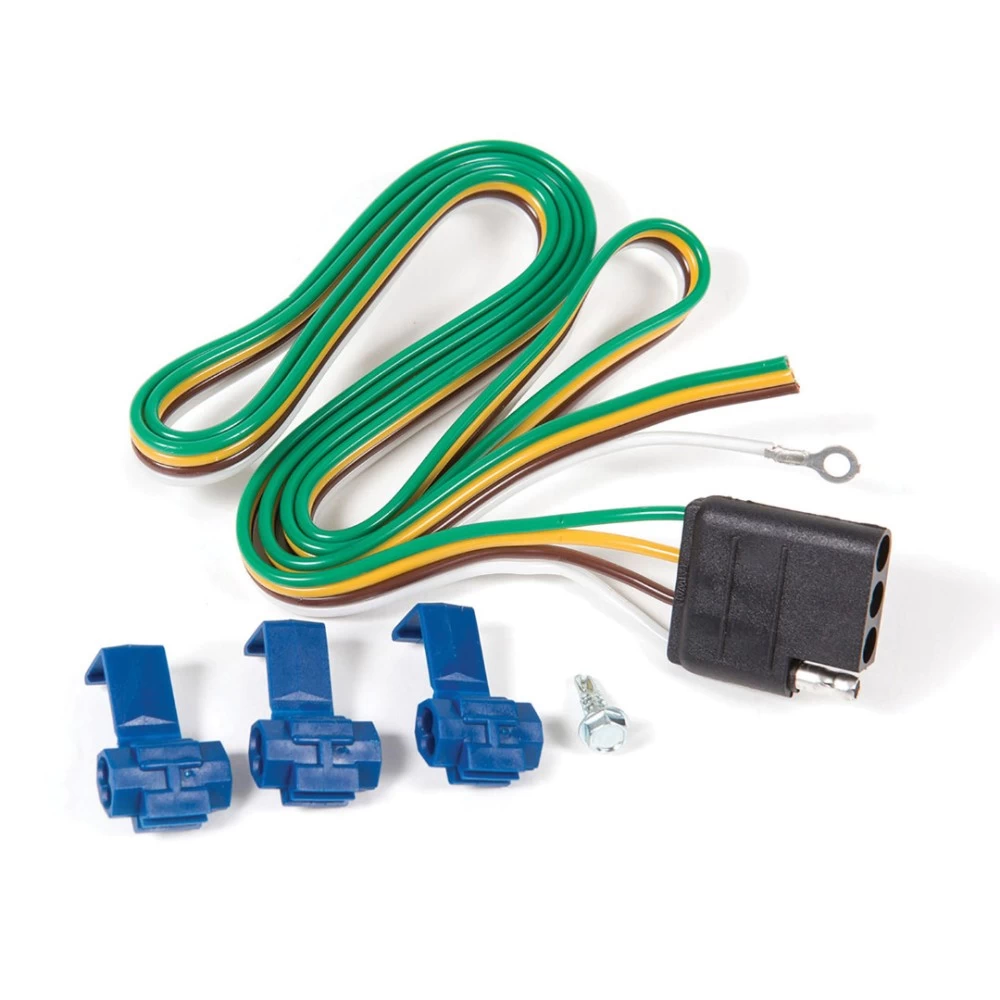

Installation Instructions for Towing Vehicle 4-Way Flat Plug

Tools Required:

• Circuit Tester
• Wire Crimp Tool
• Cable Ties

Step-by-Step Installation Instructions:

Towing Vehicle:

1. Locate the appropriate wires at the rear of the vehicle using a circuit tester and the provided wiring chart as a reference.
2. Make the connections as shown in the chart using wire taps.
3. Connect the Ground Wire (White) to the vehicle frame or body.

General:

1. Test all lights using a test light, circuit tester, or connected trailer to ensure proper functionality.
2. Secure all loose wires with cable ties.

Notes:

• Vehicles with separate turn and stop lights require a taillight converter.
• If splicing into the vehicle wiring:
  • Consult the vehicle owner's manual or local dealer for warnings or restrictions.
  • Use appropriate gauge wire splices for secure connections.

Warnings:

1. Complete Connections:
   • All connections must be complete for proper functionality. Test and verify installation with a test light, circuit tester, or trailer after installation.
2. Overloading Prevention:
   • Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s ratings or:
     • Maximum Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
     • Maximum (+) Battery, Reverse, and Electric Brake Circuits: 30 amps.
3. Additional fusing may be required. Refer to the vehicle owner's manual and instruction sheet for further details.

For further assistance or technical support, consult the vehicle’s owner's manual or contact the product manufacturer.

Installation Instructions for Towing Vehicle 4-Way Flat Plug

Tools Required:

• Circuit Tester
• Wire Crimp Tool
• Cable Ties

Step-by-Step Installation Instructions:

Towing Vehicle:

1. Locate the appropriate wires at the rear of the vehicle using a circuit tester and the provided wiring chart as a reference.
2. Make the connections as shown in the chart using wire taps.
3. Connect the Ground Wire (White) to the vehicle frame or body.

General:

1. Test all lights using a test light, circuit tester, or connected trailer to ensure proper functionality.
2. Secure all loose wires with cable ties.

Notes:

• Vehicles with separate turn and stop lights require a taillight converter.
• If splicing into the vehicle wiring:
  • Consult the vehicle owner's manual or local dealer for warnings or restrictions.
  • Use appropriate gauge wire splices for secure connections.

Warnings:

1. Complete Connections:
   • All connections must be complete for proper functionality. Test and verify installation with a test light, circuit tester, or trailer after installation.
2. Overloading Prevention:
   • Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s ratings or:
     • Maximum Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
     • Maximum (+) Battery, Reverse, and Electric Brake Circuits: 30 amps.
3. Additional fusing may be required. Refer to the vehicle owner's manual and instruction sheet for further details.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

The product comes with a [X]-year warranty that covers defects in materials and workmanship. For complete warranty instructions, please download the full installation PDF.
