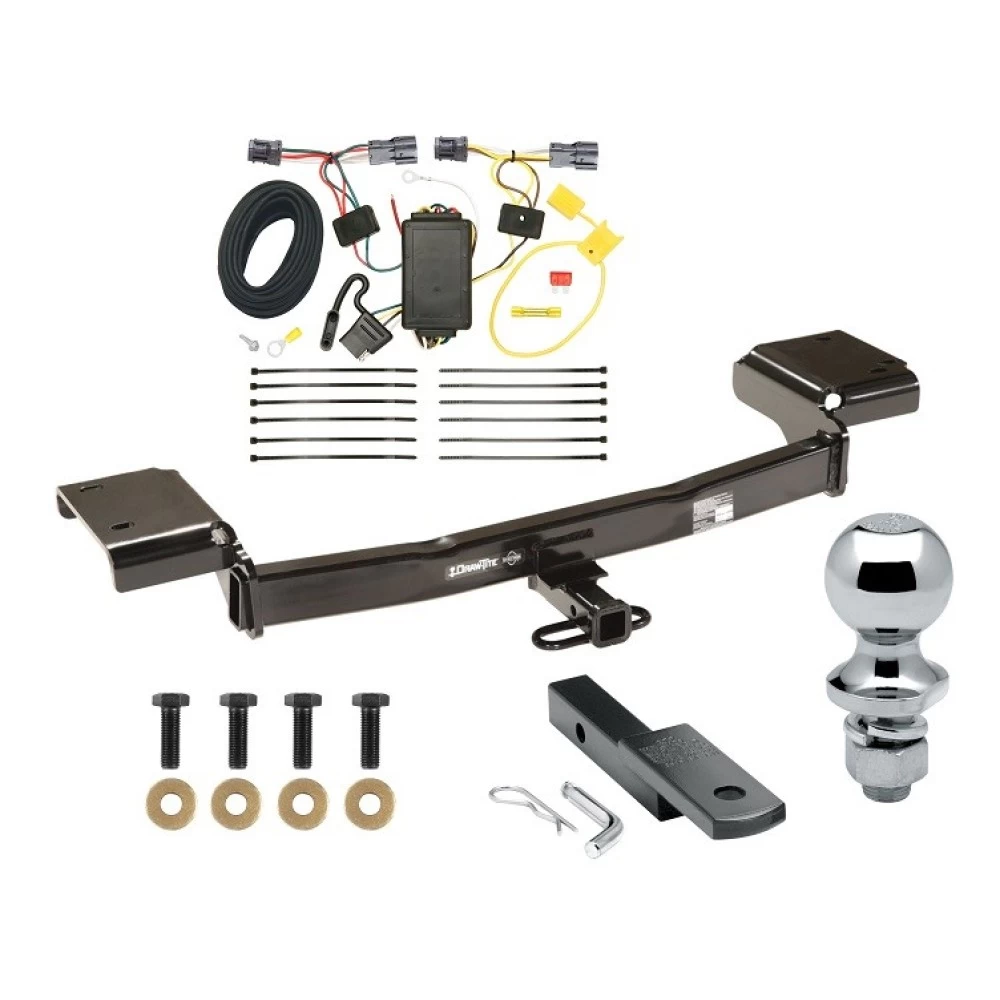

Installation Instructions for Hyundai Tucson and Kia Sportage

Part Numbers:

• 36510
• 90211
• 06132

Wiring Access Location:

• Tucson: SUV1, SUV2
• Sportage: SUV1, SUV5

Tools Required:

• Wrench: 16mm
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare Vehicle:

   • Raise the vehicle using a hoist or ramps to access the underside.

2. Lower Exhaust:

   • While supporting the exhaust, remove the rear hangers to lower the exhaust system.
   • Ensure the exhaust is lowered sufficiently to position the hitch over the muffler tips.

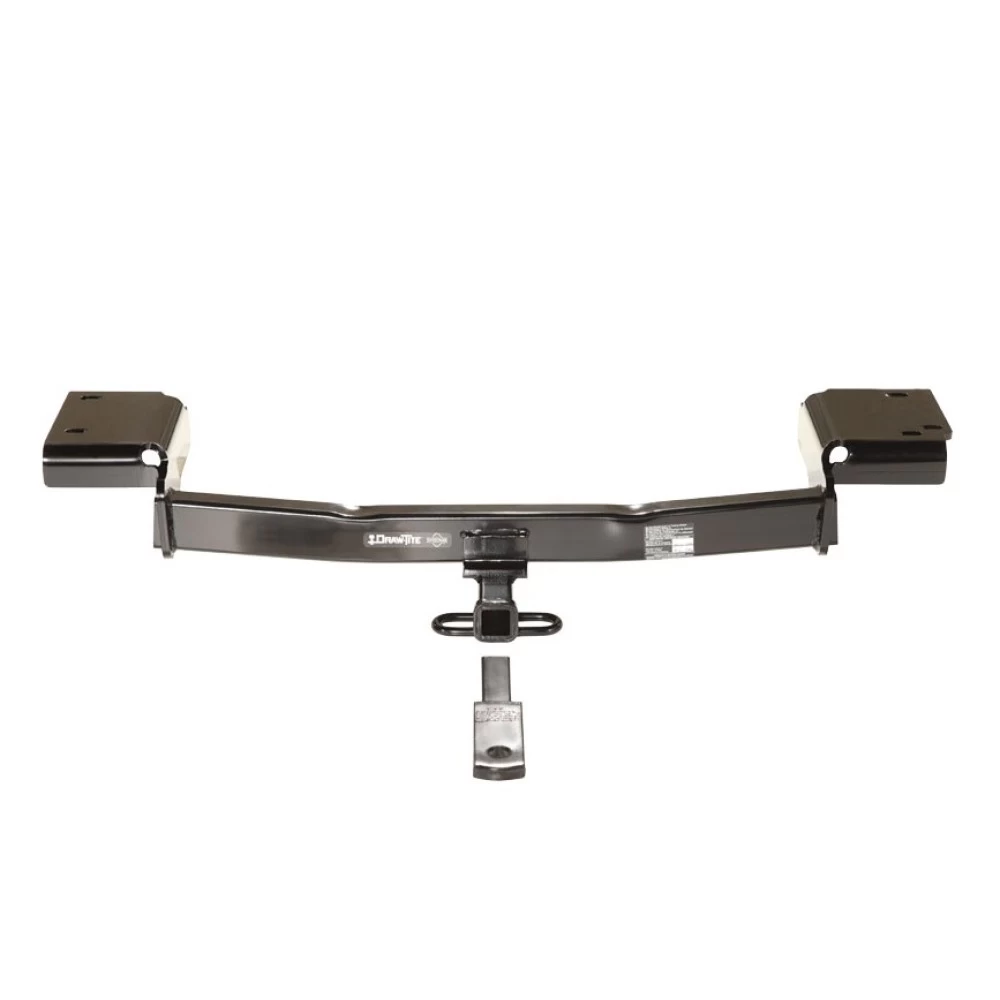

3. Position the Hitch:

   • Raise the hitch into position, aligning the slots in the hitch with the existing weld nuts in the bottom of the frame.

4. Install Fasteners:

   • Loosely install four (4) M10 hex bolts with conical washers into the weld nuts, as shown in the instructions.

5. Tighten Fasteners:

   • Tighten all M10 CL10.9 fasteners using a torque wrench to 42 ft-lb (57 N*m).

6. Reinstall Exhaust:

   • Reattach the rear hangers to secure the exhaust system.

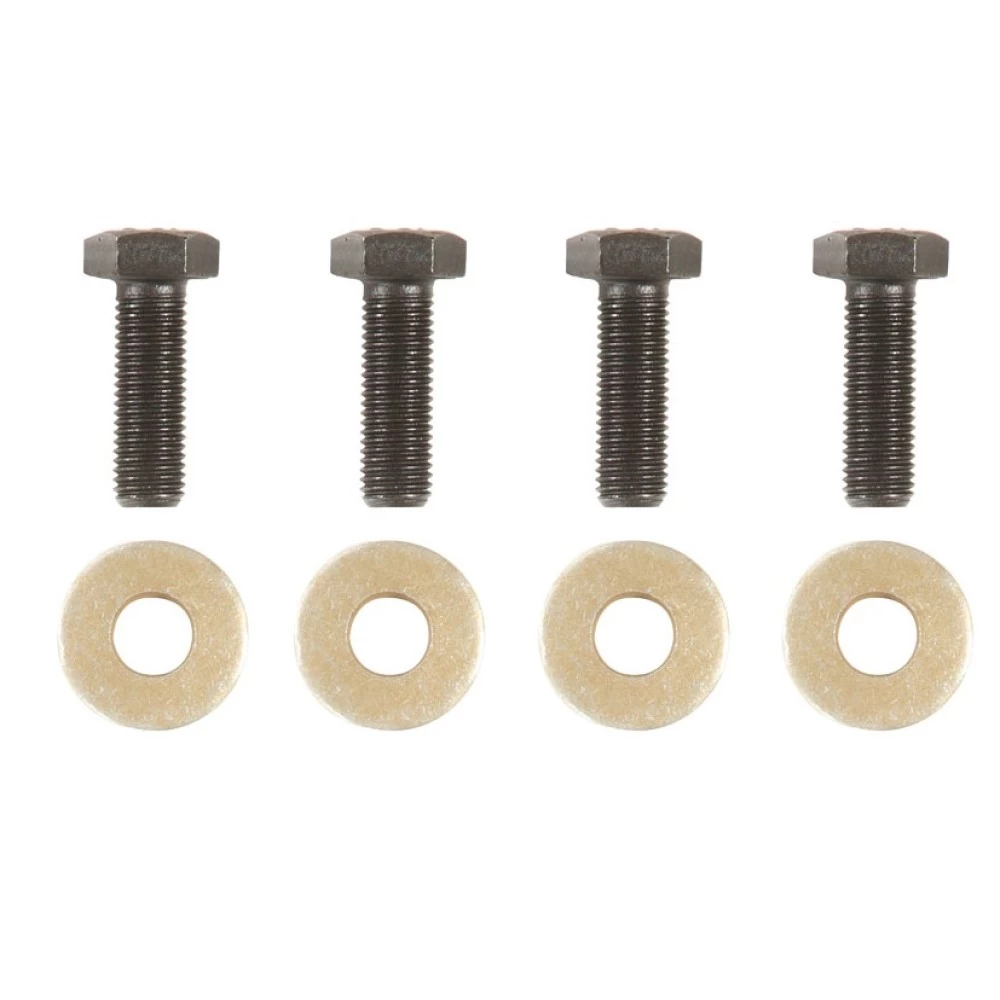

Hardware List:

• (4) Hex Bolt, M10 x 1.25 x 30mm CL10.9
• (4) Conical Washer, 3/8"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Drawbar Kit: 36001 (sold separately)
• Fastener Kit: 36510F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Hyundai Tucson and Kia Sportage

Part Numbers:

• 36510
• 90211
• 06132

Wiring Access Location:

• Tucson: SUV1, SUV2
• Sportage: SUV1, SUV5

Tools Required:

• Wrench: 16mm
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare Vehicle:

   • Raise the vehicle using a hoist or ramps to access the underside.

2. Lower Exhaust:

   • While supporting the exhaust, remove the rear hangers to lower the exhaust system.
   • Ensure the exhaust is lowered sufficiently to position the hitch over the muffler tips.

3. Position the Hitch:

   • Raise the hitch into position, aligning the slots in the hitch with the existing weld nuts in the bottom of the frame.

4. Install Fasteners:

   • Loosely install four (4) M10 hex bolts with conical washers into the weld nuts, as shown in the instructions.

5. Tighten Fasteners:

   • Tighten all M10 CL10.9 fasteners using a torque wrench to 42 ft-lb (57 N*m).

6. Reinstall Exhaust:

   • Reattach the rear hangers to secure the exhaust system.

Hardware List:

• (4) Hex Bolt, M10 x 1.25 x 30mm CL10.9
• (4) Conical Washer, 3/8"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Drawbar Kit: 36001 (sold separately)
• Fastener Kit: 36510F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

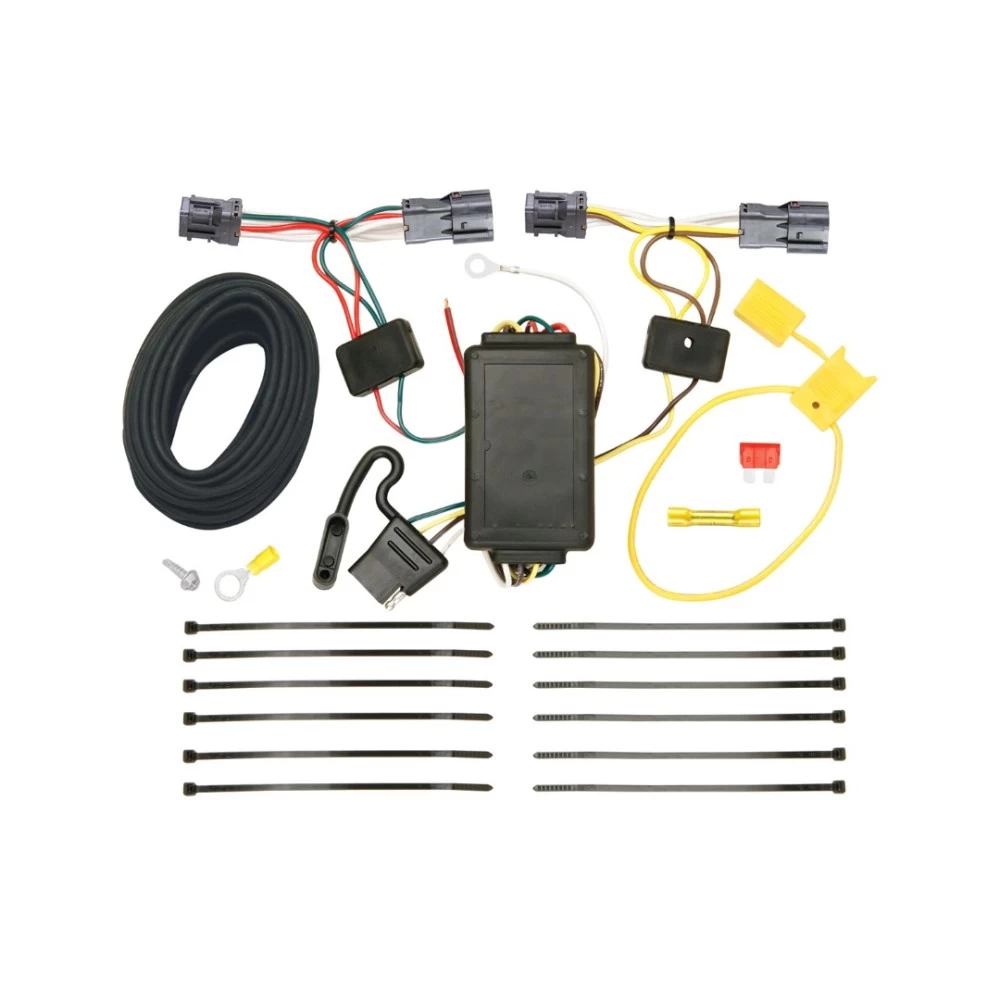

Installation Instructions for T-Connector Adapter for Hyundai Tucson

Part Numbers:

• 118501

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Fish Tape
• Test Probe
• Utility Knife

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and carefully remove the vehicle’s taillight assemblies.
   • Pull the taillight housing away from the vehicle to expose the wiring harness connectors in the pocket behind the taillight.

2. Disconnect the Wiring Harness:

   • Locate the connection points matching the T-Connector adapter ends behind each taillight housing.
   • Disconnect the wiring harness from both taillight sockets. Ensure all connectors are clean and free of dirt.

3. Prepare the Cargo Area:

   • Inside the rear cargo area, temporarily remove all floor coverings, cargo trays, and the plastic threshold cover.
   • Warning: Do not remove vehicle side trim panels to avoid breaking the clips that secure them.

4. Route the T-Connector Wiring:

   • Locate the grommet under the vehicle on the driver’s side. Remove the grommet.
   • Fish both T-Connector ends and the power wire through the grommet hole from inside the vehicle.

   Note:

   • If a vehicle wire passes through the existing grommet, carefully slit the T-Connector’s grommet to allow the wire to pass through.
   • Seal the grommet with silicone rubber (not provided).

5. Connect the Driver-Side T-Connector:

   • Route the T-Connector end with yellow/brown wires up from under the vehicle into the driver’s side taillight pocket.
   • Plug the T-Connector into the driver-side wiring connectors, ensuring the locking tabs are secure.

6. Connect the Passenger-Side T-Connector:

   • Route the T-Connector end with green/red wires over the bumper bracket and across to the passenger-side taillight pocket.
   • Secure the harness to the bumper using cable ties, avoiding hot pipes, heat shields, or areas that may damage the wires.
   • Repeat Step 5 for the passenger-side T-Connector.

7. Connect the Power Wire:

   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable and connect the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
   • Route the black wire rearward along the frame rail, avoiding hot pipes, heat shields, and the fuel tank.
   • Connect the black wire to the red 12-gauge power wire exiting the grommet using a butt connector.

   Note:

   • Apply heat to the splice using a hot air gun until the tubing recovers and adhesive flows.

8. Ground the White Wire:

   • Locate a suitable grounding point near the connector (e.g., an existing ground stud).
   • Clean the area and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or injury.

9. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

10. Mount the Black Box:

    • Mount the T-Connector black box using the provided double-sided tape.
    • Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.

11. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and other items removed during installation.
    • Store the 4-flat connector in the spare tire compartment when not in use.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Vehicle

Part Numbers:

• 118501

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Fish Tape
• Test Probe
• Utility Knife

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and carefully remove the vehicle’s taillight assemblies.
   • Pull the taillight housing away from the vehicle to expose the wiring harness connectors in the pocket behind the taillight.

2. Disconnect the Wiring Harness:

   • Locate the connection points matching the T-Connector adapter ends behind each taillight housing.
   • Disconnect the wiring harness from both taillight sockets. Ensure all connectors are clean and free of dirt.

3. Prepare the Cargo Area:

   • Inside the rear cargo area, temporarily remove all floor coverings, cargo trays, and the plastic threshold cover.
   • Warning: Do not remove vehicle side trim panels to avoid breaking the clips that secure them.

4. Route the T-Connector Wiring:

   • Locate the grommet under the vehicle on the driver’s side. Remove the grommet.
   • Fish both T-Connector ends and the power wire through the grommet hole from inside the vehicle.

   Note:

   • If a vehicle wire passes through the existing grommet, carefully slit the T-Connector’s grommet to allow the wire to pass through.
   • Seal the grommet with silicone rubber (not provided).

5. Connect the Driver-Side T-Connector:

   • Route the T-Connector end with yellow/brown wires up from under the vehicle into the driver’s side taillight pocket.
   • Plug the T-Connector into the driver-side wiring connectors, ensuring the locking tabs are secure.

6. Connect the Passenger-Side T-Connector:

   • Route the T-Connector end with green/red wires over the bumper bracket and across to the passenger-side taillight pocket.
   • Secure the harness to the bumper using cable ties, avoiding hot pipes, heat shields, or areas that may damage the wires.
   • Repeat Step 5 for the passenger-side T-Connector.

7. Connect the Power Wire:

   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable and connect the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
   • Route the black wire rearward along the frame rail, avoiding hot pipes, heat shields, and the fuel tank.
   • Connect the black wire to the red 12-gauge power wire exiting the grommet using a butt connector.

   Note:

   • Apply heat to the splice using a hot air gun until the tubing recovers and adhesive flows.

8. Ground the White Wire:

   • Locate a suitable grounding point near the connector (e.g., an existing ground stud).
   • Clean the area and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or injury.

9. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

10. Mount the Black Box:

    • Mount the T-Connector black box using the provided double-sided tape.
    • Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.

11. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and other items removed during installation.
    • Store the 4-flat connector in the spare tire compartment when not in use.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
