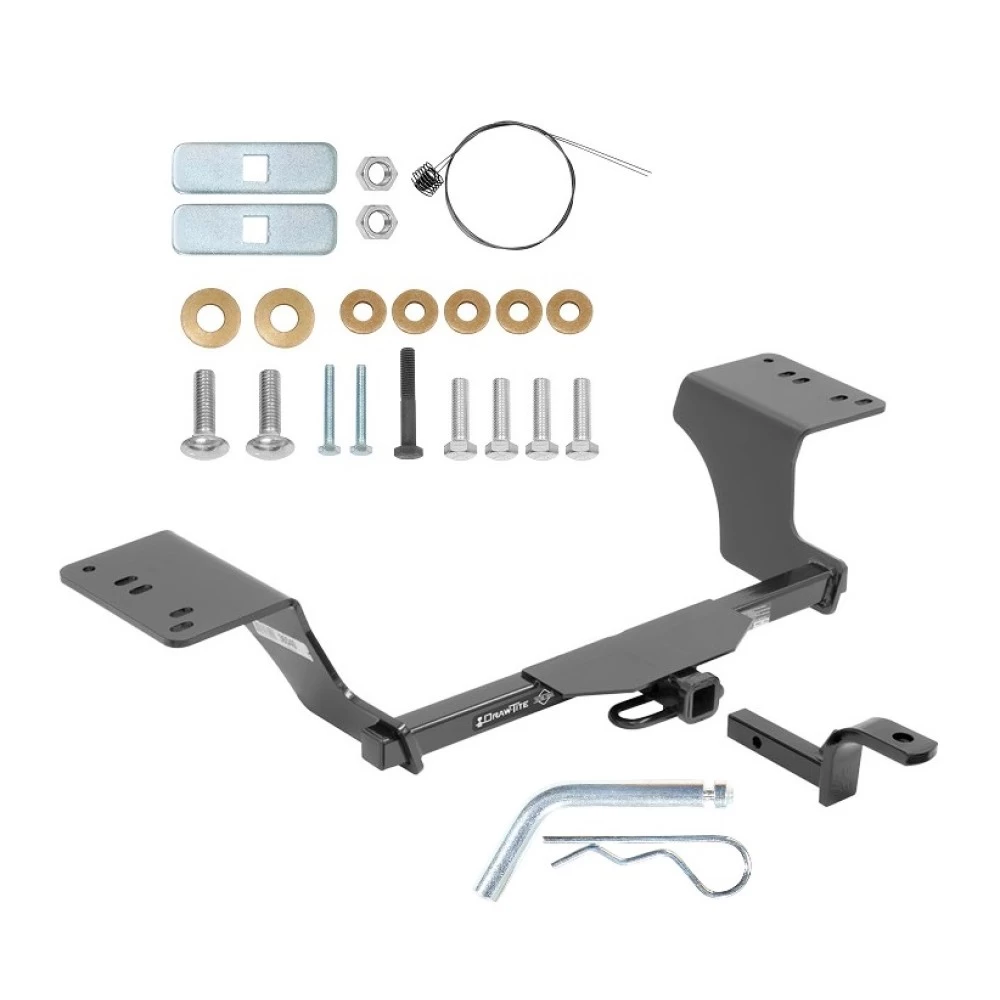

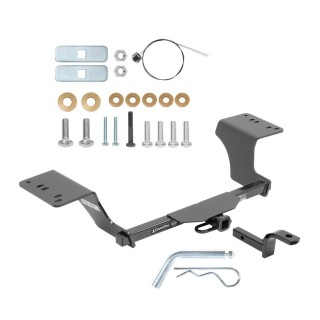

Trailer Tow Hitch For 12‑17 Toyota Camry Except Hybrid 13‑18 Avalon 1‑1/4" Receiver w/ Draw Bar Kit

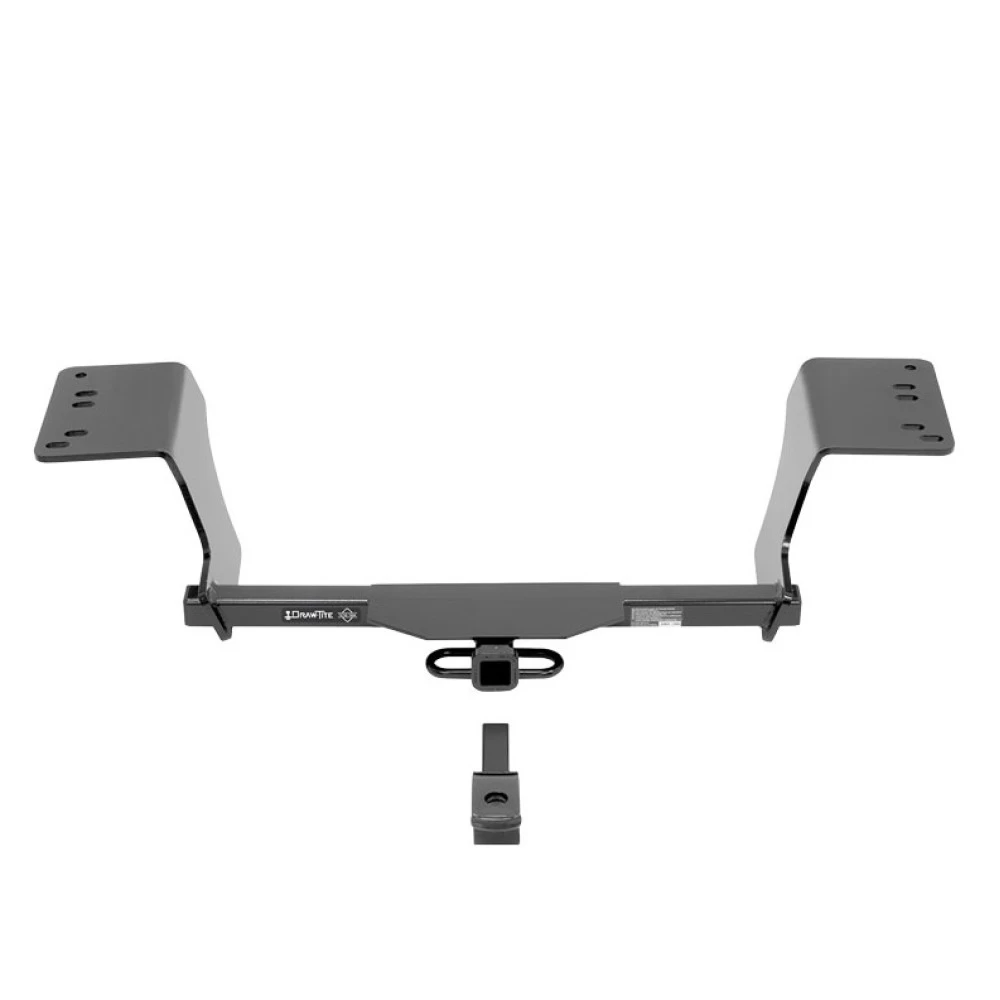

Model: 365400Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2013 - 2018 Toyota, Avalon, All Styles
Trailer Hitch Specs:
| Part Number | 365400 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 2012 2013 2014 2015 2016 2017 2018
$209 77 $370.70 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$370.70 $209 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 365400
- UPC: 016118140415
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2013 - 2018 Toyota, Avalon, All Styles
Trailer Hitch Specs:
| Part Number | 365400 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 2012 2013 2014 2015 2016 2017 2018
Get Expert Help
Trailer Tow Hitch For 12-17 Toyota Camry Except Hybrid 13-18 Avalon 1-1/4" Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Toyota Camry and Toyota Avalon
Part Numbers:
- 36540
- 90031
- 06160
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 12mm, 14mm, 17mm, 11/16"
- Drill Bits: 1/4", 1", 1/2"
- Utility Knife
- Lubricant or Soapy Water
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Remove the appearance panel from the driver's side frame rails. Trim or remove the panel based on the vehicle model. Obtain the vehicle owner's approval before trimming.
-
Lower Exhaust:
- Remove two bolts from the exhaust hanger bracket and detach the rubber isolator on the forward side of the exhaust. Spray lubricant or soapy water on the hanger rod and rubber isolator for easier removal.
- Leave rubber isolators attached to the exhaust hanger bracket. For dual exhaust models, repeat this step on both sides.
-
Remove Heat Shields:
- Remove the heat shields and set them aside.
-
Position Hitch:
- Slide the hitch into position over the exhaust pipes and install M10 hex bolts for temporary support. Note:
- For hybrid models, remove the rearmost bolt from the battery bracket on the passenger side and attach the hitch using the supplied M8 x 40mm hex bolt. Drilling is required on the driver side.
- Slide the hitch into position over the exhaust pipes and install M10 hex bolts for temporary support. Note:
-
Drill Holes:
- Use the hitch as a template to mark and center punch the holes on both sides. Drill 1/4" pilot holes first, followed by 1" access holes in the frame rail. Mark and drill the heat shield for the 7/16" carriage bolt.
-
Insert Fasteners:
- Insert the carriage bolt and spacer into the frame as shown, leaving the pull wire attached.
-
Reinstall Hitch:
- Raise the hitch into position, threading the pull wire through the bracket. Install M10 bolts on both sides. Remove the pull wire and install conical washers and nuts.
-
Secure Forward Brackets:
- Install exhaust hanger brackets on both sides through the forward weld nut. Bend the tab on the exhaust hanger to allow the bracket to lay flat on the hitch bracket.
-
Reinstall Heat Shields:
- Attach the heat shields using the M6 bolts provided.
-
Raise Exhaust:
- Reinstall the exhaust system and secure with the rubber isolators.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- Tighten all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Tighten all M8-1.25 CL10.9 fasteners to 27 lb-ft (37 N*m).
- Tighten all M10-1.25 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Torque all fasteners to the specified values:

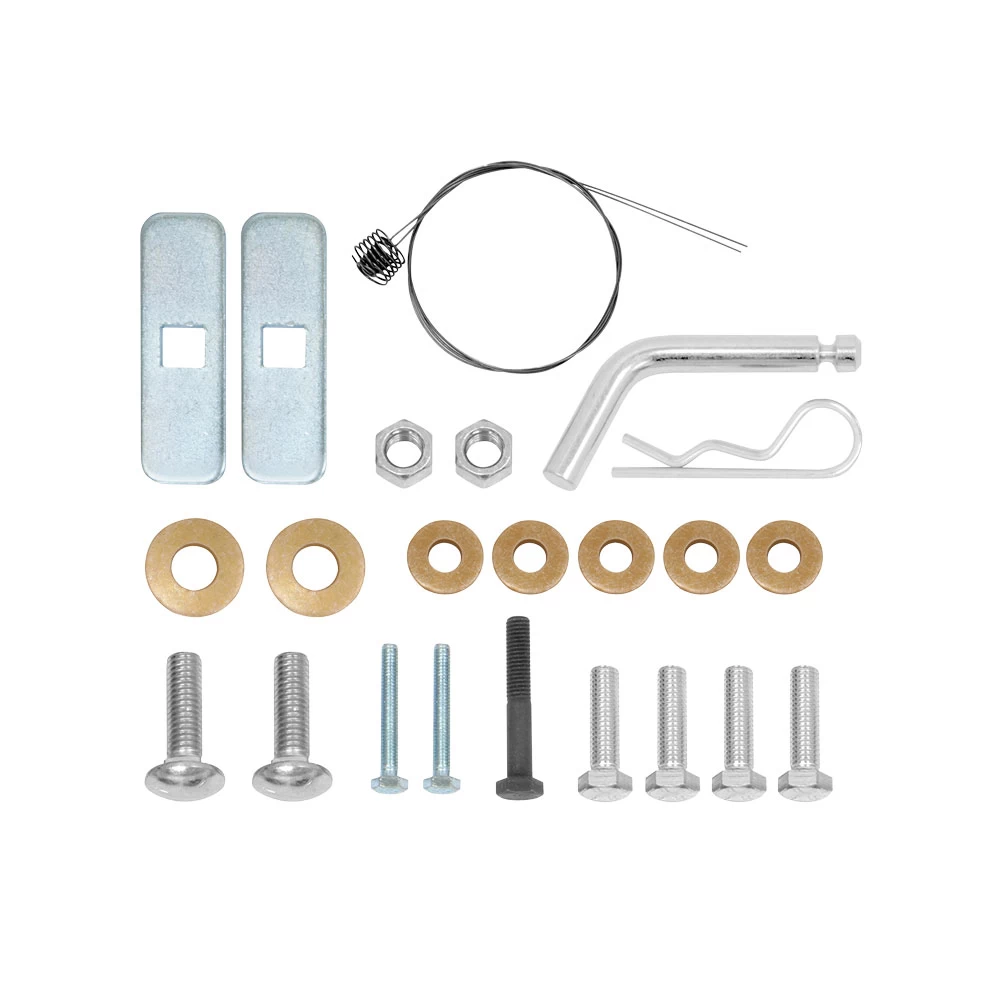

Hardware List:
- (4) Hex Bolt, M10 x 1.25 x 40mm CL8.8
- (2) Carriage Bolt, 7/16"-14 x 1.5" GR5
- (2) Hex Bolt, M8 x 1.25 x 50mm CL10.9
- (2) Hex Bolt, M6 x 1.0 x 40mm
- (2) Conical Washer, 7/16"
- (5) Conical Washer, 3/8"
- (2) Spacer Block, .915" x 3.000" x 10GA
- (2) Hex Nut, 7/16"-14
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36540F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Toyota Camry and Toyota Avalon
Part Numbers:
- 36540
- 90031
- 06160
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 12mm, 14mm, 17mm, 11/16"
- Drill Bits: 1/4", 1", 1/2"
- Utility Knife
- Lubricant or Soapy Water
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Remove the appearance panel from the driver's side frame rails. Trim or remove the panel based on the vehicle model. Obtain the vehicle owner's approval before trimming.
-
Lower Exhaust:
- Remove two bolts from the exhaust hanger bracket and detach the rubber isolator on the forward side of the exhaust. Spray lubricant or soapy water on the hanger rod and rubber isolator for easier removal.
- Leave rubber isolators attached to the exhaust hanger bracket. For dual exhaust models, repeat this step on both sides.
-
Remove Heat Shields:
- Remove the heat shields and set them aside.
-
Position Hitch:
- Slide the hitch into position over the exhaust pipes and install M10 hex bolts for temporary support. Note:
- For hybrid models, remove the rearmost bolt from the battery bracket on the passenger side and attach the hitch using the supplied M8 x 40mm hex bolt. Drilling is required on the driver side.
- Slide the hitch into position over the exhaust pipes and install M10 hex bolts for temporary support. Note:
-
Drill Holes:
- Use the hitch as a template to mark and center punch the holes on both sides. Drill 1/4" pilot holes first, followed by 1" access holes in the frame rail. Mark and drill the heat shield for the 7/16" carriage bolt.
-
Insert Fasteners:
- Insert the carriage bolt and spacer into the frame as shown, leaving the pull wire attached.
-
Reinstall Hitch:
- Raise the hitch into position, threading the pull wire through the bracket. Install M10 bolts on both sides. Remove the pull wire and install conical washers and nuts.
-
Secure Forward Brackets:
- Install exhaust hanger brackets on both sides through the forward weld nut. Bend the tab on the exhaust hanger to allow the bracket to lay flat on the hitch bracket.
-
Reinstall Heat Shields:
- Attach the heat shields using the M6 bolts provided.
-
Raise Exhaust:
- Reinstall the exhaust system and secure with the rubber isolators.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- Tighten all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Tighten all M8-1.25 CL10.9 fasteners to 27 lb-ft (37 N*m).
- Tighten all M10-1.25 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Torque all fasteners to the specified values:
Hardware List:
- (4) Hex Bolt, M10 x 1.25 x 40mm CL8.8
- (2) Carriage Bolt, 7/16"-14 x 1.5" GR5
- (2) Hex Bolt, M8 x 1.25 x 50mm CL10.9
- (2) Hex Bolt, M6 x 1.0 x 40mm
- (2) Conical Washer, 7/16"
- (5) Conical Washer, 3/8"
- (2) Spacer Block, .915" x 3.000" x 10GA
- (2) Hex Nut, 7/16"-14
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36540F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
