Trailer Tow Hitch For 13-18 Lexus ES350 Except Hybrid Platform Style 2 Bike Rack Hitch Lock and Cover

Trailer Tow Hitch For 13‑18 Lexus ES350 Except Hybrid Platform Style 2 Bike Rack Hitch Lock and Cover

Model: 36530 63134 580407 2211

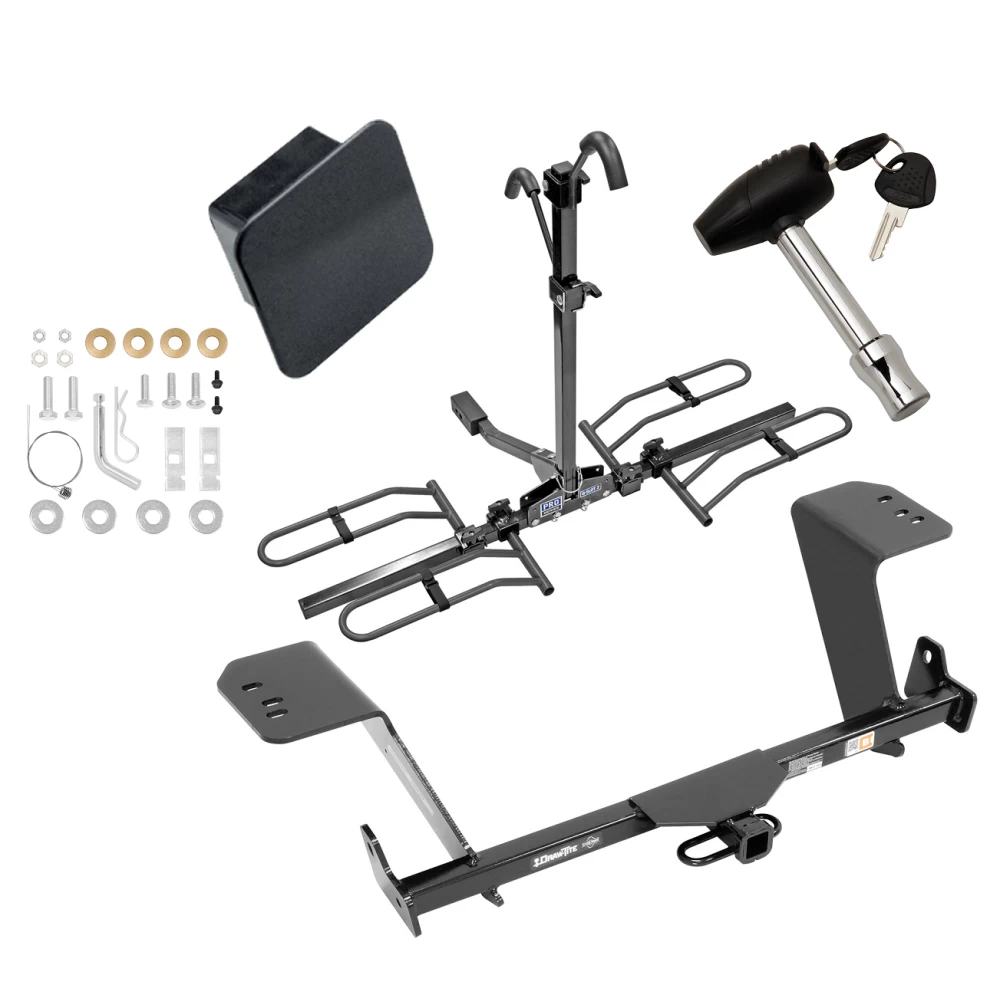

Includes Everything Pictured:

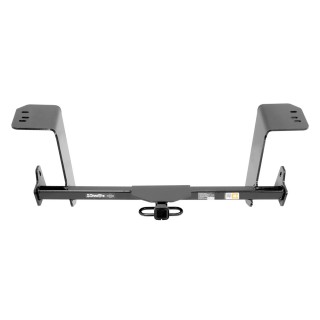

Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2013 - 2018 Lexus, ES350, Except Hybrid

Trailer Hitch Specs:

Part Number	36530
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 13 14 15 16 17 18 2013 2014 2015 2016 2017 2018

See Full Description

$414 ⁴⁵ $664.13 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$664.13 $414 ⁴⁵

Pay in 4 interest-free installments of $103.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $103.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 36530 63134 580407 2211
Includes: Class 2 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	Yes
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	36530
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 36530 , 63134 , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 13-18 , Lexus , ES350 , Except , Hybrid , Platform , Style , 2 , Bike , Rack , Hitch , Lock , and , Cover , 13 , 14 , 15 , 16 , 17 , 18 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018

Get Expert Help

Trailer Tow Hitch For 13-18 Lexus ES350 Except Hybrid Platform Style 2 Bike Rack Hitch Lock and Cover Install Notes

Installation Instructions for Lexus ES350 (Excluding Hybrid Models)

Part Numbers:

36530
90227
06154

Wiring Access Location:

PC3, PC4

Tools Required:

Wrenches: 10mm, 12mm, 13mm, 14mm, 17mm, 11/16", 3/4"
Pull Wires (provided)
Tin Snips
Lubricant or Soapy Water
Drill with 1/4" and 1" Bits

Step-by-Step Instructions:

Lower Exhaust:
- Detach the exhaust system at the rubber isolators in 4 locations.
- Spray lubricant on the metal hanger rod and rubber isolator to ease removal.
- Support the exhaust system.
- Lower the exhaust further by removing the hanger behind the passenger-side muffler and the next hanger using a 12mm socket.
Loosen Exhaust Hangers:
- Loosen the exhaust at the hanger brackets using a 14mm socket (3 locations on each side).
Remove Heat Shields:
- Remove the heat shields and set them aside for reinstallation.
Test Fit Hitch:
- Temporarily raise the hitch into position over the exhaust.
- Loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Use the additional 1/2" flat washers as needed to account for vehicle variance.
- Push the forward brackets into place against the bottom of the vehicle frame.
- If the forward hole (on both sides) does not align with an existing frame hole, mark the hole location using the hitch as a template.
Drill Holes:
- Lower the hitch and drill a 1/4" pilot hole and a 1" access hole as needed.
- Mark and drill the heat shield for the 7/16" carriage bolt.
Fishwire Hardware:
- Insert the carriage bolts and blocks into the frame rail using the provided pull wires (see Figure 2).
- Leave pull wires attached.
Reinstall Hitch:
- Raise the hitch back into position and loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Feed the pull wires through the hitch brackets and install the remaining fasteners.
Reinstall Heat Shields:
- Reinstall the heat shields removed in Step 3.
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Torque all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).

Hardware List:

(2) Hex Bolt, 1/2"-13 x 1.75" GR5
(2) Carriage Bolt, 7/16"-14 x 1.50" GR5
(2) Spacer Blocks, 1" x 2"
(4) Flat Washers, 1/2"
(2) Conical Washers, 7/16"
(2) Conical Washers, 1/2"
(2) Hex Nut, 7/16"-14
(2) Hex Nut, 1/2"-13
(2) Hex Bolt, M6 x 1.00 x 16mm (for heat shields)

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath a vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Drawbar must be used in the RISE position only.

Additional Notes:

Drawbar Kit: 36071 (sold separately)
Fastener Kit: 36530F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Lexus ES350 (Excluding Hybrid Models)

Part Numbers:

36530
90227
06154

Wiring Access Location:

PC3, PC4

Tools Required:

Wrenches: 10mm, 12mm, 13mm, 14mm, 17mm, 11/16", 3/4"
Pull Wires (provided)
Tin Snips
Lubricant or Soapy Water
Drill with 1/4" and 1" Bits

Step-by-Step Instructions:

Lower Exhaust:
- Detach the exhaust system at the rubber isolators in 4 locations.
- Spray lubricant on the metal hanger rod and rubber isolator to ease removal.
- Support the exhaust system.
- Lower the exhaust further by removing the hanger behind the passenger-side muffler and the next hanger using a 12mm socket.
Loosen Exhaust Hangers:
- Loosen the exhaust at the hanger brackets using a 14mm socket (3 locations on each side).
Remove Heat Shields:
- Remove the heat shields and set them aside for reinstallation.
Test Fit Hitch:
- Temporarily raise the hitch into position over the exhaust.
- Loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Use the additional 1/2" flat washers as needed to account for vehicle variance.
- Push the forward brackets into place against the bottom of the vehicle frame.
- If the forward hole (on both sides) does not align with an existing frame hole, mark the hole location using the hitch as a template.
Drill Holes:
- Lower the hitch and drill a 1/4" pilot hole and a 1" access hole as needed.
- Mark and drill the heat shield for the 7/16" carriage bolt.
Fishwire Hardware:
- Insert the carriage bolts and blocks into the frame rail using the provided pull wires (see Figure 2).
- Leave pull wires attached.
Reinstall Hitch:
- Raise the hitch back into position and loosely install the 1/2" fasteners to the vehicle hanger brackets.
- Feed the pull wires through the hitch brackets and install the remaining fasteners.
Reinstall Heat Shields:
- Reinstall the heat shields removed in Step 3.
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Torque all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).

Hardware List:

(2) Hex Bolt, 1/2"-13 x 1.75" GR5
(2) Carriage Bolt, 7/16"-14 x 1.50" GR5
(2) Spacer Blocks, 1" x 2"
(4) Flat Washers, 1/2"
(2) Conical Washers, 7/16"
(2) Conical Washers, 1/2"
(2) Hex Nut, 7/16"-14
(2) Hex Nut, 1/2"-13
(2) Hex Bolt, M6 x 1.00 x 16mm (for heat shields)

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath a vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Drawbar must be used in the RISE position only.

Additional Notes:

Drawbar Kit: 36071 (sold separately)
Fastener Kit: 36530F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
