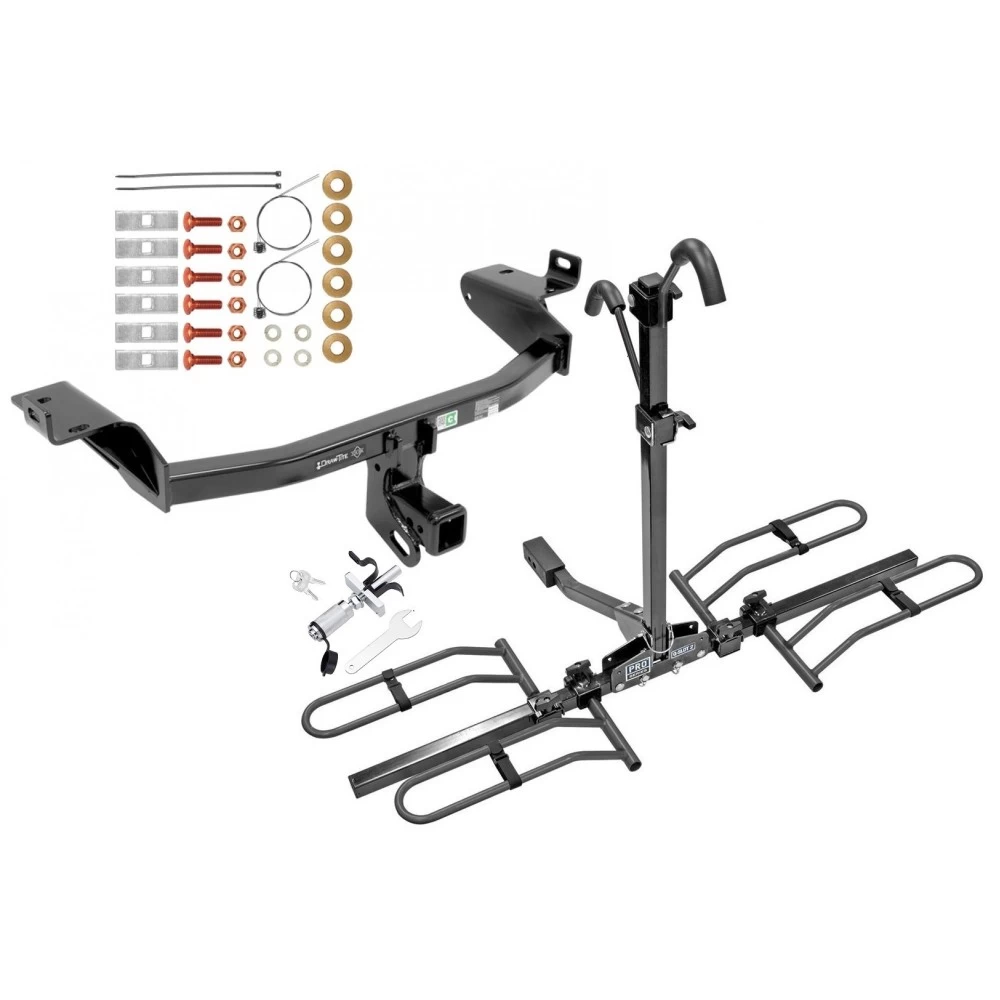

Installation Instructions for Hyundai Palisade (2020-Present)

Part Numbers:

• 75998
• 44764
• CQT75998

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17mm, 19mm

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Prepare Frame Rails:

   • Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
   • Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.

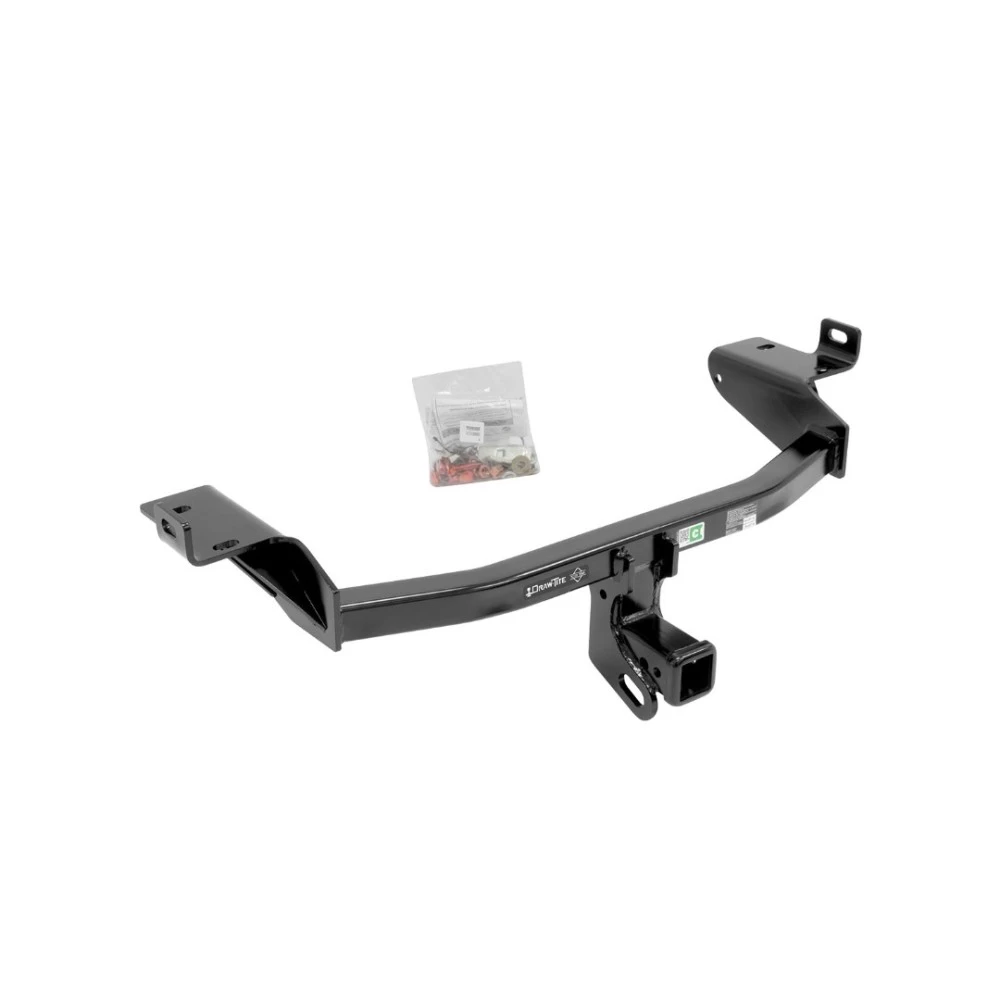

2. Position the Hitch:

   • Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.

3. Install Fasteners:

   • Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
   • Ensure the toothed side of the washers faces the hitch.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).

5. Verify Installation:

   • Double-check that all bolts are securely tightened, and the hitch is properly aligned.

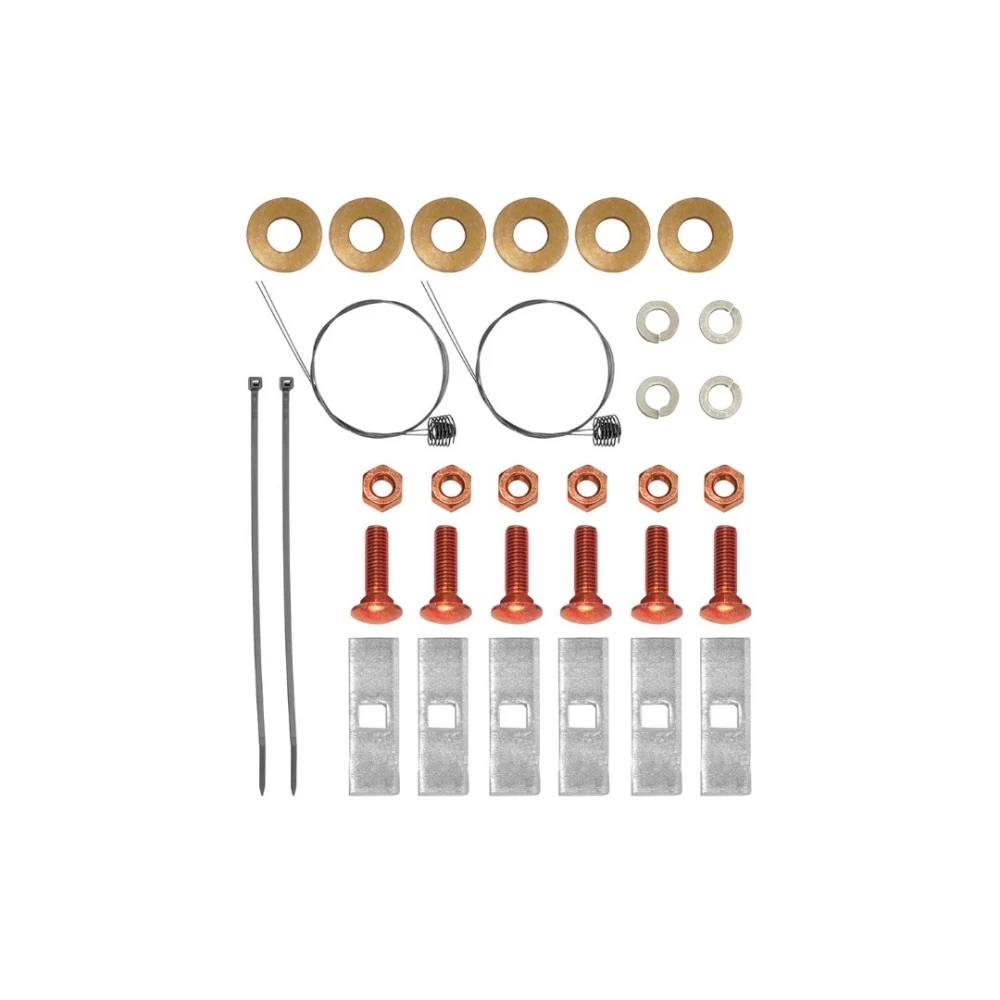

Hardware List:

• (6) M12 x 1.25 x 40mm CL10.9 Bolts
• (6) 1/2" Conical Toothed Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 30 minutes for a professional installer.
• If you encounter difficulty installing, consult a professional or contact customer support.

Installation Instructions for Vehicle (2020-Present)

Part Numbers:

• 75998
• 44764
• CQT75998

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17mm, 19mm

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Prepare Frame Rails:

   • Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
   • Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.

2. Position the Hitch:

   • Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.

3. Install Fasteners:

   • Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
   • Ensure the toothed side of the washers faces the hitch.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).

5. Verify Installation:

   • Double-check that all bolts are securely tightened, and the hitch is properly aligned.

Hardware List:

• (6) M12 x 1.25 x 40mm CL10.9 Bolts
• (6) 1/2" Conical Toothed Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 30 minutes for a professional installer.
• If you encounter difficulty installing, consult a professional or contact customer support.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
