Product Details
- Brand: Draw-Tite
- Model: 249420
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Get Expert Help

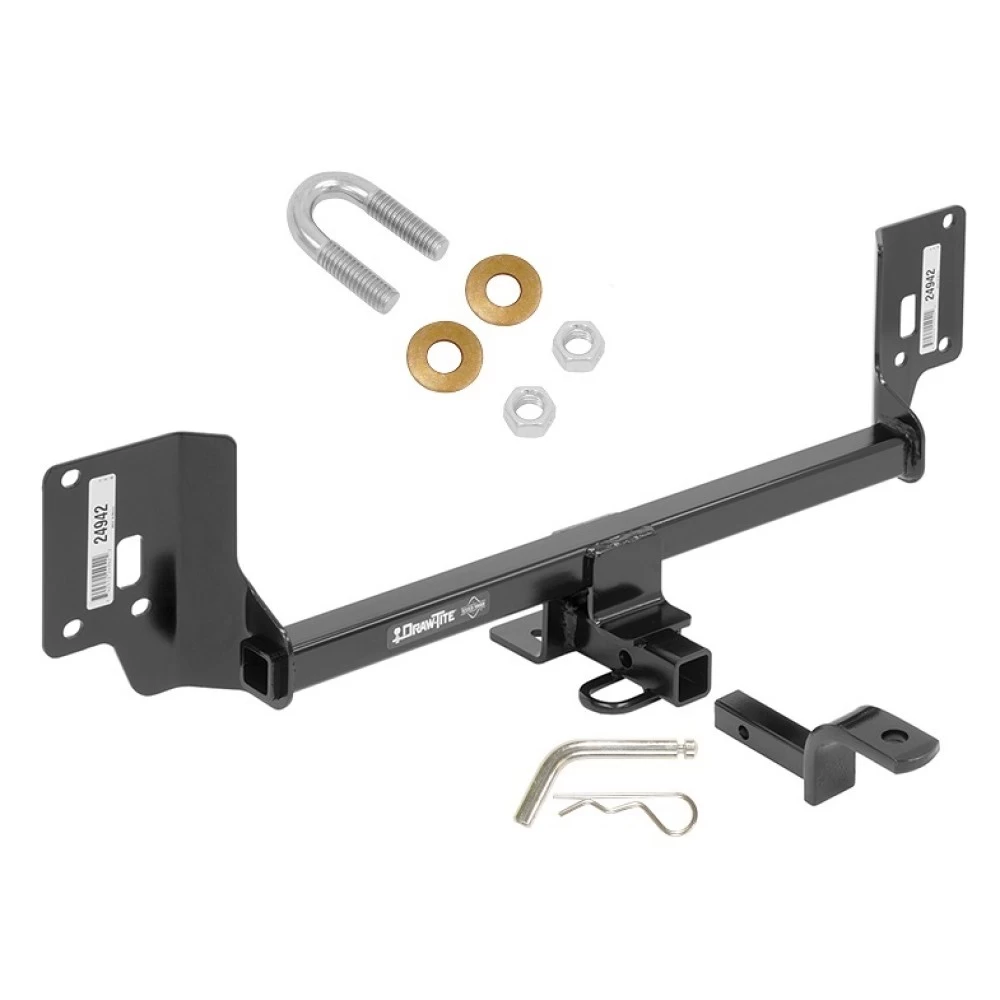

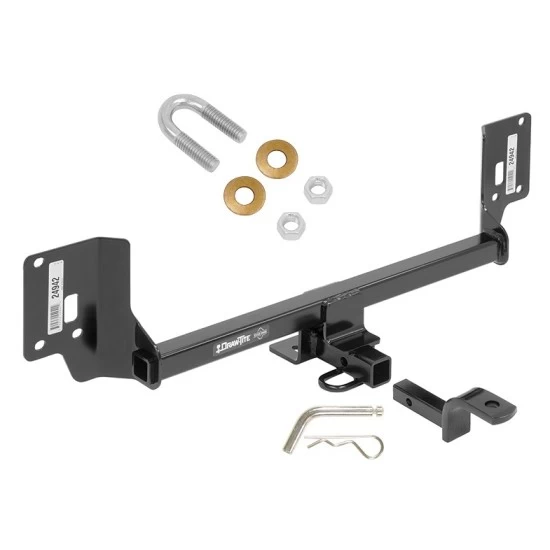

Trailer Tow Hitch For 15-20 Acura TLX 1-1/4" Towing Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Acura TLX (2015-Current)
Part Numbers:
- 24942
- 77329
- CQT24942
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 12mm, 11/16"
- Flat-Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Tape Measure
- Tape
- Pliers
- Marker
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 60 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Plastic Rivets:
- Remove the two plastic rivets securing the fascia tabs to the vehicle and trunk pan using a flat-head screwdriver. Retain rivets for reinstallation.
-
Remove Tail Lights and Gasket:
- Open the trunk and remove the plastic cover discs over the screws attaching the tail lights and fascia. Use a 10mm socket to remove the fasteners. Remove the lower trunk gasket.
- Gently push rearward on the tail lights while pulling outward to remove. Disconnect wiring and set aside.
-
Remove Lower Rear Fascia:
- Remove two Phillips screws in the wheel wells on both sides and one screw on each side at the lower attachment points. Carefully separate the lower fascia from the side panels by gently pulling upward.
-
Remove Bumper:
- Use a 12mm socket to remove six bolts securing the bumper. Bend the bumper hanger support to a 90-degree angle for clearance.
-
Install Hitch:
- Hang the U-bolt on the tow hook. Raise the hitch onto the bumper support on the end panel. Reinstall the original bolts and secure the hitch in place. Install the remaining fastener on the tow hook.
-
Tighten Fasteners:
- Torque M8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque 3/8" GR5 fasteners to 30 Lb.-Ft. (41 N*M).
-
Trim Fascia:
- Locate the center of the lower panel and trim a 3-3/4” x 3-3/4” section for clearance. Round the corners for a smooth finish.
-
Reinstall Components:
- Reinstall all fasteners, fascia, and tail lights removed in previous steps.
Hardware List:
- (1) U-Bolt: 3/8"-16 GR5
- (2) Conical Washers: 3/8"
- (2) Hex Nuts: 3/8"-16
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection while working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Acura TLX (2015-Current)
Part Numbers:
- 24942
- 77329
- CQT24942
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 12mm, 11/16"
- Flat-Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Tape Measure
- Tape
- Pliers
- Marker
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 60 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Plastic Rivets:
- Remove the two plastic rivets securing the fascia tabs to the vehicle and trunk pan using a flat-head screwdriver. Retain rivets for reinstallation.
-
Remove Tail Lights and Gasket:
- Open the trunk and remove the plastic cover discs over the screws attaching the tail lights and fascia. Use a 10mm socket to remove the fasteners. Remove the lower trunk gasket.
- Gently push rearward on the tail lights while pulling outward to remove. Disconnect wiring and set aside.
-
Remove Lower Rear Fascia:
- Remove two Phillips screws in the wheel wells on both sides and one screw on each side at the lower attachment points. Carefully separate the lower fascia from the side panels by gently pulling upward.
-
Remove Bumper:
- Use a 12mm socket to remove six bolts securing the bumper. Bend the bumper hanger support to a 90-degree angle for clearance.
-
Install Hitch:
- Hang the U-bolt on the tow hook. Raise the hitch onto the bumper support on the end panel. Reinstall the original bolts and secure the hitch in place. Install the remaining fastener on the tow hook.
-
Tighten Fasteners:
- Torque M8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque 3/8" GR5 fasteners to 30 Lb.-Ft. (41 N*M).
-
Trim Fascia:
- Locate the center of the lower panel and trim a 3-3/4” x 3-3/4” section for clearance. Round the corners for a smooth finish.
-
Reinstall Components:
- Reinstall all fasteners, fascia, and tail lights removed in previous steps.
Hardware List:
- (1) U-Bolt: 3/8"-16 GR5
- (2) Conical Washers: 3/8"
- (2) Hex Nuts: 3/8"-16
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection while working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
