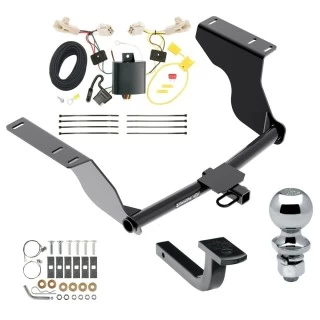

Installation Instructions for Subaru Impreza Sedan (2012-Current, Excludes WRX and STi)

Part Numbers:

• 24960
• 77960
• CQT24960

Tools Required:

• Exhaust Removal Pliers
• Tin Snips
• Tape Measure
• Flat Head Screwdriver
• Ratchet Strap or Bungee Cord
• Soapy Water or Lubricant
• Sockets: 11/16", 10 mm
• Torque Wrench
• Socket Extension
• Marker
• Tape

Step-by-Step Instructions:

1. Lower muffler:

   • Use an exhaust hanger removal tool or pry bar to remove 3-5 rubber hangers (varies by model year).
   • Spray lubricant or soapy water on hangers for easier removal.
   • Support the exhaust using a ratchet strap or bungee cord before removing hangers.

2. Remove heat shield:

   • Use a 10 mm socket to remove 4 screws securing the heat shield to the vehicle.
   • Shield will be trimmed and reinstalled later.

3. Remove rubber plugs:

   • Use a flat screwdriver to remove 3 rubber plugs from the frame's forward holes.

4. Trim heat shield:

   • Use metal shears to trim the heat shield as shown.

5. Reinstall heat shield:

   • Use 3 of the previously removed screws to reattach the trimmed heat shield.

6. Install fasteners:

   • Feed the pull wire through the second attachment hole and out of the forward access hole.
   • Attach a 7/16” carriage bolt and ¼” thick spacer block to the pull wire and pull fasteners into position.
   • Repeat for the middle attachment on both sides.

7. Install forward fasteners:

   • Use the reverse fish wire method to attach a 7/16” carriage bolt and ¼” thick spacer block.
   • Pull fasteners into position on both sides.

8. Attach spacer blocks:

   • Tape 1/8” thick spacer blocks to the top of the hitch brackets at the forward-most attachment point (1 per side).

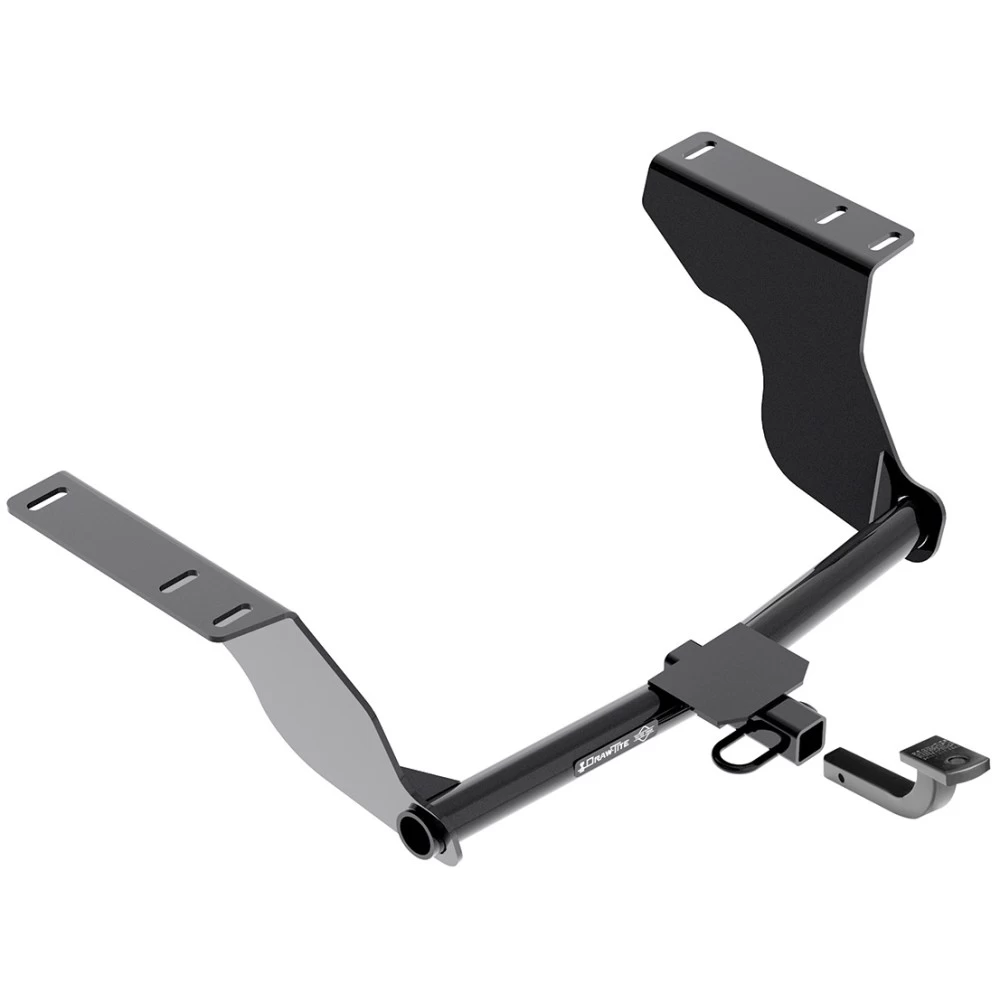

9. Install hitch:

   • Raise the hitch into position, ensuring fasteners remain in place.
   • Loosely attach 7/16” conical toothed washers and 7/16-14 hex nuts to the carriage bolts (6 places).
   • Adjust the hitch if necessary for clearance between the hitch and muffler.
   • Torque all fasteners to 50 lb-ft (68 N*m).

10. Raise muffler:

    • Reattach all rubber hangers removed earlier.

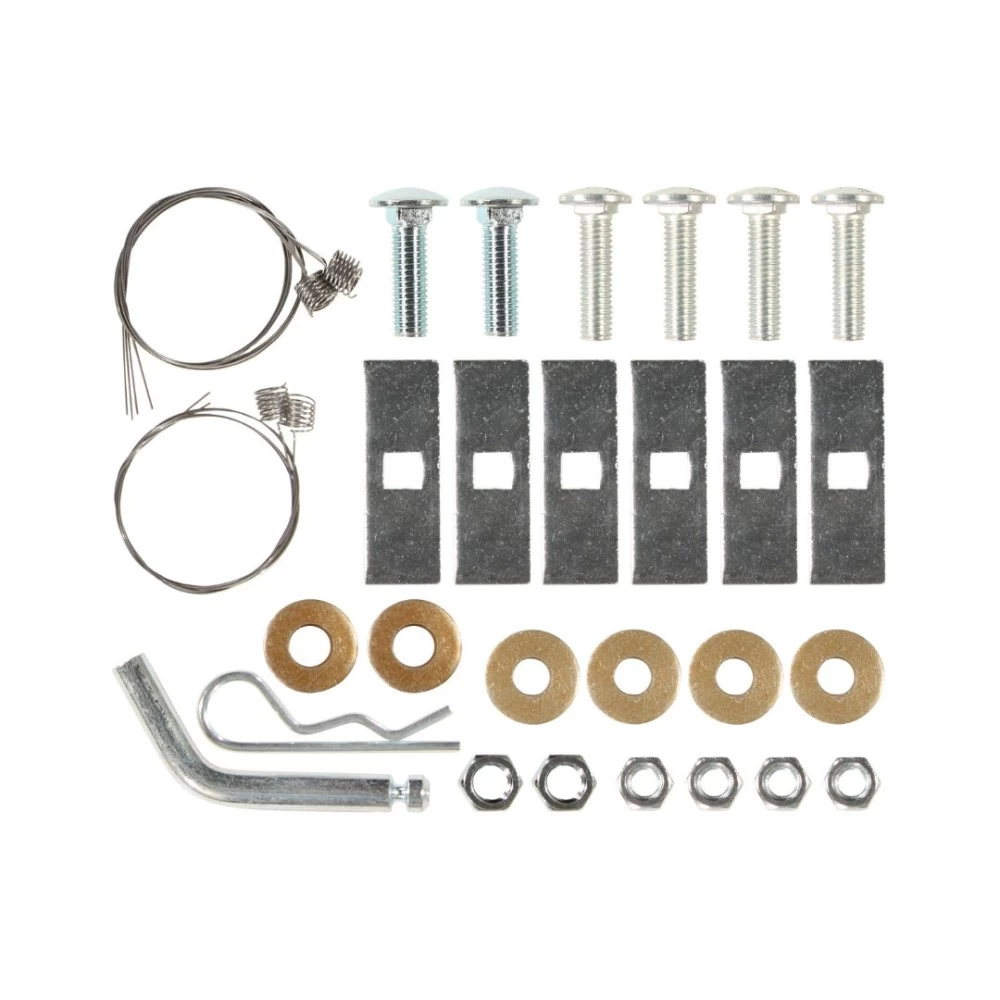

Hardware List:

• (6) Carriage Bolt, 7/16-14 x 1.50 GR5
• (6) Spacer Block, 1/4 x 7/8 x 3.00 (Part No. HE-2370-000)
• (2) Spacer Block, 1/8 x 7/8 x 3.00 (Part No. 122209)
• (6) Conical Washer, 7/16 (Part No. 01292007)
• (6) Hex Nut, 7/16-14 Gr2
• (6) Pull Wire, 7/16 (Part No. 5481)

Safety Notes:

• Always wear safety glasses when installing the hitch.
• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• Do not exceed the vehicle manufacturer's towing capacity or the hitch's rated capacity:
  • Max Gross Trailer Weight: 2,000 lb (908 kg)
  • Max Tongue Weight: 200 lb (90.8 kg)

Specifications:

• Installation Time: 40 minutes
• Hitch complies with SAE J684 and VESC V-5 standards.

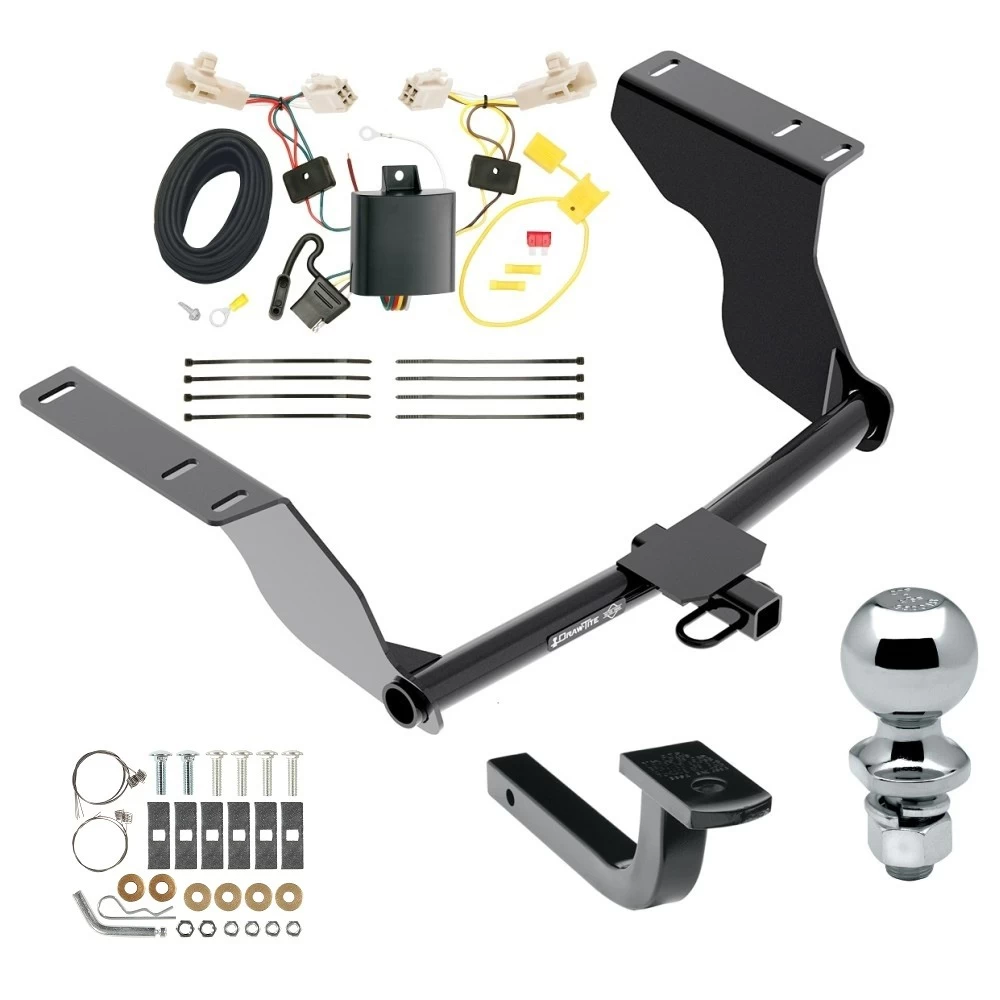

Installation Instructions for Subaru Impreza Sedan (2012-Current, Excludes WRX and STi)

Part Numbers:

• 24960
• 77960
• CQT24960

Tools Required:

• Exhaust Removal Pliers
• Tin Snips
• Tape Measure
• Flat Head Screwdriver
• Ratchet Strap or Bungee Cord
• Soapy Water or Lubricant
• Sockets: 11/16", 10 mm
• Torque Wrench
• Socket Extension
• Marker
• Tape

Step-by-Step Instructions:

1. Lower Muffler:

   • Use an exhaust hanger removal tool or pry bar to remove 3-5 rubber hangers (varies by model year).
   • Spray lubricant or soapy water on hangers for easier removal.
   • Support the exhaust using a ratchet strap or bungee cord before removing hangers.

2. Remove Heat Shield:

   • Use a 10 mm socket to remove 4 screws securing the heat shield to the vehicle.
   • Shield will be trimmed and reinstalled later.

3. Remove Rubber Plugs:

   • Use a flat screwdriver to remove 3 rubber plugs from the frame's forward holes.

4. Trim Heat Shield:

   • Use metal shears to trim the heat shield as shown.

5. Reinstall Heat Shield:

   • Use 3 of the previously removed screws to reattach the trimmed heat shield.

6. Install Fasteners:

   • Feed the pull wire through the second attachment hole and out of the forward access hole.
   • Attach a 7/16” carriage bolt and ¼” thick spacer block to the pull wire and pull fasteners into position.
   • Repeat for the middle attachment on both sides.

7. Install Forward Fasteners:

   • Use the reverse fish wire method to attach a 7/16” carriage bolt and ¼” thick spacer block.
   • Pull fasteners into position on both sides.

8. Attach Spacer Blocks:

   • Tape 1/8” thick spacer blocks to the top of the hitch brackets at the forward-most attachment point (1 per side).

9. Install Hitch:

   • Raise the hitch into position, ensuring fasteners remain in place.
   • Loosely attach 7/16” conical toothed washers and 7/16-14 hex nuts to the carriage bolts (6 places).
   • Adjust the hitch if necessary for clearance between the hitch and muffler.
   • Torque all fasteners to 50 lb-ft (68 N*m).

10. Raise Muffler:

    • Reattach all rubber hangers removed earlier.

Hardware List:

• (6) Carriage Bolt, 7/16-14 x 1.50 GR5
• (6) Spacer Block, 1/4 x 7/8 x 3.00 (Part No. HE-2370-000)
• (2) Spacer Block, 1/8 x 7/8 x 3.00 (Part No. 122209)
• (6) Conical Washer, 7/16 (Part No. 01292007)
• (6) Hex Nut, 7/16-14 Gr2
• (6) Pull Wire, 7/16 (Part No. 5481)

Safety Notes:

• Always wear safety glasses when installing the hitch.
• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• Do not exceed the vehicle manufacturer's towing capacity or the hitch's rated capacity:
  • Max Gross Trailer Weight: 2,000 lb (908 kg)
  • Max Tongue Weight: 200 lb (90.8 kg)

Specifications:

• Installation Time: 40 minutes
• Hitch complies with SAE J684 and VESC V-5 standards.

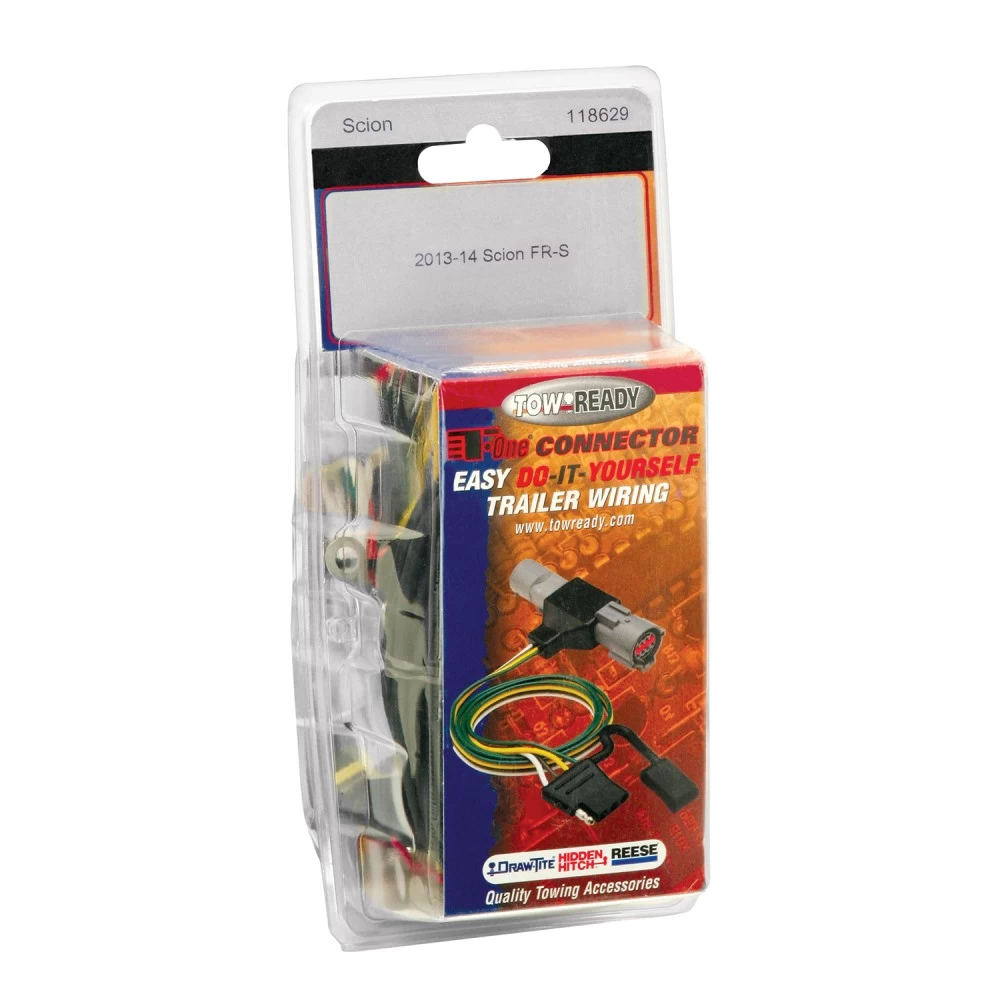

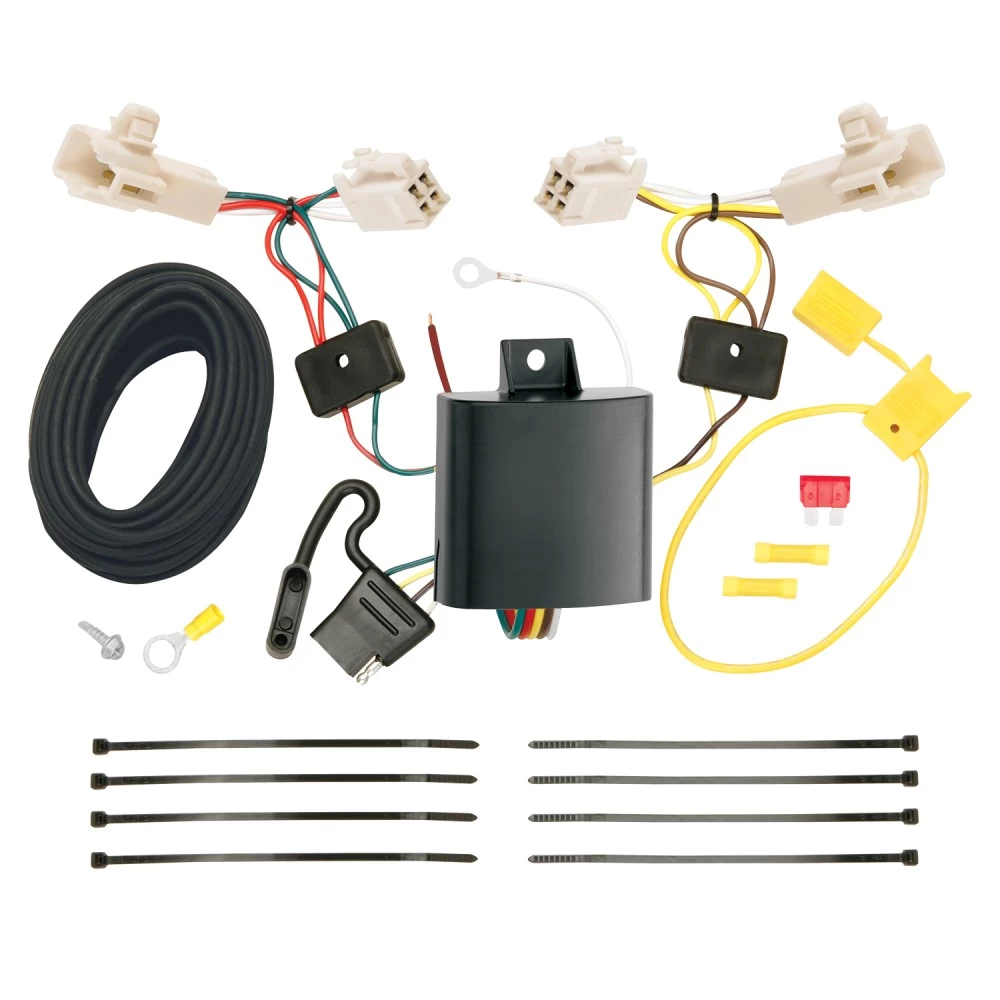

Installation Instructions for T-Connector Adapter for Scion FR-S

Part Numbers:

• 118629

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.

2. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness connection points.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors.
   • Lock the connectors securely into place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 to connect the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

6. Mount the Black Box:

   • Mount the T-Connector black box on the driver’s side using the provided double-sided tape.

7. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the vehicle’s exterior frame to the battery in the engine compartment.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.

   Warning:

   • Ensure all connections are complete. Test the installation with a test light or trailer.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Replace the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps per side
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118629

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.

2. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness connection points.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors.
   • Lock the connectors securely into place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 to connect the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

6. Mount the Black Box:

   • Mount the T-Connector black box on the driver’s side using the provided double-sided tape.

7. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the vehicle’s exterior frame to the battery in the engine compartment.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.

   Warning:

   • Ensure all connections are complete. Test the installation with a test light or trailer.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Replace the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps per side
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance: Our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
For complete warranty instructions, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
• Store these instructions for future reference.
