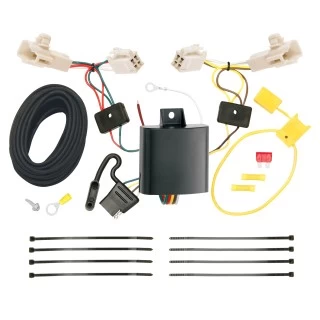

Installation Instructions for T-Connector Adapter for Scion FR-S

Part Numbers:

• 118629

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.

2. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness connection points.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors.
   • Lock the connectors securely into place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 to connect the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

6. Mount the Black Box:

   • Mount the T-Connector black box on the driver’s side using the provided double-sided tape.

7. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the vehicle’s exterior frame to the battery in the engine compartment.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.

   Warning:

   • Ensure all connections are complete. Test the installation with a test light or trailer.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Replace the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps per side
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
• Store these instructions for future reference.

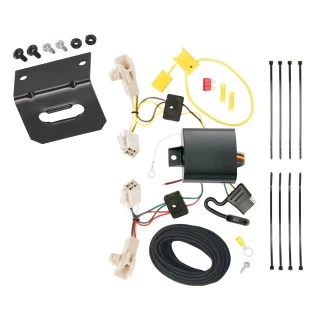

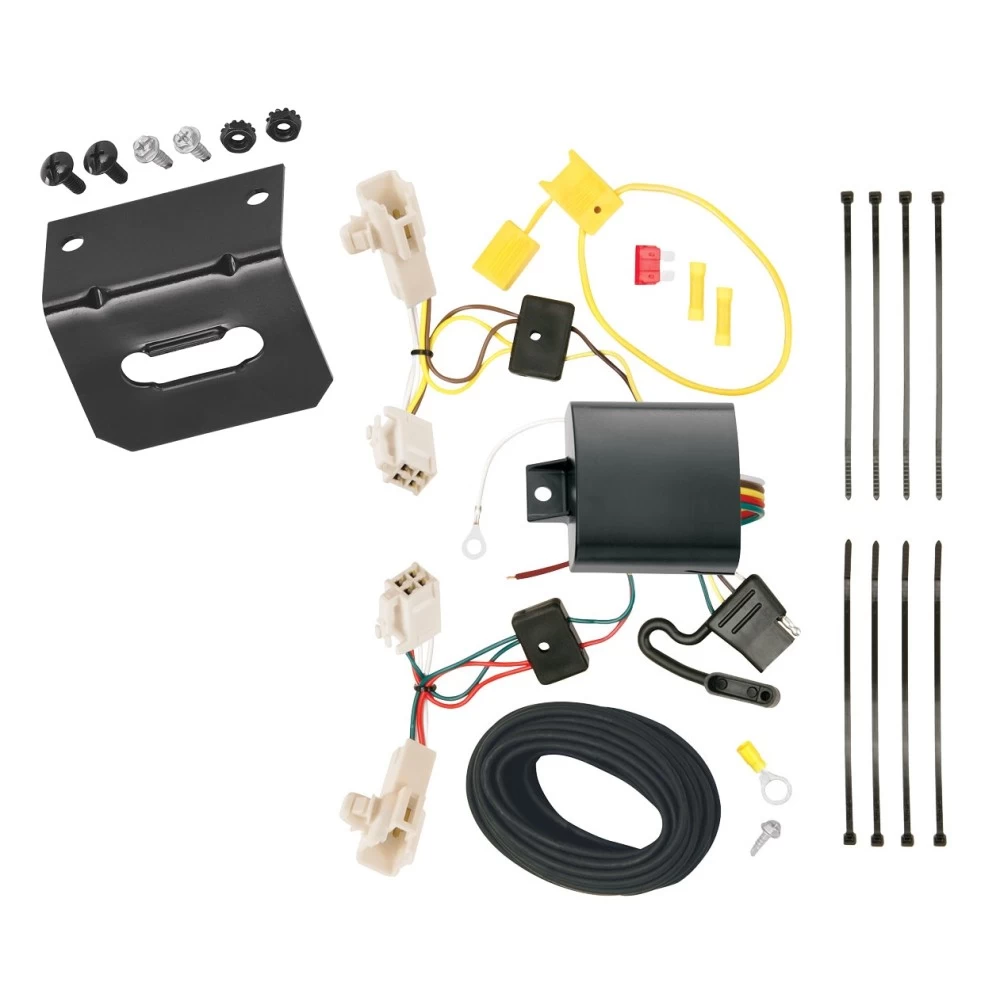

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118629

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.

2. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness connection points.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors.
   • Lock the connectors securely into place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 to connect the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

6. Mount the Black Box:

   • Mount the T-Connector black box on the driver’s side using the provided double-sided tape.

7. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the vehicle’s exterior frame to the battery in the engine compartment.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.

   Warning:

   • Ensure all connections are complete. Test the installation with a test light or trailer.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Replace the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps per side
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.
