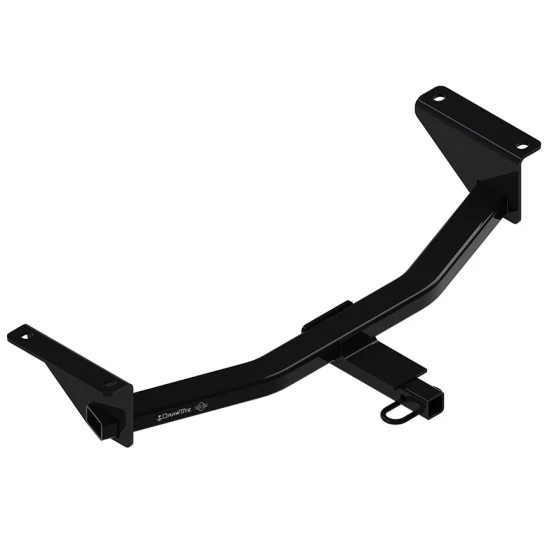

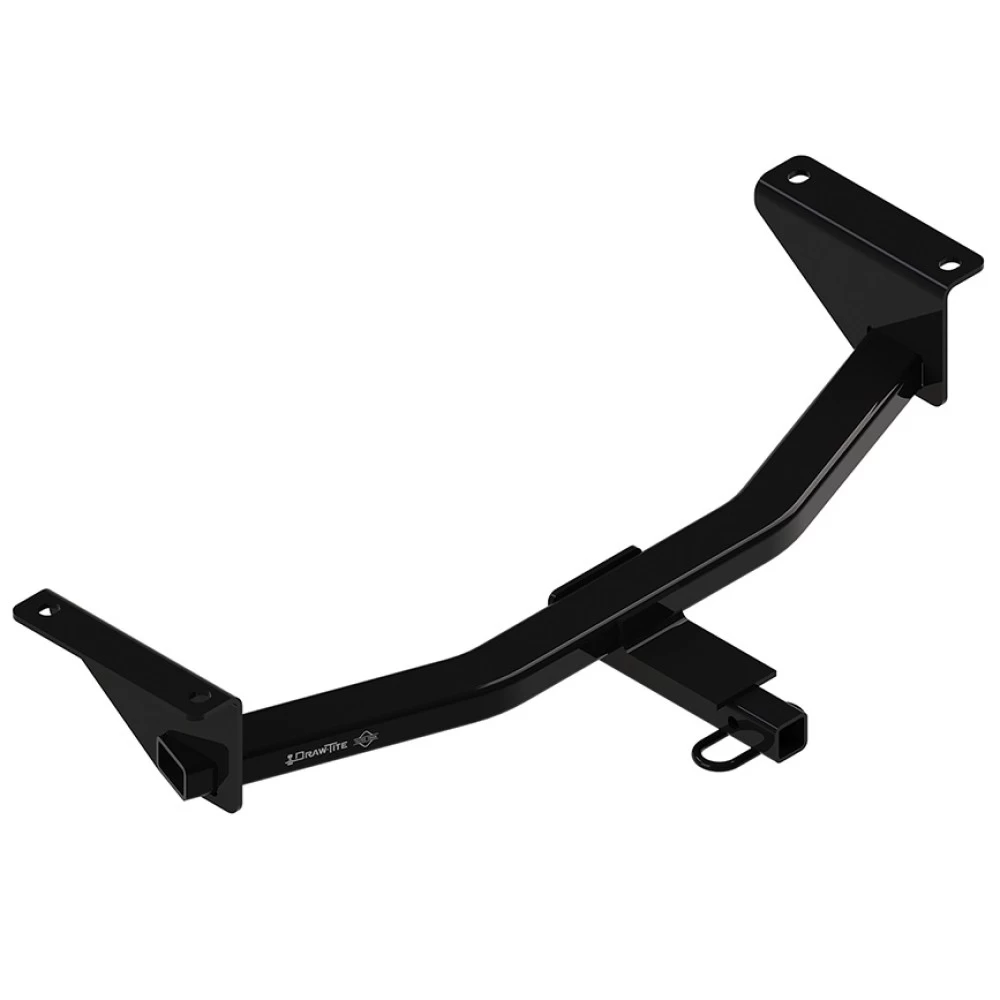

Trailer Tow Hitch For 19‑24 Mazda 3 Sedan 1‑1/4" Towing Receiver Class 1
Model: 249822019 - 2024 Mazda, 3, Sedan
Trailer Hitch Specs
| Part Number | 24982 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$187 78 $293.24 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$293.24 $187 78
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $46.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24982
- UPC: 016118154528
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2019 - 2024 Mazda, 3, Sedan
Trailer Hitch Specs
| Part Number | 24982 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 19-24 Mazda 3 Sedan 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Mazda 3 (2019-Current)
Part Numbers:
- 24982
- 77982
- CQT24982
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Phillips Screwdriver
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Bottom Appearance Panel:
- Using Phillips and flat head screwdrivers, remove 7 screws and 2 rivets from the bottom appearance panel.
- Return the panel to the vehicle owner.
-
Remove Bottom Bracket Attachment:
- Using a 10mm socket, remove 1 screw from the bottom bracket attachment on each side.
- Press the bracket inward to release it from the plastic tab attached to the frame rails.
- Return the brackets to the vehicle owner.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole to a 1-inch diameter on each side.
-
Install Hitch:
- Feed the 7/16" carriage bolt and spacer through the access hole using pull wires, leaving the wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slot.
- Remove the pull wires and loosely install conical washers (teeth side against hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16" fasteners to 50 ft-lb (68 N*m) using a torque wrench.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.75, GR5
- (4) Spacer, 0.875 x 2.00 x 0.109 (Part No. 1204-020)
- (4) Conical Washer, 7/16" (Part No. 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2019-Current)
Part Numbers:
- 24982
- 77982
- CQT24982
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Phillips Screwdriver
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Bottom Appearance Panel:
- Using Phillips and flat head screwdrivers, remove 7 screws and 2 rivets from the bottom appearance panel.
- Return the panel to the vehicle owner.
-
Remove Bottom Bracket Attachment:
- Using a 10mm socket, remove 1 screw from the bottom bracket attachment on each side.
- Press the bracket inward to release it from the plastic tab attached to the frame rails.
- Return the brackets to the vehicle owner.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole to a 1-inch diameter on each side.
-
Install Hitch:
- Feed the 7/16" carriage bolt and spacer through the access hole using pull wires, leaving the wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slot.
- Remove the pull wires and loosely install conical washers (teeth side against hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16" fasteners to 50 ft-lb (68 N*m) using a torque wrench.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.75, GR5
- (4) Spacer, 0.875 x 2.00 x 0.109 (Part No. 1204-020)
- (4) Conical Washer, 7/16" (Part No. 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
