Installation Instructions for Honda CR-V

Part Numbers:

• 75547
• 87440
• 44575

Tools Required:

• Wrenches: 17mm, 11/16"
• Drill Bits: None

Wiring Access Location:

• Not specified in this document.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the rubber isolators from the muffler hangers to lower the exhaust.
   • Start with the outside isolator, then proceed to the inside isolator.
   • Tip: Spray lubricant or soapy water on the metal hanger rod and rubber isolator to facilitate removal.

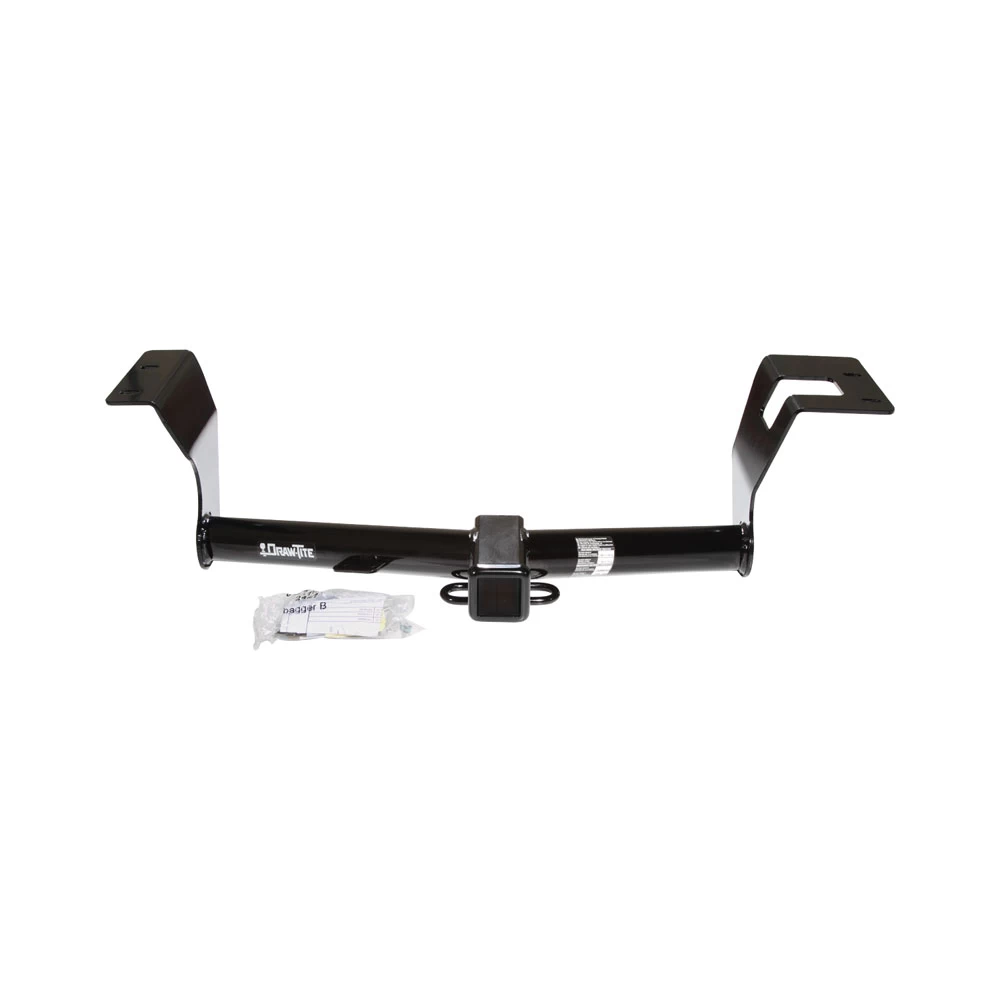

2. Position the Hitch:

   • Raise the hitch into position, aligning it with the frame weldnuts.

3. Install M10 Fasteners:

   • Secure the hitch to the frame using the M10 bolts and conical washers as shown.

4. Install U-Bolt:

   • Insert the 3/8"-16 U-bolt through the vehicle tie-down hook and the receiver’s tie-down hook attachment.
   • Secure with flat washers, lock washers, and hex nuts.

5. Tighten Fasteners:

   • Tighten all fasteners to the required torque specifications:
     • M10 CL8.8 bolts: 38 lb-ft (52 N·m).
     • 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m).

6. Raise Exhaust:

   • Reinstall the rubber isolators and return the exhaust to its original position.

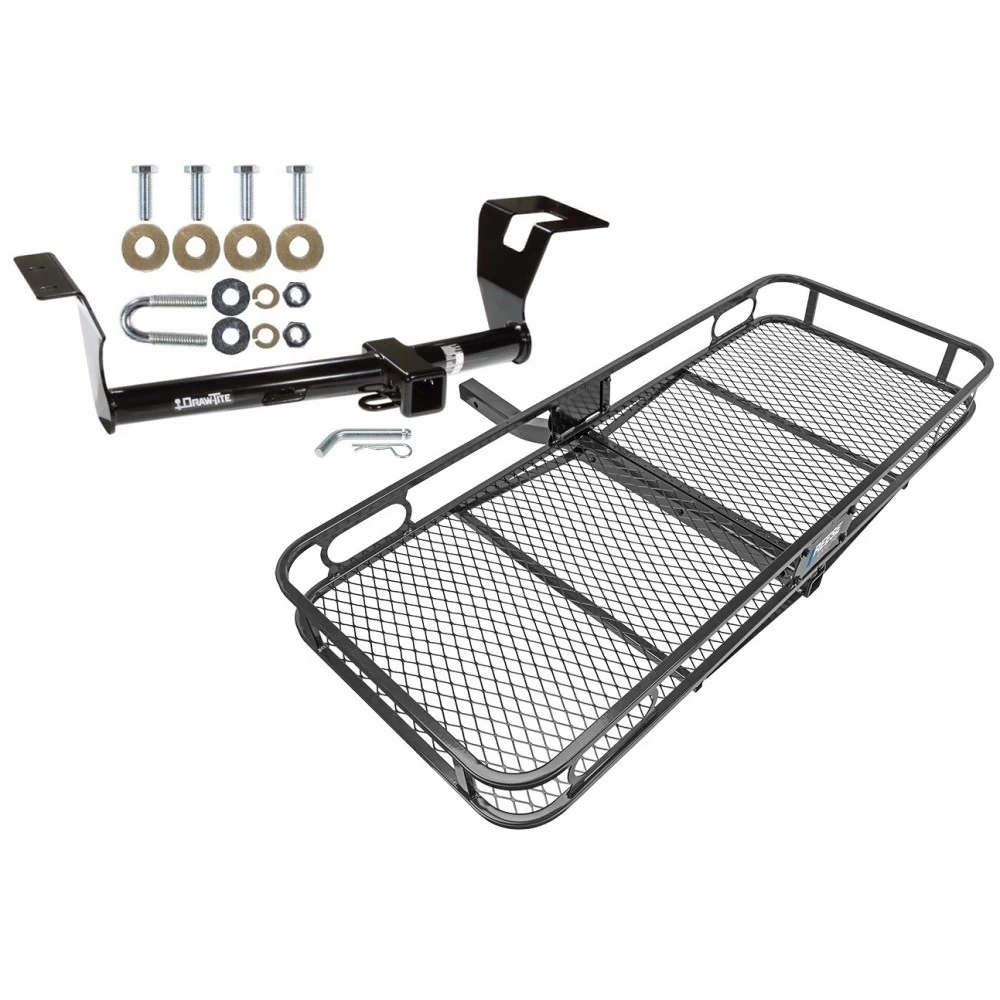

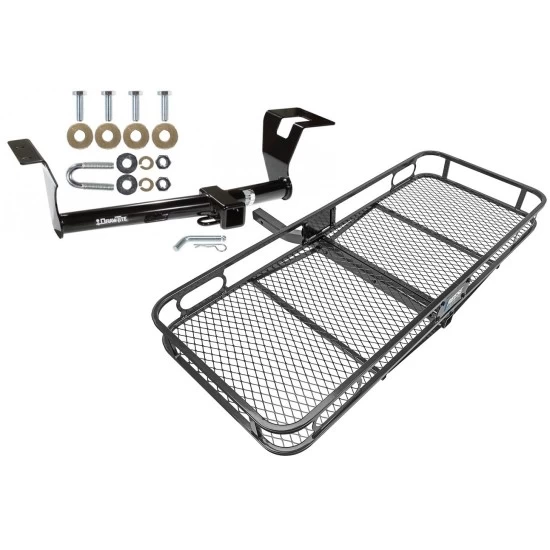

Hardware List:

• (4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
• (4) Conical Washers
• (1) 3/8"-16 U-Bolt
• (2) Flat Washers
• (2) Lock Washers
• (2) 3/8"-16 Hex Nuts

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Not for use with spring bars.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicles (Generic)

Part Numbers:

• 75547
• 87440
• 44575

Tools Required:

• Wrenches: 17mm, 11/16"
• Drill Bits: None

Wiring Access Location:

• Not specified in this document.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the rubber isolators from the muffler hangers to lower the exhaust.
   • Start with the outside isolator, then proceed to the inside isolator.
   • Tip: Spray lubricant or soapy water on the metal hanger rod and rubber isolator to facilitate removal.

2. Position the Hitch:

   • Raise the hitch into position, aligning it with the frame weldnuts.

3. Install M10 Fasteners:

   • Secure the hitch to the frame using the M10 bolts and conical washers as shown.

4. Install U-Bolt:

   • Insert the 3/8"-16 U-bolt through the vehicle tie-down hook and the receiver’s tie-down hook attachment.
   • Secure with flat washers, lock washers, and hex nuts.

5. Tighten Fasteners:

   • Tighten all fasteners to the required torque specifications:
     • M10 CL8.8 bolts: 38 lb-ft (52 N·m).
     • 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m).

6. Raise Exhaust:

   • Reinstall the rubber isolators and return the exhaust to its original position.

Hardware List:

• (4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
• (4) Conical Washers
• (1) 3/8"-16 U-Bolt
• (2) Flat Washers
• (2) Lock Washers
• (2) 3/8"-16 Hex Nuts

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Not for use with spring bars.
• Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
