Trailer Tow Hitch For 87-04 Dodge Dakota Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 87‑04 Dodge Dakota Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75073 63134 63100

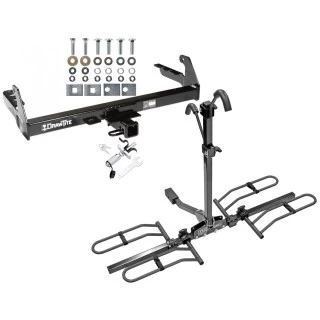

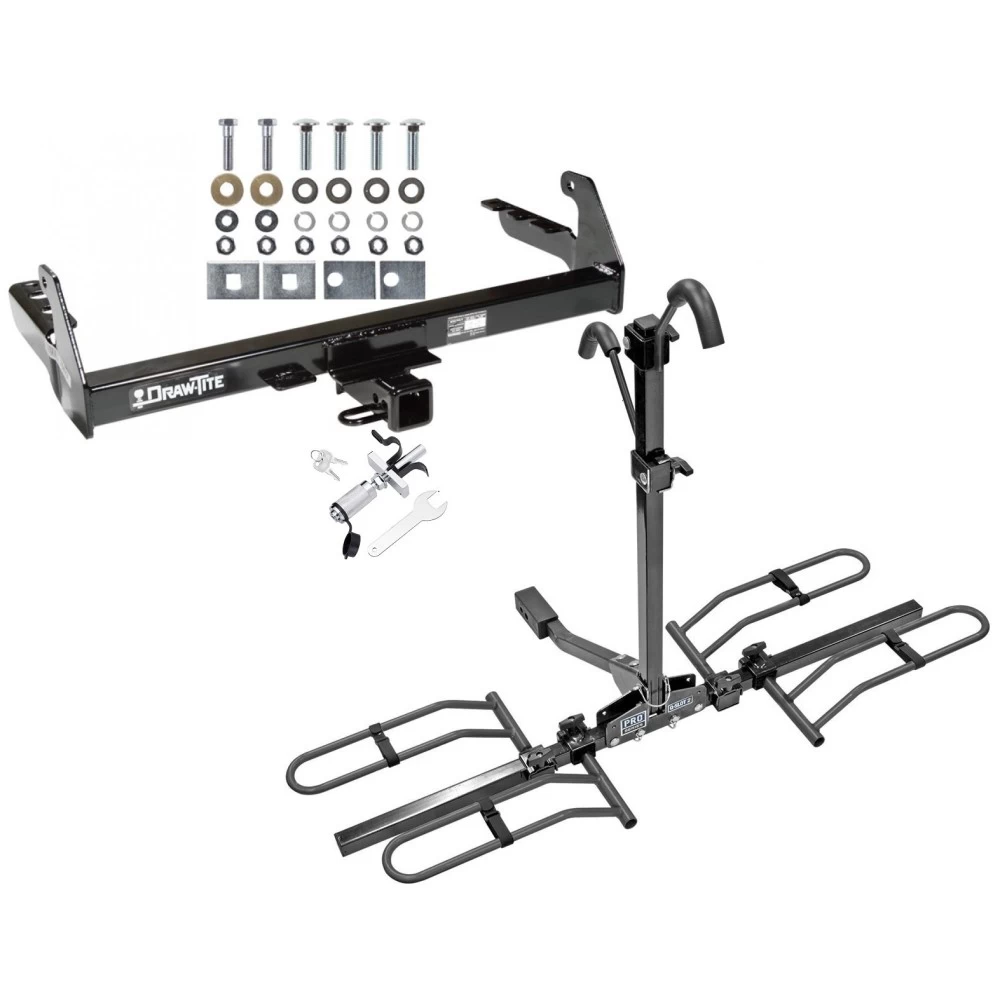

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1987 - 2004 Dodge, Dakota, All Styles

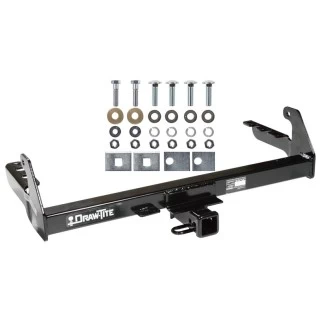

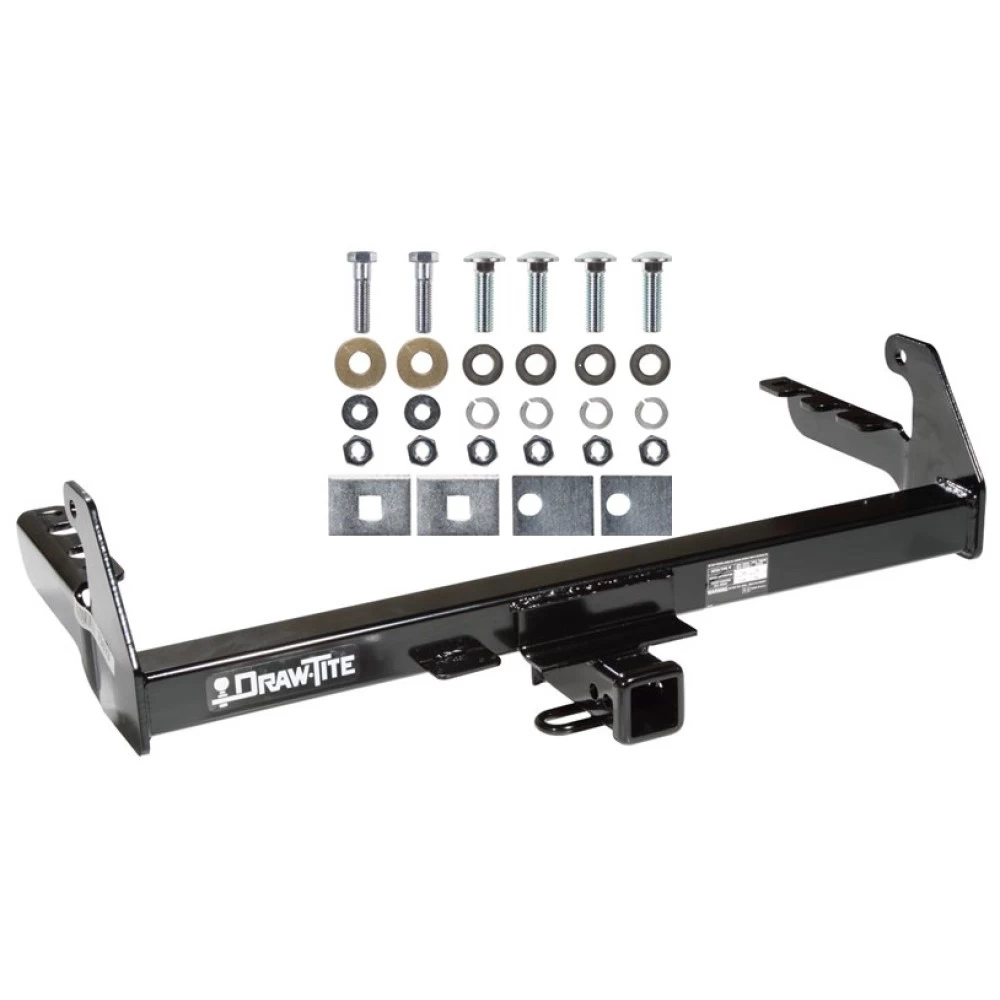

Trailer Hitch Specs:

Part Number	75073
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7.500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004

See Full Description

$434 ⁸⁴ $698.27 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$698.27 $434 ⁸⁴

Pay in 4 interest-free installments of $108.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $108.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75073 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Description

Part Number	75073
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7.500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	7,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	750 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 75073 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 87-04 , Dodge , Dakota , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 87 , 88 , 89 , 90 , 91 , 92 , 93 , 94 , 95 , 96 , 97 , 98 , 99 , 00 , 01 , 02 , 03 , 04 , 1987 , 1988 , 1989 , 1990 , 1991 , 1992 , 1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004

Get Expert Help

Trailer Tow Hitch For 87-04 Dodge Dakota Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Dodge/Ram Pickup Trucks (Various Models)

Part Numbers:

N75073

Tools Required:

Wrenches (sizes not specified)
Torque Wrench
Ratchet

Step-by-Step Instructions:

Prepare Vehicle:
- Clean the mounting areas on the frame rails to ensure proper contact with the hitch and fasteners.
Position Hitch:
- Place the hitch on the frame rails, aligning the attachment holes with existing frame holes.
Insert Fasteners:
- Install the carriage bolts, flat washers, and nuts as per the provided diagram.
- Use the pull wire method if applicable to guide bolts through the frame.
Align and Center Hitch:
- Adjust the hitch to ensure it is centered and aligned with the frame rails.
Tighten Fasteners:
- Torque all fasteners to the specified torque values.

Torque Specifications:

Refer to standard torque settings for the bolt grades included in the hardware kit.

Hardware List:

(Details of hardware components, e.g., bolt sizes and quantities, to be added from the provided diagram or list in the manual.)

Safety Notes:

Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
Replace any damaged hitch or ball immediately.
Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: (Details to be added from manual)
- Max Tongue Weight: (Details to be added from manual)

Additional Notes:

This product complies with SAE J684 safety standards.
Follow the provided diagrams closely for correct installation.

Installation Instructions for Pickup Trucks (Various Models)

Part Numbers:

N75073

Tools Required:

Wrenches (sizes not specified)
Torque Wrench
Ratchet

Step-by-Step Instructions:

Prepare Vehicle:
- Clean the mounting areas on the frame rails to ensure proper contact with the hitch and fasteners.
Position Hitch:
- Place the hitch on the frame rails, aligning the attachment holes with existing frame holes.
Insert Fasteners:
- Install the carriage bolts, flat washers, and nuts as per the provided diagram.
- Use the pull wire method if applicable to guide bolts through the frame.
Align and Center Hitch:
- Adjust the hitch to ensure it is centered and aligned with the frame rails.
Tighten Fasteners:
- Torque all fasteners to the specified torque values.

Torque Specifications:

Refer to standard torque settings for the bolt grades included in the hardware kit.

Hardware List:

(Details of hardware components, e.g., bolt sizes and quantities, to be added from the provided diagram or list in the manual.)

Safety Notes:

Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
Replace any damaged hitch or ball immediately.
Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: (Details to be added from manual)
- Max Tongue Weight: (Details to be added from manual)

Additional Notes:

This product complies with SAE J684 safety standards.
Follow the provided diagrams closely for correct installation.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
