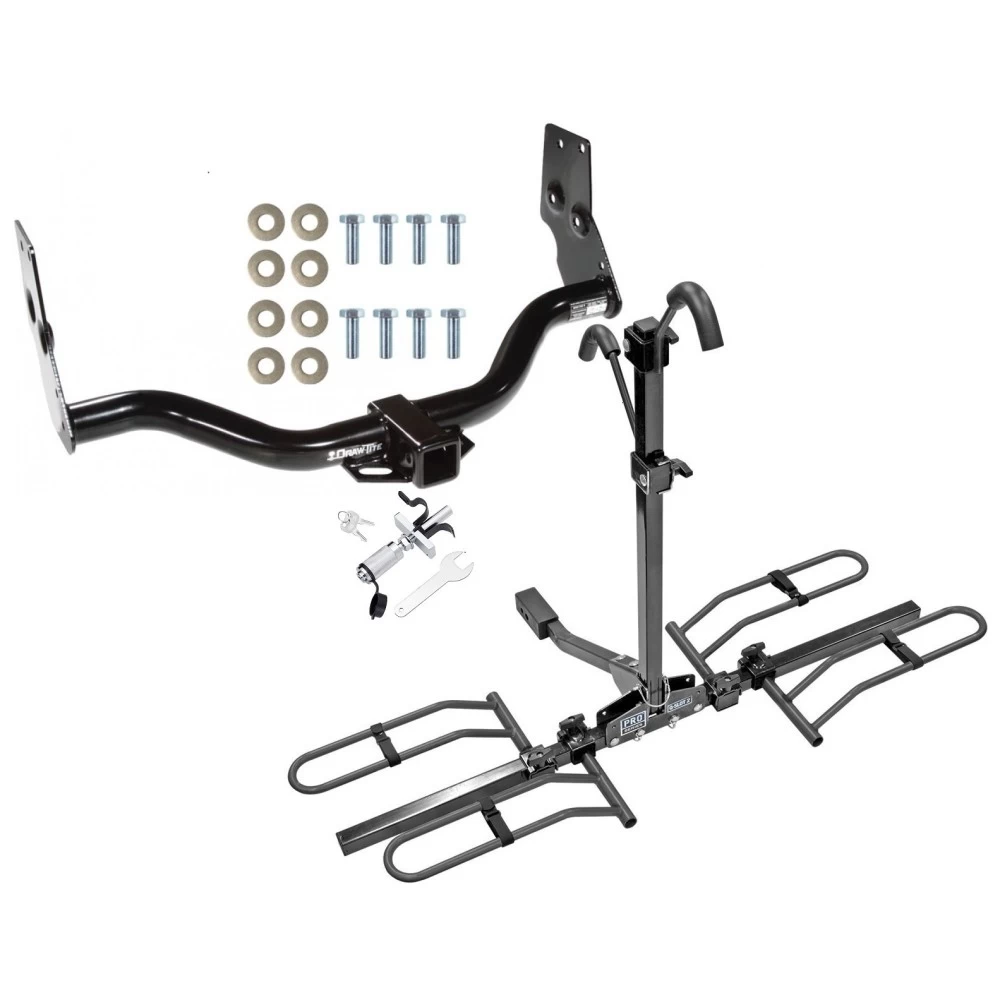

Trailer Tow Hitch For 96‑04 Infiniti QX4 Nissan Pathfinder Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Model: 75077 63134 63100Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2004 Nissan, Pathfinder, All Styles
1997 - 2003 Infiniti, QX4, All Styles

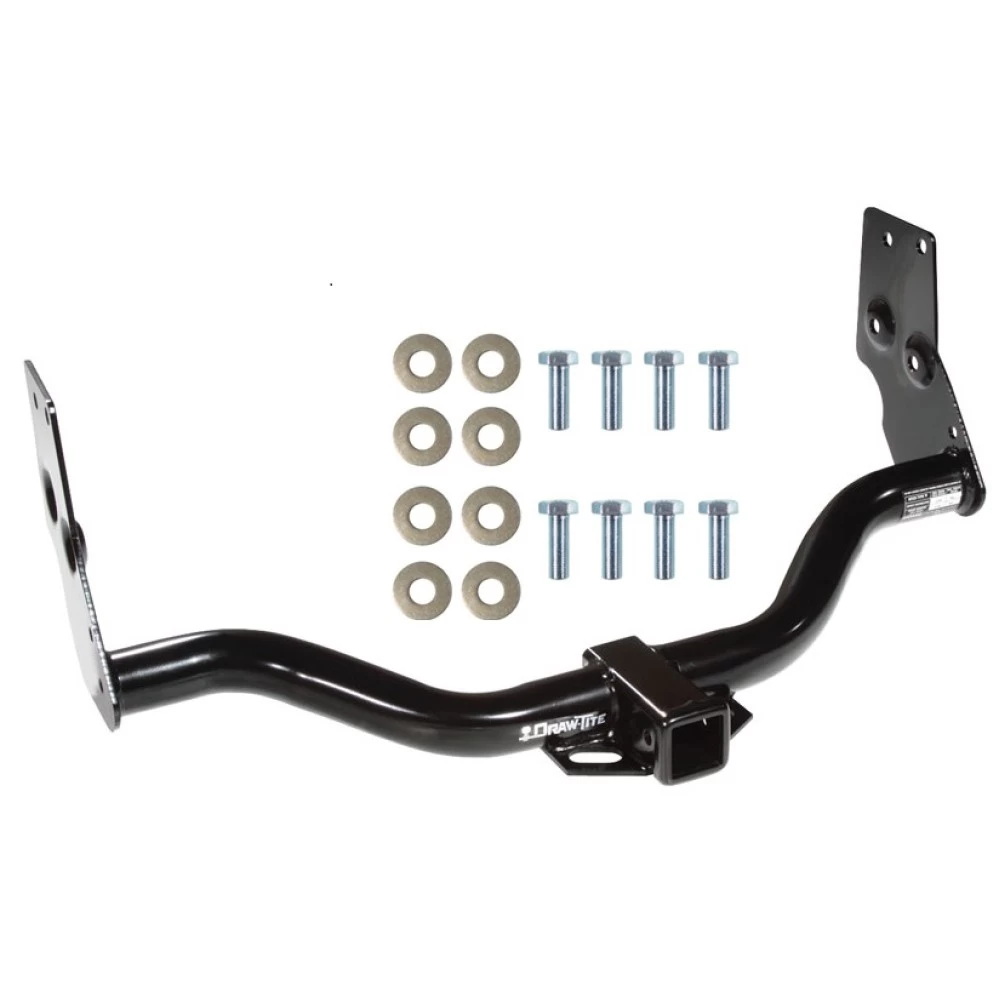

Trailer Hitch Specs:
| Part Number | 75077 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 1996 1997 1998 1999 2000 2001 2002 2003 2004
$446 48 $716.45 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$716.45 $446 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $111.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75077 63134 63100
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2004 Nissan, Pathfinder, All Styles
1997 - 2003 Infiniti, QX4, All Styles
Trailer Hitch Specs:
| Part Number | 75077 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 1996 1997 1998 1999 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch For 96-04 Infiniti QX4 Nissan Pathfinder Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for Nissan Pathfinder and Infiniti QX4
Part Numbers:
- 75077
- 44730
- UH78141
- 70609
Tools Required:
- Wrenches: 17mm
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove tow hooks from each frame rail and retain the fasteners for reuse.
-
Position Hitch:
- Raise the hitch into position, aligning the mounting holes with the frame rail attachment points.
-
Install Fasteners:
- Insert and tighten the M12 x 1.25 x 35 CL8.8 bolts with conical toothed washers (8 places).
-
Return Fasteners and Tow Hooks:
- Return the removed fasteners and tow hooks to the vehicle owner.
-
Torque Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
Torque Specifications:
- M12 CL8.8 fasteners: 68 lb-ft (92 N*m)
Hardware List:
- (8) Bolts, M12 x 1.25 x 35mm CL8.8
- (8) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- Accessory Rating: Class C
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Nissan Pathfinder and Infiniti QX4
Part Numbers:
- 75077
- 44730
- UH78141
- 70609
Tools Required:
- Wrenches: 17mm
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove tow hooks from each frame rail and retain the fasteners for reuse.
-
Position Hitch:
- Raise the hitch into position, aligning the mounting holes with the frame rail attachment points.
-
Install Fasteners:
- Insert and tighten the M12 x 1.25 x 35 CL8.8 bolts with conical toothed washers (8 places).
-
Return Fasteners and Tow Hooks:
- Return the removed fasteners and tow hooks to the vehicle owner.
-
Torque Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
Torque Specifications:
- M12 CL8.8 fasteners: 68 lb-ft (92 N*m)
Hardware List:
- (8) M12 x 1.25 x 35mm CL8.8 Bolts
- (8) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- Accessory Rating: Class C
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
