Installation Instructions for T-Connector Adapter

Part Numbers:

• 118361

Wiring Access Location:

• Tail light wiring harness behind the rear interior panels.

Tools Required:

• Drill with a 3/32" drill bit.
• Screw or cable ties (provided in the kit).

Step-by-Step Instructions:

Vehicle-Specific Instructions:

1A. For Nissan Altima:

• Open the trunk and remove the plastic threshold plate.
• Pull back the trunk lining behind the tail lamps on both sides to expose the vehicle's wiring connectors.
• The vehicle’s connectors will match the ends of the T-Connector harness.

1B. For Nissan Pathfinder & Infiniti QX4:

• Open the rear door and remove the plastic threshold plate.
• Partially remove the rear interior trim panel on both sides of the vehicle behind the tail lamps.
• Locate a square access hole behind the tail lamps to access the vehicle’s wiring connectors.
• The vehicle’s connectors will match the ends of the T-Connector harness.

2. Separate the driver’s side connectors located in step 1.

   • Insert the T-Connector with the yellow wire in-between the connectors.

3. Route the wire across to the passenger’s side.

   • Repeat step 2 using the T-Connector with the green wire.

4. Locate a suitable grounding point on the driver’s side near the connectors.

   • Caution: Do not drill into the vehicle floor or bed.
   • Drill a 3/32" hole and secure the white wire with the provided eyelet and screw.

5. Test the installation with a test light or trailer.

6. Secure the black box to the vehicle using the provided cable tie or screw.

7. Reattach all interior trim panels, threshold plate, and trunk lining.

   • Specifications:
     • This unit is rated for 4 amps per circuit.

Hardware List:

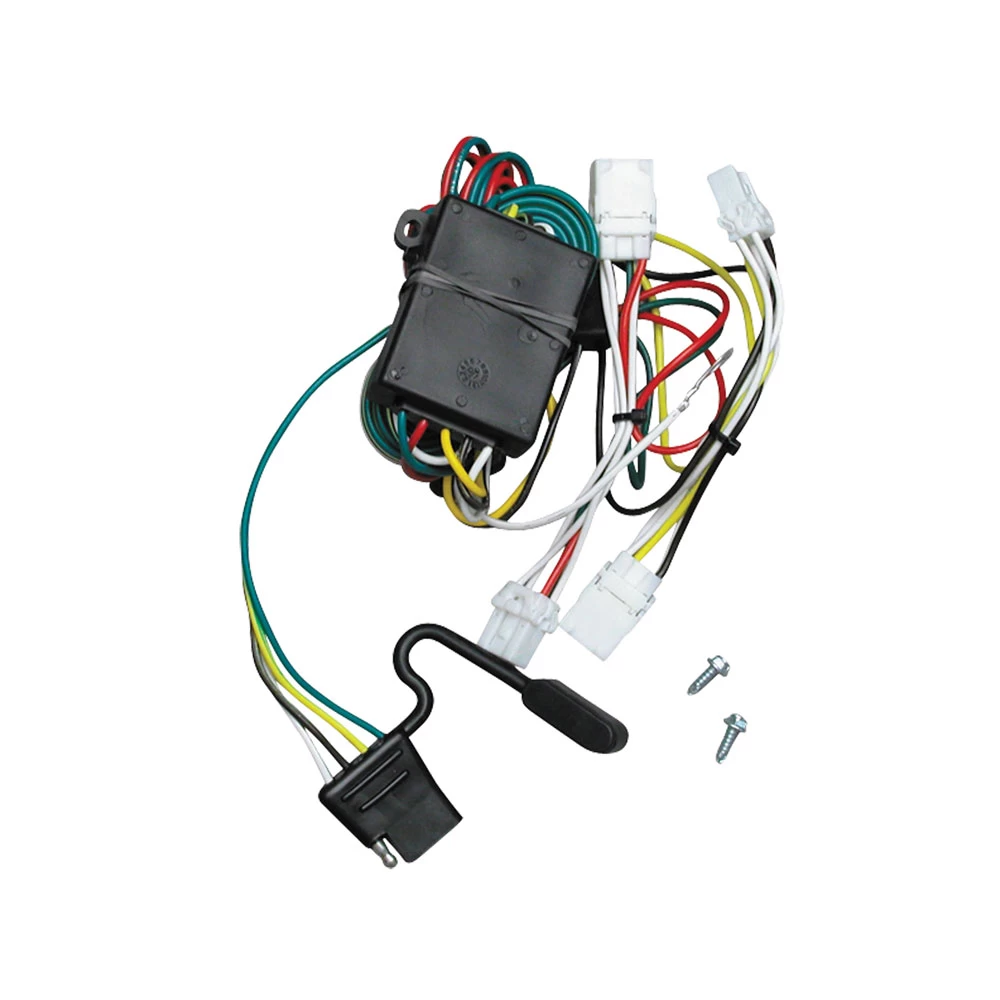

• T-Connector adapter.
• Black box.
• Eyelet and screw.
• Cable ties.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118361

Wiring Access Location:

• Tail light wiring harness behind the rear interior panels.

Tools Required:

• Drill with a 3/32" drill bit.
• Screw or cable ties (provided in the kit).

Step-by-Step Instructions:

Vehicle-Specific Instructions:

1A. For Nissan Altima:

• Open the trunk and remove the plastic threshold plate.
• Pull back the trunk lining behind the tail lamps on both sides to expose the vehicle's wiring connectors.
• The vehicle’s connectors will match the ends of the T-Connector harness.

1B. For Nissan Pathfinder & Infiniti QX4:

• Open the rear door and remove the plastic threshold plate.
• Partially remove the rear interior trim panel on both sides of the vehicle behind the tail lamps.
• Locate a square access hole behind the tail lamps to access the vehicle’s wiring connectors.
• The vehicle’s connectors will match the ends of the T-Connector harness.

2. Install the Driver-Side T-Connector:

   • Separate the driver’s side connectors located in step 1.
   • Insert the T-Connector with the yellow wire in-between the connectors.

3. Route the Harness to the Passenger Side:

   • Route the wire across to the passenger’s side.
   • Repeat step 2 using the T-Connector with the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Caution: Do not drill into the vehicle floor or bed.
   • Drill a 3/32" hole and secure the white wire with the provided eyelet and screw.

5. Test the Installation:

   • Use a test light or connect a trailer to verify proper functionality.

6. Secure the Black Box:

   • Secure the black box to the vehicle using the provided cable tie or screw.

7. Reassemble the Trim Panels:

   • Reattach all interior trim panels, threshold plate, and trunk lining.

Specifications:

• Rated Current: 4 amps per circuit

Hardware List:

• T-Connector adapter
• Black box
• Eyelet and screw
• Cable ties

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
