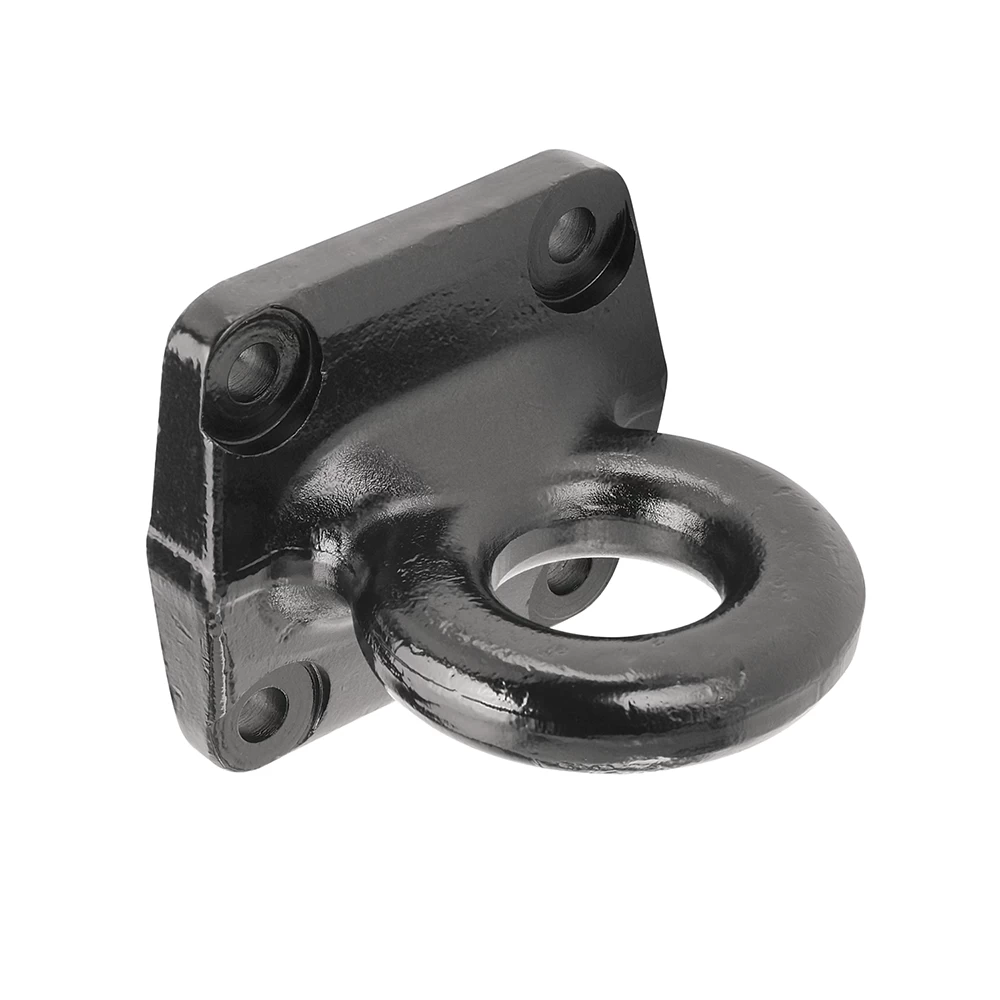

Trailer Tow Hitch Lunette Ring Loop Eye 42,000 Lbs. 2‑1/2" Diameter Flat Plate Mount Heavy Duty
Model: 63023Coupler Lock Specs:
| Part Number | 63023 |
| Brand |
Draw-Tite
|
| Finish | Black Powder Coat |
| Ring Diameter | 2-1/2" |
| Maximum Vertical Load | 8400 lbs |
| Capacity |
42,000 lbs |
| Warranty | Lifetime |
| Install Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$110 75 $176.91 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$176.91 $110 75
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $27.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 63023
- UPC: 742512630237
- Includes: Heavy Duty Lunette Ring
Description
Coupler Lock Specs:
| Part Number | 63023 |
| Brand |
Draw-Tite
|
| Finish | Black Powder Coat |
| Ring Diameter | 2-1/2" |
| Maximum Vertical Load | 8400 lbs |
| Capacity |
42,000 lbs |
| Warranty | Lifetime |
| Install Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Get Expert Help
Trailer Tow Hitch Lunette Ring Loop Eye 42,000 Lbs. 2-1/2" Diameter Flat Plate Mount Heavy Duty Install Notes
Installation Instructions for Lunette Ring ## Part Number: - 63023 ## Tools Required: - 4 - 5/8" Bolts - Lock Washers - Hex Nuts - Torque Wrench (capable of 212 ft. lbs.) ## Step-by-Step Instructions: ### Mounting: 1. Ensure the mounting structure supports the rated capacity of the lunette ring in accordance with SAE J849b. 2. Use the 4 - 5/8" bolts, lock washers, and hex nuts provided, and torque them to 212 ft. lbs. ### Important Notes: - Use only Towing Products-supplied bolts, hex nuts, and washers for installation. - Periodically check all mounting bolts for proper torque. ## Safety Warnings: - Do not lubricate threads; bolt failure may occur due to over-tightening. - Do not drill, weld, or modify the hitch. - Maintain approximately 10% of the trailer's weight as tongue load, not exceeding rated capacities. - Reduce rated capacities by 25% for off-road applications. - Support the rear of the trailer during loading/unloading to prevent load shifting. - Follow all D.O.T. regulations and consult the American Trucking Association for complete coupling and uncoupling procedures. - Do not exceed the vehicle, lunette ring, or trailer coupler rating. ## Specifications: - Maximum Gross Trailer Weight: 42,000 LBS - Compliance: Meets SAE J849b requirements. ## Manufacturer Notes: - © 2007 Cequent Towing Products, Inc. - Plymouth, Michigan 48170 - Revision: 63023N 9-5-07 Rev A
Installation Instructions for Lunette Ring
Part Number:
- 63023
Tools Required:
- 4 - 5/8" Bolts
- Lock Washers
- Hex Nuts
- Torque Wrench (capable of 212 ft. lbs.)
Step-by-Step Instructions:
Mounting:
- Ensure the mounting structure supports the rated capacity of the lunette ring in accordance with SAE J849b.
- Use the 4 - 5/8" bolts, lock washers, and hex nuts provided, and torque them to 212 ft. lbs.
Important Notes:
- Use only Towing Products-supplied bolts, hex nuts, and washers for installation.
- Periodically check all mounting bolts for proper torque.
Safety Warnings:
- Do not lubricate threads; bolt failure may occur due to over-tightening.
- Do not drill, weld, or modify the hitch.
- Maintain approximately 10% of the trailer's weight as tongue load, not exceeding rated capacities.
- Reduce rated capacities by 25% for off-road applications.
- Support the rear of the trailer during loading/unloading to prevent load shifting.
- Follow all D.O.T. regulations and consult the American Trucking Association for complete coupling and uncoupling procedures.
- Do not exceed the vehicle, lunette ring, or trailer coupler rating.
Specifications:
- Maximum Gross Trailer Weight: 42,000 LBS
- Compliance: Meets SAE J849b requirements.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Document Revision: 63023, 9-5-07, Rev A
