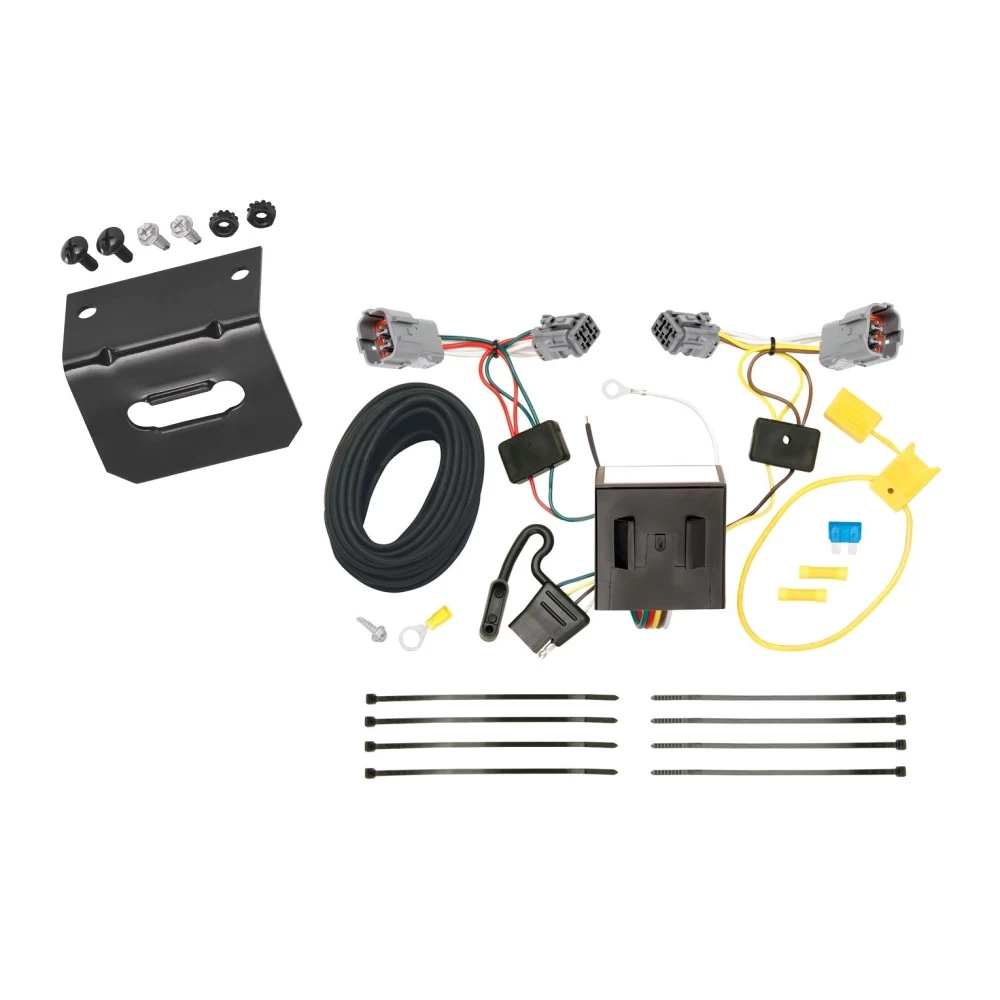

Installation Instructions for T-Connector Adapter for Hyundai Santa Fe Sport

Part Numbers:

• 118571

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillights:

   • Open the rear tailgate and use a Phillips head screwdriver to remove the bolts securing the taillights on both driver and passenger sides.
   • Carefully pull the taillights away from the vehicle, avoiding damage to the alignment pins.

2. Disconnect the Wiring Harness:

   • On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
   • Separate the connector without breaking the locking tabs, ensuring the surfaces are clean and free of dirt.

3. Route the Driver-Side T-Connector:

   • Route the harness with the yellow wire underneath the vehicle, up through the opening between the bumper and body, into the driver’s side taillight pocket.

4. Route the Passenger-Side T-Connector:

   • Route the harness with the green wire across the vehicle crossmember and up through the opening between the bumper and body into the passenger’s side taillight pocket.

   Warning:

   • Ensure the wires are routed away from hot pipes, heat shields, fuel tanks, and any areas where they may be pinched or damaged.

5. Connect the T-Connector:

   • On the driver’s side, insert the T-Connector with the yellow wire between the vehicle wiring connectors.
   • Repeat for the passenger side using the T-Connector with the green wire.

6. Mount the T-Connector Black Box:

   • Mount the black box near the taillight pocket using the provided double-sided tape or cable ties.
   • Ensure the epoxy side faces downward to prevent water accumulation.

7. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.

8. Connect the Power Wire:

   • On the driver’s side, locate the red power wire from the T-Connector box.
   • Attach the black wire provided using the yellow butt connector.
   • Route the black wire through the taillight opening, behind the bumper, and along the exterior frame or thresholds to the engine compartment.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

10. Reconnect the Battery:

    • Reconnect the negative (-) battery cable.

    Warning:

    • Ensure all connections are complete before testing. Test the system with a test light or trailer.

11. Secure the Wiring:

    • Secure the T-Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wires.

12. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and any other components removed during installation, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the product’s stated ratings or the vehicle manufacturer's towing ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.

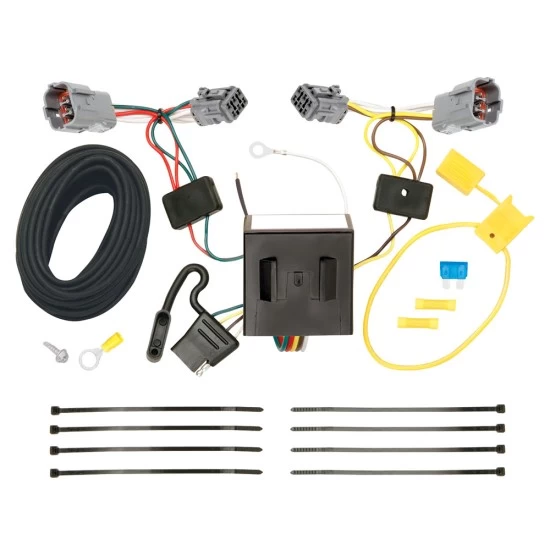

Installation Instructions for T-Connector Adapter for Hyundai Santa Fe Sport

Part Numbers:

• 118571

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillights:

   • Open the rear tailgate and use a Phillips head screwdriver to remove the bolts securing the taillights on both driver and passenger sides.
   • Carefully pull the taillights away from the vehicle, avoiding damage to the alignment pins.

2. Disconnect the Wiring Harness:

   • On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
   • Separate the connector without breaking the locking tabs, ensuring the surfaces are clean and free of dirt.

3. Route the Driver-Side T-Connector:

   • Route the harness with the yellow wire underneath the vehicle, up through the opening between the bumper and body, into the driver’s side taillight pocket.

4. Route the Passenger-Side T-Connector:

   • Route the harness with the green wire across the vehicle crossmember and up through the opening between the bumper and body into the passenger’s side taillight pocket.

   Warning:

   • Ensure the wires are routed away from hot pipes, heat shields, fuel tanks, and any areas where they may be pinched or damaged.

5. Connect the T-Connector:

   • On the driver’s side, insert the T-Connector with the yellow wire between the vehicle wiring connectors.
   • Repeat for the passenger side using the T-Connector with the green wire.

6. Mount the T-Connector Black Box:

   • Mount the black box near the taillight pocket using the provided double-sided tape or cable ties.
   • Ensure the epoxy side faces downward to prevent water accumulation.

7. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.

8. Connect the Power Wire:

   • On the driver’s side, locate the red power wire from the T-Connector box.
   • Attach the black wire provided using the yellow butt connector.
   • Route the black wire through the taillight opening, behind the bumper, and along the exterior frame or thresholds to the engine compartment.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

10. Reconnect the Battery:

    • Reconnect the negative (-) battery cable.

    Warning:

    • Ensure all connections are complete before testing. Test the system with a test light or trailer.

11. Secure the Wiring:

    • Secure the T-Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wires.

12. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and any other components removed during installation, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the product’s stated ratings or the vehicle manufacturer's towing ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
• Store these instructions for future reference.
