Product Details
- Brand: Tekonsha
- Model: 118696 118144

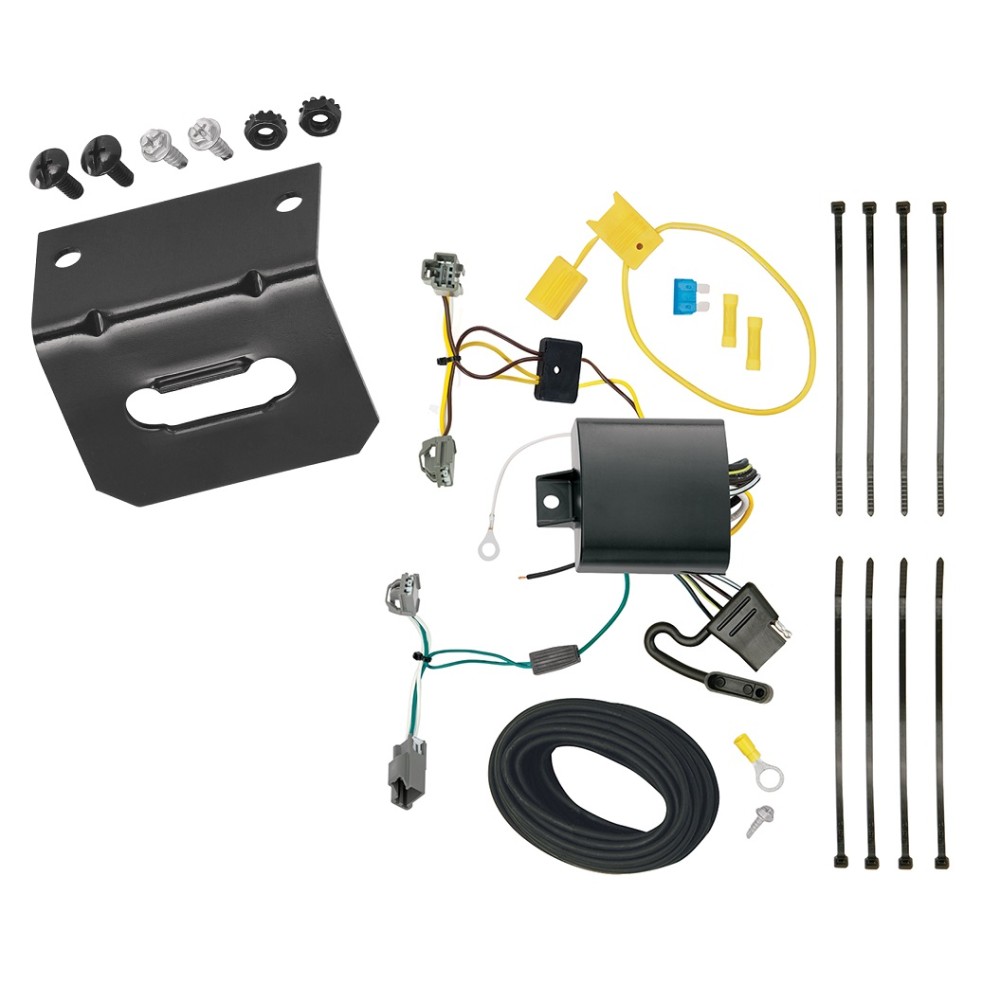

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Description
Get Expert Help
Trailer Wiring and Bracket For 16-19 Chevrolet Cruze (New Body Style) 4-Flat Harness Plug Play Install Notes
Installation Instructions for T-One® T-Connector for Chevrolet Cruze
Part Numbers:
- 118696
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Vehicle’s Wiring Harness:
- On both the driver and passenger sides, locate the taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted and secured.
-
Route the Passenger-Side T-Connector:
- Route the green wire T-Connector behind the panels and along the threshold to the passenger side.
- Repeat Step 3 for the passenger-side T-Connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Clean dirt and rustproofing from the area, then drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow existing wiring into the engine compartment.
Warning: Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could pinch or break.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way place and mount the black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-One® harness, ensuring no wires are pinched, cut, or melted.
-
Reassemble the Vehicle:
- Replace the carpet, clips, panels, and threshold removed earlier.
- Ensure no wires are pinched during reassembly.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Chevrolet Cruze
Part Numbers:
- 118696
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Vehicle’s Wiring Harness:
- On both the driver and passenger sides, locate the taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted and secured.
-
Route the Passenger-Side T-Connector:
- Route the green wire T-Connector behind the panels and along the threshold to the passenger side.
- Repeat Step 3 for the passenger-side T-Connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Clean dirt and rustproofing from the area, then drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow existing wiring into the engine compartment.
Warning: Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could pinch or break.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way place and mount the black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-One® harness, ensuring no wires are pinched, cut, or melted.
-
Reassemble the Vehicle:
- Replace the carpet, clips, panels, and threshold removed earlier.
- Ensure no wires are pinched during reassembly.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in the trunk area when not in use to prevent damage.
