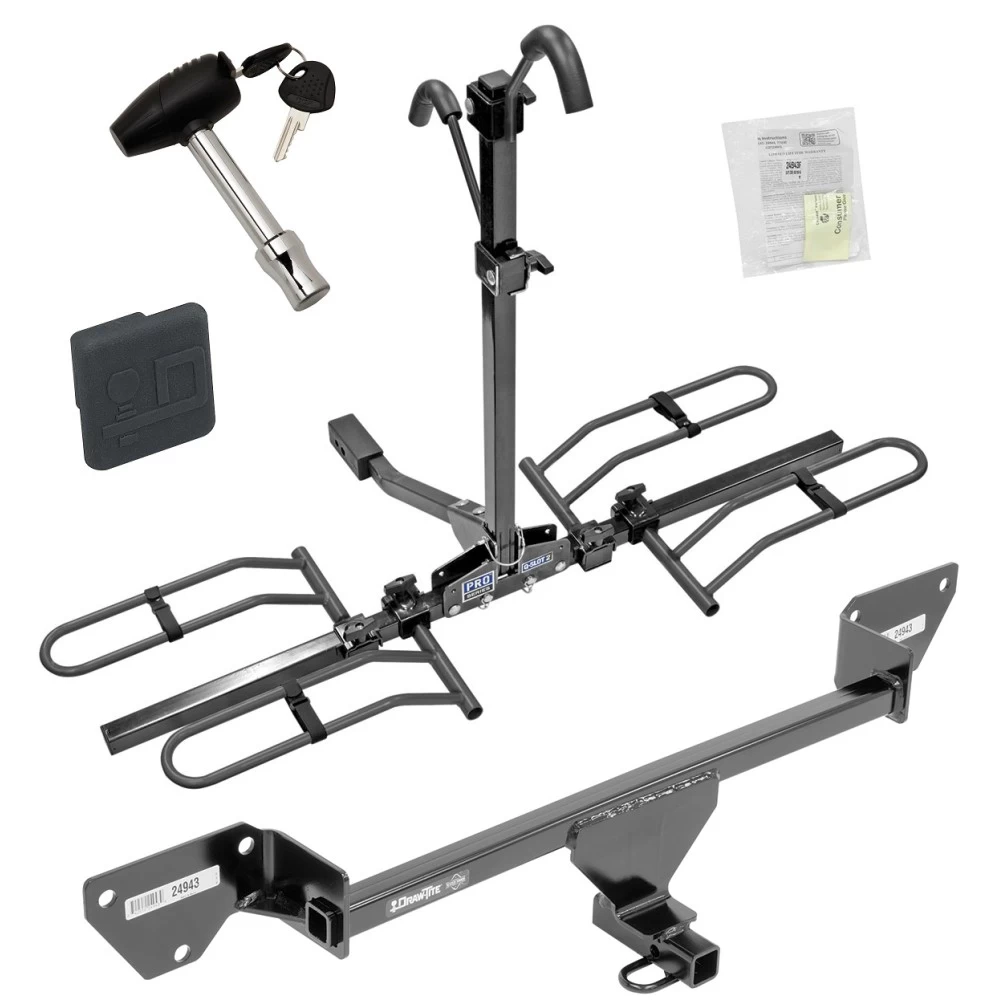

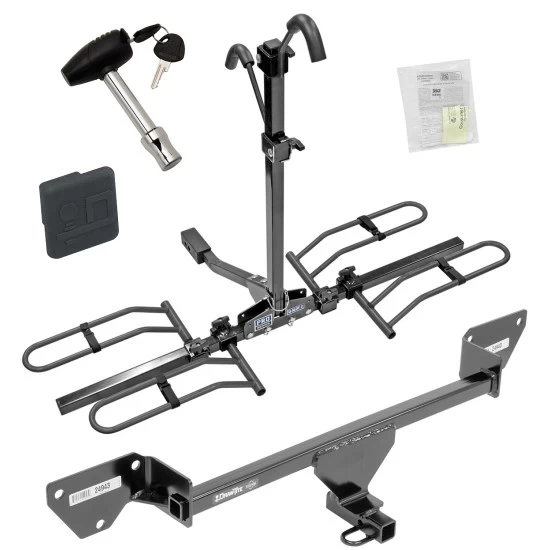

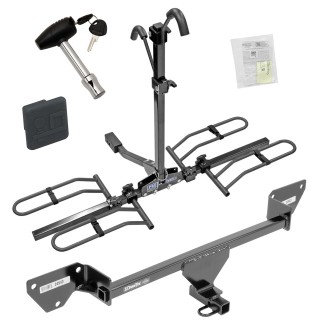

Trailer Tow Hitch For 16‑19 Chevy Cruze Platform Style 2 Bike Rack w/ Hitch Lock and Cover
Model: 24943 63134 580407 2211Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2019 Chevrolet, Cruze, (New Body Style) Sedan ONLY
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 2016 2017 2018 2019
$401 30 $643.54 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$643.54 $401 30
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $100.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24943 63134 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description

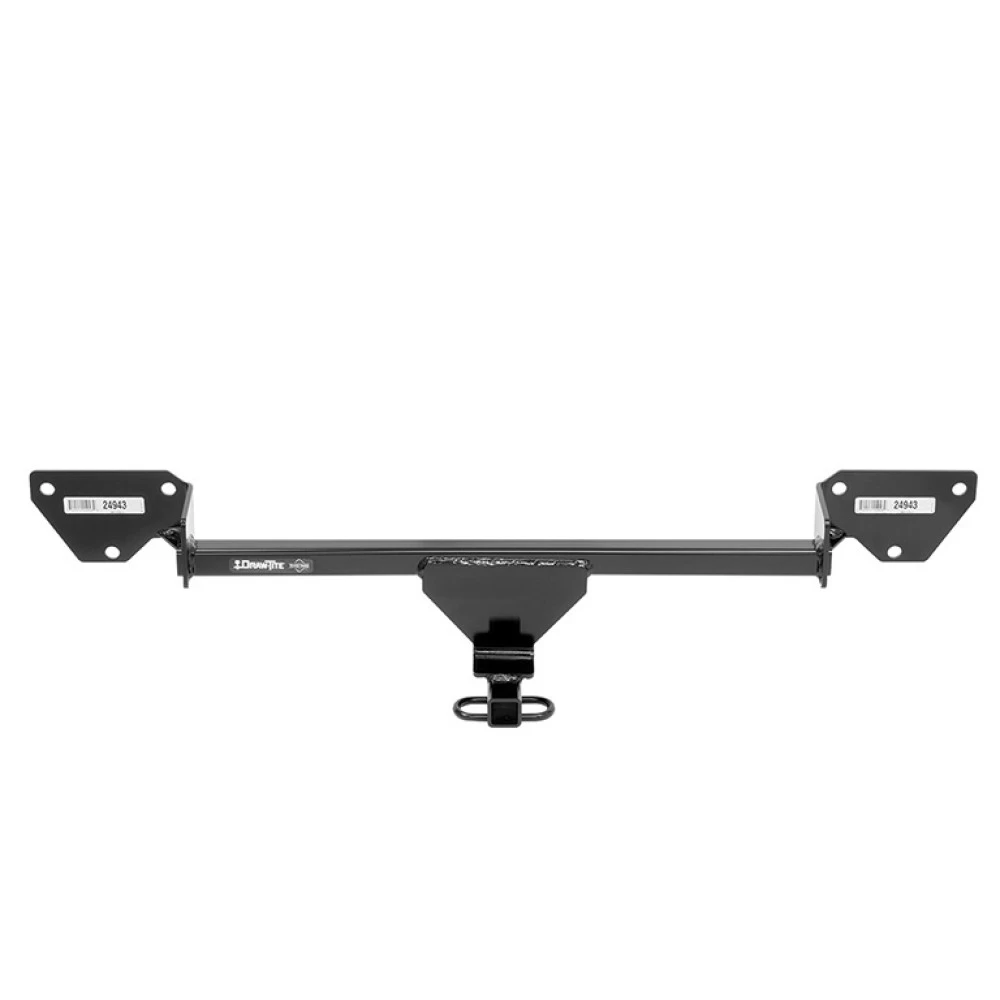

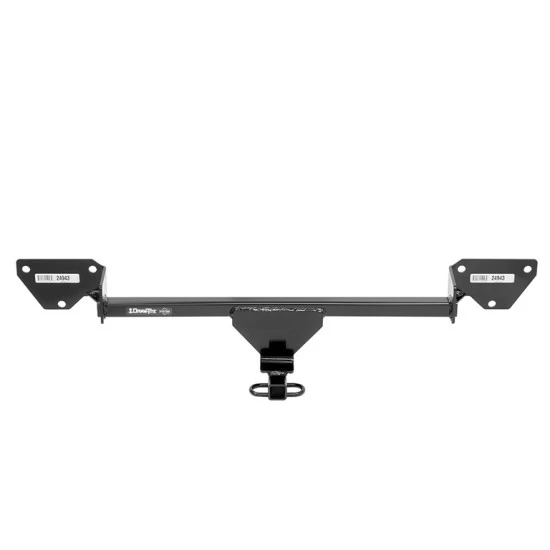

Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2019 Chevrolet, Cruze, (New Body Style) Sedan ONLY
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 16-19 Chevy Cruze Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes
Installation Instructions for Chevrolet Cruze (2016-Present)
Part Numbers:
- 24943
- 77330
- CQT24943
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 7mm, 15mm
- T15 Torx Driver
- 6” Socket Extension
- Utility Knife
- Marker
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 2,000 lbs (908 kg)
- Max Tongue Weight: 200 lbs (90.8 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 80 minutes
Step-by-Step Instructions:
1. Fascia Removal:
- Use a 7mm socket to remove (4) bolts from the bottom fascia.
- Use a T15 Torx driver and 7mm socket to remove (4) bolts from the wheel well on each side.
- Open the trunk and gently remove the fascia. Set the bumper fascia aside.
2. Bumper Beam Removal:
- Use a 15mm socket to remove (3) flange nuts from the bumper plate on each side.
- Gently remove the bumper beam and set it aside.
3. Hitch Installation:
- Raise the hitch and hang it on the studs on the end panel.
- Raise the bumper beam to sandwich the hitch between the bumper and the end panel.
- Reuse the bumper flange nuts and loosely fasten them.
4. Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).
5. Bottom Fascia Trimming:
- Locate the center of the bottom fascia and trim a 4.5" tall by 3.5" wide area using a utility knife.
- Trim additional material if necessary for a proper fit.
6. Reinstall Components:
- Reverse the steps in Step 1 to reinstall all removed fasteners and the fascia.
Safety Notes:
- Regularly inspect the hitch and all fasteners to ensure a secure fit.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class I
- Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Chevrolet Cruze (2016-Present)
Part Numbers:
- 24943
- 77330
- CQT24943
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 7mm, 15mm
- T15 Torx Driver
- 6” Socket Extension
- Utility Knife
- Marker
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 2,000 lbs (908 kg)
- Max Tongue Weight: 200 lbs (90.8 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 80 minutes
Step-by-Step Instructions:
1. Fascia Removal:
- Use a 7mm socket to remove (4) bolts from the bottom fascia.
- Use a T15 Torx driver and 7mm socket to remove (4) bolts from the wheel well on each side.
- Open the trunk and gently remove the fascia. Set the bumper fascia aside.
2. Bumper Beam Removal:
- Use a 15mm socket to remove (3) flange nuts from the bumper plate on each side.
- Gently remove the bumper beam and set it aside.
3. Hitch Installation:
- Raise the hitch and hang it on the studs on the end panel.
- Raise the bumper beam to sandwich the hitch between the bumper and the end panel.
- Reuse the bumper flange nuts and loosely fasten them.
4. Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).
5. Bottom Fascia Trimming:
- Locate the center of the bottom fascia and trim a 4.5" tall by 3.5" wide area using a utility knife.
- Trim additional material if necessary for a proper fit.
6. Reinstall Components:
- Reverse the steps in Step 1 to reinstall all removed fasteners and the fascia.
Safety Notes:
- Regularly inspect the hitch and all fasteners to ensure a secure fit.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class I
- Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
