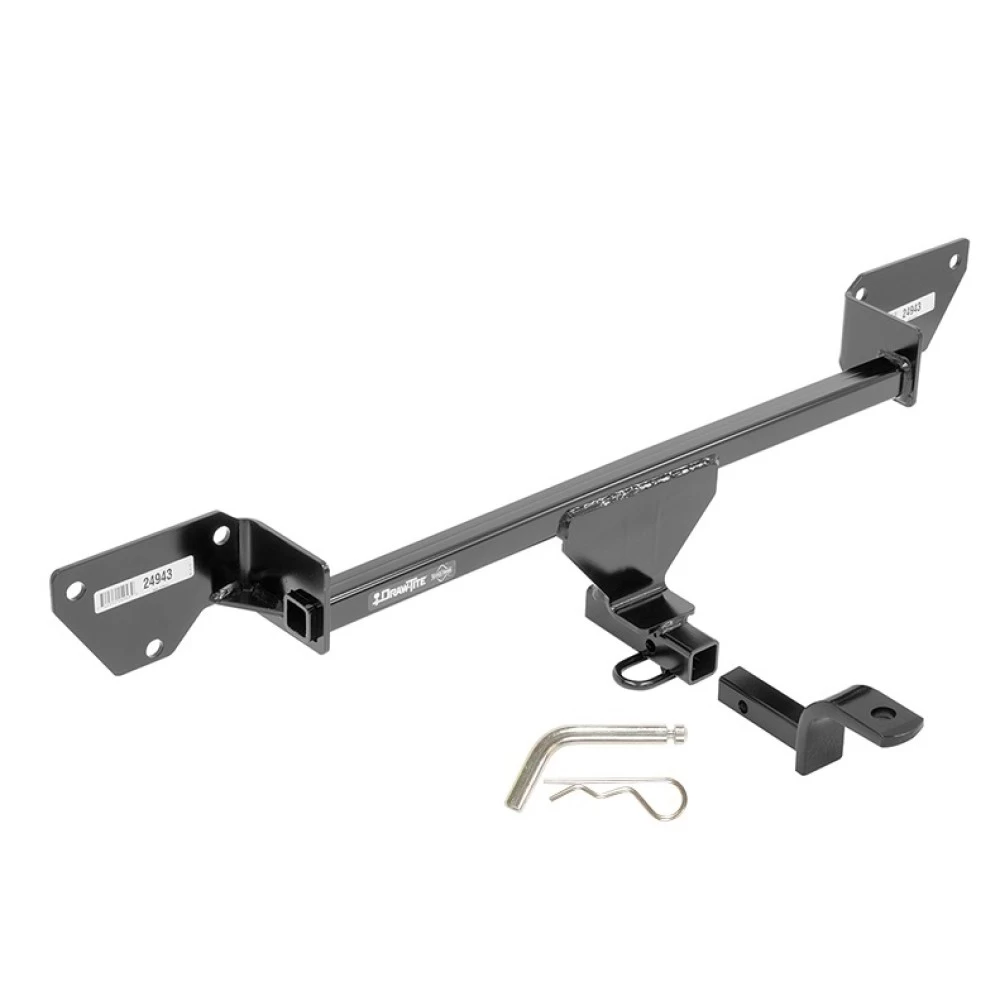

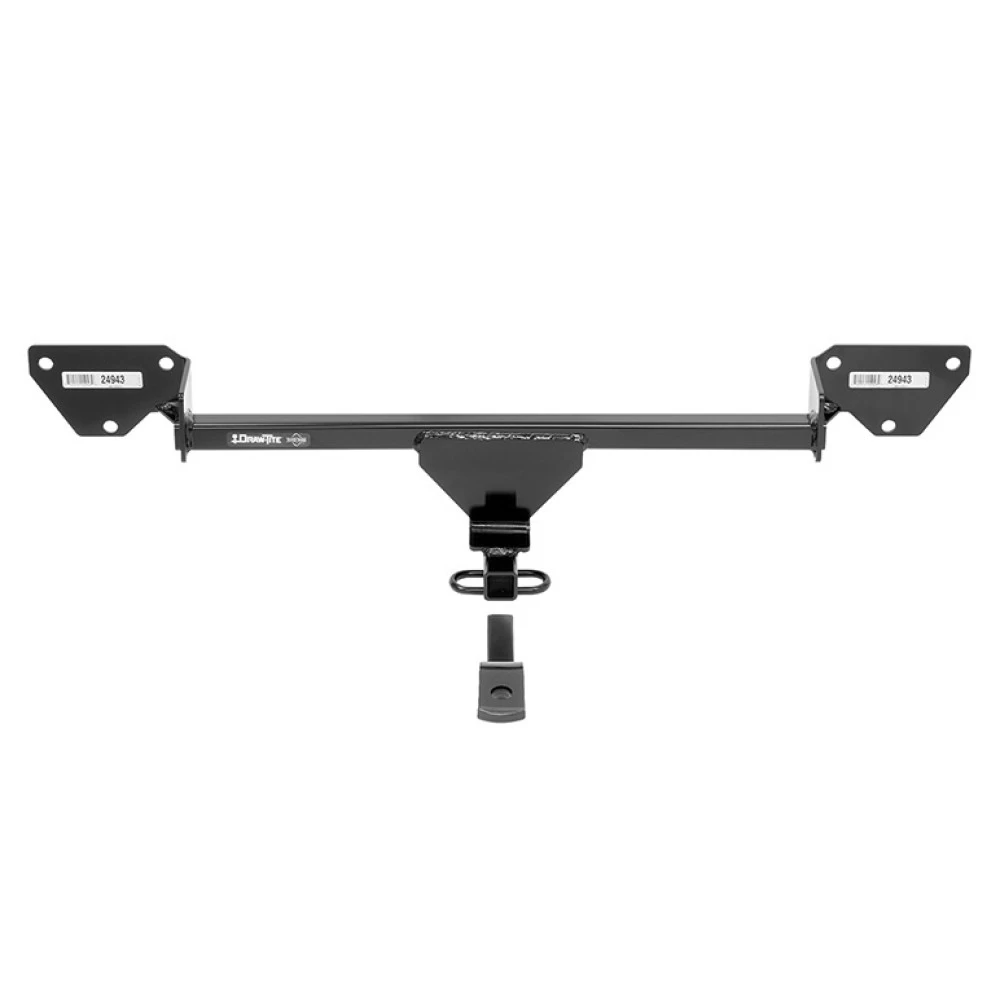

Installation Instructions for Chevrolet Cruze (2016-Present)

Part Numbers:

• 24943
• 77330
• CQT24943

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension
• Utility Knife
• Marker

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (90.8 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 80 minutes

Step-by-Step Instructions:

1. Fascia Removal:

• Use a 7mm socket to remove (4) bolts from the bottom fascia.
• Use a T15 Torx driver and 7mm socket to remove (4) bolts from the wheel well on each side.
• Open the trunk and gently remove the fascia. Set the bumper fascia aside.

2. Bumper Beam Removal:

• Use a 15mm socket to remove (3) flange nuts from the bumper plate on each side.
• Gently remove the bumper beam and set it aside.

3. Hitch Installation:

• Raise the hitch and hang it on the studs on the end panel.
• Raise the bumper beam to sandwich the hitch between the bumper and the end panel.
• Reuse the bumper flange nuts and loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Bottom Fascia Trimming:

• Locate the center of the bottom fascia and trim a 4.5" tall by 3.5" wide area using a utility knife.
• Trim additional material if necessary for a proper fit.

6. Reinstall Components:

• Reverse the steps in Step 1 to reinstall all removed fasteners and the fascia.

Safety Notes:

• Regularly inspect the hitch and all fasteners to ensure a secure fit.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Chevrolet Cruze (2016-Present)

Part Numbers:

• 24943
• 77330
• CQT24943

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension
• Utility Knife
• Marker

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (90.8 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 80 minutes

Step-by-Step Instructions:

1. Fascia Removal:

• Use a 7mm socket to remove (4) bolts from the bottom fascia.
• Use a T15 Torx driver and 7mm socket to remove (4) bolts from the wheel well on each side.
• Open the trunk and gently remove the fascia. Set the bumper fascia aside.

2. Bumper Beam Removal:

• Use a 15mm socket to remove (3) flange nuts from the bumper plate on each side.
• Gently remove the bumper beam and set it aside.

3. Hitch Installation:

• Raise the hitch and hang it on the studs on the end panel.
• Raise the bumper beam to sandwich the hitch between the bumper and the end panel.
• Reuse the bumper flange nuts and loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Bottom Fascia Trimming:

• Locate the center of the bottom fascia and trim a 4.5" tall by 3.5" wide area using a utility knife.
• Trim additional material if necessary for a proper fit.

6. Reinstall Components:

• Reverse the steps in Step 1 to reinstall all removed fasteners and the fascia.

Safety Notes:

• Regularly inspect the hitch and all fasteners to ensure a secure fit.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
