Installation Instructions for Ford Explorer, Mercury Mountaineer, and Lincoln Aviator

Part Numbers:

• 44722
• 75132
• 87417

Tools Required:

• Wrenches: 7/8”, 15mm, 18mm
• Drill Bits: None

Specifications:

• Max Gross Trailer Weight:
  • Weight Distributing: 8,000 lb. (3,632 kg)
  • Weight Carrying: 5,000 lb. (2,272 kg)
• Max Tongue Weight:
  • Weight Distributing: 800 lb. (363 kg)
  • Weight Carrying: 500 lb. (227 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Wiring Access Location:

• SUV1, SUV2

Step-by-Step Instructions:

1. Remove Existing Fasteners:

   • Remove three (3) existing bumper bracket nuts (if present).
   • Remove three (3) M12 or M14 bolts from each side of the frame.

2. Install Fasteners:

   • Fishwire carriage bolts and blocks through the end of the frame.

3. Position Hitch:

   • Raise the hitch into position and loosely install conical washers and nuts.

4. Factory Fastener Reinstallation:

   • Vehicles with 14mm factory fasteners: Reinstall the M14 fasteners.
   • Vehicles with 12mm factory fasteners: Install and torque supplied M12 fasteners and reinstall factory M12 nuts.

5. Tighten Fasteners:

   • Tighten all M12 fasteners to 92 Lb.-Ft. (125 N*M).
   • Tighten all M14 fasteners to 148 Lb.-Ft. (201 N*M).
   • Tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).

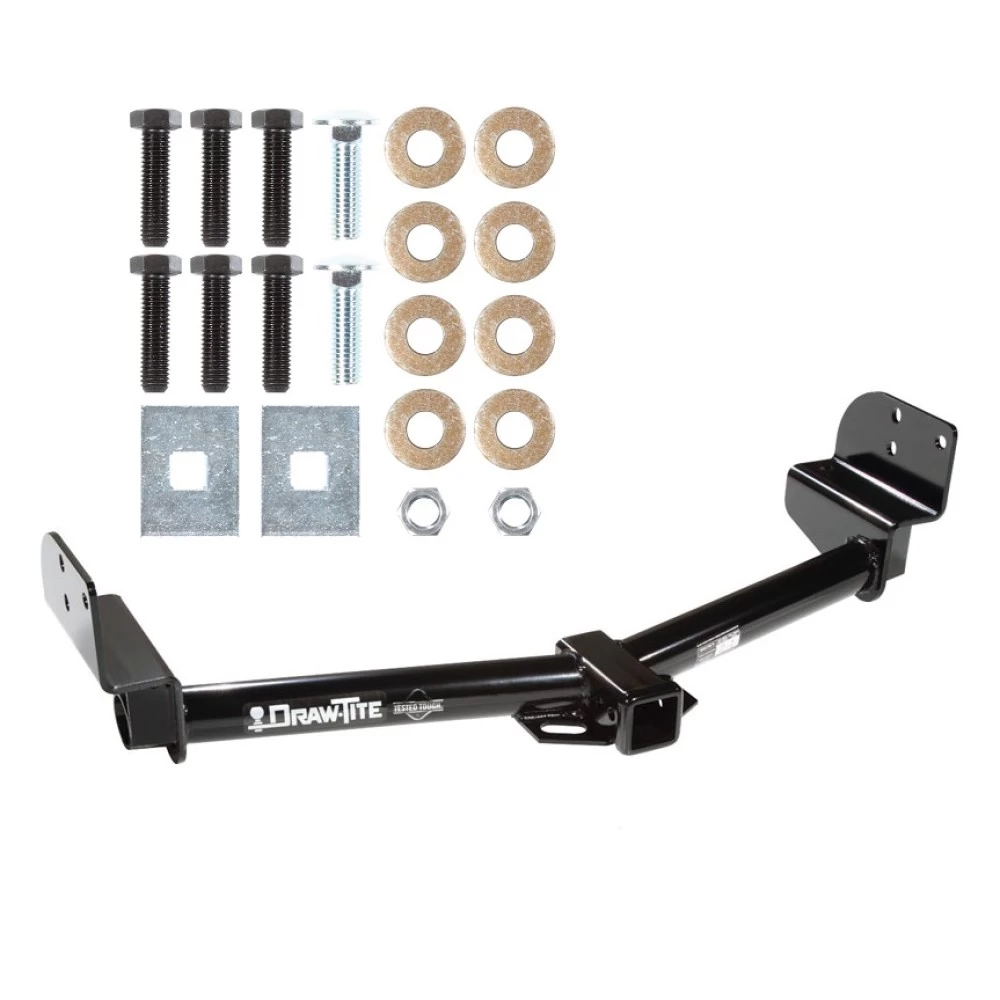

Hardware List:

• (6) Hex Bolts: M12 X 1.75 X 45mm CL10.9
• (2) Blocks: 1/4” x 1.5” x 2”
• (8) Conical Washers: 1/2”
• (2) Hex Nuts: 1/2” – 13
• (2) Carriage Bolts: 1/2” – 13 x 1.75 GR5

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Do not use both hitches at the same time, as this may overload and cause damage to the vehicle.
• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Ford Explorer, Mercury Mountaineer, and Lincoln Aviator

Part Numbers:

• 44722
• 75132
• 87417

Tools Required:

• Wrenches: 7/8", 15mm, 18mm
• Drill Bits: None

Specifications:

• Max Gross Trailer Weight:
  • Weight Distributing: 8,000 lb (3,632 kg)
  • Weight Carrying: 5,000 lb (2,272 kg)
• Max Tongue Weight:
  • Weight Distributing: 800 lb (363 kg)
  • Weight Carrying: 500 lb (227 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Wiring Access Location:

• SUV1, SUV2

Step-by-Step Instructions:

1. Remove Existing Fasteners

   • Remove three (3) existing bumper bracket nuts, if present.
   • Remove three (3) M12 or M14 bolts from each side of the frame.

2. Install Fasteners

   • Fishwire carriage bolts and blocks through the end of the frame as shown in the installation diagram.

3. Position Hitch

   • Raise the hitch into position and loosely install conical washers and nuts.

4. Factory Fastener Reinstallation

   • For vehicles with M14 factory fasteners: Reinstall the M14 fasteners.
   • For vehicles with M12 factory fasteners: Install and torque supplied M12 fasteners and reinstall factory M12 nuts.

5. Tighten Fasteners

   • Torque all M12 fasteners to 92 lb-ft (125 N·m).
   • Torque all M14 fasteners to 148 lb-ft (201 N·m).
   • Torque all 1/2" fasteners to 75 lb-ft (102 N·m).

Hardware List:

• (6) Hex Bolts: M12 x 1.75 x 45mm CL10.9
• (2) Blocks: 1/4" x 1.5" x 2"
• (8) Conical Washers: 1/2"
• (2) Hex Nuts: 1/2"-13
• (2) Carriage Bolts: 1/2"-13 x 1.75 GR5

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Do not use both hitches simultaneously, as this may overload and cause damage to the vehicle.
• Check the hitch frequently to ensure all fasteners remain tight.

Warranty Information:

For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

End of Instructions
