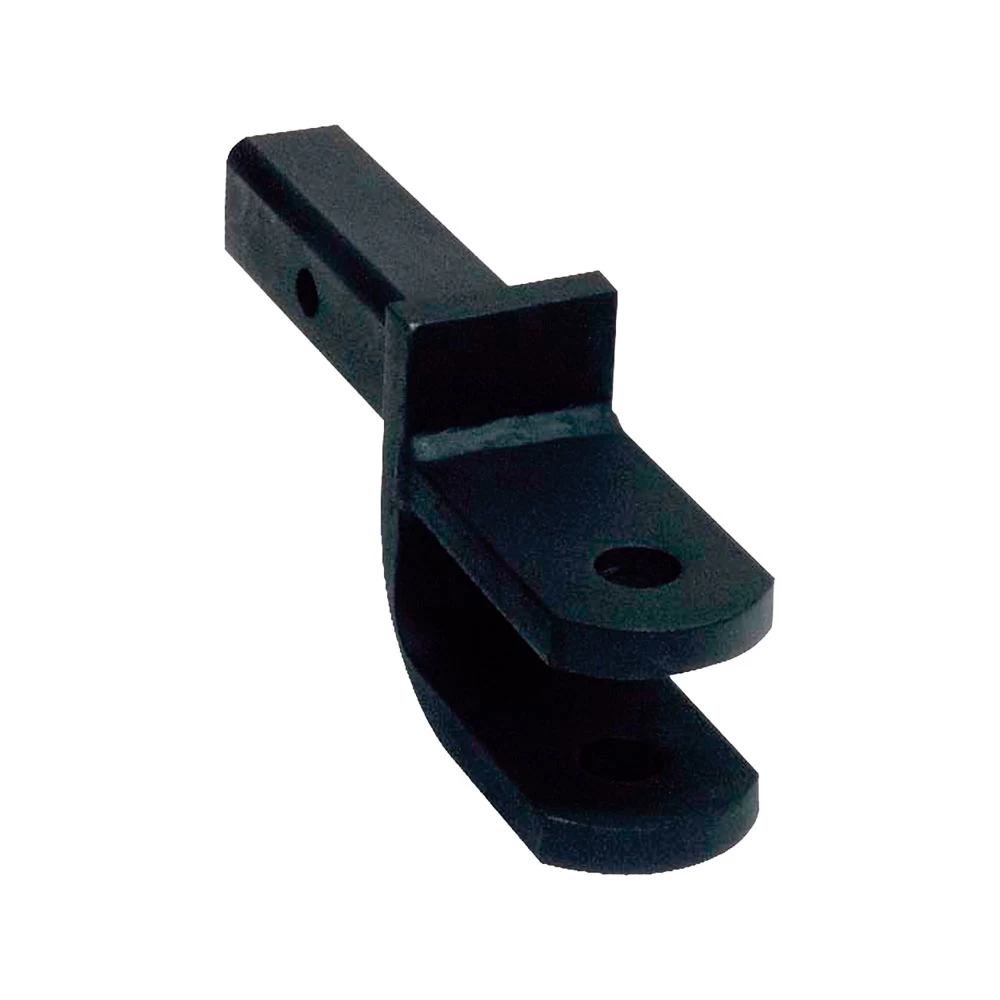

Installation Instructions for CLEVIS/BALL MOUNT 80410

Part Number:

• 80410

Ratings

With Ball:

• Maximum Gross Trailer Weight: 6,000 lbs
• Maximum Tongue Weight: 600 lbs

When Used as Clevis:

• Maximum Gross Trailer Weight: 6,000 lbs
• Maximum Tongue Weight: 600 lbs

Warning: Do not exceed the gross trailer weight and tongue weight ratings of your tow vehicle, receiver, and ball. Refer to manufacturer warnings.

Tools Required:

• Torque wrench
• Crowfoot wrench attachment (for ball installation)

Installation and Operation

General Installation:

1. Secure the clevis/ball mount to the receiver with a 5/8-inch diameter pin.
2. Secure the pin with a clip or locking device.

Ball Installation:

1. Use a ball with a 1-inch diameter threaded shank only.
2. Follow the ball manufacturer's instructions and warnings.
3. Use a torque wrench to tighten the nut to the specified torque.
4. If necessary, use a "crowfoot" wrench attachment to reach the nut with the torque wrench.

Clevis Operation:

1. Use only a 1-inch diameter pin with a positive retaining device.
2. Ensure the pin extends through both clevis members.
3. Install the pin from the top.
4. Pins (#5764) and clips (#55515) are available for purchase separately.

Safety Notes

Warnings for Clevis Operation:

• Never tow without a positive retaining device on the clevis pin. Loss of the pin can result in trailer separation.
• Ensure the pin does not extend excessively below the clevis to prevent damage or loss caused by ground strikes.
• Check ground clearance with a loaded trailer and tow vehicle to avoid damage.
• The trailer drawbar or eye must not contact the shank tube or welds with the pin installed, as contact could cause damage leading to trailer separation.
• Do not use a long shank ball as a clevis pin. Loss of attachment or failure could result in serious injury, death, and/or property damage.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

The product comes with a [X]-year warranty that covers defects in materials and workmanship. For complete warranty instructions, please download the full installation PDF.
