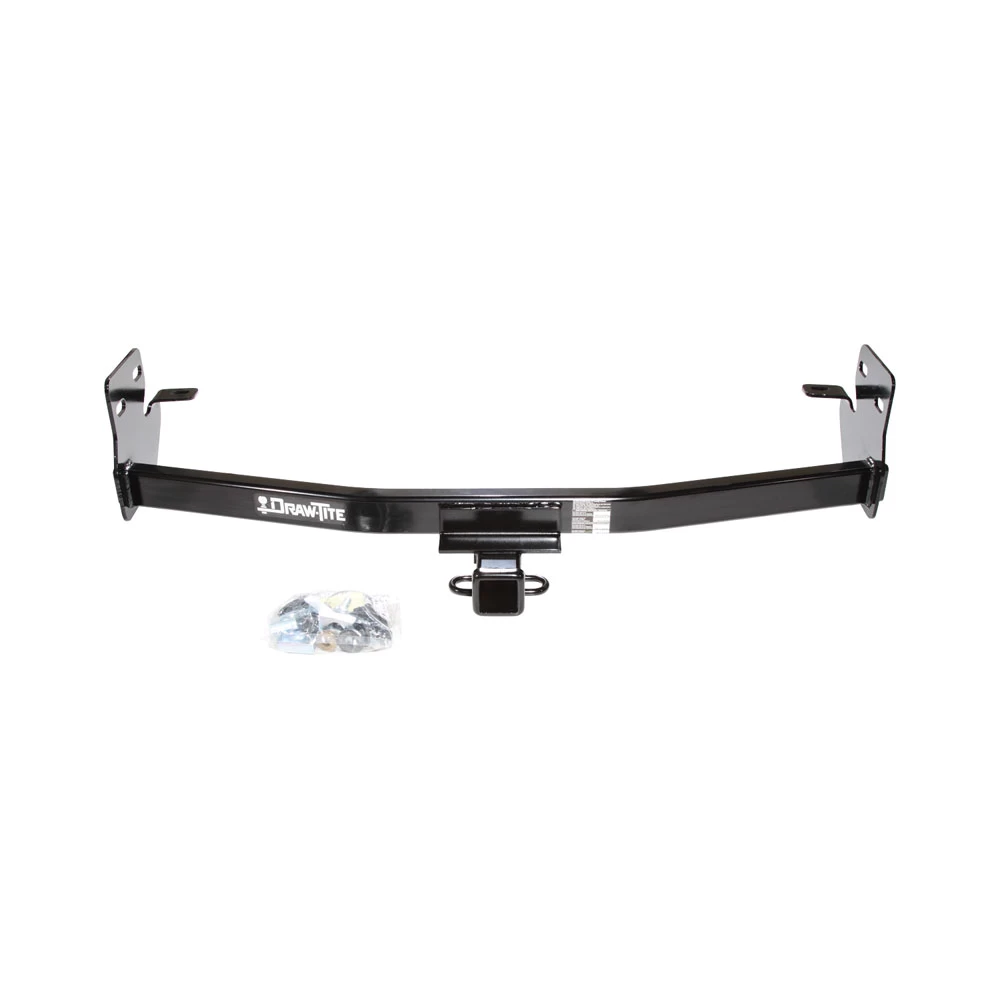

Trailer Tow Hitch For 04‑12 Chevy Colorado GMC Canyon Class 3 2" Towing Receiver
Model: 756072004 - 2012 Chevrolet, Colorado, All Styles
2004 - 2012 GMC, Canyon, All Styles
2006 Isuzu, I-280, All Styles
2006 Isuzu, I-350, All Styles
2007 - 2008 Isuzu, I-290, All Styles
2007 - 2008 Isuzu, I-370, All Styles
Trailer Hitch Specs:
| Part Number | 75607 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 600/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 2004 2005 2006 2007 2008 2009 2010 2011 2012
$209 76 $327.59 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$327.59 $209 76
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75607
- UPC: 742512756074
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2004 - 2012 Chevrolet, Colorado, All Styles
2004 - 2012 GMC, Canyon, All Styles
2006 Isuzu, I-280, All Styles
2006 Isuzu, I-350, All Styles
2007 - 2008 Isuzu, I-290, All Styles
2007 - 2008 Isuzu, I-370, All Styles
Trailer Hitch Specs:
| Part Number | 75607 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 600/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 2004 2005 2006 2007 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch For 04-12 Chevy Colorado GMC Canyon Class 3 2" Towing Receiver Install Notes
Installation Instructions for Chevrolet Colorado Pickup, GMC Canyon Pickup, and Isuzu “I” Series Pickup
Part Numbers:
- 75607
- 87458
- 44593
- 78280 (U-Haul)
Tools Required:
- Wrenches: 21mm, 22mm, 11/16”
- Drill Bits: None
- Tape (optional for block alignment)
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Bumper Bracket Bolts:
- For 2007 and earlier trucks: Remove two (2) bolts per side attaching the bumper brackets to the outside of the truck frame.
- For 2008 and newer trucks: Remove two (2) bolts per side attaching the bumper brackets located inside the truck frame.
-
Tape Spacer Blocks in Place (Optional):
- Use tape to hold the provided 5/8” thick blocks in place on the side of the frame or bumper brackets, depending on the truck year.
-
Install Hitch and Fasteners:
- Raise the hitch into position.
- Insert two (2) new M14 bolts per side through the hitch, spacer blocks, and frame. Loosely tighten.
-
Fishwire Carriage Bolts:
- Use the provided wire leader to fishwire the 7/16” carriage bolts and blocks through the truck frame and align with the slots in the hitch.
- For 2007 and earlier trucks: Fishwire bolts from the end of the frame.
- For 2008 and newer trucks: Use the access slot on the outside of the frame.
-
Insert Flat Washers (if needed):
- Insert the provided 1/2” flat washers between the hitch and the bottom of the truck frame to address any gaps caused by existing welds or flat washers securing the bumper bracket.
-
Tighten Fasteners:
- Torque all M14 bolts to 115 lb-ft (156 N·m).
- Torque both 7/16” bolts to 50 lb-ft (68 N·m).

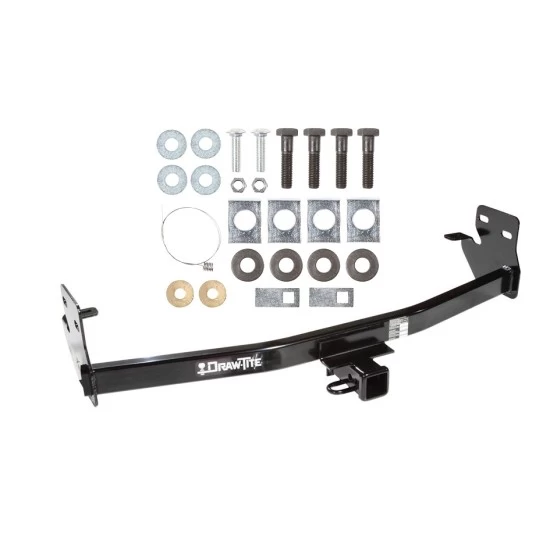

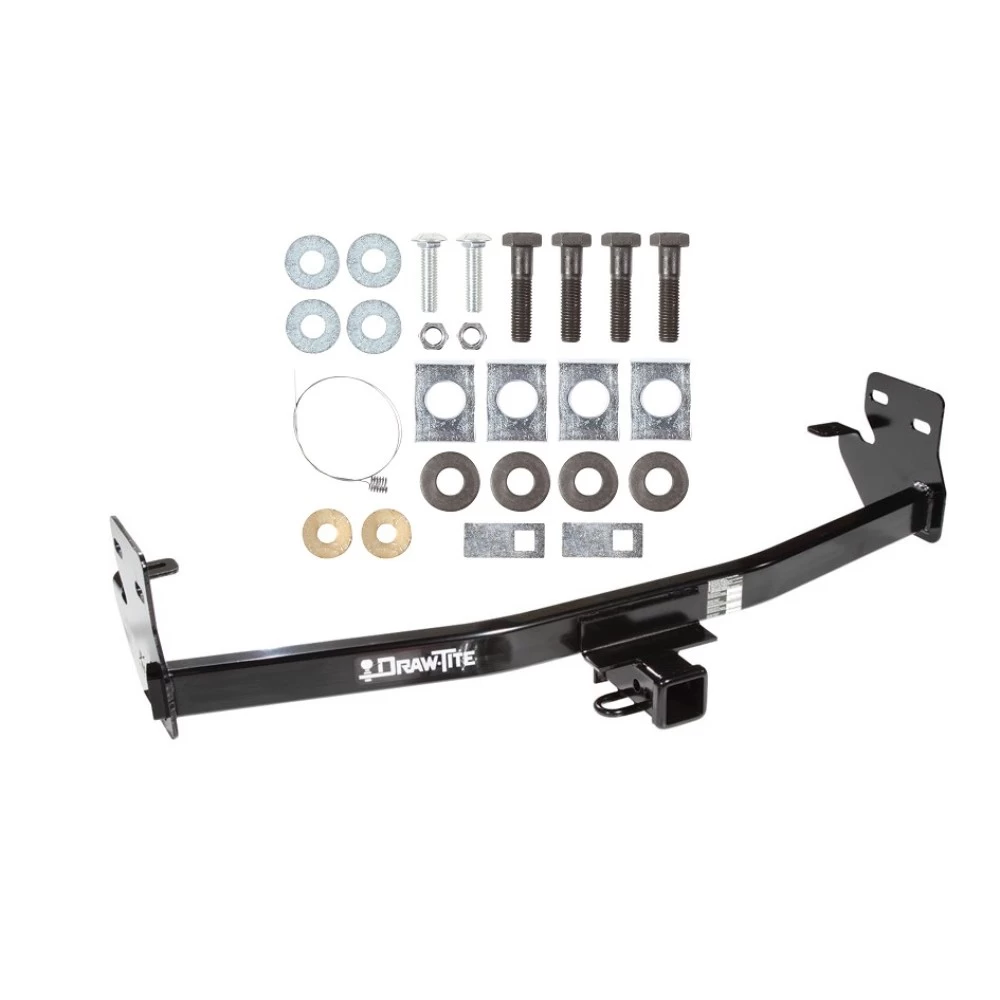

Hardware List:
- (4) M14 x 2.00 x 60mm CL10.9 Hex Bolts
- (4) 1/2” Flat Washers
- (4) 5/8” Conical Toothed Washers
- (2) 7/16” Conical Toothed Washers
- (4) 5/8” x 1-1/2” x 2-1/8” Spacer Blocks
- (2) 7/16”-14 x 1-3/4” Carriage Bolts
- (2) 1/8” x 7/8” x 2” Blocks (with square hole)
- (2) 7/16”-14 Hex Nuts
- (1) 7/16” Wire Leader
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (340 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Hitch is purposely built wide. Frame brackets will draw in when tightened.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75607
- 87458
- 44593
- 78280 (U-Haul)
Tools Required:
- Wrenches: 21mm, 22mm, 11/16”
- Drill Bits: None
- Tape (optional for block alignment)
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Bumper Bracket Bolts:
- For trucks 2007 and earlier: Remove two (2) bolts per side attaching the bumper brackets to the outside of the truck frame.
- For trucks 2008 and newer: Remove two (2) bolts per side attaching the bumper brackets located inside the truck frame.
-
Tape Spacer Blocks in Place (Optional):
- Use tape to hold the provided 5/8” thick blocks in place on the side of the frame or bumper brackets, depending on the truck year.
-
Install Hitch and Fasteners:
- Raise the hitch into position.
- Insert two (2) new M14 bolts per side through the hitch, spacer blocks, and frame. Loosely tighten.
-
Fishwire Carriage Bolts:
- Use the provided wire leader to fishwire the 7/16” carriage bolts and blocks through the truck frame and align with the slots in the hitch.
- For 2007 and earlier trucks: Fishwire bolts from the end of the frame.
- For 2008 and newer trucks: Use the access slot on the outside of the frame.
-
Insert Flat Washers (if needed):
- Insert the provided 1/2” flat washers between the hitch and the bottom of the truck frame to address any gaps caused by existing welds or flat washers securing the bumper bracket.
-
Tighten Fasteners:
- Torque all M14 bolts to 115 lb-ft (156 N·m).
- Torque both 7/16” bolts to 50 lb-ft (68 N·m).
Hardware List:
- (4) M14 x 2.00 x 60mm CL10.9 Hex Bolts
- (4) 1/2” Flat Washers
- (4) 5/8” Conical Toothed Washers
- (2) 7/16” Conical Toothed Washers
- (4) 5/8” x 1-1/2” x 2-1/8” Spacer Blocks
- (2) 7/16”-14 x 1-3/4” Carriage Bolts
- (2) 1/8” x 7/8” x 2” Blocks (with square hole)
- (2) 7/16”-14 Hex Nuts
- (1) 7/16” Wire Leader
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (340 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Additional Notes:
- Hitch is purposely built wide. Frame brackets will draw in when tightened.
