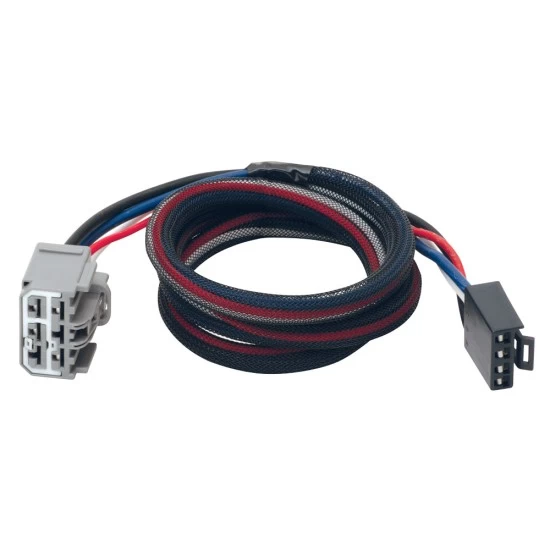

07‑18 Chevy Traverse GMC Acadia Buick Enclave Trailer Brake Control Wiring 2‑Plug Adapter Connector Expedition Plug Play
Model: 30262008 - 2017 Buick, Enclave, w/Factory 7-Way
2009 - 2017 Chevrolet, Traverse, w/Factory 7-Way
2018 Chevrolet, Traverse Limited, w/Factory 7-Way
2007 - 2017 GMC, Acadia, w/Factory 7-Way
2017 GMC, Acadia Limited, w/Factory 7-Way
2007 - 2009 Saturn, Outlook, w/Factory 7-Way
Direct Plug & Play Brake Control Wiring Kit
| Part Number | 3026 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer brake control systems. Our trailer brake control wiring kits are vehicle specific, require no splicing or cutting of the wires. Simply plug & play this adapter into your brake controller and into your vehicles port and you are done. This brake control harness comes with a 1 year warranty.
Compatiable with Draw-Tite Activator I Activator II Activator III Activator IV I-Stop IQ I-Command Tekonsha Voyager P2 P3 Prodigy Primus IQ PowerTrac Envoy Reese Echelon Brakeman Brakeman IV POD BC Pilot Pro Series Pilot POD Part numbers 5100 5298 5504 74378 74642 74643 80500 80550 83501 83504 20191 39523 5535 90160 90195 9030 90885 and more
Fits all Reese, Tekonsha, Draw-Tite and Pro Series Brake Controllers
Partial list of fitment years:
07 08 09 10 11 12 13 14 15 16 17 18 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
$22 13
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$22 13
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $5.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 3026
- UPC: 016118089721
- Includes: Trailer Brake Controller Custom Harness
Compatibility Chart
Description
2008 - 2017 Buick, Enclave, w/Factory 7-Way
2009 - 2017 Chevrolet, Traverse, w/Factory 7-Way
2018 Chevrolet, Traverse Limited, w/Factory 7-Way
2007 - 2017 GMC, Acadia, w/Factory 7-Way
2017 GMC, Acadia Limited, w/Factory 7-Way
2007 - 2009 Saturn, Outlook, w/Factory 7-Way
Direct Plug & Play Brake Control Wiring Kit
| Part Number | 3026 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer brake control systems. Our trailer brake control wiring kits are vehicle specific, require no splicing or cutting of the wires. Simply plug & play this adapter into your brake controller and into your vehicles port and you are done. This brake control harness comes with a 1 year warranty.
Compatiable with Draw-Tite Activator I Activator II Activator III Activator IV I-Stop IQ I-Command Tekonsha Voyager P2 P3 Prodigy Primus IQ PowerTrac Envoy Reese Echelon Brakeman Brakeman IV POD BC Pilot Pro Series Pilot POD Part numbers 5100 5298 5504 74378 74642 74643 80500 80550 83501 83504 20191 39523 5535 90160 90195 9030 90885 and more
Fits all Reese, Tekonsha, Draw-Tite and Pro Series Brake Controllers
Partial list of fitment years:
07 08 09 10 11 12 13 14 15 16 17 18 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
Get Expert Help
07-18 Chevy Traverse GMC Acadia Buick Enclave Trailer Brake Control Wiring 2-Plug Adapter Connector Expedition Plug Play Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302600
Tools Required:
- Trim Panel Remover
Step-by-Step Instructions:
Step 1: Remove the Trim Panel
- Carefully remove the vehicle’s trim panel located underneath the dashboard.
- CAUTION: Avoid pulling on the courtesy lamp wires that are attached.
Step 2: Locate the Brake Control Harness Connector
- Find the electric brake control harness connector under the dashboard:
- It is located left of the steering column and near the emergency brake pedal.
- The connector will be a 6-pin connector that matches the brake control adapter.
Step 3: Plug in the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Ensure the adapter is securely connected to the harness.
Step 4: Complete the Installation
- Follow the brake control manufacturer’s instructions to:
- Complete the wiring connections.
- Mount the brake controller securely in the desired location.
- Perform all test procedures as instructed by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles that do not have an OEM trailer tow package may require additional fuses or relays to complete the:
- Output circuit
- Battery feed circuit
- These items are sold separately. Refer to the vehicle’s owner’s manual for specific fuse and relay locations.
Safety Warnings:
- Overloading the Circuit Can Cause Fires:
- Do NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Do NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller installation instructions for additional details.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding connection.
- Stop Lamp Switch (Input): Sends braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302600
Tools Required:
- Trim Panel Remover
Step-by-Step Instructions:
Step 1: Remove the Trim Panel
- Carefully remove the vehicle’s trim panel located underneath the dashboard.
- CAUTION: Avoid pulling on the courtesy lamp wires that are attached.
Step 2: Locate the Brake Control Harness Connector
- Find the electric brake control harness connector under the dashboard:
- It is located left of the steering column and near the emergency brake pedal.
- The connector will be a 6-pin connector that matches the brake control adapter.
Step 3: Plug in the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Ensure the adapter is securely connected to the harness.
Step 4: Complete the Installation
- Follow the brake control manufacturer’s instructions to:
- Complete the wiring connections.
- Mount the brake controller securely in the desired location.
- Perform all test procedures as instructed by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles that do not have an OEM trailer tow package may require additional fuses or relays to complete the:
- Output circuit
- Battery feed circuit
- These items are sold separately. Refer to the vehicle’s owner’s manual for specific fuse and relay locations.
Safety Warnings:
- Overloading the Circuit Can Cause Fires:
- Do NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Do NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller installation instructions for additional details.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding connection.
- Stop Lamp Switch (Input): Sends braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
