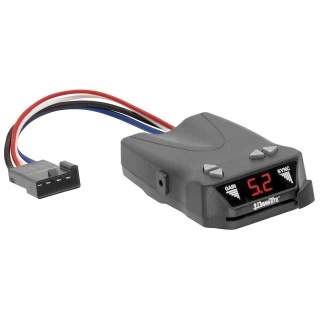

Draw‑Tite Activator IV Brake Controller Control Module Trailer Brakes Towing Kit Box System Truck Car SUV 5504

Model: 5504

Activator IV Electronic Brake Control, for 1 to 4 Axle Trailers, Timed Actuated

1 to 4 axle trailers
Digital output indicator
Small, compact design
Up-front push buttons for Sync and Output
Diagnostics for Overload, Open Ground
Short Circuit Protected
Mounts in any direction
No leveling required
Mounting hardware included
Smooth and simple installation
Plug & Play feature allows quick and easy connection
Attractive point-of-purchase display packaging
Lifetime limited warranty
Installation Instructions

Thank you for choosing Draw-Tite made by same people that brought you Tekonsha and Reese the most powerful manufacturers of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.

See Full Description

$89 ⁰² $97.84 9% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Add to Wish List

$97.84 $89 ⁰²

Pay in 4 interest-free installments of $22.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $22.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 5504
Includes: Activator IV Brake Controller

Specification
Brake Type	Electric
Circuit Breaker Protected	Yes
Display Type	Digital Output
Finish	Plastic
Housing Color	Black
Hydraulic Connections	No
Material	Plastic
Solid State Construction	Yes
Two or Four Wheel Brake System	Up to Eight Wheels

Be the first to ask a question.

Description

Activator IV Electronic Brake Control, for 1 to 4 Axle Trailers, Timed Actuated

1 to 4 axle trailers
Digital output indicator
Small, compact design
Up-front push buttons for Sync and Output
Diagnostics for Overload, Open Ground
Short Circuit Protected
Mounts in any direction
No leveling required
Mounting hardware included
Smooth and simple installation
Plug & Play feature allows quick and easy connection
Attractive point-of-purchase display packaging
Lifetime limited warranty
Installation Instructions

Tags: 5504 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , Acura , MDX , Tekonsha , Draw-Tite , Activator , IV , Trailer , Brake , Controller

Get Expert Help

Draw-Tite Activator IV Brake Controller Control Module Trailer Brakes Towing Kit Box System Truck Car SUV 5504 Install Notes

Installation Instructions for Electronic Brake Control (2, 4, 6, & 8 Brake Applications)

Product Information:

Part Number: N5504
System Compatibility: 2, 4, 6, or 8 trailer brakes

Package Contents:

Brake Control Unit
Mounting Bracket
Mounting Screws (#6 x 3/8") (Qty: 4)

Tools Required:

Drill with 1/8" drill bit
Screwdriver or 1/4" Nut Driver
Wire Stripper/Cutter
Crimp Tool
Circuit Tester
Assorted End Wrenches

Mounting Instructions:

Choose Mounting Location:
- Ensure the location is solid and within easy reach of the driver.
- Verify there is no obstruction behind the mounting panel.
Install the Bracket:
- Use the mounting bracket as a template to mark the hole locations.
- Drill two (2) 1/8" holes at the marked positions.
- Secure the bracket using two self-tapping screws.
Install the Brake Control Unit:
- Slide the Brake Control Unit into the bracket.
- Secure it using the remaining two screws.

Wiring Instructions:

Black Wire (Battery +):
- Connect to the positive battery terminal using a 30A auto-reset circuit breaker.
White Wire (Ground -):
- Connect to a clean, bare metal surface on the vehicle chassis.
Red Wire (Stoplight Switch):
- Connect to the cold side of the stoplight switch (voltage present only when the brake pedal is pressed).
Blue Wire (Trailer Brakes):
- Connect to the brake output wire on the trailer’s 7-way connector.

Controls Overview:

Output (Gain) Control:
- Adjusts the maximum braking power delivered to the trailer brakes.
- Range: 0 (minimum) to 10 (maximum).
Sync Control:
- Adjusts the aggressiveness of trailer braking:
  - + (More Aggressive)
  - – (Less Aggressive)
Manual Slide Control:
- Manually applies the trailer brakes independent of the vehicle’s braking system.
LED Display:
- Output Display: Shows the gain setting when activated.
- Sync Display: Shows the sync setting when the brake pedal is pressed.

Setup and Testing:

Preliminary Adjustment:
- Connect the trailer.
- Press and hold the brake pedal.
- Adjust the Gain Control to approximately 2.0.
- Press the Sync + or – button to set sync to 4°.
Test Drive:
- Drive at 25 mph in an open area.
- Use the Manual Slide Control to test the trailer brakes:
  - If brakes are weak: Increase the Gain Control.
  - If brakes lock up: Decrease the Gain Control.
Fine-Tune the Sync Control:
- For smoother stops: Adjust Sync + for more aggressive braking.
- For less aggressive braking: Adjust Sync –.
Verify Performance:
- Ensure stops are smooth and firm, without trailer wheel lock-up.

Troubleshooting Guide:

Condition	Display	Possible Cause	Solution
No brakes (manual or pedal)	No Display	Faulty wiring, power loss	Verify power and ground connections.
Weak trailer braking	Low Output	Gain too low	Increase Gain Control setting.
Brakes lock up	Output too High	Gain too high	Decrease Gain Control.
Brakes delayed	Sync too low	Aggressiveness setting too low	Adjust Sync to a higher setting.
Display shows OL	Flashing OL	Short in brake circuit (Blue Wire)	Locate and repair short circuit.
Display shows Er	Er	Internal brake control fault	Return unit for evaluation or repair.

Safety Notes:

Always test the brake control system before towing.
Periodically inspect all connections and wiring for wear or damage.
Do not exceed the vehicle manufacturer’s towing capacity.

Additional Assistance:

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
