Reese Brakeman Brake Controller Control Module Trailer Brakes Towing Kit Box System Truck Car SUV 83501

Model: 83501

Brakeman Compact Brake Control, for 1 to 2 Axle Trailers, Timed Actuated

1 to 2 axle trailers
Illuminated LED output indicator
Slide adjustment output control
"Up- front" manual over-ride control
Mounting hardware included
Smooth and simple installation
Plug & Play feature allows quick and easy connection
5 year limited warranty
Installation Instructions

Thank you for choosing Reese made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.

See Full Description

$59 ²⁵ $113.02 48% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Add to Wish List

$113.02 $59 ²⁵

Pay in 4 interest-free installments of $14.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $14.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 83501
UPC: 016118044188
Includes: Brakeman Brake Controller

Description

Brakeman Compact Brake Control, for 1 to 2 Axle Trailers, Timed Actuated

1 to 2 axle trailers
Illuminated LED output indicator
Slide adjustment output control
"Up- front" manual over-ride control
Mounting hardware included
Smooth and simple installation
Plug & Play feature allows quick and easy connection
5 year limited warranty
Installation Instructions

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 83501 , Reese , Brakeman , Brake , Controller , Control , Module , Trailer , Brakes , Towing , Kit , Box , System , Truck , Car , SUV , 83501

Get Expert Help

Reese Brakeman Brake Controller Control Module Trailer Brakes Towing Kit Box System Truck Car SUV 83501 Install Notes

Installation Instructions for Electronic Brake Control for 2 & 4 Brake Systems

Product Information:

Part Number: N83501
Application: Compatible with 2 and 4 trailer brake systems

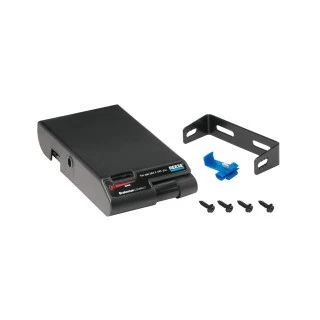

Package Contents:

Brake Control Unit
Mounting Bracket
Mounting Screws (#6 x 3/8") (Qty: 4)
Wire Tap Connector

Tools Required:

Drill with 1/8" drill bit
Screwdriver or 1/4" Nut Driver
Wire Stripper/Cutter
Wire Crimping Tool
Circuit Tester (Probe Type)

Mounting Instructions:

Select Mounting Location:
- Choose a solid surface within easy reach of the driver.
- Verify there are no obstructions behind the panel before drilling.
Install the Bracket:
- Hold the mounting bracket in place and mark the holes using the bracket’s slots.
- Drill two 1/8" holes in the marked locations.
- Secure the bracket using two self-tapping screws provided.
Attach the Brake Control:
- Slide the Brake Control into the bracket.
- Secure the Brake Control with the remaining screws.

Wiring Instructions:

Black Wire (Battery +):
- Connect to the positive battery terminal using a 20A auto-reset circuit breaker.
White Wire (Ground -):
- Connect to a clean, bare metal surface on the vehicle chassis.
Red Wire (Stoplight Switch):
- Connect to the cold side of the stoplight switch (only active when the brake pedal is pressed).
Blue Wire (Trailer Brake):
- Connect to the trailer brake wire at the 7-way connector.

Special Instructions for 1989-1991 Ford E and F Series with Anti-Lock Brakes:

Do NOT connect to the stoplight switch.
Locate the turn signal harness connector near the steering column.
Splice the red wire to the light green wire using the provided wire tap connector.

Control Functions:

Output Control:
- Adjusts the maximum power delivered to the trailer brakes.
- Turn the knob left to increase power; turn it right to decrease power.
Sync Control:
- Adjusts brake aggressiveness or the delay in applying full power.
- Turn + (forward) for more aggressive braking.
- Turn – (backward) for less aggressive braking.
Manual Control:
- Applies the trailer brakes independently of the vehicle brakes.
- Slide the control to the left to activate the trailer brakes.
- Power applied is determined by the Output Control setting.
Output Indicator:
- The red light glows dimly when braking begins and becomes brighter as power increases.

Setup and Adjustment:

Initial Settings:
- Set the Sync Control halfway between + and –.
- Set the Output Control to the lowest position (fully to the right).
Brake Test:
- Roll forward slowly and apply the brakes.
- If no trailer braking is felt, adjust the Output Control slightly to the left.
- Repeat until firm trailer braking is achieved. If brakes lock up, adjust the Output Control to the right slightly.
Sync Adjustment:
- Move the Sync Control back toward the driver to about 1/4 of the way between + and –.
- Test drive and adjust the Sync Control for smooth, firm stops.
Final Verification:
- Check that both the tow vehicle and trailer stoplights activate when the Manual Control is used.

Troubleshooting Guide:

Problem	Cause	Solution
Trailer brakes delayed	Sync Control set too low	Adjust Sync Control toward +.
Trailer brakes lock up quickly	Sync Control set too high	Adjust Sync Control toward –.
Weak trailer braking	Output Control set too low	Increase the Output Control setting.
No trailer brakes	Faulty wiring or connections	Verify all wire connections.
Trailer brakes inconsistent	Poor ground connection	Check and secure White Wire ground.
Red light does not activate	No stoplight signal to Red Wire	Check stoplight switch connection.

Safety Notes:

Inspect and test the brake control system before each use.
Do not exceed the vehicle’s or trailer’s Gross Combined Weight Rating (GCWR).
Ensure all connections are secure and insulated to prevent short circuits.

Technical Support:

For technical support and assistance, our team of experts is available to help.
Visit www.trailerjacks.com or call 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
