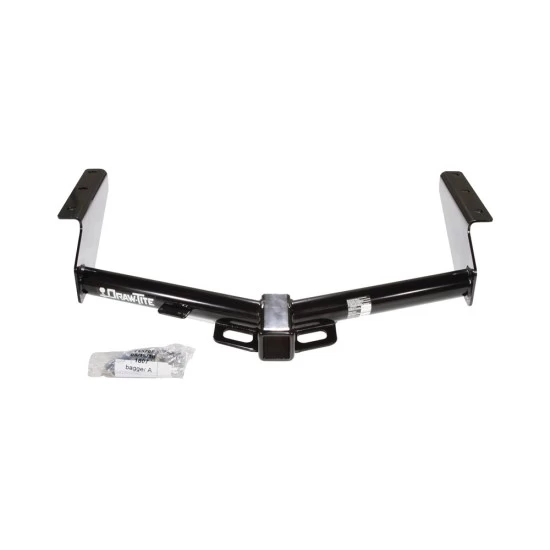

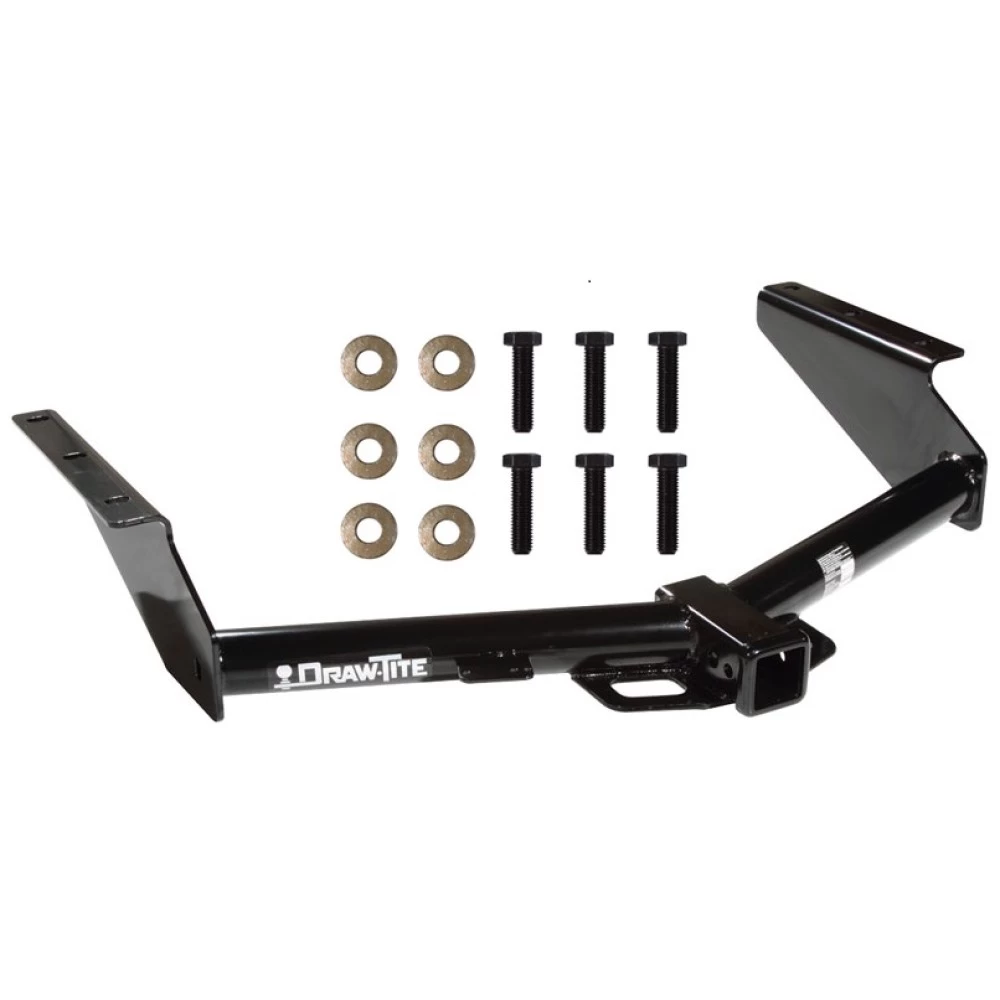

Trailer Tow Hitch For 08‑12 Jeep Liberty All Styles 2" Towing Receiver
Model: 755782008 - 2012 Jeep, Liberty, All Styles
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 08 09 10 11 12 2008 2009 2010 2011 2012
$234 46 $366.13 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$366.13 $234 46
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $58.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75578
- UPC: 742512755787
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 7,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 750 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description
2008 - 2012 Jeep, Liberty, All Styles
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 08 09 10 11 12 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch For 08-12 Jeep Liberty All Styles 2" Towing Receiver Install Notes
Installation Instructions for Jeep Liberty
Part Numbers:
- 75578
- 87450
- 44585
- UHI78262
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Remove Support Bracket Bolt:
- Remove the bolt from the driver’s side vehicle support bracket and return it to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position.
- Place the hitch over the frame and support bracket on the driver’s side.
-
Install Fasteners:
- Loosely install the six (6) M12 bolts and conical toothed washers as shown.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 89 lb-ft (121 N·m).

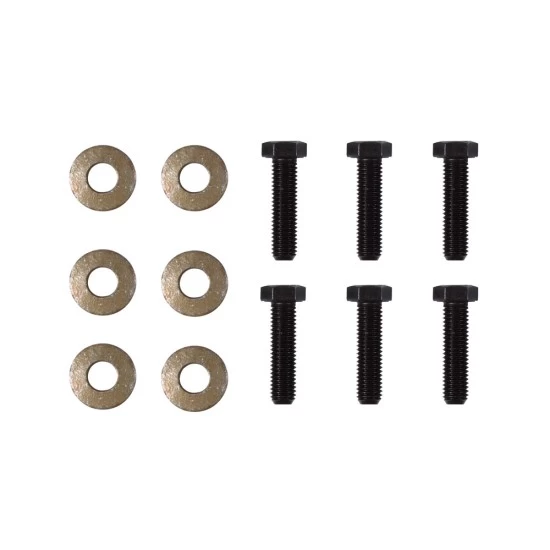

Hardware List:
- (6) M12 x 1.75 x 40mm CL10.9 Hex Bolts
- (6) Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75578
- 87450
- 44585
- UHI78262
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Remove Support Bracket Bolt:
- Remove the bolt from the driver’s side vehicle support bracket and return it to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position.
- Place the hitch over the frame and support bracket on the driver’s side.
-
Install Fasteners:
- Loosely install the six (6) M12 bolts and conical toothed washers as shown.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 89 lb-ft (121 N·m).
Hardware List:
- (6) M12 x 1.75 x 40mm CL10.9 Hex Bolts
- (6) Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
