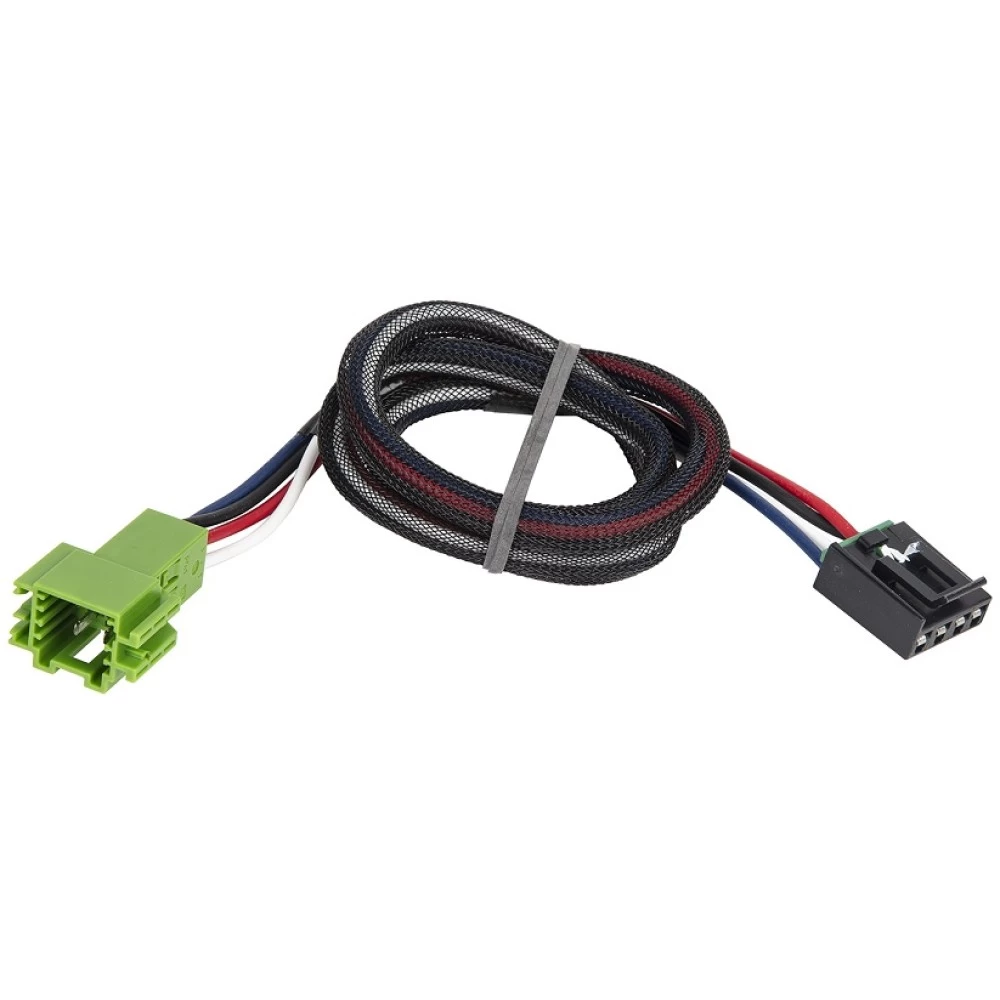

16‑23 Mercedes GLE350 GLE63 AMG Trailer Brake Control Wiring 2‑Plug Adapter Connector Plug Play
Model: 3066-12016 - 2023 Mercedes-Benz, GLE350, w/ Factory Tow Package
2016 - 2023 Mercedes-Benz, GLE63 AMG, w/ Factory Tow Package
Direct Plug & Play Brake Control Wiring Kit
| Part Number | 3066 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer brake control systems. Our trailer brake control wiring kits are vehicle specific, require no splicing or cutting of the wires. Simply plug & play this adapter into your brake controller and into your vehicles port and you are done. This brake control harness comes with a 1 year warranty.
Compatiable with Draw-Tite Activator I Activator II Activator III Activator IV I-Stop IQ I-Command Tekonsha Voyager P2 P3 Prodigy Primus IQ PowerTrac Envoy Reese Echelon Brakeman Brakeman IV POD BC Pilot Pro Series Pilot POD Part numbers 5100 5298 5504 74378 74642 74643 80500 80550 83501 83504 20191 39523 5535 90160 90195 9030 90885 and more
Fits all Reese, Tekonsha, Draw-Tite and Pro Series Brake Controllers
Partial list of fitment years:
16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
$22 37
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$22 37
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $5.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 3066-1
- Includes: Trailer Brake Controller Custom Harness
Compatibility Chart
Description
2016 - 2023 Mercedes-Benz, GLE350, w/ Factory Tow Package
2016 - 2023 Mercedes-Benz, GLE63 AMG, w/ Factory Tow Package
Direct Plug & Play Brake Control Wiring Kit
| Part Number | 3066 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer brake control systems. Our trailer brake control wiring kits are vehicle specific, require no splicing or cutting of the wires. Simply plug & play this adapter into your brake controller and into your vehicles port and you are done. This brake control harness comes with a 1 year warranty.
Compatiable with Draw-Tite Activator I Activator II Activator III Activator IV I-Stop IQ I-Command Tekonsha Voyager P2 P3 Prodigy Primus IQ PowerTrac Envoy Reese Echelon Brakeman Brakeman IV POD BC Pilot Pro Series Pilot POD Part numbers 5100 5298 5504 74378 74642 74643 80500 80550 83501 83504 20191 39523 5535 90160 90195 9030 90885 and more
Fits all Reese, Tekonsha, Draw-Tite and Pro Series Brake Controllers
Partial list of fitment years:
16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
16-23 Mercedes GLE350 GLE63 AMG Trailer Brake Control Wiring 2-Plug Adapter Connector Plug Play Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 306600
Tools Required:
- Trim Panel Remover
Step-by-Step Instructions:
Step 1: Prepare the Vehicle
- Ensure the vehicle is off, and the keys are removed from the ignition.
Step 2: Locate the Vehicle’s Electric Brake Control Harness
- Locate the vehicle’s electric brake control harness connector:
- It is found underneath the dashboard.
- Pull back the carpet behind the brake pedal to expose the connector.
- The connector will be a 4-pin plug that matches the adapter’s connector.
Step 3: Connect the Brake Control Adapter
- CAUTION:
- Plug the adapter into the backside of the brake controller before connecting it to the vehicle harness.
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s instructions for wiring and mounting the unit.
Step 4: Route the Adapter
- Identify a suitable routing path for the adapter to exit through the bottom of the dashboard.
- Ensure the adapter’s wiring avoids any:
- Airbag deployment zones
- Sharp edges or pinch points that could damage the wire.
Step 5: Complete the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller securely as directed.
- Perform all test procedures outlined in the brake controller manual to confirm proper operation.
Safety Warnings:
- Overloading the Circuit Can Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (16 amps).
- DO NOT exceed the lower of:
- Carefully follow the vehicle owner’s manual and brake control manufacturer instructions.
Safety Notes:
- Always wear safety glasses and follow all safety precautions during installation.
- Periodically inspect all connections and wires for wear, damage, or looseness.
- Avoid routing wires near sharp edges, heat sources, or moving components.
Wiring Overview:
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Fused Battery Feed: Supplies power to the brake controller.
- Ground: Ensures secure grounding for proper operation.
- Stop Lamp Switch (Input): Sends braking signal from the vehicle to the brake controller.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 306600
Tools Required:
- Trim Panel Remover
Step-by-Step Instructions:
Step 1: Prepare the Vehicle
- Ensure the vehicle is off, and the keys are removed from the ignition.
Step 2: Locate the Vehicle’s Electric Brake Control Harness
- Locate the vehicle’s electric brake control harness connector:
- It is found underneath the dashboard.
- Pull back the carpet behind the brake pedal to expose the connector.
- The connector will be a 4-pin plug that matches the adapter’s connector.
Step 3: Connect the Brake Control Adapter
- CAUTION:
- Plug the adapter into the backside of the brake controller before connecting it to the vehicle harness.
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s instructions for wiring and mounting the unit.
Step 4: Route the Adapter
- Identify a suitable routing path for the adapter to exit through the bottom of the dashboard.
- Ensure the adapter’s wiring avoids any:
- Airbag deployment zones
- Sharp edges or pinch points that could damage the wire.
Step 5: Complete the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller securely as directed.
- Perform all test procedures outlined in the brake controller manual to confirm proper operation.
Safety Warnings:
- Overloading the Circuit Can Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (16 amps).
- DO NOT exceed the lower of:
- Carefully follow the vehicle owner’s manual and brake control manufacturer instructions.
Safety Notes:
- Always wear safety glasses and follow all safety precautions during installation.
- Periodically inspect all connections and wires for wear, damage, or looseness.
- Avoid routing wires near sharp edges, heat sources, or moving components.
Wiring Overview:
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Fused Battery Feed: Supplies power to the brake controller.
- Ground: Ensures secure grounding for proper operation.
- Stop Lamp Switch (Input): Sends braking signal from the vehicle to the brake controller.
End of Instructions
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty Duration: 1 year from the date of purchase.
- Coverage: The product is warranted against defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
