For 2011‑2016 Chrysler Town & Country Trailer Hitch Tow PKG w/ 4‑Flat Wiring + Ball Mount w/ 4" Drop + 2" Ball + 2‑5/16" Ball By Draw‑Tite
Model: 75579 118534 53 63845 63847This Bundle Fits The Following Vehicles:
2011-2016 Chrysler, Town & Country, All Styles

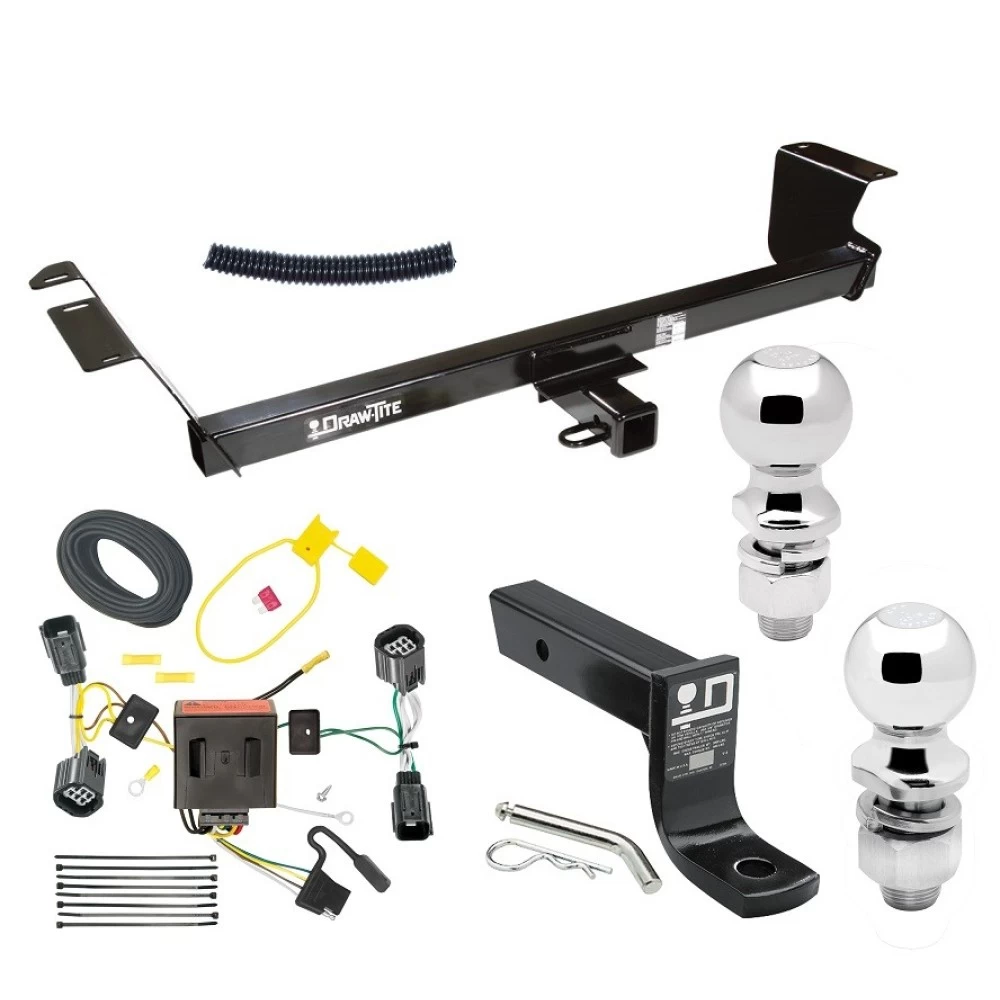

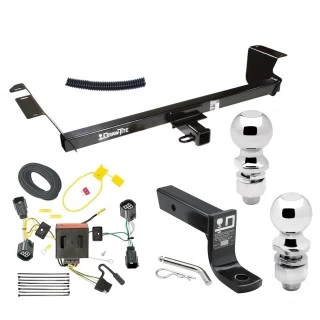

This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring
Ball Mount w/ 4 inch Drop
2 inch Ball
2-5/16 inch Ball
List of fitment years: 2011, 2012, 2013, 2014, 2015, 2016
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 500 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Chrysler Town & Country and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 4,000 lbs. GTW and up to 400 lbs. TW. Also suitable for use with Weight Distribution systems of up to 5,000 lbs. WD and 500 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): RAM C/V, Dodge Grand Caravan, Volkswagen Routan, Chrysler Town & Country
T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 4.2 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed
Trailer Hitch Ball Mount, Fits 2 in. Receiver, 4 in. Drop, 2.75 in. Rise, 7,500 lbs. Capacity, Black Manufactured by: Draw-Tite
Whether you tow with a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a ball mount to fit your hitch. Ball mounts are an essential piece of the towing puzzle, as they fit into your receiver hitch and connect your tow vehicle with the tongue of your trailer. As the maker of North America’s Favorite Hitch, Draw-Tite has decades of experience in knowing what you need to connect and tow safely, and a big part of that is selecting the right ball mount for your trailer and tow vehicle. Made of solid construction for maximum strength and safety, Draw-Tite ball mounts come in several sizes, shank lengths, and weight capacities. So what are you waiting for? Get your Draw-Tite ball mount today!
• Fits 2 in. Square Receiver Tube Opening
• 7,500 lbs. Capacity
• 4 in. Drop, 2-1/2 in. Rise
• 1 in. Ball Shank Diameter
• Angle Cut Design
• Black Powder Coat Finish over E-Coat
Trailer Hitch Ball, 2 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
Trailer Hitch Ball, 2-5/16 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2-5/16 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
$295 45 $446.33 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$446.33 $295 45
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $73.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75579 118534 53 63845 63847
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
2011 - 2016 | Chrysler | Town and Country | All Models |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 5,000 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 400 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 500 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
This Bundle Fits The Following Vehicles:
2011-2016 Chrysler, Town & Country, All Styles
This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring
Ball Mount w/ 4 inch Drop
2 inch Ball
2-5/16 inch Ball
List of fitment years: 2011, 2012, 2013, 2014, 2015, 2016
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 500 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Chrysler Town & Country and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 4,000 lbs. GTW and up to 400 lbs. TW. Also suitable for use with Weight Distribution systems of up to 5,000 lbs. WD and 500 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): RAM C/V, Dodge Grand Caravan, Volkswagen Routan, Chrysler Town & Country
T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 4.2 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed
Trailer Hitch Ball Mount, Fits 2 in. Receiver, 4 in. Drop, 2.75 in. Rise, 7,500 lbs. Capacity, Black Manufactured by: Draw-Tite
Whether you tow with a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a ball mount to fit your hitch. Ball mounts are an essential piece of the towing puzzle, as they fit into your receiver hitch and connect your tow vehicle with the tongue of your trailer. As the maker of North America’s Favorite Hitch, Draw-Tite has decades of experience in knowing what you need to connect and tow safely, and a big part of that is selecting the right ball mount for your trailer and tow vehicle. Made of solid construction for maximum strength and safety, Draw-Tite ball mounts come in several sizes, shank lengths, and weight capacities. So what are you waiting for? Get your Draw-Tite ball mount today!
• Fits 2 in. Square Receiver Tube Opening
• 7,500 lbs. Capacity
• 4 in. Drop, 2-1/2 in. Rise
• 1 in. Ball Shank Diameter
• Angle Cut Design
• Black Powder Coat Finish over E-Coat
Trailer Hitch Ball, 2 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
Trailer Hitch Ball, 2-5/16 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2-5/16 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
Get Expert Help
For 2011-2016 Chrysler Town & Country Trailer Hitch Tow PKG w/ 4-Flat Wiring + Ball Mount w/ 4" Drop + 2" Ball + 2-5/16" Ball By Draw-Tite Install Notes
Installation Instructions for Chrysler Town & Country, Dodge Grand Caravan, VW Routan, and Ram C/V Tradesman
Part Numbers:
- 75579
- 87451
- 44586
Tools Required:
- Wrenches: 13mm, 15mm, 18mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the bolt attaching the rearmost hanger bracket to the passenger-side frame rail.
- Retain the bolt for reinstallation.
-
Install Plastic Loom (if applicable):
- Snap the plastic loom in place over the air conditioning line near the bolt (if present) to protect it. See Figure 2.
-
Remove Existing Bolts:
- On the driver's side, remove three (3) bolts from the frame rail.
- On the passenger's side, remove two (2) bolts.
- Retain all bolts for hitch installation.
-
Remove Plastic Rivet (Driver's Side):
- Remove the plastic rivet securing the plastic mud flap to the driver's side frame rail.
- After hitch installation, trim the plastic corner of the mud flap if necessary.
- Do not reinstall the plastic rivet.
-
Raise the Hitch:
- Position the hitch and secure it with the bolts removed in Step 3.
- Hand-tighten the fasteners.
-
Align Hitch:
- Push the hitch toward the driver's side so the passenger-side bracket contacts the trunk pan.
-
Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 53 lb-ft (72 N·m).
- Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall the bolt removed in Step 1.
Note: Rotating the exhaust hanger bracket before tightening will provide additional clearance between the hitch bracket and exhaust.
Hardware List:
- (5) Existing M10 Bolts (from vehicle frame)
- (2) Existing M12 Bolts (from vehicle frame)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75579
- 87451
- 44586
Tools Required:
- Wrenches: 13mm, 15mm, 18mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the bolt attaching the rearmost hanger bracket to the passenger-side frame rail.
- Retain the bolt for reinstallation.
-
Install Plastic Loom (if applicable):
- Snap the plastic loom in place over the air conditioning line near the bolt (if present) to protect it. See Figure 2.
-
Remove Existing Bolts:
- On the driver's side, remove three (3) bolts from the frame rail.
- On the passenger's side, remove two (2) bolts.
- Retain all bolts for hitch installation.
-
Remove Plastic Rivet (Driver's Side):
- Remove the plastic rivet securing the plastic mud flap to the driver's side frame rail.
- After hitch installation, trim the plastic corner of the mud flap if necessary.
- Do not reinstall the plastic rivet.
-
Raise the Hitch:
- Position the hitch and secure it with the bolts removed in Step 3.
- Hand-tighten the fasteners.
-
Align Hitch:
- Push the hitch toward the driver's side so the passenger-side bracket contacts the trunk pan.
-
Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 53 lb-ft (72 N·m).
- Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall the bolt removed in Step 1.
Note: Rotating the exhaust hanger bracket before tightening will provide additional clearance between the hitch bracket and exhaust.
Hardware List:
- (5) Existing M10 Bolts (from vehicle frame)
- (2) Existing M12 Bolts (from vehicle frame)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter for Chrysler Town & Country
Part Numbers:
- 118534
Tools Required:
- Torx-30
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear tailgate to access the screws securing the taillights.
- Remove the T-30 Torx screws and carefully pry the taillight housings rearward, avoiding damage to the alignment tabs.
-
Disconnect the Wiring Harness:
- Behind each taillight housing, locate the connection points matching the T-Connector adapter ends.
- Separate the vehicle’s wiring connectors, being careful not to damage the locking tabs.
- Insert the T-Connector end with the yellow wire on the driver’s side between the vehicle wiring connectors and lock into place.
-
Route the Harness:
- On the driver’s side, route the T-Connector harness containing the green wire and the 4-flat connector down the opening behind the taillight.
- Route the 4-flat connector to the center of the vehicle and the green wire underneath to the passenger side.
Warning:
- Avoid routing near hot pipes, heat shields, the fuel tank, or areas where the wire could be pinched or broken.
-
Install the Passenger-Side T-Connector:
- Repeat Step 2 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle or personal damage.
-
Connect the Power Wire:
- On the driver’s side, locate the black 12-gauge power wire from the T-Connector box and attach it to the supplied black wire.
- Route the black wire through the taillight socket, behind the bumper, and along the frame to the engine compartment.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched or damaged.
-
Connect to the Vehicle Battery:
- Disconnect the negative (-) battery terminal.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
-
Mount the Black Box:
- Mount the T-Connector’s black box using the provided double-sided tape.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
- Secure the remaining harness with cable ties.
-
Test the Installation:
- Test the T-Connector with a test light or trailer. Ensure all connections are complete for proper functionality.
-
Reinstall the Taillights:
- Reinstall the taillight assemblies and any items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
- Always wear safety glasses and follow all safety precautions.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Generic Vehicle
Part Numbers:
- 118534
Tools Required:
- Torx-30
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear tailgate to access the screws securing the taillights.
- Remove the T-30 Torx screws and carefully pry the taillight housings rearward, avoiding damage to the alignment tabs.
-
Disconnect the Wiring Harness:
- Behind each taillight housing, locate the connection points matching the T-Connector adapter ends.
- Separate the vehicle’s wiring connectors, being careful not to damage the locking tabs.
- Insert the T-Connector end with the yellow wire on the driver’s side between the vehicle wiring connectors and lock into place.
-
Route the Harness:
- On the driver’s side, route the T-Connector harness containing the green wire and the 4-flat connector down the opening behind the taillight.
- Route the 4-flat connector to the center of the vehicle and the green wire underneath to the passenger side.
Warning:
- Avoid routing near hot pipes, heat shields, the fuel tank, or areas where the wire could be pinched or broken.
-
Install the Passenger-Side T-Connector:
- Repeat Step 2 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle or personal damage.
-
Connect the Power Wire:
- On the driver’s side, locate the black 12-gauge power wire from the T-Connector box and attach it to the supplied black wire.
- Route the black wire through the taillight socket, behind the bumper, and along the frame to the engine compartment.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched or damaged.
-
Connect to the Vehicle Battery:
- Disconnect the negative (-) battery terminal.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
-
Mount the Black Box:
- Mount the T-Connector’s black box using the provided double-sided tape.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
- Secure the remaining harness with cable ties.
-
Test the Installation:
- Test the T-Connector with a test light or trailer. Ensure all connections are complete for proper functionality.
-
Reinstall the Taillights:
- Reinstall the taillight assemblies and any items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
- Always wear safety glasses and follow all safety precautions.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Note: Refer to the vehicle owner’s manual and instruction sheet for additional details.
