Trailer Tow Hitch For 2000 Toyota Tundra without Factory Towable Bumper w/ Wiring Harness Kit
Model: 75105 118367Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2000 Toyota, Tundra, without Factory Towable Bumper
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118367 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 00 2000
$272 46 $421.72 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$421.72 $272 46
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75105 118367

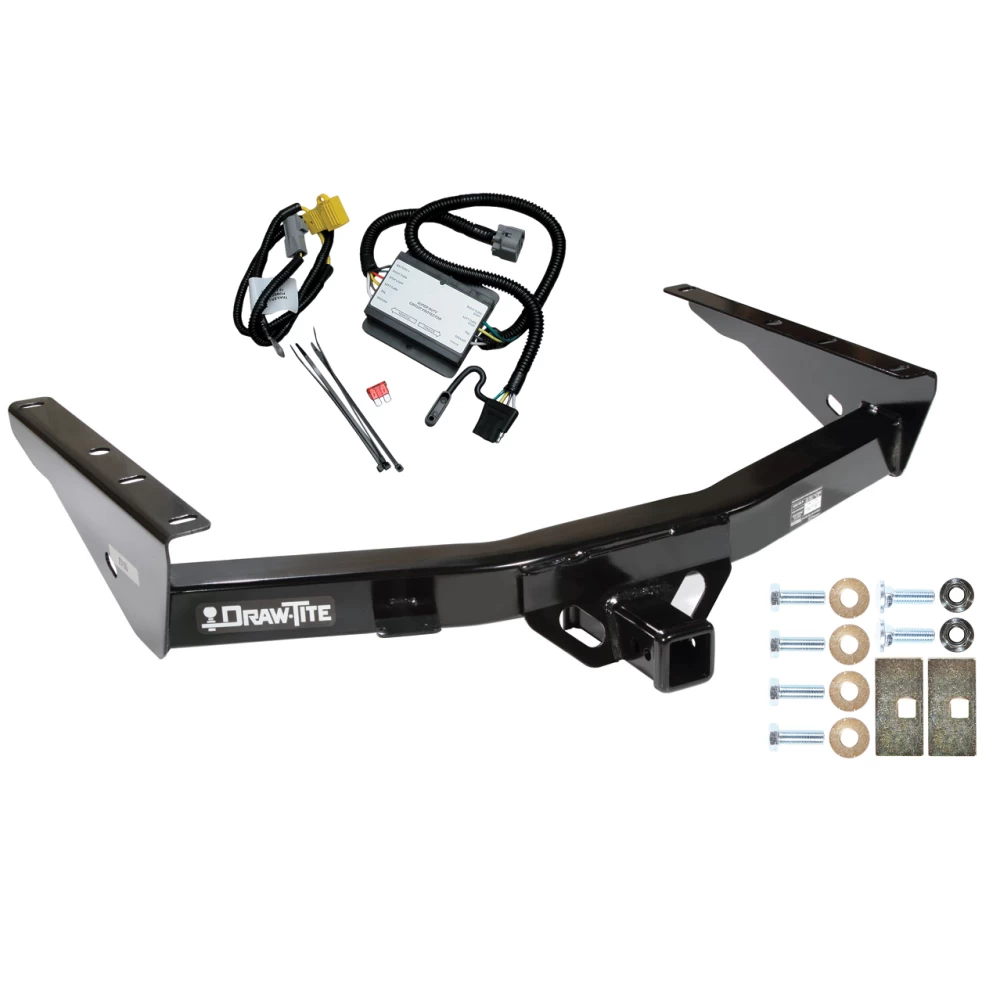

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
2000 - 2000 | Toyota | Tundra | All, Excluding factory towable bumper |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 7,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 750 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2000 Toyota, Tundra, without Factory Towable Bumper
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118367 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 00 2000
Get Expert Help
Trailer Tow Hitch For 2000 Toyota Tundra without Factory Towable Bumper w/ Wiring Harness Kit Install Notes
Installation Instructions for Toyota Tundra
Part Numbers:
- 33049
- 75105
- 87588
Installation Time:
- Not specified.
Tools Required:
- 3/4” Socket
- 18mm Socket
- Torque Wrench
Step-by-Step Instructions:
-
Position Receiver:
- Lift the receiver up to the frame of the vehicle.
- Locate the large holes in the receiver brackets over the rivet heads in the frame.
-
Install Hex Bolts:
- Place four (4) 1/2” serrated washers over four (4) 12mm hex bolts.
- Insert the bolts up through the receiver brackets and into the weld nuts in the frame.
-
Install Carriage Bolts:
- Place two (2) bolt plates over two (2) 1/2” carriage bolts.
- Insert the bolts down through the frame and the receiver brackets.
- Secure each bolt with a 1/2” serrated washer and 1/2” lock nut.
-
Tighten Fasteners:
- Torque the 12mm bolts to 75 Lb.-Ft.
- Torque the 1/2” nuts to 75 Lb.-Ft.
Hardware List:
- (4) 12mm Hex Bolts
- (4) 1/2” Serrated Washers
- (2) 1/2” Carriage Bolts
- (2) Bolt Plates
- (2) 1/2” Lock Nuts
Safety Notes:
- Do not lubricate threads; bolt failure may occur due to over-tightening.
- Do not drill or weld to the hitch.
- Use only Towing Products supplied or approved bolts, locknuts, and washers.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb.
- Max Tongue Weight: 500 lb.
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb.
- Max Tongue Weight: 750 lb.
- This product complies with safety specifications and requirements for the State of New York and VESC Regulation V-5.
Warranty Information:
- Towing Products warrants its hitches and custom hitch receivers for the life of the original consumer purchaser against defects in material and workmanship.
- Labor charges and damages incurred during installation or replacement are not covered.
- Misuse, abuse, neglect, improper installation, or failure to follow instructions will void the warranty.
- Contact Towing Products for assistance:
- USA: 800-632-3290
- Canada: 800-565-0351
Installation Instructions for Toyota Tundra Hitch Receiver
Part Numbers:
- 33049
- 75105
- 87588
Installation Time:
- Not specified.
Tools Required:
- 3/4” Socket
- 18mm Socket
- Torque Wrench
Step-by-Step Instructions:
1. Position Receiver:
- Lift the receiver up to the frame of the vehicle.
- Locate the large holes in the receiver brackets over the rivet heads in the frame.
2. Install Hex Bolts:
- Place four (4) 1/2” serrated washers over four (4) 12mm hex bolts.
- Insert the bolts up through the receiver brackets and into the weld nuts in the frame.
3. Install Carriage Bolts:
- Place two (2) bolt plates over two (2) 1/2” carriage bolts.
- Insert the bolts down through the frame and the receiver brackets.
- Secure each bolt with a 1/2” serrated washer and 1/2” lock nut.
4. Tighten Fasteners:
- Torque the 12mm bolts to 75 Lb.-Ft.
- Torque the 1/2” nuts to 75 Lb.-Ft.
Hardware List:
- (4) 12mm Hex Bolts
- (4) 1/2” Serrated Washers
- (2) 1/2” Carriage Bolts
- (2) Bolt Plates
- (2) 1/2” Lock Nuts
Safety Notes:
- Do not lubricate threads; bolt failure may occur due to over-tightening.
- Do not drill or weld to the hitch.
- Use only manufacturer-supplied or approved bolts, locknuts, and washers.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb.
- Max Tongue Weight: 500 lb.
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb.
- Max Tongue Weight: 750 lb.
- This product complies with safety specifications and requirements for the State of New York and VESC Regulation V-5.
Warranty Information:
- This product is warranted for the life of the original consumer purchaser against defects in material and workmanship.
- Labor charges and damages incurred during installation or replacement are not covered.
- Misuse, abuse, neglect, improper installation, or failure to follow instructions will void the warranty.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118367
Wiring Access Location:
- Underneath the vehicle on the driver’s side near the frame rail and between the bumper and spare tire.
Tools Required:
- Drill with a 3/32" drill bit.
- Tie wraps (provided).
- 50/50 water-alcohol solution for cleaning.
Step-by-Step Instructions:
-
Disconnect the vehicle’s negative battery cable.
-
Temporarily remove the battery hold-down bracket and slide the battery toward the motor to access the area near the fender (Fig. 2).
-
Locate the vehicle’s gray connector between the battery and the fender.
- Remove the cap from the gray connector.
- Install the trailer harness fuse holder connector into the vehicle’s gray connector.
- Tie wrap the gray connector and fuse holder harness to the vehicle’s wiring.
- Return the battery to its original position.
Note: Some vehicles may have a 30-amp trailer harness fuse holder already installed. Remove it and use the yellow fuse holder and 10-amp fuse provided (15-amp maximum fuse allowed).
-
Route the trailer harness fuse holder wiring to the positive side of the battery.
- Attach the ring terminal to the positive battery post (Fig. 2).
-
Secure the trailer fuse holder wire with two tie wraps (Fig. 3).
-
Reinstall the battery hold-down bracket.
- Install the 10-amp fuse into the yellow fuse holder.
- Reconnect the vehicle’s negative battery cable.
-
Locate the vehicle’s trailer tow plug under the vehicle near the driver’s side frame rail.
- Remove the cap from the plug.
- Connect the T-Connector harness to the vehicle’s plug (Fig. 4).
-
Test the installation with a test light or trailer.
-
Clean the truck mounting surface with a 50/50 water-alcohol solution.
- Use the double-sided tape provided to mount the black converter box to the truck’s end sill (Fig. 6).
-
Secure the T-Connector wire harness to the vehicle’s harness using the provided tie wraps.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Yellow fuse holder.
- 10-amp fuse.
- Double-sided tape.
- Tie wraps.
Safety Notes:
- Verify all connections are complete for proper functionality.
- Overloading circuits can cause fires. Do not exceed the unit’s specifications.
- Ensure all components are securely fastened to avoid damage or rattling.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118367
Wiring Access Location:
- Underneath the vehicle on the driver’s side near the frame rail and between the bumper and spare tire.
Tools Required:
- Drill with a 3/32" drill bit.
- Tie wraps (provided).
- 50/50 water-alcohol solution for cleaning.
Step-by-Step Instructions:
-
Disconnect the Battery
- Disconnect the vehicle’s negative battery cable.
-
Access the Gray Connector
- Temporarily remove the battery hold-down bracket and slide the battery toward the motor to access the area near the fender.
- Locate the vehicle’s gray connector between the battery and the fender.
- Remove the cap from the gray connector.
-
Install the Fuse Holder
- Connect the trailer harness fuse holder to the vehicle’s gray connector.
- Secure the gray connector and fuse holder harness to the vehicle’s wiring with tie wraps.
- Return the battery to its original position.
- Note: If a 30-amp trailer harness fuse holder is pre-installed, replace it with the provided yellow fuse holder and 10-amp fuse (15-amp maximum fuse allowed).
-
Attach to the Battery
- Route the trailer harness fuse holder wiring to the positive side of the battery.
- Attach the ring terminal to the positive battery post.
- Secure the trailer fuse holder wire with tie wraps.
-
Reinstall the Battery Hold-Down Bracket
- Reinstall the battery hold-down bracket.
- Install the 10-amp fuse into the yellow fuse holder.
- Reconnect the vehicle’s negative battery cable.
-
Connect the T-Connector Harness
- Locate the vehicle’s trailer tow plug under the vehicle near the driver’s side frame rail.
- Remove the cap from the plug and connect the T-Connector harness to the vehicle’s plug.
-
Test the Installation
- Use a test light or trailer to verify proper functionality of the installation.
-
Mount the Converter Box
- Clean the truck mounting surface with a 50/50 water-alcohol solution.
- Use the provided double-sided tape to mount the black converter box to the truck’s end sill.
-
Secure the Wiring
- Secure the T-Connector wire harness to the vehicle’s harness using the provided tie wraps.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Hardware List:
- T-Connector adapter.
- Yellow fuse holder.
- 10-amp fuse.
- Double-sided tape.
- Tie wraps.
Safety Notes:
- Verify all connections are complete for proper functionality.
- Avoid overloading circuits, as it can cause damage or fires.
- Ensure all components are securely fastened to prevent damage or rattling during operation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information: For complete warranty instructions, refer to the full installation PDF.
Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
