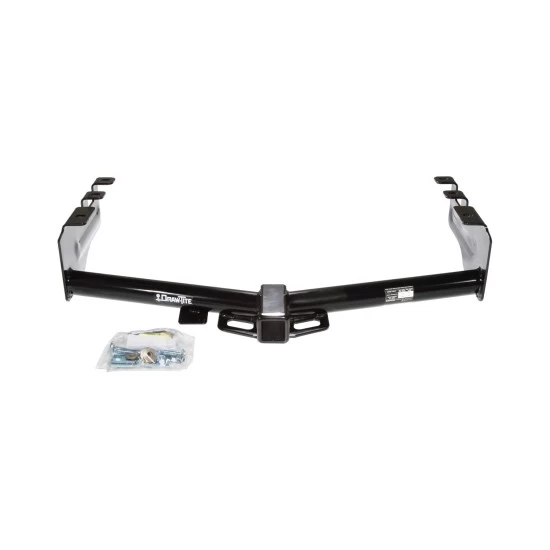

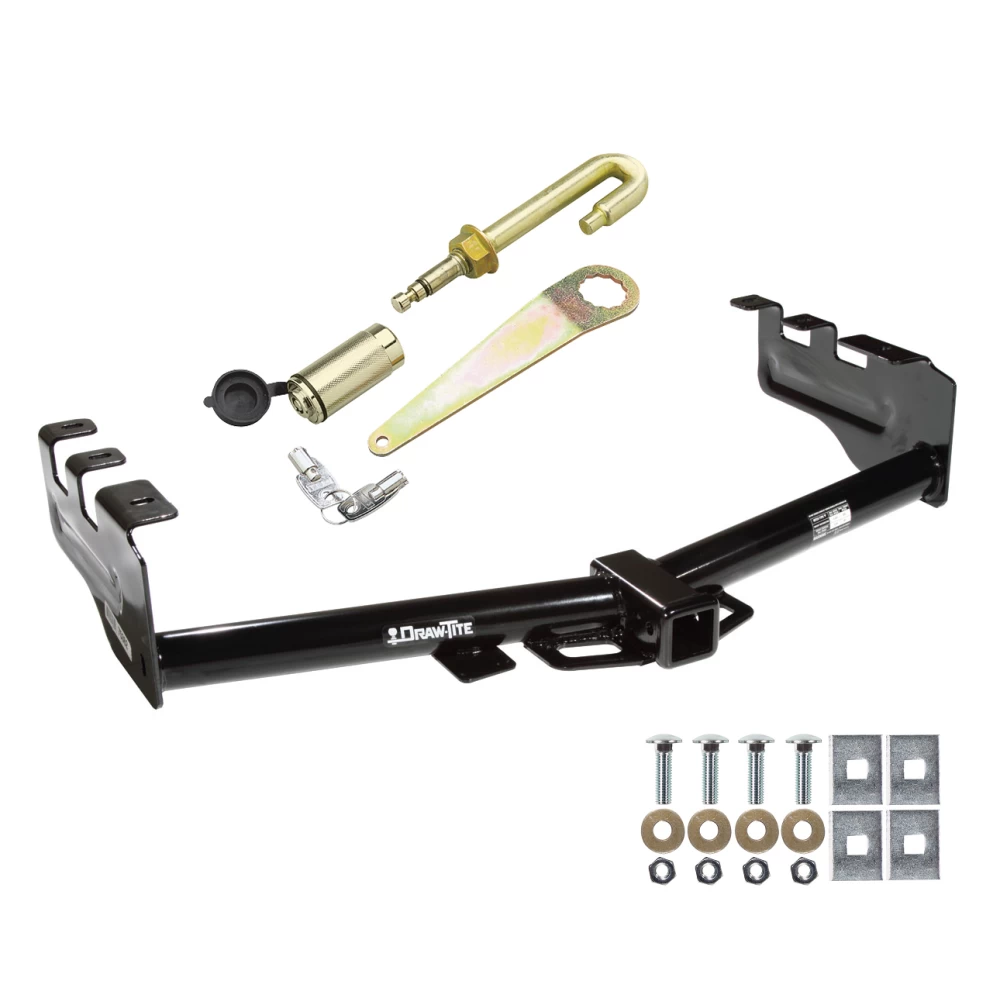

Trailer Tow Hitch For 99‑13 Chevy Silverado GMC Sierra 1500 and 99‑04 2500 LD w/ J‑Pin Anti‑Rattle Lock
Model: 75362 63201Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500 LD, All Styles
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2007 - 2013 GMC, Sierra 1500, All Styles
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500 LD, All Styles
Trailer Hitch Specs:
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
$247 28 $393.65 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$393.65 $247 28
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75362 63201
- Includes: Class 4 Trailer Tow Hitch, J-Pin Anti-Rattle Device
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 6,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 8,000 lbs. |
Hitch Class | IV |
Material | Steel |
Maximum Tongue Weight | 900 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 900 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500 LD, All Styles
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2007 - 2013 GMC, Sierra 1500, All Styles
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500 LD, All Styles
Trailer Hitch Specs:
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
Get Expert Help
Trailer Tow Hitch For 99-13 Chevy Silverado GMC Sierra 1500 and 99-04 2500 LD w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for Chevrolet Silverado and GMC Sierra Pickups
(Requires OEM Bumper)
Part Numbers:
- 75362
- 44564
- 87186
Tools Required:
- Wrenches: 3/4", 7/8", 21mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position the Hitch:
- Lift the hitch receiver into position, ensuring the rearmost slots in the hitch align with the existing weldnuts in the vehicle frame.
-
Reinstall M14 Bolts:
- Reinstall the M14 bolts through the hitch receiver and frame into the existing weldnuts.
-
Install Additional Fasteners:
- Secure the hitch with the provided carriage bolts, spacer blocks, conical washers, and hex nuts as shown in the diagram.
-
Torque Specifications:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m).

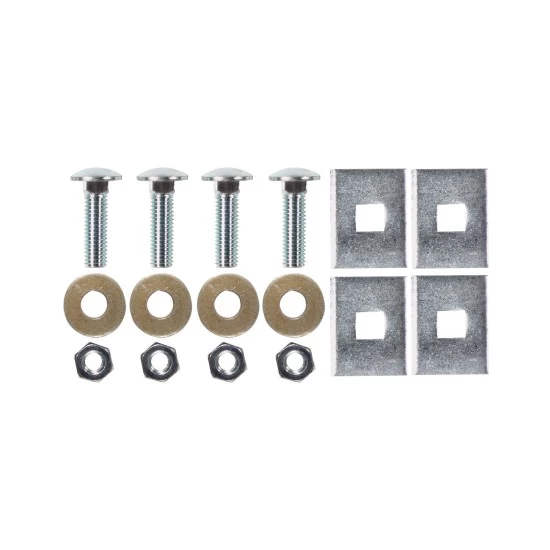

Hardware List:
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 1/2" Conical Washers
- (4) 1/2"-13 Hex Nuts
- (4) Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Pickups (Generic)
(Requires OEM Bumper)
Part Numbers:
- 75362
- 44564
- 87186
Tools Required:
- Wrenches: 3/4", 7/8", 21mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position the Hitch:
- Lift the hitch receiver into position, ensuring the rearmost slots in the hitch align with the existing weldnuts in the vehicle frame.
-
Reinstall M14 Bolts:
- Reinstall the M14 bolts through the hitch receiver and frame into the existing weldnuts.
-
Install Additional Fasteners:
- Secure the hitch with the provided carriage bolts, spacer blocks, conical washers, and hex nuts as shown in the diagram.
-
Torque Specifications:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
Hardware List:
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 1/2" Conical Washers
- (4) 1/2"-13 Hex Nuts
- (4) Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
