Trailer Tow Hitch For 99-13 Chevy Silverado GMC Sierra 1500 and 99-04 2500 LD w/ J-Pin Anti-Rattle Lock
$247.27
- Stock: Pre-Order
- Manufacturer: Draw-Tite
- Model: 75521 63201

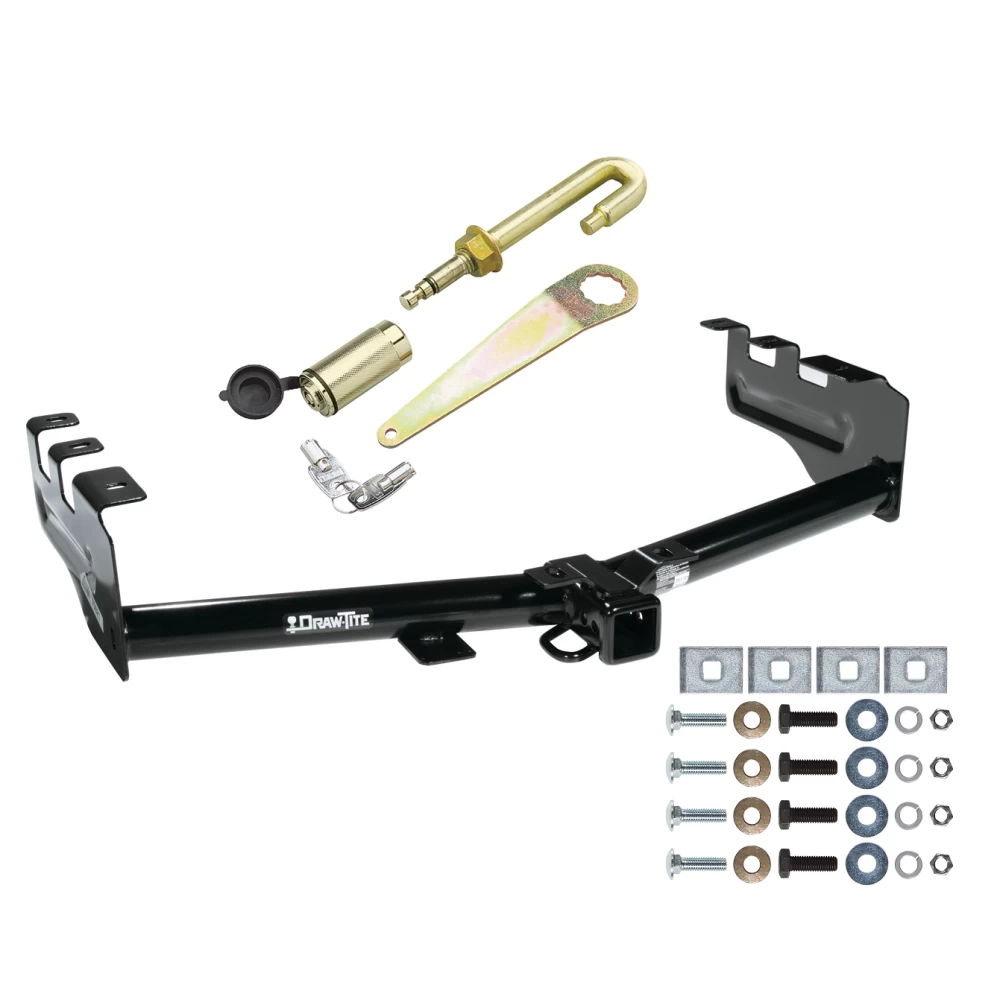

Includes Everything Pictured:
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, Light Duty Only
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2007 - 2013 GMC, Sierra 1500, All Styles
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500, Light Duty Only
Trailer Hitch Specs:
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, Light Duty Only
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
2007 - 2013 GMC, Sierra 1500, All Styles
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, (Classic)
1999 - 2004 GMC, Sierra 2500, Light Duty Only
Trailer Hitch Specs:
| Part Number | 75521 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,500 lbs |
| Max Tongue Weight | 900/1,050 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
