Trailer Tow Hitch For 09‑17 Volkswagen Tiguan Receiver w/ 1‑7/8" and 2" Ball
Model: 75658* 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2017 Volkswagen, Tiguan, All Styles
Trailer Hitch Specs:
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$135 65 $210.31 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$210.31 $135 65
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $33.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75658* 23 63845 63816

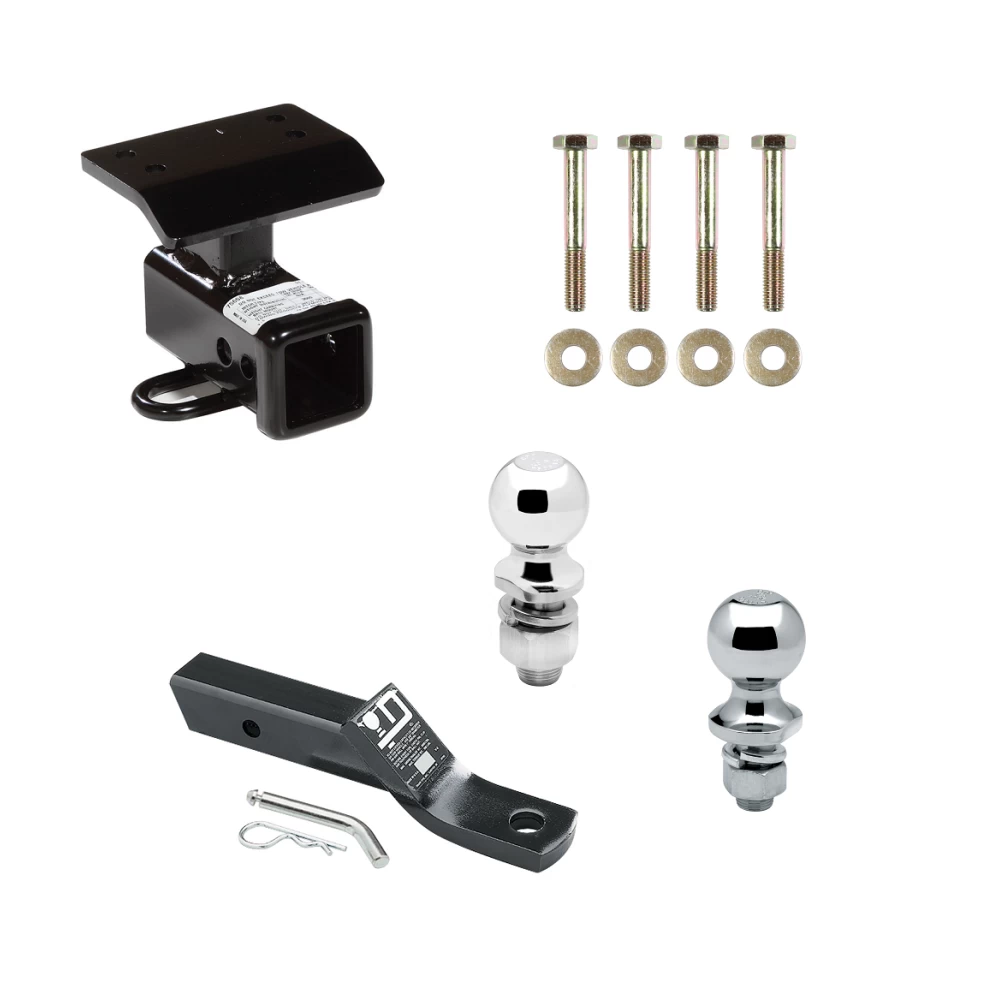

- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2017 Volkswagen, Tiguan, All Styles
Trailer Hitch Specs:
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 350 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 09-17 Volkswagen Tiguan Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.
Hardware List:

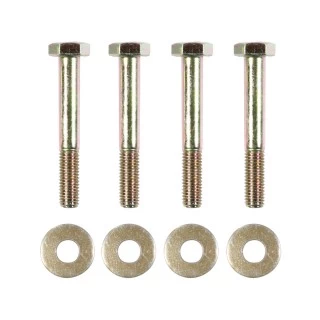

- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Fascia trimming is required for this installation. Ensure the cut is precise and approved by the vehicle owner beforehand.
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.
Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
