95‑09 Dodge Ram 1500 2500 3500 98‑09 Durango Dakota Aspen Trailer Brake Control Wiring 2‑Plug Adapter Connector Plug Play
Model: 30202007 - 2009 Chrysler, Aspen, w/Factory Tow Package
1997 - 2010 Dodge, Dakota, w/Factory Tow Package
1998 - 2009 Dodge, Durango, w/Factory Tow Package
1995 - 2009 Dodge, Ram 1500, All Styles
1995 - 2009 Dodge, Ram 2500, All Styles
1995 - 2009 Dodge, Ram 3500, All Styles
2011 RAM, Dakota, w/Factory Tow Package

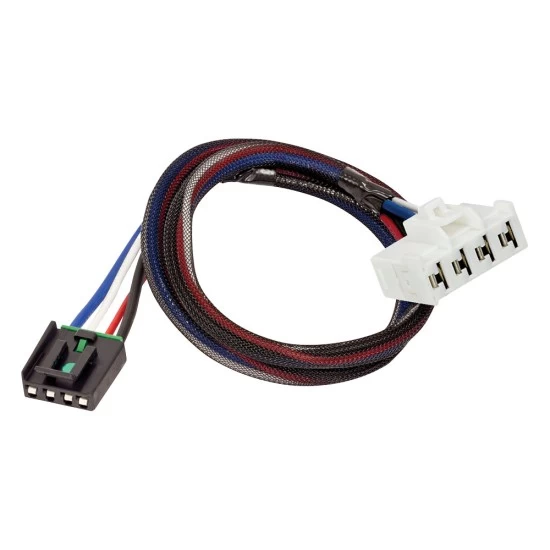

Direct Plug & Play Brake Control Wiring Kit
| Part Number | 3020 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer brake control systems. Our trailer brake control wiring kits are vehicle specific, require no splicing or cutting of the wires. Simply plug & play this adapter into your brake controller and into your vehicles port and you are done. This brake control harness comes with a 1 year warranty.
Compatiable with Draw-Tite Activator I Activator II Activator III Activator IV I-Stop IQ I-Command Tekonsha Voyager P2 P3 Prodigy Primus IQ PowerTrac Envoy Reese Echelon Brakeman Brakeman IV POD BC Pilot Pro Series Pilot POD Part numbers 5100 5298 5504 74378 74642 74643 80500 80550 83501 83504 20191 39523 5535 90160 90195 9030 90885 and more
Fits all Reese, Tekonsha, Draw-Tite and Pro Series Brake Controllers
Partial list of fitment years:
95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
$20 86
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$20 86
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $5.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 3020
- UPC: 016118102079
- Includes: Trailer Brake Controller Custom Harness
Compatibility Chart
Description
2007 - 2009 Chrysler, Aspen, w/Factory Tow Package
1997 - 2010 Dodge, Dakota, w/Factory Tow Package
1998 - 2009 Dodge, Durango, w/Factory Tow Package
1995 - 2009 Dodge, Ram 1500, All Styles
1995 - 2009 Dodge, Ram 2500, All Styles
1995 - 2009 Dodge, Ram 3500, All Styles
2011 RAM, Dakota, w/Factory Tow Package
Direct Plug & Play Brake Control Wiring Kit
| Part Number | 3020 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer brake control systems. Our trailer brake control wiring kits are vehicle specific, require no splicing or cutting of the wires. Simply plug & play this adapter into your brake controller and into your vehicles port and you are done. This brake control harness comes with a 1 year warranty.
Compatiable with Draw-Tite Activator I Activator II Activator III Activator IV I-Stop IQ I-Command Tekonsha Voyager P2 P3 Prodigy Primus IQ PowerTrac Envoy Reese Echelon Brakeman Brakeman IV POD BC Pilot Pro Series Pilot POD Part numbers 5100 5298 5504 74378 74642 74643 80500 80550 83501 83504 20191 39523 5535 90160 90195 9030 90885 and more
Fits all Reese, Tekonsha, Draw-Tite and Pro Series Brake Controllers
Partial list of fitment years:
95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
Get Expert Help
95-09 Dodge Ram 1500 2500 3500 98-09 Durango Dakota Aspen Trailer Brake Control Wiring 2-Plug Adapter Connector Plug Play Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness Connector
- The electric brake control harness connector is located:
- Underneath the dashboard
- To the left of the steering column, near the emergency brake pedal.
- It is typically taped to another harness and will feature a 4-pin connector that matches the adapter’s connector.
Step 2: Connect the Adapter
- Plug the brake control adapter into the 4-pin connector on the vehicle’s brake control harness.
- Connect the opposite end of the adapter to the brake controller.
- Follow the brake control manufacturer’s installation instructions for wiring and mounting the unit.
CAUTION:
Plug the adapter into the brake controller before attaching it to the vehicle connector.
Step 3: Complete Installation and Testing
- Mount the brake controller as per the manufacturer’s instructions.
- Perform all test procedures recommended by the brake controller manufacturer to verify proper operation.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Follow the lower of the towing manufacturer’s rating or the above maximum.
- Always refer to the vehicle owner’s manual and the brake controller instructions for proper installation and operation.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal to the brake controller.
- Fused Battery Feed: Supplies power to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Ground: Connects the brake controller to vehicle ground.
Final Notes:
- Periodically check all connections to ensure they remain secure and free of corrosion.
- Avoid exceeding the electrical limits specified for the towing system.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness Connector
- The electric brake control harness connector is located:
- Underneath the dashboard
- To the left of the steering column, near the emergency brake pedal.
- It is typically taped to another harness and will feature a 4-pin connector that matches the adapter’s connector.
Step 2: Connect the Adapter
- Plug the brake control adapter into the 4-pin connector on the vehicle’s brake control harness.
- Connect the opposite end of the adapter to the brake controller.
- Follow the brake control manufacturer’s installation instructions for wiring and mounting the unit.
CAUTION:
Plug the adapter into the brake controller before attaching it to the vehicle connector.
Step 3: Complete Installation and Testing
- Mount the brake controller as per the manufacturer’s instructions.
- Perform all test procedures recommended by the brake controller manufacturer to verify proper operation.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Follow the lower of the towing manufacturer’s rating or the above maximum.
- Always refer to the vehicle owner’s manual and the brake controller instructions for proper installation and operation.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal to the brake controller.
- Fused Battery Feed: Supplies power to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Ground: Connects the brake controller to vehicle ground.
Final Notes:
- Periodically check all connections to ensure they remain secure and free of corrosion.
- Avoid exceeding the electrical limits specified for the towing system.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
