For 2005‑2024 Nissan Frontier Trailer Hitch Tow PKG w/ Tekonsha Prodigy P3 Brake Control + Plug & Play BC Adapter + 7‑Way RV Wiring By Draw‑Tite
Model: 75282 118266 20212 90195 3050-PThis Bundle Fits The Following Vehicles:
2005-2024 Nissan, Frontier, All Styles

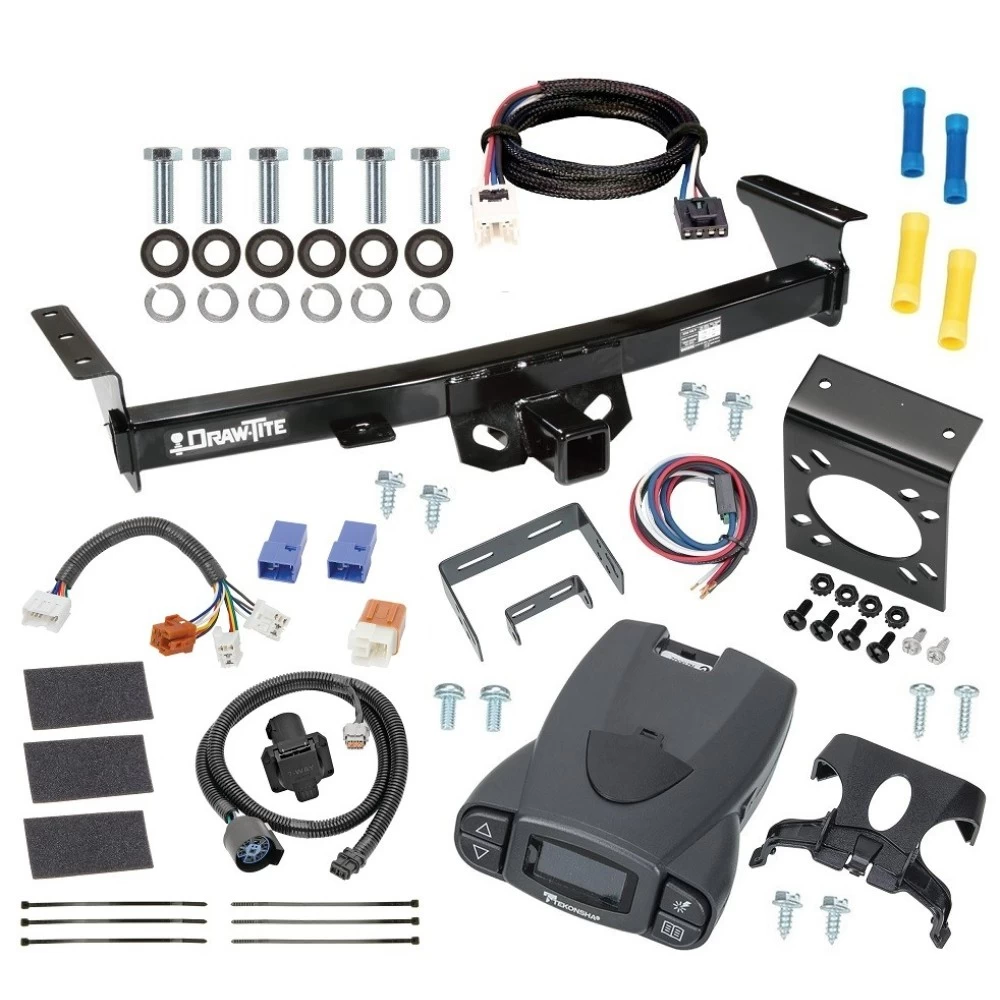

This Bundle Includes the Following Parts:
Trailer Hitch
Tekonsha Prodigy P3 Brake Control
Plug & Play BC Adapter
7-Way RV Wiring
List of fitment years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 2024
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Nissan Frontier and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 750 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 800 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Suzuki Equator, Nissan Frontier

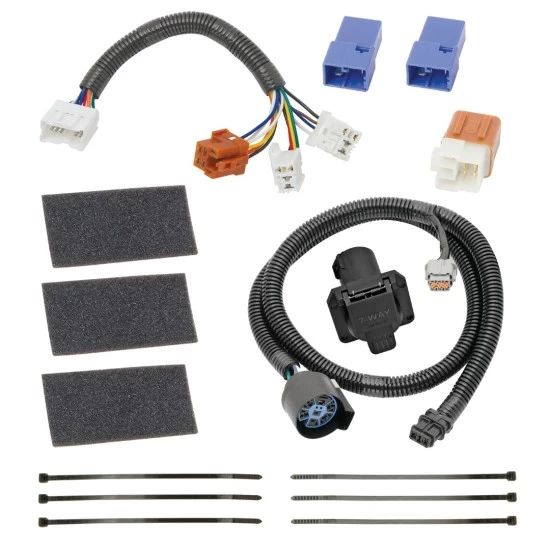

Tow Harness, 7-Way Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.
• Exact replacement for damaged factory wiring harnesses
• Installs in seconds on vehicles not factory pre-wired
• Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
• Connects directly to standard factory connector
• Attractive point-of-purchase packaging

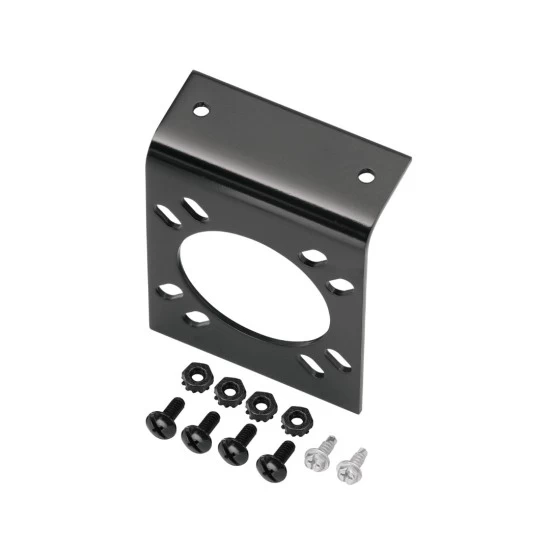

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

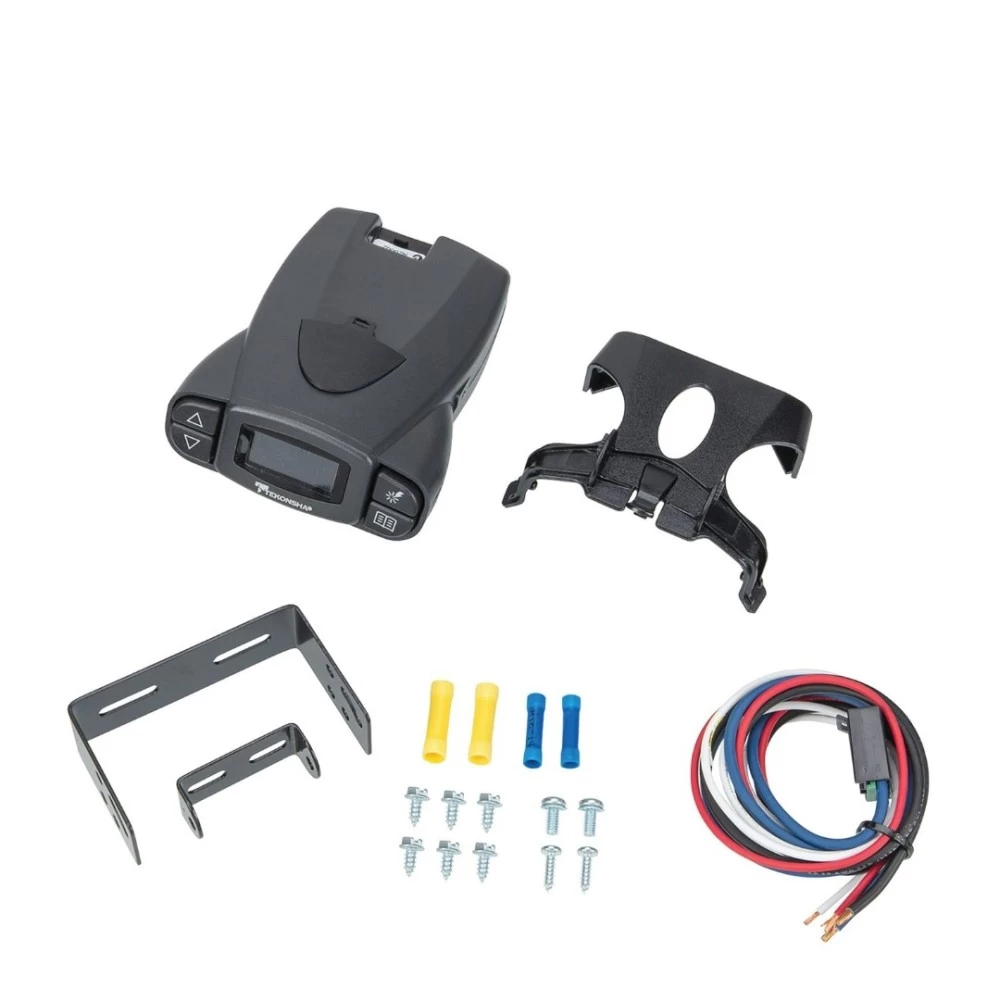

Prodigy P3® Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
• 5 storable setting options for pulling different trailers or preferences of multiple drivers.
• A distinct, easy-to-read LCD display with multiple screen color options.
• Up-Front controls provide easy access to all P3 features.
• Easy to understand diagnostics show output current, battery, brake, and output voltage.
• A flashing red warning system alerts user to No Trailer Brake situations.
• Select Electric over Hydraulic or Electric trailer brake mode.
• Screen information display in English, French or Spanish.
• The Original Boost feature allows for different levels of customized braking.
• Compact, dash-hugging design.
• Integrated Plug-N-Play port for 2-plug adapters.
• Snap-in mounting clip allows user to remove and store the control when not in use.
• Electric trailer brake control for up to 4 braking axles.
• Limited Lifetime Warranty

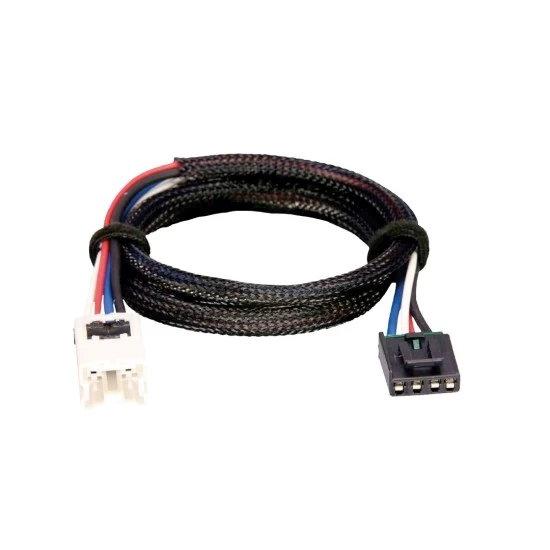

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
$487 35 $733.33 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$733.33 $487 35
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $121.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75282 118266 20212 90195 3050-P
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Trailer Brake Controller Custom Harness, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles, Mounting Bracket
Compatibility Chart
Description
Get Expert Help
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Tekonsha Prodigy P3 Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite Install Notes
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Nissan Pathfinder, Xterra, Frontier, and Equator
Part Numbers:
- 118266
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation:
-
Insert Relays:
- Insert the relays (included) into the relay and fuse harness.
- Note: Using relays other than those provided can result in malfunction or damage to the vehicle or trailer.
-
Locate the Vehicle's 12-Pin Jumper Plug:
- Find the jumper plug inside the vehicle cabin, on the passenger side, behind the kick panel.
-
Remove the Passenger Side Kick Panel:
- Use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards and then toward the rear of the vehicle.
- Remove the kick panel to access the 12-pin jumper plug.
-
Connect the Jumper Harness:
- Insert the jumper harness into the vehicle’s 12-pin connector and lock it in place.
- Secure the jumper harness using the provided cable ties and foam tape to prevent damage or rattling.
-
Reinstall Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation:
-
Locate the Vehicle Tow Plugs:
- Underneath the vehicle, locate the tow plugs near the driver’s side rear tire.
- Remove the protective caps from the tow plugs.
-
Connect the T-Connector:
- Attach the T-Connector to the vehicle’s mating connector.
- Ensure connectors are fully inserted with locking tabs in place.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-way socket in an accessible location using a bracket or electrical box (not included).
- Secure the remainder of the T-Connector harness with the provided cable ties.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Always wear safety glasses and use appropriate precautions during installation.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118266
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation:
-
Insert Relays:
- Insert the relays (included) into the relay and fuse harness.
- Note: Using relays other than those provided can result in malfunction or damage to the vehicle or trailer.
-
Locate the Vehicle's 12-Pin Jumper Plug:
- Find the jumper plug inside the vehicle cabin, on the passenger side, behind the kick panel.
-
Remove the Passenger Side Kick Panel:
- Use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards and then toward the rear of the vehicle.
- Remove the kick panel to access the 12-pin jumper plug.
-
Connect the Jumper Harness:
- Insert the jumper harness into the vehicle’s 12-pin connector and lock it in place.
- Secure the jumper harness using the provided cable ties and foam tape to prevent damage or rattling.
-
Reinstall Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation:
-
Locate the Vehicle Tow Plugs:
- Underneath the vehicle, locate the tow plugs near the driver’s side rear tire.
- Remove the protective caps from the tow plugs.
-
Connect the T-Connector:
- Attach the T-Connector to the vehicle’s mating connector.
- Ensure connectors are fully inserted with locking tabs in place.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-way socket in an accessible location using a bracket or electrical box (not included).
- Secure the remainder of the T-Connector harness with the provided cable ties.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Always wear safety glasses and use appropriate precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Brake Control Harness
- The electric brake control harness is located:
- Underneath and to the left of the steering column.
- It is typically taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the plug on the adapter.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for:
- Wiring the adapter to the brake controller, and
- Mounting the brake controller securely.
Step 3: Finalize the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller as directed.
- Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles Without an OEM Trailer Tow Package:
- Additional fuses and relays may be required to complete the output and battery feed circuits.
- Refer to the vehicle owner’s manual for fuse and relay locations.
Safety Warnings:
- Overloading Circuits May Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.
Wiring Overview:
- Fused Battery Feed: Supplies power to the brake controller.
- Stop Lamp Switch (Input): Provides braking signal from the vehicle.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Ground: Ensures proper grounding for the system.
Final Notes:
- Periodically inspect all connections and wires for signs of damage or wear.
- Ensure the system operates correctly before towing.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Brake Control Harness
- The electric brake control harness is located:
- Underneath and to the left of the steering column.
- It is typically taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the plug on the adapter.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for:
- Wiring the adapter to the brake controller, and
- Mounting the brake controller securely.
Step 3: Finalize the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller as directed.
- Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles Without an OEM Trailer Tow Package:
- Additional fuses and relays may be required to complete the output and battery feed circuits.
- Refer to the vehicle owner’s manual for fuse and relay locations.
Safety Warnings:
- Overloading Circuits May Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.
Wiring Overview:
- Fused Battery Feed: Supplies power to the brake controller.
- Stop Lamp Switch (Input): Provides braking signal from the vehicle.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Ground: Ensures proper grounding for the system.
Final Notes:
- Periodically inspect all connections and wires for signs of damage or wear.
- Ensure the system operates correctly before towing.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| No trailer brakes | Poor ground or power loss | Check power and ground connections. |
| Brakes lock up | Power too high | Reduce the power setting. |
| Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
| Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
| Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Related Products
-250x250.webp "Reese Trailer Hitch Lock 360 degree Rotating Head Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
-250x250.webp "Reese Trailer Hitch Lock Black Nickel Dog Bone Style Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
-250x250.webp "Reese Trailer Hitch Lock Dog Bone Tongue Tow Receiver 1/2\" and 5/8\" Pin For 2\" and 1-1/4\" Receivers")
