Product Details
- Brand: Reese
- Model: 77244
- UPC: 042899407119
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 10-13 Mazda 3 Sedan 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Mazda 3 (4-Door)
Part Numbers:
- 24842
- 60258
- 77244
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wire (Provided)
- Wrenches: 11/16", 9/16", 10mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Fascia Tabs' Forward Fasteners:
- Detach the forward attachment fasteners of the fascia tabs.
-
Fishwire Carriage Bolts and Blocks:
- Use the pull wires to guide the carriage bolts and blocks into the frame rails through the access holes.
- Leave the pull wire attached for alignment during installation.
-
Raise Hitch into Position:
- Lift the hitch into position over the fascia tabs.
- Thread the pull wires through adjacent holes in the hitch and remove the pull wires.
- Attach conical washers and hex nuts finger-tight only. Ensure the fasteners are not pushed back into the frame rail.
-
Install Remaining Fasteners:
- Attach the remaining fasteners as shown in the instructions.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- 7/16"-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- 3/8"-16 GR5 fasteners: 30 Lb.-Ft. (41 N*M)
- Torque all fasteners to the specified values:
-
Reattach Fascia Straps:
- Replace and secure the fascia straps to their original position.

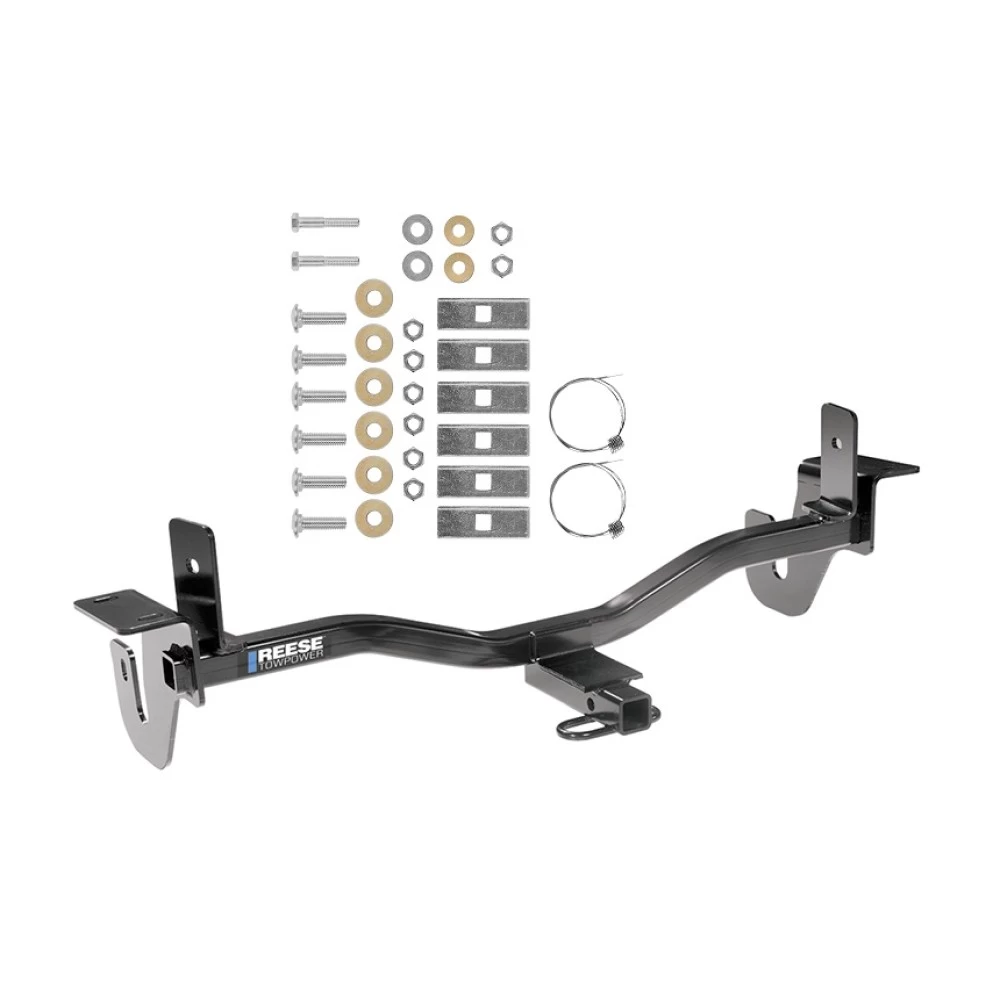

Hardware List:
- (6) Carriage Bolts: 7/16"-14 x 1-1/2” GR5
- (2) Hex Bolts: 3/8"-16 x 2.00” GR5
- (6) Spacers
- (6) Conical Washers: 7/16”
- (2) Conical Washers: 3/8”
- (6) Hex Nuts: 7/16"-14
- (2) Hex Nuts: 3/8"-16
- (2) Flat Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Verify that all bolts and components are properly aligned before final tightening.
Installation Instructions
Part Numbers:
- 24842
- 60258
- 77244
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wire (Provided)
- Wrenches: 11/16", 9/16", 10mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Fascia Tabs' Forward Fasteners:
- Detach the forward attachment fasteners of the fascia tabs.
-
Fishwire Carriage Bolts and Blocks:
- Use the pull wires to guide the carriage bolts and blocks into the frame rails through the access holes.
- Leave the pull wire attached for alignment during installation.
-
Raise Hitch into Position:
- Lift the hitch into position over the fascia tabs.
- Thread the pull wires through adjacent holes in the hitch and remove the pull wires.
- Attach conical washers and hex nuts finger-tight only. Ensure the fasteners are not pushed back into the frame rail.
-
Install Remaining Fasteners:
- Attach the remaining fasteners as shown in the instructions.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- 7/16"-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- 3/8"-16 GR5 fasteners: 30 Lb.-Ft. (41 N*M)
- Torque all fasteners to the specified values:
-
Reattach Fascia Straps:
- Replace and secure the fascia straps to their original position.
Hardware List:
- (6) Carriage Bolts: 7/16"-14 x 1-1/2” GR5
- (2) Hex Bolts: 3/8"-16 x 2.00” GR5
- (6) Spacers
- (6) Conical Washers: 7/16”
- (2) Conical Washers: 3/8”
- (6) Hex Nuts: 7/16"-14
- (2) Hex Nuts: 3/8"-16
- (2) Flat Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Verify that all bolts and components are properly aligned before final tightening.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
