Trailer Wiring Harness Kit For 09‑14 Acura TSX 08‑12 Honda Accord 06‑15 Civic 07‑13 Fit 07‑12 Mitsubishi Galant 04‑13 Mazda 3

Name: Trailer Wiring Harness Kit For 09-14 Acura TSX 08-12 Honda Accord 06-15 Civic 07-13 Fit 07-12 Mitsubishi Galant 04-13 Mazda 3
Brand: Tekonsha
Price: 51.48 USD
Availability: InStock
Rating: 5 (1 reviews)

Model: 118420

This Wiring Fits The Following Vehicles:

2009 - 2014   Acura, TSX, 4 Dr. Sedan
2008 - 2012   Honda, Accord, Coupe
2008 - 2012   Honda, Accord, Sedan
2006 - 2015   Honda, Civic, 4 Dr. Sedan, Except Hybrid & Si
2007 - 2013   Honda, Fit, All Styles
2004 - 2013    Mazda, 3, 4 Dr. Sedan, without Grand Touring LED Taillights
2004 - 2013    Mazda, 3, 5 Dr. Hatchback, without Grand Touring LED Taillights
2007 - 2012   Mitsubishi, Galant, All Styles

Direct Plug & Play Wiring Kit

Part Number	118420
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:
04 05 06 07 08 09 10 11 12 13 14 15 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015

See Full Description

$51 ⁴⁸ $68.39 25% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$68.39 $51 ⁴⁸

Pay in 4 interest-free installments of $12.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $12.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118420
UPC: 016118061185

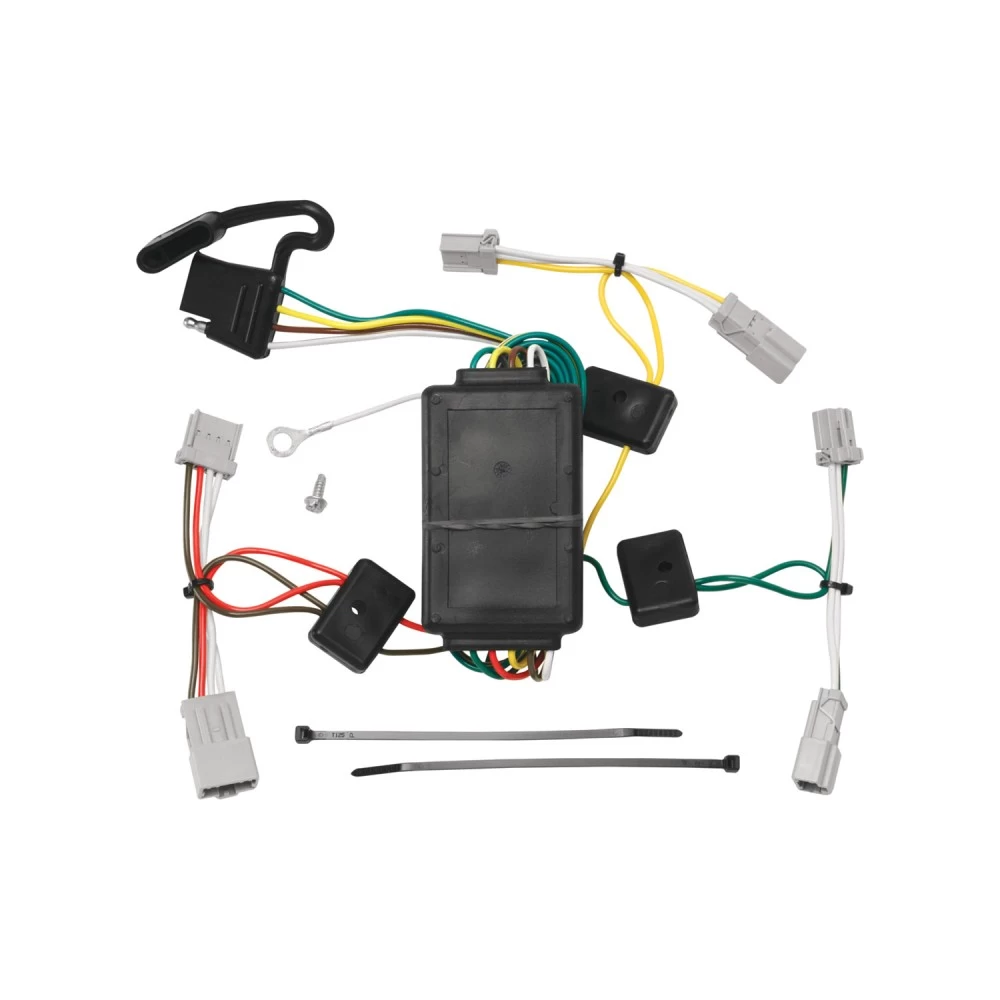

Includes: T-One T-Connector Custom Harness

Compatibility Chart

Specification
Circuit Protected	Yes
Hardware Included	Yes
Harness Type	4-Way Flat (Vehicle Side)
Terminal Quantity	4
Universal Or Specific Fit	Specific Fit
Wire Colors	Brown, Green, Yellow, White
Wire Quantity	4 Wires

Be the first to ask a question.

Description

Part Number	118420
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Tags: 118420 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 09 , 10 , 11 , 12 , 13 , 14 , Acura , TSX , 4 , Door , Sedan , Tekonsha , Trailer , Wiring , Harness

Get Expert Help

Trailer Wiring Harness Kit For 09-14 Acura TSX 08-12 Honda Accord 06-15 Civic 07-13 Fit 07-12 Mitsubishi Galant 04-13 Mazda 3 Install Notes

Installation Instructions for T-Connector Adapter for Honda Fit, Honda Civic 4 Door, Honda Accord Sedan and Mazda 3

Part Numbers:

118420

Tools Required:

Phillips head screwdriver
Trim panel remover
Drill with 3/32” drill bit
1/4” socket

Step-by-Step Instructions:

Access the Rear Cargo Area:
- Open the trunk or hatch and locate the vehicle’s wiring inside the rear cargo area.
- Remove the plastic threshold cover, side access panels, carpet panels, and cargo trays as needed.
- Locate the connection points matching the ends of the T-Connector adapter on the back of each taillight housing.
- Separate the connectors carefully, ensuring no damage to the locking tabs. Clean all surfaces to remove dirt.
Note for 2007-2008 Honda Fit:
- Use the vehicle’s blue 3-pin housing, NOT the green 3-pin housing.
Connect the Driver’s Side T-Connector:
- Attach the T-Connector ends containing the yellow, brown, and red wires to the driver’s side taillight wiring.
- Ensure connectors are fully inserted and the locking tabs are secure.
Route to the Passenger Side:
- Route the T-Connector end containing the green wire below the threshold cover to the passenger’s side taillight housing.
- Repeat step 2 for the passenger’s side using the green wire.
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- If needed, drill a 3/32” hole and secure the white wire using the provided eyelet and screw. Avoid drilling into the vehicle floor or bed. Clean the grounding surface to remove dirt and rustproofing.
Caution:
- Verify what is behind any surface before drilling to avoid damage or personal injury.
- Do not drill into exposed surfaces.
Reinstall Trim and Panels:
- Replace all removed plastic trim panels, the threshold, storage covers, floor covering, and other items.
- Be careful not to pinch or cut the wires during reassembly.
Test the Installation:
- Verify all connections are complete for proper functionality.
- Use a test light or trailer to confirm the T-Connector is working properly.
Store the 4-Flat Connector:
- When not in use, store the 4-flat connector in the trunk or hatch area.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5 amps)

Safety Notes:

Overloading the circuit can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Refer to the vehicle owner’s manual for additional guidance.

Manufacturer Notes:

Follow all warnings and instructions provided with the product.
Use a test light or trailer to confirm proper installation.
